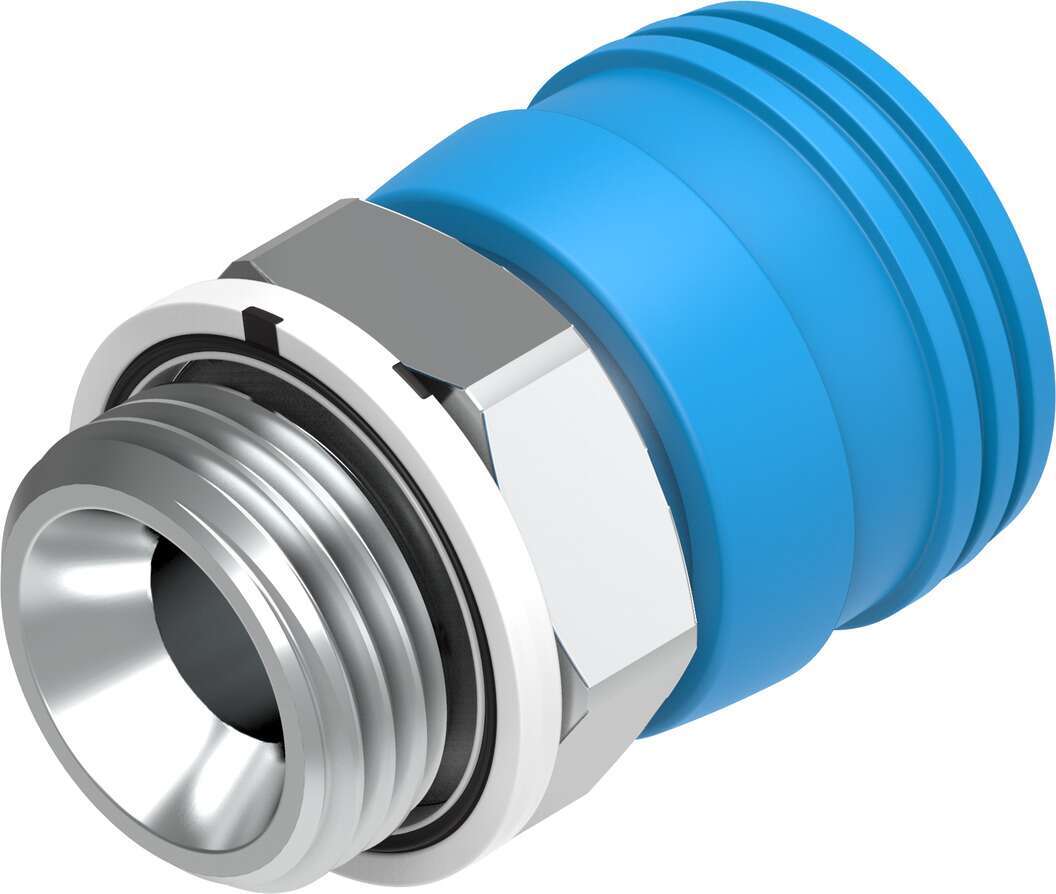

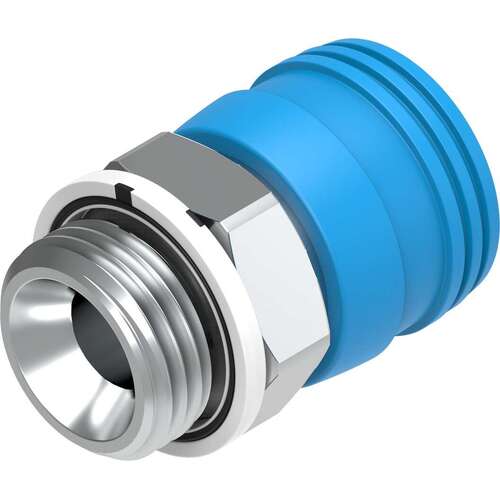

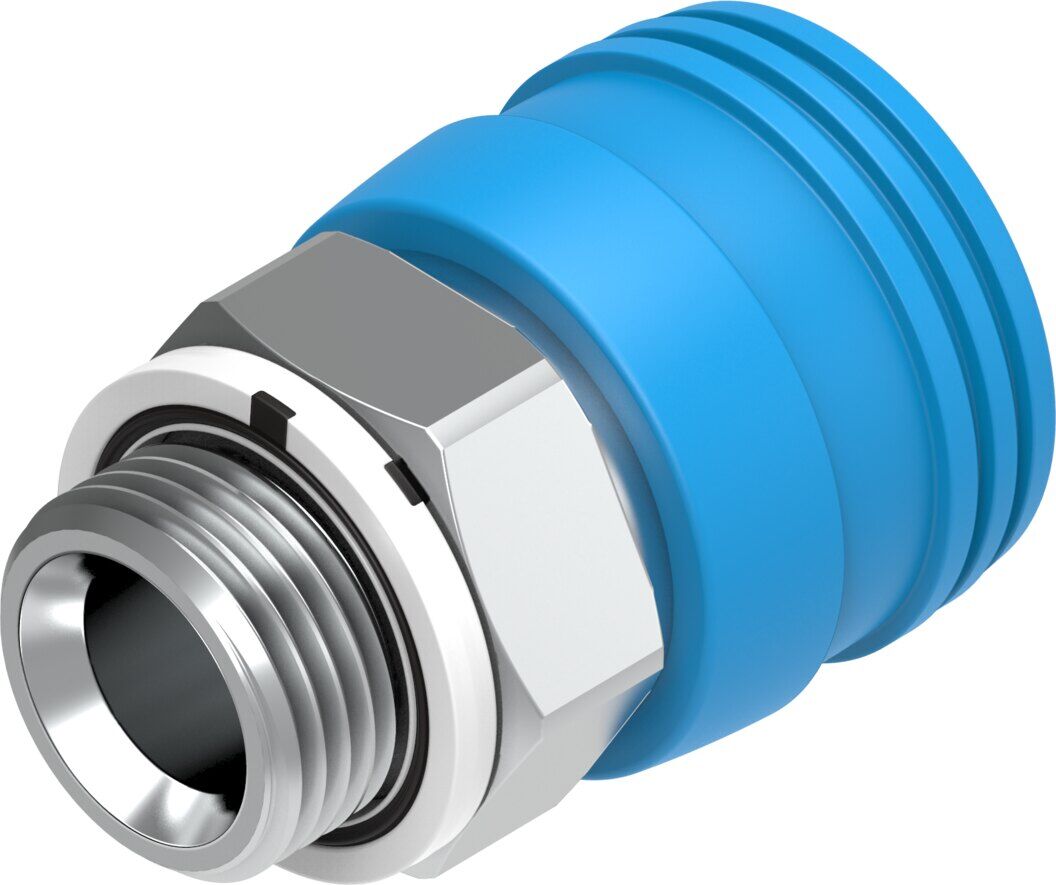

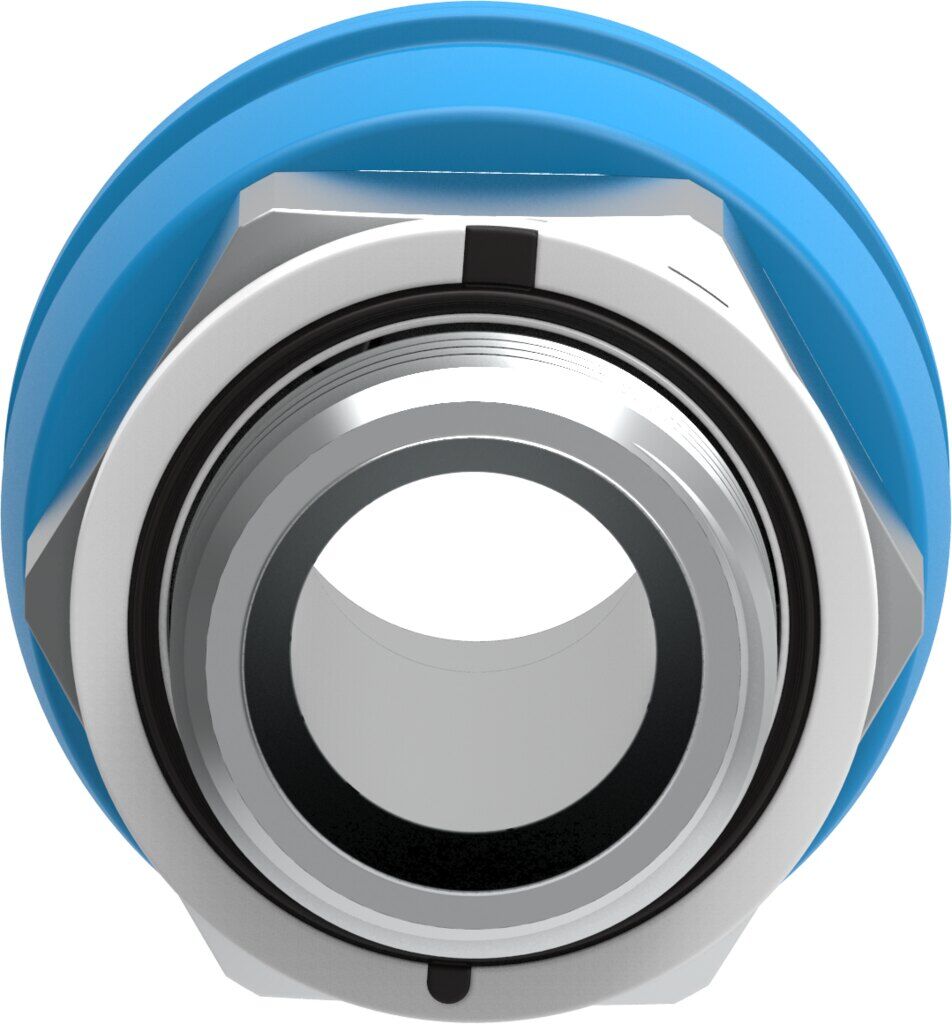

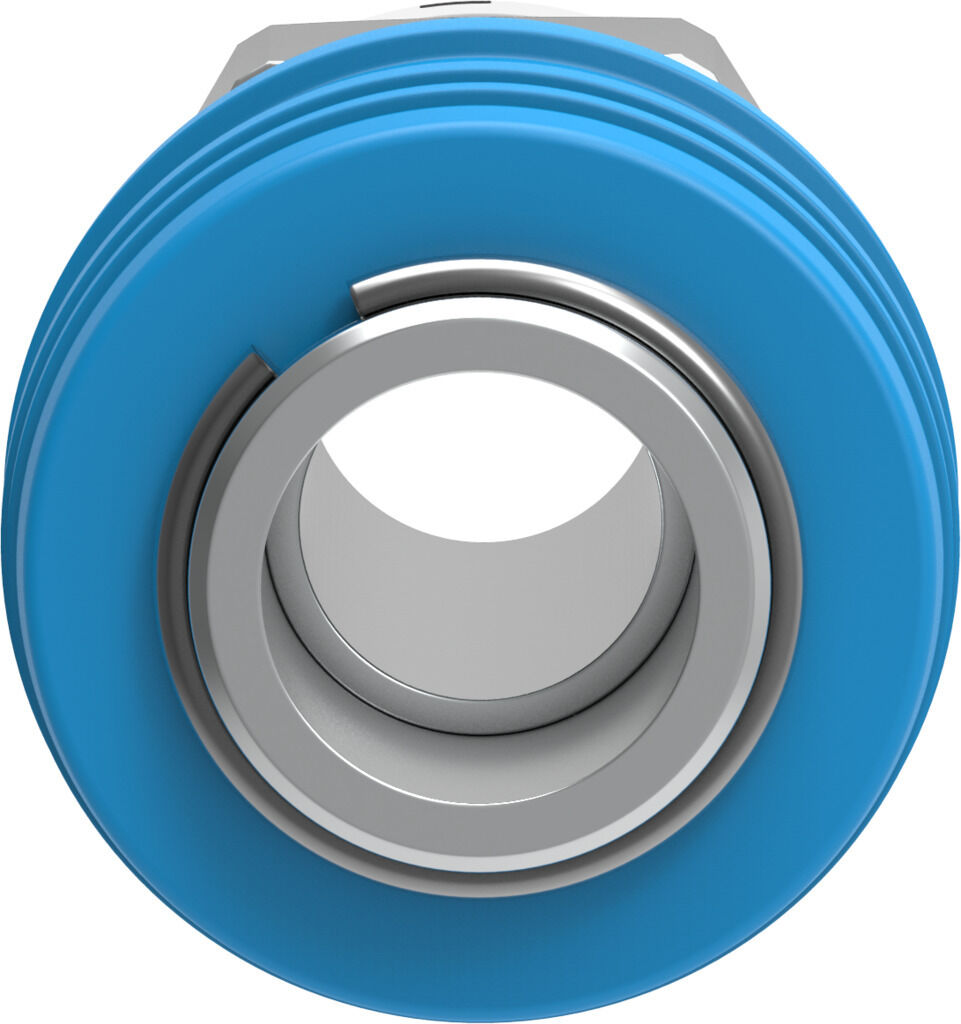

Quick coupling socket

KD4-3/8-A

2144

Pneumatic connection, port 1
Male thread G3/8
Standard nominal flow rate (standardised to DIN 1343)
261 l/min - 1274 l/min

GTIN: 4052568008222

Technical Data

  • Nominal size10 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343)261 l/min ... 1274 l/min
  • Nominal flow rate standardised according to ISO 8778282.9 l/min ... 1381 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque21.5 Nm
  • Tolerance for nominal tightening torque± 15%
  • Product weight62 g
  • Pneumatic connection, port 1Male thread G3/8
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material springHigh-alloy stainless steel
  • Material housingBrass, nickel-plated
  • Material thread sealPA66-GF30/TPE-U
  • Material thread pieceNickel-plated brass
  • Material of inner racewayBrass
  • Material snap ringHigh-alloy stainless steel
  • Material pinsHigh-alloy stainless steel
  • Valve body materialBrass
  • Material releasing sleevePP

QUICK-COUPLINGS_EN.PD

SKU 2144
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
