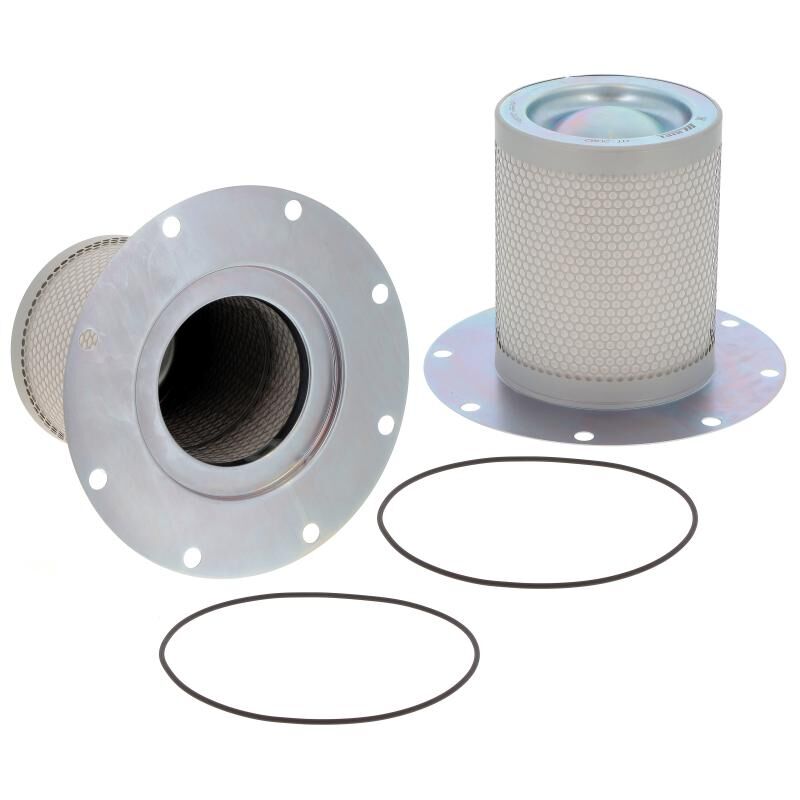

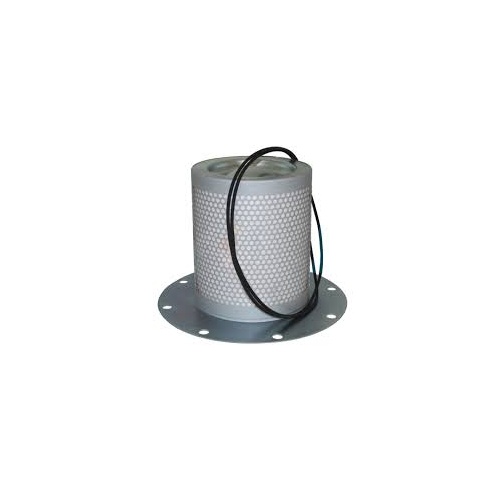

2901 0858 00 Atlas Copco Replacement Separator
2901 0858 00
2901 0858 00 Atlas Copco Replacement Separator
1613 9840 01
-

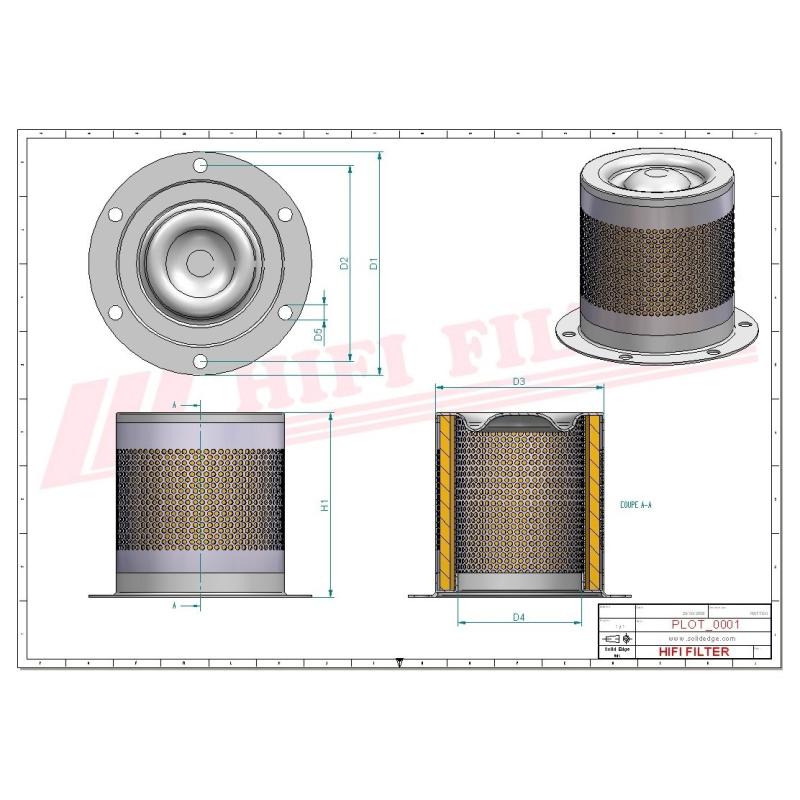

D1 (mm) 363.0 mm
-
D2 (mm) 330.0 mm
-
D3 (mm) 220.0 mm
-
H1 (mm) 270.0 mm
-
Gencod 3661200198385
-
Volume (m3) 0.058212 m3
-
Weight (kg) 5.34 kg
Compatibility
-
ATLAS COPCO
- HIFI-FILTER OT2082 replacement filters
- ATLAS-COPCO 1613984000
- ATLAS-COPCO 1613984001
- ATLAS-COPCO 2901085800
- FLEETGUARD AS2506
- FLEETGUARD-INDIA FT10029
- FLUITEK FLK1602441
- KV150-049
- GREEN-FILTER-KUZEY GA6134S
- IMPREFIL IS6700
- IMPREFIL IS6705
- IOW AOS0028
- NOITECH NS021930
- OXFIL SP3219
- SF-FILTER SAO53219
- SF-FILTER SAO53219S
- TGFILTER 3220270
.png)
.png)
Atlas Copco Stationary Air Compressors
No. 2930 1357 01
Registration code : APC G55-90C / 39 / 991
Replaces No. 2930 1357 00
2003-10
GA55, GA75, GA90C
GA55 W, GA75 W, GA90C W
Elektronikon II regulator
WorkPlace / WorkPlace Full-feature with IFD or ICD
Parts list
• Copyright 2003, Atlas Copco Airpower n.v., Antwerp, Belgium.
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and drawings.
• Use only authorized parts. Any damage or malfunction caused by the use
of unauthorized parts is not covered by Warranty or Product Liability.
www.atlascopco.com
From serial number AII 478 000 onwards
2 2930 1357 01
Parts list
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Índice
Indholdsfortegnelse
Sisällysluettelo
Compressor element(s) and drive gear
Compressorelement(en) en aandrijving
Kompressorelement och drivning
Kompressorelement(e) und Antrieb
Elément(s) compresseur(s) et entraînement
Elemento(s) compresor(es) y accionamiento
Elemento(i) compressore e ingranaggi di azionamento
Kompressorelement og drivhjul
Elemento(s) compressor(es) e accionamento
Kompressorelement(er) og drivgir
Kompressorielementit ja voimansiirto
- GA75(W)-7.5 ..................................................................................... 1
- GA55(W), GA75(W)-10-13, GA75(W)-100-125-150-175,
GA90C(W) ......................................................................................... 2
Motor and frame
Motor en frame
Motor och ram
Motor und Rahmen
Moteur et châssis
Motor y bastidor
Motore elettrico e telaio
Motor og ramme
Motor e base
Motor og ramme
Moottori ja runko ...................................................................................... 3
Air inlet
Luchtinlaat
Luftintag
Lufteinlaß
Admission d’air
Entrada de aire
Presa d’aria
Luftindsug
Admissão de ar
Luftinnløp
Tuloilma .................................................................................................... 4
Unloader
Ontlader
Avlastningsenhet
Entlastungsvorrichtung
Déchargeur
Descargador
Gruppo di messa a vuoto
Aflaster
Sistema de descarga
Avlaster
Kevennin ................................................................................................... 5

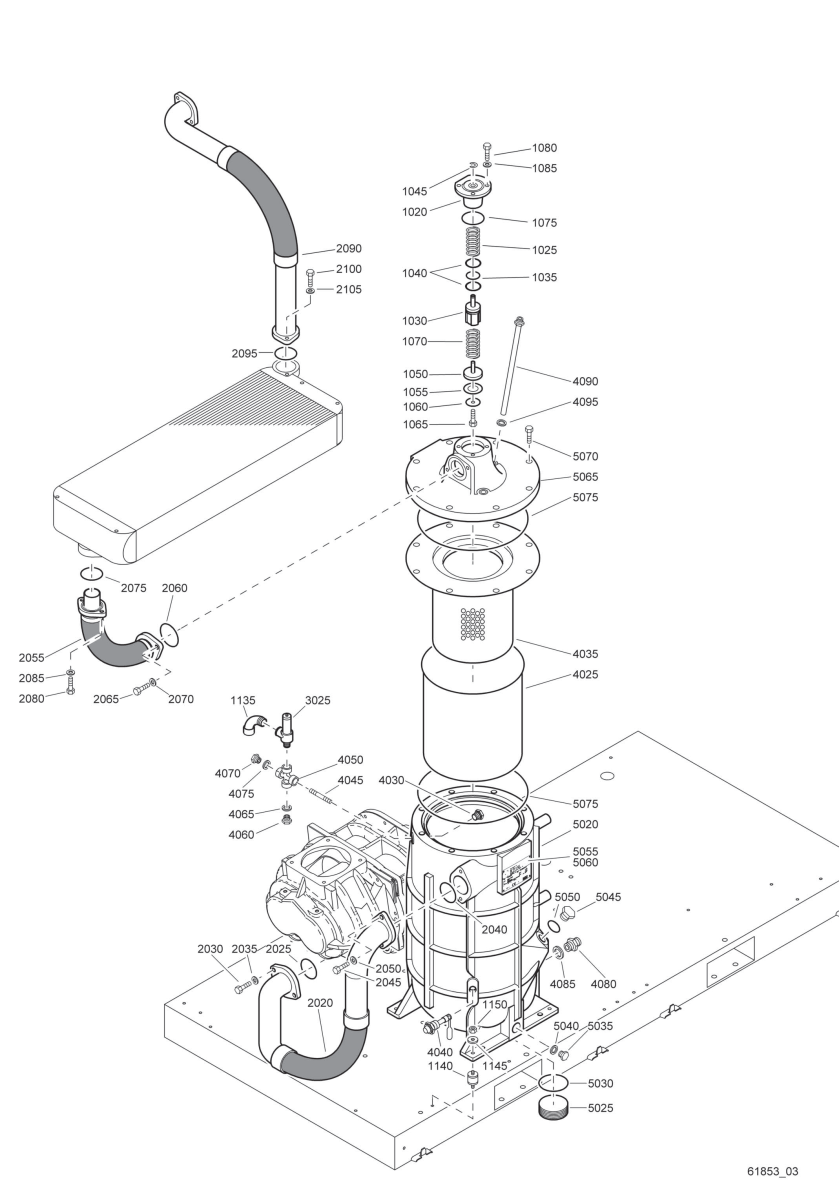

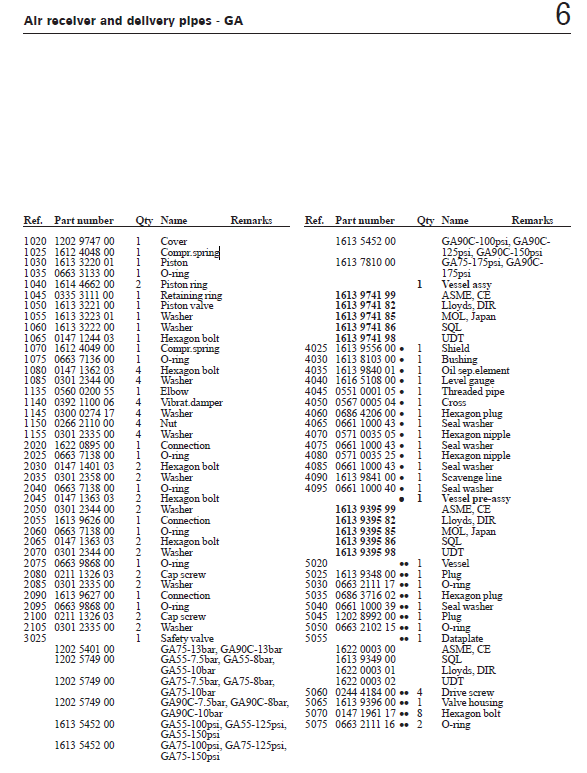

Air receiver and delivery pipes
Luchtketel en drukpijpen
Luftbehållare och utloppsrör
Luftbehälter und Druckleitungen
Réservoir d’air et tuyaux de refoulement
Depósito de aire y tubos de descarga
Serbatoio dell’aria e tubi della mandata
Oliebeholder og udløbsrør
Reservatório de ar e tubagem de descarga
Luftbeholder og utløpsrør
Ilmasäiliö ja paineilmaputket
- GA ...................................................................................................... 6
- GA W .................................................................................................. 7
Oil system
Oliesysteem
Oljesystem
Ölsystem
Système d’huile
Sistema de aceite
Sistema dell’olio
Oliesystem
Sistema de óleo
Oljesystem
Voitelujärjestelmä
- GA ...................................................................................................... 8
- GA W .................................................................................................. 9
Cooler(s)
Koeler(s)
Kylare
Kühler
Refroidisseur(s)
Refrigerador(es)
Refrigeratore(i)
Kølere
Refrigerador(es)
Kjøler(e)
Jäähdyttimet
- GA ..................................................................................................10
- GA W .............................................................................................. 11
Water system
Watersysteem
Vattensystem
Wassersystem
Système d’eau
Sistema de agua
Sistema dell’acqua
Vandsystem
Sistema de água
Vannsystem
Vesijärjestelmä
- GA W ..............................................................................................12
Water shut-off
Water afsluiting
Vattenvet
Wasser absperr
Arrét d’eau
Arresto de agua
Arresto dell’acqua
Vandvet
Arresto de água
Vannvet
Vesisulku
- GA W ..............................................................................................13
Air outlet
Luchtuitlaat
Luftutlopp
Luftauslaß
Sortie d’air
Salida de aire
Mandata dell’aria
Luftafgang
Saida de ar
Luftutløp
Paineilmaputki
- WorkPlace ......................................................................................14
- WorkPlace FF with IFD .................................................................15
- WorkPlace FF with ICD ................................................................16
Air dryer
Luchtdroger
Lufttorkare
Lufttrockner
Sécheur d’air
Secador de aire
Essiccatore d’aria
Lufttørrer
Secador de ar
Lufttørker
Kuivain
- WorkPlace FF with IFD .................................................................17
- WorkPlace FF with ICD - Air flow ...............................................18
- WorkPlace FF with ICD - Control system ....................................19
2930 1357 01 3
Parts list
By-pass dryer
Omloopleiding
Förbiledningskanal
Umgehungsleitung
Tuyaux de by-pass
Tubería de derivación
By-pass
By-pass
Tubagem de derivação
Omløpsrør
Ohitus
- WorkPlace FF with IFD .................................................................20
Regulating system
Regelsysteem
Reglersystem
Regelsystem
Système de régulation
Sistema de regulación
Sistema di regolazione
Reguleringssystem
Sistema de regulação
Reguleringssystem
Säätöjärjestelmä ....................................................................................21
Modulating control
Modulatiecontrole
Moduleringskontroll
Modulationskontrolle
Contrôle de la modulation
Control de modulación
Controllo continuo
Modulationsstyring
Controlo de modulação
Modulasjonsregulering
Modulointisäätö ....................................................................................22
DD Filter kit
DD Filter kit
DD Filter kit
DD Filter kit
Kit, filtre DD
Equipo de filtros DD
Kit, filtro DD
DD Filtersaet
Kit, filtro DD
DD Filtersett
DD-suodatinsarja
- WorkPlace FF with IFD .................................................................23
PD/DD Filter kit
PD/DD Filter kit
PD/DD Filter kit
PD/DD Filter kit
Kit, filtre PD/DD
Equipo de filtros PD/DD
Kit, filtro PD/DD
PD/DD Filtersaet
Kit, filtro PD/DD
PD/DD Filtersett
PD/DD-suodatinsarja
- WorkPlace FF with IFD .................................................................24
Drain system
Aftapsysteem
Avtappningssystem
Ablaßsystem
Système de vidange
Sistema de drenaje
Sistema di scarico
Drænsystem
Sistema de drenagem de condensados
Avtappingssystem
Lauhteenpoistojärjestelmä
- Oil Separator condensate Drain ....................................................25
- Electronic Water Drain ..................................................................26
Start cubicle - star/delta
Startkast - ster/driehoek
Startskåp - stjärn/triangel
Anlaßschrank - Stern/Dreieck
Armoire de démarrage - étoile/triangle
Cubículo de arranque - estrella/triángulo
Armadio apparecch. di avviamento - stella/triangolo
Starterskab - stjerne/trekant
Cubículo-arranque estrela/triângulo
Startskap - stjerne-trekant
Käynnistinkotelo - Y/D
- IEC 50-60Hz ..................................................................................27
- CSA/UL 60Hz ................................................................................28
Main switch
Hoofdschakelaar
Huvudströmbrytare
Hauptschalter
Interrupteur principal
Interruptor principal
Interrutore della linea di almentasion
Hovedrfbryder
Interruptor principal
Hovedstrømbryter
Pääkytkin ..............................................................................................29
Freeze protection
Vorstbeveiliging
Frostkydd
Frostschutz
Protection contre le gel
Protección contra congelatión
Protezione contro la formazione di ghiaccio
Frostbeskyttelse
Protecção anti-congelação
Frostbeskyttelse
Jäätymissuojaus ....................................................................................30
Energy recovery systeem
Energiåtervinningssystem
Energierückgewinnungssystem
Système de récupération d’énergie
Sistema de recuperación de energía
Sistema di recupero energia
Energigenvinding
Sistema de recuperação de energia
Energigjenvinningssystem
Energian talteenottojärjestelmä
- GA55, GA55 W .............................................................................31
- GA75, GA75 W, GA90C, GA90C W ...........................................32
Bodywork
Carrosserie
Karosseri
Karosserie
Capotage
Carrocería
Cappottatura
Karosseri
Carroceria
Kabinett
Kotelo
- GA ..................................................................................................33
- GA W ..............................................................................................34
- WorkPlace FF with ICD ................................................................35
Rain protection
Regenbescherming
Regnskydd
Regenschutz
Protection contre la pluie
Protección la lluria
Protezione contro la pioggia
Regnbeskyttelse
Protecção contra a chura
Regnbeskyttelse
Sadesvuoja ............................................................................................36
Service kits
Service kits
Service Kits
Service kits
Service kits
Kit per la manutenzione
Service kits
Conjuntos de reparação
Servicesett
Huoltotarvikesarjat ...............................................................................37
4 2930 1357 01
Parts list
1
61845_01
2930 1357 01 5
Parts list
Compressor element(s) and drive gear - GA75(W)-7.5 1
Ref. Part number Qty Name Remarks
1010 1616 7146 90 1 Service stage
2040 0147 1325 03 3 Hexagon bolt
2060 0663 2109 78 1 O-ring
2065 0663 2111 46 1 O ring
2080 0101 1951 40 2 Pin
2085 0147 1365 03 10 Hexagon bolt
2090 0337 2293 23 1 Parallel key
3000 2901 1074 00 1 Shaft seal kit
Ref. Part number Qty Name Remarks
4020 1622 0791 00 1 Coupling housing
4025 0147 1479 03 8 Hexagon bolt
4030 1622 0963 00 1 Coupling half
4035 1613 9680 03 1 Coupling half
4040 1613 9585 00 1 Coupling element
4045 1622 0964 00 1 Washer
4050 0147 1409 03 1 Hexagon bolt
6 2930 1357 01
Parts list
2
61846_01
Ref. Part number Qty Name Remarks
1010 1616 7146 90 1 Service stage
2020 1622 0967 00 1 Bushing
2045 0337 2293 23 1 Parallel key
2050 1622 0964 00 1 Washer
2055 0147 1409 03 1 Hexagon bolt
2060 0335 2160 00 1 Circlip
2065 0508 1158 01 1 Bearing
2080 0101 1951 40 2 Pin
2085 0663 2109 78 1 O-ring
2086 0663 2111 46 1 O ring
2090 0147 1365 03 10 Hexagon bolt
2095 0506 0100 09 1 Bearing
2120 0147 1363 03 4 Hexagon bolt
2125 0337 2293 23 1 Parallel key
2130 1619 6032 00 1 Nipple 1)
Ref. Part number Qty Name Remarks
3000 1 Shaft seal kit
2901 1075 00 GA55(W)
2901 1076 00 GA75(W), GA90C(W)
4010 1 Gear wheel
1622 0770 15 GA55(W)-7.5
1622 0770 09 GA55(W)-7.5 HAV 2)
1622 0770 15 GA55(W)-7.5 JPN/50Hz
1622 0770 11 GA55(W)-8
1622 0770 07 GA55(W)-10
1622 0770 03 GA55(W)-10 HAV 2)
1622 0770 05 GA55(W)-100
1622 0770 03 GA55(W)-100 HAV 2)
1622 0770 03 GA55(W)-125
1622 0770 01 GA55(W)-125 HAV 2)
1622 0770 27 GA75(W)-7.5 HAV 2)
2930 1357 01 7
Parts list
Compressor element(s) and drive gear 2
GA55(W), GA75(W)-10-13, GA(W)75-100-125-150-175, GA90C(W)
Ref. Part number Qty Name Remarks
1622 0770 21 GA75(W)-7.5 JPN/60Hz
1622 0770 27 GA75(W)-8
1622 0770 23 GA75(W)-10
1622 0770 17 GA75(W)-10 HAV 2)
1622 0770 11 GA75(W)-10 JPN/60Hz
1622 0770 15 GA75(W)-13
1622 0770 09 GA75(W)-13 HAV 2)
1622 0770 15 GA75(W)-13 JPN/50Hz
1622 0770 19 GA75(W)-100
1622 0770 15 GA75(W)-100 HAV 2)
1622 0770 15 GA75(W)-125
1622 0770 09 GA75(W)-125 HAV 2)
1622 0770 09 GA75(W)-150
1622 0770 07 GA75(W)-150 HAV 2)
1622 0770 07 GA75(W)-175
1622 0770 05 GA75(W)-175 HAV 2)
1622 0770 29 GA90C(W)-7.5
1622 0770 29 GA90C(W)-7.5 JPN/50Hz
1622 0770 25 GA90C(W)-7.5 JPN/60Hz
1622 0770 29 GA90C(W)-8
1622 0770 27 GA90C(W)-10
1622 0770 25 GA90C(W)-10 HAV 2)
1622 0770 27 GA90C(W)-10 JPN/50Hz
1622 0770 19 GA90C(W)-10 JPN/60Hz
1622 0770 21 GA90C(W)-13
1622 0770 17 GA90C(W)-13 HAV 2)
1622 0770 21 GA90C(W)-13 JPN/50Hz
1622 0770 11 GA90C(W)-13 JPN/60Hz
1622 0770 25 GA90C(W)-100
1622 0770 21 GA90C(W)-100 HAV 2)
1622 0770 21 GA90C(W)-125
1622 0770 17 GA90C(W)-125 HAV 2)
1622 0770 17 GA90C(W)-150
1622 0770 13 GA90C(W)-150 HAV 2)
1622 0770 11 GA90C(W)-175
1622 0770 09 GA90C(W)-175 HAV 2)
4020 1 Gear wheel
1622 0770 16 GA55(W)-7.5
1622 0770 10 GA55(W)-7.5 HAV 2)
1622 0770 16 GA55(W)-7.5 JPN/50Hz
1622 0770 12 GA55(W)-8
1622 0770 08 GA55(W)-10
1622 0770 04 GA55(W)-10 HAV 2)
1622 0770 06 GA55(W)-100
1622 0770 04 GA55(W)-100 HAV 2)
1622 0770 04 GA55(W)-125
1622 0770 02 GA55(W)-125 HAV 2)
1622 0770 28 GA75(W)-7.5 HAV 2)
1622 0770 22 GA75(W)-7.5 JPN/60Hz
1622 0770 28 GA75(W)-8
1622 0770 24 GA75(W)-10
1622 0770 18 GA75(W)-10 HAV 2)
1622 0770 12 GA75(W)-10 JPN/60Hz
1622 0770 16 GA75(W)-13
1622 0770 10 GA75(W)-13 HAV 2)
1622 0770 16 GA75(W)-13 JPN/50Hz
1622 0770 20 GA75(W)-100
1622 0770 16 GA75(W)-100 HAV 2)
Ref. Part number Qty Name Remarks
1622 0770 16 GA75(W)-125
1622 0770 10 GA75(W)-125 HAV 2)
1622 0770 10 GA75(W)-150
1622 0770 08 GA75(W)-150 HAV
1622 0770 08 GA75(W)-175
1622 0770 06 GA75(W)-175 HAV 2)
1622 0770 30 GA90C(W)-7.5
1622 0770 30 GA90C(W)-7.5 JPN/50Hz
1622 0770 26 GA90C(W)-7.5 JPN/60Hz
1622 0770 30 GA90C(W)-8
1622 0770 28 GA90C(W)-10
1622 0770 26 GA90C(W)-10 HAV 2)
1622 0770 28 GA90C(W)-10 JPN/50Hz
1622 0770 20 GA90C(W)-10 JPN/60Hz
1622 0770 22 GA90C(W)-13
1622 0770 18 GA90C(W)-13 HAV 2)
1622 0770 22 GA90C(W)-13 JPN/50Hz
1622 0770 12 GA90C(W)-13 JPN/60Hz
1622 0770 26 GA90C(W)-100
1622 0770 22 GA90C(W)-100 HAV 2)
1622 0770 22 GA90C(W)-125
1622 0770 18 GA90C(W)-125 HAV 2)
1622 0770 18 GA90C(W)-150
1622 0770 14 GA90C(W)-150 HAV 2)
1622 0770 12 GA90C(W)-175
1622 0770 10 GA90C(W)-175 HAV 2)
5020 1 Gear casing
1622 0792 00 50Hz
1622 0970 00 60Hz
5025 Hexagon bolt / Cap screw
0147 1479 03 8 50Hz
0211 1962 06 4 60Hz
5030 1 Coupling half
1622 0963 00 GA55(W)
1622 0969 00 GA75(W), GA90C(W)
5035 1 Coupling half
1613 9680 02 GA55(W) / 50Hz
1613 9680 01 GA55(W) / 60Hz
1613 9682 03 GA75(W) / 50Hz
1613 9682 01 GA75(W) / 60Hz
1613 9682 05 GA90C(W) / 50Hz
1613 9682 04 GA90C(W) / 60Hz
5040 1 Coupling element
1613 9585 00 GA55(W)
1613 9499 00 GA75(W), GA90C(W)
5045 1622 0964 00 1 Washer
5050 0147 1409 03 1 Hexagon bolt
1) Vibration monitoring “Shock Pulse Measurement” /
Trillingskontrole “SPM” / Vibrationskontroll “Stötpulsmätning”
/ Schwingungsüberwachung “SPM” / Surveillance
des vibrations “SPM” / Monitorización de
vibraciones “SPM” / Controlo di vibrazione “SPM” /
Vibrationsovervågning “SPM” / Controlo de vibrações
SPM / Vibrasjonsovervåking “SPM” / SPMtärinänvalvonta
2) HAV : High Ambient Version
8 2930 1357 01
Parts list
3
61847_08
2930 1357 01 9
Parts list
Motor and frame 3
Ref. Part number Qty Name Remarks
1010 1622 0798 00 1 Frame
1025 1 Spacer
1613 9598 00 GA55(W)
1613 9597 00 GA75(W), GA90C(W)
1030 1613 6752 13 1 Antivibr.pad
1035 1 Hexagon bolt
0147 1491 03 GA55(W)
0147 1963 07 GA75(W), GA90C(W)
1040 0211 1400 03 2 Cap screw
1045 0301 2358 00 2 Washer
1050 0333 3237 00 2 Lock washer
1055 1622 0870 00 1 Support
1060 0147 1400 03 5 Hexagon bolt
1065 0301 2358 00 5 Washer
1075 0333 3237 00 5 Lock washer
1080 1613 6752 18 2 Antivibr.pad
1085 0211 1400 03 4 Cap screw
1090 0301 2358 00 4 Washer
1095 0333 3237 00 4 Lock washer
1100 0147 1479 03 2 Hexagon bolt
1105 0301 2378 00 2 Washer
1160 1613 8967 02 1 Cable
1165 0147 1962 72 1 Hexagon bolt
2020 1 Motor
1080 4113 01 GA55(W) 200V/50Hz
Ref. Part number Qty Name Remarks
1080 4113 02 GA55(W) 230V/50Hz
1080 4113 03 GA55(W) 400V/50Hz
1080 4113 05 GA55(W) 500V/50Hz
1080 4113 15 GA55(W) 220-230V/440-
460V/60Hz
1080 4113 18 GA55(W) 380V/60Hz
1080 4113 20 GA55(W) 575V/60Hz
1080 4114 01 GA75(W) 200V/50Hz
1080 4114 02 GA75(W) 230V/50Hz
1080 4114 03 GA75(W) 400V/50Hz
1080 4114 05 GA75(W) 500V/50Hz
1080 4113 16 GA55(W) 200V/60Hz
1080 4113 18 GA55(W) 380V/60Hz
1080 4114 15 GA75(W) 220-230V/440-
460V/60Hz
1080 4114 16 GA75(W) 200V/60Hz
1080 4114 18 GA75(W) 380V/60Hz
1080 4114 20 GA75(W) 575V/60Hz
1080 4020 12 GA90C(W) 230V/50Hz
1080 4020 13 GA90C(W) 400V/50Hz
1080 4020 15 GA90C(W) 500V/50Hz
1080 4020 25 GA90C(W) 220-230V/440-
460V/60Hz
1080 4020 28 GA90C(W) 380V/60Hz
1080 4020 30 GA90C(W) 575V/60Hz
10 2930 1357 01
Parts list
4
61852_02
2930 1357 01 11
Parts list
Air inlet 4
Ref. Part number Qty Name Remarks
1020 1622 0795 00 1 Valve housing
1025 1622 0796 00 1 Spring
1030 1622 0797 00 1 Valve
1040 0211 1964 75 4 Cap screw
1045 0686 3716 01 1 Hexagon plug
1050 0661 1000 38 1 Seal washer
1070 1613 2356 00 1 Valve
1075 1613 2357 00 1 Compr.spring
1080 1 Nipple
1622 0958 00 7.5bar, 8bar, 10bar
1622 0958 00 100psi, 125psi, 150psi
1622 0958 01 13bar, 175psi
1085 0661 1000 44 1 Seal washer
1090 1622 1041 00 1 Piston
1095 0686 3716 07 1 Hexagon plug
1100 0661 1000 44 1 Seal washer
1105 0686 3716 47 1 Hexagon plug
1110 0661 1000 39 1 Seal washer
1115 1622 0977 00 1 Gasket
2020 <<< >>> 1 Unloader assembly
Ref. Part number Qty Name Remarks
2030 0663 2107 37 1 O-ring
2035 0147 1363 03 4 Hexagon bolt
2040 0301 2378 00 4 Washer
2050 0347 6120 00 2 Hose clip
2055 1622 0981 00 1 Plate
2060 0147 1321 03 2 Hexagon bolt
2065 0301 2335 00 2 Washer
2075 0147 1360 03 2 Hexagon bolt
2080 0301 2344 00 2 Washer
1622 0894 80 1 Hose assembly
3010 1622 0894 00 • 1 Hose
3020 1613 7912 01 • 1 Indicator
1 Air filter
1613 9500 00 GA55(W)
1613 9502 00 GA75(W), GA90C(W)
4005 • 1 Housing
4010 • 1 Filter element
1613 9501 00 GA55(W)
1613 9503 00 GA75(W), GA90C(W)
12 2930 1357 01
Parts list
5
61854_20
2930 1357 01 13
Parts list
Unloader 5
Ref. Part number Qty Name Remarks
1 Unloader
1622 0758 80 Load / Unload Control
1622 0983 80 Modulating Control
1020 • 1 Spring
1613 8068 00 Load / Unload Control
1613 8069 00 Modulating Control
1025 • 1 Valve
1613 8072 00 Load / Unload Control
1613 8071 80 Modulating Control
1030 0500 4510 33 • 1 Plain bearing
1035 • 1 Housing
1622 0758 00 Load / Unload Control
1622 0983 00 Modulating Control
1040 1613 8073 00 • 1 Piston rod
1045 1613 8149 00 • 1 Piston
1050 1613 7372 01 • 1 Spring
1055 1613 7262 00 • 1 Piston ring
1060 1613 9661 00 • 1 Cover
1065 0663 7144 00 • 1 O-ring
1070 0211 1963 94 • 2 Cap screw
1075 0211 1328 03 • 2 Cap screw
Ref. Part number Qty Name Remarks
1080 0301 2335 00 • 4 Washer
1085 • 1 Hexagon plug
0686 4210 00 Load / Unload Control
1613 8148 00 Modulating Control
1090 0661 1000 46 • 1 Seal washer
1095 0261 1090 67 • 1 Nut
1100 0653 0500 02 • 1 Gasket
1105 0663 7132 00 • 1 O-ring
1110 0335 2136 00 • 1 Circlip
1115 1513 0011 00 • 1 Spring
1120 1613 6794 00 • 1 Cover
1125 1613 6783 00 • 1 Piston
1130 1613 6796 00 • 1 Valve seat
1135 0686 3716 01 • 2 Hexagon plug
1140 0653 0500 02 • 2 Gasket
1145 0686 3716 38 • 3 Hexagon plug
1150 0653 9078 00 • 3 Flat gasket
1155 1622 0982 01 • 1 Restrictor
1160 • 1 Plug
1613 6964 00 Modulating Control
1165 • 1 Warning label
14 2930 1357 01
Parts list
6
61853_03
2930 1357 01 15
Parts list
Air receiver and delivery pipes - GA 6
Ref. Part number Qty Name Remarks
1020 1202 9747 00 1 Cover
1025 1612 4048 00 1 Compr.spring
1030 1613 3220 01 1 Piston
1035 0663 3133 00 1 O-ring
1040 1614 4662 00 2 Piston ring
1045 0335 3111 00 1 Retaining ring
1050 1613 3221 00 1 Piston valve
1055 1613 3223 01 1 Washer
1060 1613 3222 00 1 Washer
1065 0147 1244 03 1 Hexagon bolt
1070 1612 4049 00 1 Compr.spring
1075 0663 7136 00 1 O-ring
1080 0147 1362 03 4 Hexagon bolt
1085 0301 2344 00 4 Washer
1135 0560 0200 55 1 Elbow
1140 0392 1100 06 4 Vibrat.damper
1145 0300 0274 17 4 Washer
1150 0266 2110 00 4 Nut
1155 0301 2335 00 4 Washer
2020 1622 0895 00 1 Connection
2025 0663 7138 00 1 O-ring
2030 0147 1401 03 2 Hexagon bolt
2035 0301 2358 00 2 Washer
2040 0663 7138 00 1 O-ring
2045 0147 1363 03 2 Hexagon bolt
2050 0301 2344 00 2 Washer
2055 1613 9626 00 1 Connection
2060 0663 7138 00 1 O-ring
2065 0147 1363 03 2 Hexagon bolt
2070 0301 2344 00 2 Washer
2075 0663 9868 00 1 O-ring
2080 0211 1326 03 2 Cap screw
2085 0301 2335 00 2 Washer
2090 1613 9627 00 1 Connection
2095 0663 9868 00 1 O-ring
2100 0211 1326 03 2 Cap screw
2105 0301 2335 00 2 Washer
3025 1 Safety valve
1202 5401 00 GA75-13bar, GA90C-13bar
1202 5749 00 GA55-7.5bar, GA55-8bar,
GA55-10bar
1202 5749 00 GA75-7.5bar, GA75-8bar,
GA75-10bar
1202 5749 00 GA90C-7.5bar, GA90C-8bar,
GA90C-10bar
1613 5452 00 GA55-100psi, GA55-125psi,
GA55-150psi
1613 5452 00 GA75-100psi, GA75-125psi,
GA75-150psi
Ref. Part number Qty Name Remarks
1613 5452 00 GA90C-100psi, GA90C-
125psi, GA90C-150psi
1613 7810 00 GA75-175psi, GA90C-
175psi
1 Vessel assy
1613 9741 99 ASME, CE
1613 9741 82 Lloyds, DIR
1613 9741 85 MOL, Japan
1613 9741 86 SQL
1613 9741 98 UDT
4025 1613 9556 00 • 1 Shield
4030 1613 8103 00 • 1 Bushing
4035 1613 9840 01 • 1 Oil sep.element
4040 1616 5108 00 • 1 Level gauge
4045 0551 0001 05 • 1 Threaded pipe
4050 0567 0005 04 • 1 Cross
4060 0686 4206 00 • 1 Hexagon plug
4065 0661 1000 43 • 1 Seal washer
4070 0571 0035 05 • 1 Hexagon nipple
4075 0661 1000 43 • 1 Seal washer
4080 0571 0035 25 • 1 Hexagon nipple
4085 0661 1000 43 • 1 Seal washer
4090 1613 9841 00 • 1 Scavenge line
4095 0661 1000 40 • 1 Seal washer
• 1 Vessel pre-assy
1613 9395 99 ASME, CE
1613 9395 82 Lloyds, DIR
1613 9395 85 MOL, Japan
1613 9395 86 SQL
1613 9395 98 UDT
5020 •• 1 Vessel
5025 1613 9348 00 •• 1 Plug
5030 0663 2111 17 •• 1 O-ring
5035 0686 3716 02 •• 1 Hexagon plug
5040 0661 1000 39 •• 1 Seal washer
5045 1202 8992 00 •• 1 Plug
5050 0663 2102 15 •• 1 O-ring
5055 •• 1 Dataplate
1622 0003 00 ASME, CE
1613 9349 00 SQL
1622 0003 01 Lloyds, DIR
1622 0003 02 UDT
5060 0244 4184 00 •• 4 Drive screw
5065 1613 9396 00 •• 1 Valve housing
5070 0147 1961 17 •• 8 Hexagon bolt
5075 0663 2111 16 •• 2 O-ring
16 2930 1357 01
Parts list
7
61855_03
2930 1357 01 17
Parts list
Air receiver and delivery pipes - GA W 7
Ref. Part number Qty Name Remarks
1020 1202 9747 00 1 Cover
1025 1612 4048 00 1 Compr.spring
1030 1613 3220 01 1 Piston
1035 0663 3133 00 1 O-ring
1040 1614 4662 00 2 Piston ring
1045 0335 3111 00 1 Retaining ring
1050 1613 3221 00 1 Piston valve
1055 1613 3223 01 1 Washer
1060 1613 3222 00 1 Washer
1065 0147 1244 03 1 Hexagon bolt
1070 1612 4049 00 1 Compr.spring
1075 0663 7136 00 1 O-ring
1080 0147 1362 03 4 Hexagon bolt
1085 0301 2344 00 4 Washer
1135 0560 0200 55 1 Elbow
1140 0392 1100 06 4 Vibrat.damper
1145 0300 0274 17 4 Washer
1150 0266 2110 00 4 Nut
1155 0301 2335 00 4 Washer
2020 1622 0895 00 1 Connection
2025 0663 7138 00 1 O-ring
2030 0147 1401 03 2 Hexagon bolt
2035 0301 2358 00 2 Washer
2040 0663 7138 00 1 O-ring
2045 0147 1363 03 2 Hexagon bolt
2050 0301 2344 00 2 Washer
2055 1613 9687 00 1 Pipe
2060 0663 7138 00 1 O-ring
2065 0147 1363 03 2 Hexagon bolt
2070 0301 2344 00 2 Washer
2075 0663 7136 00 1 O-ring
2080 0147 1326 03 2 Hexagon bolt
2085 0301 2335 00 2 Washer
2090 1613 9688 01 1 Pipe
2095 0663 7136 00 1 O-ring
2100 0147 1326 03 2 Hexagon bolt
2105 0301 2335 00 2 Washer
2106 0147 1962 72 1 Hexagon bolt
2110 1613 9627 00 1 Connection
2115 0663 9868 00 1 O-ring
2120 0211 1326 03 2 Cap screw
2125 0301 2335 00 2 Washer
3025 1 Safety valve
1202 5401 00 GA75 W-13bar, GA90C W-
13bar
1202 5749 00 GA55 W-7.5bar, GA55 W-
8bar, GA55 W-10bar
1202 5749 00 GA75 W-7.5bar, GA75 W-
8bar, GA75 W-10bar
1202 5749 00 GA90C W-7.5bar, GA90C
W-8bar, GA90C W-10bar
Ref. Part number Qty Name Remarks
1613 5452 00 GA55 W-100psi, GA55 W-
125psi, GA55 W-150psi
1613 5452 00 GA75 W-100psi, GA75 W-
125psi, GA75 W-150psi
1613 5452 00 GA90C W-100psi, GA90C
W-125psi, GA90C W-150psi
1613 7810 00 GA75 W-175psi, GA90C W-
175psi
1 Vessel assy
1613 9741 99 ASME, CE
1613 9741 82 Lloyds, DIR
1613 9741 85 MOL, Japan
1613 9741 86 SQL
1613 9741 98 UDT
4025 1613 9556 00 • 1 Shield
4030 1613 8103 00 • 1 Bushing
4035 1613 9840 01 • 1 Oil sep.element
4040 1616 5108 00 • 1 Level gauge
4045 0551 0001 05 • 1 Threaded pipe
4050 0567 0005 04 • 1 Cross
4060 0686 4206 00 • 1 Hexagon plug
4065 0661 1000 43 • 1 Seal washer
4070 0571 0035 05 • 1 Hexagon nipple
4075 0661 1000 43 • 1 Seal washer
4080 0571 0035 25 • 1 Hexagon nipple
4085 0661 1000 43 • 1 Seal washer
4090 1613 9841 00 • 1 Scavenge line
4095 0661 1000 40 • 1 Seal washer
• 1 Vessel pre-assy
1613 9395 99 ASME, CE
1613 9395 82 Lloyds, DIR
1613 9395 85 MOL, Japan
1613 9395 86 SQL
1613 9395 98 UDT
5020 •• 1 Vessel
5025 1613 9348 00 •• 1 Plug
5030 0663 2111 17 •• 1 O-ring
5035 0686 3716 02 •• 1 Hexagon plug
5040 0661 1000 39 •• 1 Seal washer
5045 1202 8992 00 •• 1 Plug
5050 0663 2102 15 •• 1 O-ring
5055 •• 1 Dataplate
1622 0003 00 ASME, CE
1613 9349 00 SQL
1622 0003 01 Lloyds, DIR
1622 0003 02 UDT
5060 0244 4184 00 •• 4 Drive screw
5065 1613 9396 00 •• 1 Valve housing
5070 0147 1961 17 •• 8 Hexagon bolt
5075 0663 2111 16 •• 2 O-ring
18 2930 1357 01
Parts list
Ref. Part number Qty Name Remarks
1025 0147 1401 03 2 Hexagon bolt
1030 0301 2358 00 2 Washer
1040 1613 9505 00 1 Plug
1045 0663 7137 00 1 O-ring
1050 1613 9566 00 1 Pipe
1085 0574 9870 02 2 Hose assembly
1090 0574 9879 01 1 Hose assembly
1110 1613 6105 00 2 Oil filter
1115 1079 5840 07 1 Nipple
1120 0661 1000 40 1 Seal washer
1125 0574 9911 11 1 Hose assembly
Ref. Part number Qty Name Remarks
1613 9739 80 1 Valve assy
2020 1613 8043 00 • 1 Valve housing
2025 2250 4983 00 • 4 Nipple
2030 0661 1000 44 • 4 Seal washer
2035 1619 3770 00 • 2 Nipple
3020 1 Thermostat
1619 7560 00 40°C
1202 5869 02 60°C
1202 5869 04 75°C
3025 1 Restrictor
1613 8130 00 13bar, 175psi
8 Oil system - GA
62081_05
2930 1357 01 19
Parts list
Oil system - GA W 9
Ref. Part number Qty Name Remarks
1025 0147 1401 03 2 Hexagon bolt
1030 0301 2358 00 2 Washer
1040 1613 9505 00 1 Plug
1045 0663 7137 00 1 O-ring
1050 1613 9566 00 1 Pipe
1085 0574 9870 02 2 Hose assembly
1090 0574 9879 01 1 Hose assembly
1110 1613 6105 00 2 Oil filter
1115 1079 5840 07 1 Nipple
1120 0661 1000 40 1 Seal washer
1125 0574 9911 11 1 Hose assembly
Ref. Part number Qty Name Remarks
1613 9739 80 1 Valve assy
2020 1613 8043 00 • 1 Valve housing
2025 2250 4983 00 • 4 Nipple
2030 0661 1000 44 • 4 Seal washer
2035 1619 3770 00 • 2 Nipple
3020 1 Thermostat
1619 7560 00 40°C
1202 5869 02 60°C
1202 5869 04 75°C
3025 1 Restrictor
1613 8130 00 13bar, 175psi
62082_05
20 2930 1357 01
Parts list
Ref. Part number Qty Name Remarks
1025 0147 1322 03 4 Hexagon bolt
1030 0301 2335 00 4 Washer
1040 0147 1322 03 4 Hexagon bolt
1045 0301 2335 00 4 Washer
1050 1 Plate
1613 9517 00 GA55
1613 9518 00 GA75
1613 9519 00 GA90C
1055 0147 1962 72 3 Hexagon bolt
1060 0147 1962 72 2 Hexagon bolt
0147 1962 72 GA55
0147 1323 03 GA75, GA90C
1065 2 Washer
0301 2335 00 GA75, GA90C
1 Oil cooler
1613 9507 00 GA55
1613 9509 00 GA75
1613 9511 00 GA90C
Ref. Part number Qty Name Remarks
2010 0686 3716 01 • 1 Hexagon plug
2015 0653 1062 00 • 1 Flat gasket
2020 2250 4983 00 • 2 Nipple
2025 0661 1049 00 • 2 Sealing washer
• 4 GA55
• 8 GA75
• 6 GA90C
3035 1 Aftercooler
1613 9508 00 GA55
1613 9510 00 GA75
1613 9512 00 GA90C
10 Cooler(s) - GA
61865_04
2930 1357 01 21
Parts list
Cooler(s) - GA W 11
Ref. Part number Qty Name Remarks
1025 0147 1323 03 4 Hexagon bolt
1030 0301 2335 00 4 Washer
1050 1613 9689 00 1 Plate
1055 0147 1962 72 3 Hexagon bolt
1060 0147 1962 72 2 Hexagon bolt
1085 2250 4983 00 2 Nipple
1090 0661 1000 44 2 Seal washer
1613 9731 80 1 Combi-cooler
2010 1613 9731 01 • 1 Cylinder
2020 1613 9731 02 • 1 Cylinder
2030 1613 9731 03 • 1 Tubestack
2040 1613 9731 04 • 1 Water box 2 flow
2050 1613 9731 05 • 1 Return cover
2060 1613 9731 06 • 6 O-ring
Ref. Part number Qty Name Remarks
2070 1613 9731 07 • 1 Division rib joint
2080 1613 9731 08 • 2 Leakage ring
2090 0147 1406 03 • 8 Hexagon bolt
2100 0266 2112 00 • 12 Nut
2110 0333 3237 00 • 12 Spring washer
2120 0301 2358 00 • 8 Plain washer
2130 • 4 Stud
2140 • 1 Plug
2150 9820 0857 00 • 2 Data plate
2160 • 8 Drive scew
2170 • AR Evo stick
2180 • 2 Washer
2190 0686 3904 00 • 2 Plug
61866_04
22 2930 1357 01
Parts list
Ref. Part number Qty Name Remarks
1040 1613 9691 01 2 Pipe
1045 0663 7136 00 2 O-ring
1050 0147 1326 03 4 Hexagon bolt
Ref. Part number Qty Name Remarks
1055 0301 2335 00 4 Washer
1080 0686 3716 30 1 Hexagon plug
1085 0661 1000 40 1 Seal washer
12 Water system - GA W
61867_05
2930 1357 01 23
Parts list
Water shut-off - GA W 13
Ref. Part number Qty Name Remarks
8092 2470 41 1 Water shut— off
1015 • 1 Solenoid valve
1089 0624 01 50Hz
1089 0624 03 60Hz - IEC
1089 0624 04 60Hz - CSA/UL
1020 1613 9708 01 • 1 Pipe water cool
Ref. Part number Qty Name Remarks
1025 0551 0002 13 • 1 Threaded pipe
2010 1089 0506 09 • 1 Terminal
3045 0663 7136 00 1 O-ring
3050 0147 1326 03 2 Hexagon bolt
3055 0301 2335 00 2 Washer
61889_05
24 2930 1357 01
Parts list
14
61871_06
2930 1357 01 25
Parts list
Air outlet - WorkPlace 14
Ref. Part number Qty Name Remarks
1020 0663 9868 00 1 O-ring
1025 0147 1326 03 2 Hexagon bolt
1030 0301 2335 00 2 Washer
1040 1613 9560 01 1 Pipe
1045 0663 3143 00 1 O-ring
1050 0147 1476 03 2 Hexagon bolt
1055 0301 2378 00 2 Washer
1060 0147 1962 72 2 Hexagon bolt
1065 1613 9370 80 1 WSD250
0663 2111 27 • 1 O-ring
0663 2133 00 • 1 O-ring
0663 6136 00 • 1 O-ring
0663 6147 00 • 1 O-ring
1070 1613 9561 01 1 Pipe
1075 0663 3143 00 1 O-ring
1080 0147 1476 03 2 Hexagon bolt
1085 0301 2378 00 2 Washer
1090 0147 1962 72 2 Hexagon bolt
1095 0686 3716 01 2 Hexagon plug
1100 0661 1000 38 2 Seal washer
1105 0686 3716 02 1 Hexagon plug
1110 0661 1000 39 1 Seal washer
Ref. Part number Qty Name Remarks
1115 0581 0000 35 1 Coupling
1120 0661 1000 38 1 Seal washer
1125 0070 6002 05 AR Plastic tube
1135 0581 0000 34 1 Coupling
1140 0661 1000 38 1 Seal washer
1145 0070 6002 04 AR Plastic tube
1150 0581 0000 33 1 Coupling
1155 0661 1000 42 1 Seal washer
1159 0653 1100 00 1 Flat gasket
1160 0653 1128 00 1 Cu washer
1161 0581 0000 35 1 Coupling
1162 0661 1000 38 1 Seal washer
1163 0581 0000 87 1 Pipe coupling
1164 0581 0000 43 1 Coupling
1165 1613 9558 00 1 Plate
1170 1088 0801 26 1 Grommet
1175 0147 1962 72 4 Hexagon bolt
1180 1613 8876 00 1 Cover
1185 1613 8877 00 1 Seal
1190 0160 6040 00 4 Screw
1195 0266 2106 00 4 Nut
1200 1089 0575 51 1 Press.transducer
26 2930 1357 01
Parts list
15
61872_06
2930 1357 01 27
Parts list
Air outlet - WorkPlace FF with IFD 15
Ref. Part number Qty Name Remarks
1020 <<< >>> 1 Air dryer - IFD
1025 0147 1962 72 4 Hexagon bolt
1030 1613 9557 00 1 Duct
1035 0147 1962 72 4 Hexagon bolt
1040 0663 9868 00 1 O-ring
1045 0147 1327 03 2 Hexagon bolt
1050 0301 2335 00 2 Washer
1055 1613 9580 01 1 Pipe
1060 0663 2104 98 1 O-ring
1065 0147 1364 03 2 Hexagon bolt
1070 0301 2344 00 2 Washer
1080 0160 6040 00 4 Screw
1085 0266 2106 00 4 Nut
1096 0581 0000 35 1 Coupling
1097 0661 1000 38 1 Seal washer
1098 0581 0000 87 1 Pipe coupling
1099 0581 0000 43 1 Coupling
1100 0653 1100 00 1 Flat gasket
1101 0653 1128 00 1 Cu washer
1105 0581 0000 33 1 Coupling
1110 0661 1000 42 1 Seal washer
2003 1 Label
1079 9920 95 GA75(W) 230-230V CSA/
UL, GA90C(W) 220-230V
CSA/UL
1079 9920 94 CSA/UL others
2005 1088 0029 01 1 Screw terminal
2007 1 Frame
1088 0029 76 GA75(W) 230-230V,
GA90C(W) 220-230V
2009 1 Crimp terminal
1088 0029 82 GA75(W) 230-230V,
GA90C(W) 220-230V
2010 1088 0029 21 1 Housing
2011 3 Crimp contact
1088 0029 86 GA75(W) 230-230V,
GA90C(W) 220-230V
2013 2 Crimp terminal
1088 0029 88 GA75(W) 230-230V,
GA90C(W) 220-230V
2014 16 Crimp contact
1088 0029 90 GA75(W) 230-230V,
GA90C(W) 220-230V
2015 1089 0506 27 2 Terminal
2020 1089 0506 62 1 Terminal
2025 3 Fuse holder
1089 0612 12 GA75(W) 230-230V IEC,
GA90C(W) 220-230V IEC
Ref. Part number Qty Name Remarks
1089 0612 01 IEC others
1089 9049 04 GA75(W) 230-230V CSA/
UL, GA90C(W) 220-230V
CSA/UL
1089 9049 04 CSA/UL others
2030 1 Contactor
1089 9415 11 GA75(W) 230-230V IEC,
GA90C(W) 220-230V IEC
1089 9415 12 IEC others
1089 9415 14 GA75(W) 230-230V CSA/
UL, GA90C(W) 220-230V
CSA/UL
1089 9415 15 CSA/UL others
2035 1 Contactor
1089 9415 23 GA75(W) 230-230V IEC,
GA90C(W) 220-230V IEC
1089 9415 22 IEC others
1089 9415 26 GA75(W) 230-230V CSA/
UL, GA90C(W) 220-230V
CSA/UL
1089 9415 25 CSA/UL others
2040 1 Service diagram
9820 2958 06 GA75(W) 230-230V,
GA90C(W) 220-230V
9820 2958 05 Others
2045 3 Fuse
1089 0612 46 GA75(W) 230-230V IEC,
GA90C(W) 220-230V IEC
1089 0612 30 IEC others
1089 9168 57 GA75(W) 230-230V CSA/
UL, GA90C(W) 220-230V
CSA/UL
1089 9168 61 CSA/UL others
2047 3 Fuse terminal
1089 0506 16 GA75(W) 230-230V IEC,
GA90C(W) 220-230V IEC
1089 9049 04 GA75(W) 230-230V CSA/
UL, GA90C(W) 220-230V
CSA/UL
2049 3 Fuse link
1089 9037 05 GA75(W) 230-230V IEC,
GA90C(W) 220-230V IEC
1089 9168 30 GA75(W) 230-230V CSA/
UL, GA90C(W) 220-230V
CSA/UL
28 2930 1357 01
Parts list
16
62083_06
2930 1357 01 29
Parts list
Air outlet - WorkPlace FF with ICD 16
Ref. Part number Qty Name Remarks
1020 0663 9868 00 1 O-ring
1025 0147 1326 03 2 Hexagon bolt
1030 0301 2335 00 2 Washer
1045 0663 3143 00 1 O-ring
1050 0147 1476 03 2 Hexagon bolt
1055 0301 2378 00 2 Washer
1060 0147 1962 72 2 Hexagon bolt
1065 1613 9370 80 1 WSD250
0663 2111 27 • 1 O-ring
0663 2133 00 • 1 O-ring
0663 6136 00 • 1 O-ring
0663 6147 00 • 1 O-ring
1075 0663 3143 00 1 O-ring
1080 0147 1476 03 2 Hexagon bolt
1085 0301 2378 00 2 Washer
1090 0147 1962 72 2 Hexagon bolt
1095 0686 3716 01 2 Hexagon plug
1100 0661 1000 38 2 Seal washer
1105 0686 3716 02 1 Hexagon plug
1110 0661 1000 39 1 Seal washer
1115 0581 0000 35 1 Coupling
1120 0661 1000 38 1 Seal washer
1135 0581 0000 34 1 Coupling
1140 0661 1000 38 1 Seal washer
1150 0581 0000 33 1 Coupling
1155 0661 1000 42 1 Seal washer
1159 0653 1100 00 1 Flat gasket
1160 0653 1128 00 1 Cu washer
1161 0581 0000 35 1 Coupling
1162 0661 1000 38 1 Seal washer
1163 0581 0000 87 1 Pipe coupling
1164 0581 0000 43 1 Coupling
1165 1613 9558 00 1 Plate
1170 1088 0801 26 1 Grommet
1175 0147 1962 72 4 Hexagon bolt
1180 1613 8876 00 1 Cover
1185 1613 8877 00 1 Seal
1190 0160 6040 00 4 Screw
1195 0266 2106 00 4 Nut
2020 1622 1694 00 1 Support
2025 1622 1695 00 1 Pipe
2030 1622 1696 00 1 Pipe
2035 1622 1697 00 1 Pipe end
2040 1622 1698 00 1 Support
2060 0070 6002 04 AR Plastic tube
2065 0070 6002 05 AR Plastic tube
Ref. Part number Qty Name Remarks
2070 0581 1200 23 1 Elbow coupling
2075 0581 2000 18 1 Coupling(tee)
2080 0070 6002 05 AR Plastic tube
8102 2623 29 1 PD260
1603 7000 08 •• 1 Head/bowl
3010 1617 7007 00 ••• 1 Head
3020 1617 7038 03 ••• 2 Dual lock strip
3030 1617 7015 00 ••• 1 Bowl
3040 0663 2109 62 ••• 1 O-ring
2901 0562 00 •• 1 Sight glass kit
3050 ••• 2 Screw
3060 ••• 2 Seal washer
3070 ••• 1 O-ring
3080 ••• 1 Sight glass
3100 1617 7034 00 ••• 2 Side plate
3110 0690 1110 01 ••• 2 Atlas copco logo
3200 1079 9921 12 ••• 1 Label
2901 0545 00 •• 1 PD element kit
4010 ••• 1 Filter element
4500 0663 2109 66 ••• 2 O-ring
2901 0563 00 •• 1 Automatic drain valve kit
5010 ••• 1 Autom.drain val
5020 0663 2111 29 ••• 1 O-ring
5030 1617 7046 00 ••• 1 Nut
6010 1617 7269 00 ••• 1 Diff.press.gauge
6040 1617 7054 01 ••• 1 Label PD260
7050 1617 7082 02 • 1 Quick coupling
7054 1613 9553 80 • 1 Wire assembly
7055 1617 7045 00 • 1 Pressure gauge
7056 1617 7098 00 • 1 Support
7057 0583 8120 10 • 2 Elbow coupling
7058 0070 6002 20 • AR Plastic tube
7059 0583 8120 62 • 2 Push-in coupling
7060 0147 1476 03 • 2 Hexagon bolt
8025 1613 8044 11 1 Wire harness (i
8035 1613 9799 00 2 Nipple threaded
1 Dryer rail
1900 2600 90 IEC
1900 2600 91 CSA/UL
9020 • 2 Fuse
1089 0612 22 IEC
1089 9168 36 CSA/UL
9025 1089 0612 01 • 2 Fuse holder
9030 1089 0506 30 • 1 End bracket
9035 1089 0506 27 • 1 Terminal
10400 9820 2958 91 1 Service diagram
30 2930 1357 01
Parts list
17
61095_17
Ref. Part number Qty Name Remarks
1 Dryer
8092 2459 38 GA55(W) 200V/50Hz
8092 2459 12 GA55(W) 230V/50Hz
8092 2459 20 GA55(W) 400V/50Hz
8092 2459 46 GA55(W) 230V/60Hz C, U
8092 2459 53 GA55(W) 460V/60Hz C, U
8092 2459 61 GA55(W) 500-575V/50-
60Hz
8092 2459 79 GA55(W) 380V/60Hz
8092 2459 87 GA75(W) 230V/50Hz
8092 2459 95 GA75(W) 400V/50Hz
8092 2460 01 GA75(W) 200V/60Hz
8092 2460 19 GA75(W) 230V/60Hz C, U
8092 2460 27 GA75(W) 460V/60Hz C, U
8092 2460 35 GA75(W) 500V/50Hz
8092 2460 43 GA75(W) 380V/60Hz
8092 2460 50 GA90C(W) 230V/50Hz
8092 2460 68 GA90C(W) 400V/50Hz
8092 2460 84 GA90C(W) 230V/60Hz C, U
8092 2460 92 GA90C(W) 460V/60Hz C, U
8092 2461 00 GA90C(W) 500-575V/50-
60Hz
1010 1617 1322 04 • 1 Filter-dryer
1020 1617 0315 00 • 2 Ring
Ref. Part number Qty Name Remarks
1030 1617 0314 00 • 1 Nut
1040 1617 0107 00 • 1 Sleeve
1050 1617 1524 04 • 1 HGB valve
1060 1617 2428 00 • 1 Liquid separator
1061 0301 2335 00 • 1 Washer
1062 0266 2110 00 • 1 Nut
1070 1619 5563 02 • 2 Schräderventiel
2010 1617 2429 00 • 1 Frame
2040 1617 2430 00 • 1 Support
2050 0147 1322 03 • 6 Hex.bolt
2060 0301 2335 00 • 6 Washer
2070 1617 2431 00 • 1 Support
2080 0147 1322 03 • 6 Hex.bolt
2090 0301 2335 00 • 6 Washer
2100 1617 2432 00 • 1 Support
2110 0129 3115 00 • 4 Blind rivet
3010 0653 1062 00 • 1 Flat gasket
3020 0661 1020 00 • 1 Seal washer
3030 0581 0000 35 • 1 Straight coupling
3040 0070 6002 05 • AR Plastic tube
3050 0581 0000 34 • 1 Straight coupling
3060 0070 6002 04 • AR Plastic tube
3070 1088 0801 40 • 1 Grommet
2930 1357 01 31
Parts list
Air dryer - WorkPlace FF with IFD 17
Ref. Part number Qty Name Remarks
4010 1 Heat exch. set
1603 1013 00 GA55(W)
1603 1013 01 GA75(W)
1603 1013 02 GA90C(W)
•• 1 Heat exchanger
1617 2425 00 GA55(W)
1617 2426 00 GA75(W)
1617 2427 00 GA90C(W)
1617 2422 00 •• 1 Connection
4020 0147 1322 03 • 3 Hex.bolt
4030 0301 2335 00 • 3 Washer
4050 0147 1477 03 • 2 Hex.bolt
4060 0301 2378 00 • 2 Washer
4070 0650 0100 09 • 1 Gasket
4080 1619 7474 01 • 1 Waterseparator 1)
0663 6147 00 •• 1 O-ring
4090 0663 3143 00 • 2 O-ring
4100 0147 1477 03 • 4 Hex.bolt
4110 0301 2378 00 • 4 Washer
4150 1089 0575 41 • 1 Pressure sensor
4160 0348 0101 13 • 2 Cable tie
4170 • 1 Box assy
1603 1698 83 GA55(W)
1603 1698 84 GA75(W)
1603 1698 85 GA90C(W)
1617 2433 00 •• 1 Box
•• 1 Insulation top
1617 2434 00 GA55(W)
1617 2436 00 GA75(W)
1617 2438 00 GA90C(W)
•• 1 Filling block
1617 2628 00 GA55(W), GA75(W)
1617 2629 00 GA90C(W)
•• 1 Insulation bottom
1617 2435 00 GA55(W)
1617 2437 00 GA75(W)
1617 2439 00 GA90C(W)
4180 1617 0745 00 • 1 Data plate
4190 0129 3103 00 • 4 Blind rivet
4200 0301 2335 00 • 5 Washer
4210 0333 3227 00 • 5 Washer
4220 0266 2110 00 • 5 Nut
5010 • 1 Capillary assy
1617 1828 84 GA55(W)
1617 1828 85 GA75(W)
1617 1828 86 GA90C(W)
5020 0348 0101 13 • 1 Cable tie
5150 • 1 Condensor
1617 2423 00 GA55(W)
1617 2424 00 GA75(W), GA90C(W)
5160 1619 2766 00 • 4 Scr.bolt
5200 0348 0101 13 • 1 Cable tie
6010 • 1 Refrig.compressor
1619 7767 24 GA55(W) 230V/50Hz
1619 7767 23 GA55(W) 230V/60Hz,
GA55(W) 200V/50Hz
1619 7767 18 GA55(W) 400V/50Hz
1619 7767 33 GA55(W) 500/50Hz,
GA55(W) 575V/60Hz
1614 7168 07 GA75(W) 230V/50Hz
1614 7168 08 GA75(W) 400V/50Hz,
GA75(W) 440-460V/60Hz
1614 7168 09 GA75(W) 200V/50-60Hz,
GA75(W) 230V/60Hz
1614 7168 21 GA75(W) 380V/60Hz
Ref. Part number Qty Name Remarks
1614 7168 22 GA75(W) 500-575V/50-60Hz
1614 7168 11 GA90C(W) 230V/50Hz
1614 7168 12 GA90C(W) 400V/50Hz,
GA90C(W) 440-460V/60Hz
1614 7168 15 GA90C(W) 230V/60Hz
1614 7168 19 GA90C(W) 500V/50Hz,
575V/60Hz
6030 0300 8019 00 • 3 Washer
6040 1619 5337 03 • 3 Scr.bolt
6050 1617 0128 00 • AR Heat conducting
6060 • 1 Fan assy
1617 2057 80 230V/50Hz, 400V/50Hz
1617 2058 80 230V/60Hz, 460V/60Hz
1617 2090 80 200V/50Hz, 200V/60Hz
1617 2580 80 230V/60Hz C U, 400V/60Hz
C U
1617 2581 80 460V/60Hz C U
1617 2582 80 500V/50Hz C U, 575V/60Hz
C U
•• 1 Fan - Motor
1617 2057 00 230V/50Hz, 400V/50Hz
1617 2058 00 230V/60Hz, 460V/60Hz
1617 2090 00 200V/50Hz, 200V/60Hz
1617 2580 00 230V/60Hz C U, 400V/60Hz
C U
1617 2581 00 460V/60Hz C U
1617 2582 00 500V/50Hz C U, 575V/60Hz
C U
1617 2059 00 •• 1 Fan grating
6070 0147 1247 03 • 4 Hex.bolt
6080 0300 0274 68 • 4 Washer
6090 0333 3220 00 • 4 Washer
6100 • 1 Wiring
1617 2571 80 GA55(W) 200V/50Hz
1617 2571 80 GA55(W) 230V/50Hz
1617 2572 80 GA55(W) 230V/60Hz C, U
1617 2571 80 GA55(W) 400V/50Hz
1617 2572 80 GA55(W) 460V/60Hz C, U
1617 2572 80 GA55(W) 500V/50Hz
1617 2572 80 GA55(W) 575V/60Hz C, U
1617 2642 80 GA75(W) 200V/50Hz
1617 2642 80 GA75(W) 230V/50Hz
1617 2642 80 GA75(W) 230V/60Hz C, U
1617 2571 80 GA75(W) 380V/60Hz
1617 2571 80 GA75(W) 400V/50Hz
1617 2572 80 GA75(W) 460V/60Hz C, U
1617 2572 80 GA75(W) 500V/50Hz
1617 2642 80 GA90C(W) 230V/50Hz
1617 2642 80 GA90C(W) 230V/60Hz C, U
1617 2571 80 GA90C(W) 400V/50Hz
1617 2572 80 GA90C(W) 460V/60Hz C, U
1617 2572 80 GA90C(W) 500V/50Hz
1617 2572 80 GA90C(W) 575V/60Hz C, U
6110 1089 9214 35 • 1 Fan pressure switch
6120 1619 5703 00 • 1 High pressure switch
6130 0226 3256 00 • 4 Screw
6135 0333 3214 00 • 4 Washer
6140 0348 0101 13 • 2 Cable tie
1) See “Service kits” / Zie “Service kits” / Se “Service kits”
/ Siehe “Service kits” / Voir “Service kits” / Véase “Service
kits” / Vedere “Kit per la manutenzione” / Se “ Service
kits” / Ver “Conjuntos de reparação” / Se “Servicesett” /
Katso “Huoltotarvik
2901 0749 00 1 Drain valve kit
32 2930 1357 01
Parts list
62146_06
18
2930 1357 01 33
Parts list
Ref. Part number Qty Name Remarks
0020 1 Desiccant
1603 6200 09 GA55(W) - ICD170
1603 6200 10 GA75(W) - ICD230
1603 6200 00 GA90C(W) - ICD280
1010 1 Vessel
1617 6304 99 GA55(W) - ICD170 - CE
1617 6304 86 GA55(W) - ICD170 - ASME
1617 6304 96 GA55(W) - ICD170 - MOM
1617 6306 99 GA75(W) - ICD230 - CE
1617 6306 86 GA75(W) - ICD230 - ASME
1617 6306 96 GA75(W) - ICD230 - MOM
1617 6242 99 GA90C(W) - ICD280 - CE
1617 6242 86 GA90C(W) - ICD280 -
ASME
1617 6242 96 GA90C(W) - ICD280 -
MOM
1020 1 Vessel
1617 6305 99 GA55(W) - ICD170 - CE
1617 6305 86 GA55(W) - ICD170 - ASME
1617 6305 96 GA55(W) - ICD170 - MOM
1617 6307 99 GA75(W) - ICD230 - CE
1617 6307 86 GA75(W) - ICD230 - ASME
1617 6307 96 GA75(W) - ICD230 - MOM
1617 6241 99 GA90C(W) - ICD280 - CE
1617 6241 86 GA90C(W) - ICD280 -
ASME
1617 6241 96 GA90C(W) - ICD280 -
MOM
1030 1 Frame
1617 6499 00 GA75(W) - ICD230
1617 6500 00 GA90C(W) - ICD280
1040 2 Pipe
1617 6311 00 GA55(W) - ICD170
1617 6496 00 GA75(W) - ICD230
1617 6634 00 GA90C(W) - ICD280
1050 1 Tee-pipe
1617 6313 00 GA55(W) - ICD170
1617 6531 00 GA75(W) - ICD230
1617 6635 00 GA90C(W) - ICD280
1060 1617 6479 00 1 Pipe
1080 4 Strainer
1617 6270 01 GA55(W) - ICD170
1617 6270 02 GA75(W) - ICD230
1617 6270 02 GA90C(W) - ICD280
1100 1 Inlet valve
1617 6159 01 GA55(W) - ICD170
1617 6159 02 GA75(W) - ICD230
1617 6159 02 GA90C(W) - ICD280
1110 1617 6051 00 1 Pneum.actuator
1120 2 Check valve
1617 6399 01 GA55(W) - ICD170
1617 6399 02 GA75(W) - ICD230
1617 6399 02 GA90C(W) - ICD280
Ref. Part number Qty Name Remarks
1130 2 Hex. nipple
0603 4283 00 GA55(W) - ICD170
0603 4293 00 GA75(W) - ICD230
0603 4293 00 GA90C(W) - ICD280
1140 0686 3716 29 2 Hexagon plug
1150 0653 1293 00 2 Flat gasket
1190 2 T-run reducing
0564 0000 84 GA55(W) - ICD170
0564 0000 86 GA75(W) - ICD230
0564 0000 86 GA90C(W) - ICD280
1200 3 Pipe elbow type
0634 1000 70 GA55(W) - ICD170
0634 1000 71 GA75(W) - ICD230
0634 1000 71 GA90C(W) - ICD280
1210 2 Pipe
1617 6528 00 GA55(W) - ICD170
1617 6530 00 GA75(W) - ICD230
1617 6530 00 GA90C(W) - ICD280
1220 2 Tee
0564 0611 00 GA55(W) - ICD170
0564 0000 87 GA75(W) - ICD230
0564 0000 87 GA90C(W) - ICD280
1230 0560 0200 62 2 Elbow
1240 0301 2358 00 8 Washer
1250 0266 2112 00 4 Nut
1260 0147 1413 03 4 Hexagon bolt
1270 0634 1000 69 2 Grooved elbow
1300 1617 6476 00 1 Pipe
1340 1 Pipe coupling
0634 1000 94 GA55(W) - ICD170
0634 1000 66 GA75(W) - ICD230
0634 1000 66 GA90C(W) - ICD280
1350 6 Pipe coupling
0634 1000 75 GA55(W) - ICD170
0634 1000 66 GA75(W) - ICD230
0634 1000 66 GA90C(W) - ICD280
2010 0634 1001 04 1 Tee
2020 0634 1000 84 3 Pipe coupling
2030 1617 6662 00 1 Pipe
2040 1624 0001 00 1 Pipe icd170-280
2050 1624 0003 00 1 Flex pipe
2070 0852 0010 27 1 Ball valve
3010 0852 0010 27 2 Ball valve
3020 2 Nipple
1617 6618 00 NPT
4010 1617 7262 00 1 DDp280
4020 0266 2111 00 4 Nut
4030 0147 1365 03 4 Hexagon bolt
4040 0301 2344 00 4 Washer
4050 0663 2104 98 2 O-ring
Air dryer - WorkPlace FF with ICD - Air flow 18
34 2930 1357 01
Parts list
19
62147_09
2930 1357 01 35
Parts list
Air dryer - WorkPlace FF with ICD - Control system 19
Ref. Part number Qty Name Remarks
1010 2 Exh.valve
1617 6272 02 GA55(W) - ICD170
1617 6421 02 GA55(W) - ICD170
1617 6272 03 GA75(W) - ICD230 - 11bar
1617 6421 03 GA75(W) - ICD230 - 16bar
1617 6272 03 GA90C(W) - ICD280 - 11bar
1617 6421 03 GA90C(W) - ICD280 - 16bar
1020 2 Silencer
1617 6164 02 GA55(W) - ICD170
1617 6164 03 GA75(W) - ICD230
1617 6164 03 GA90C(W) - ICD280
1100 2 Elbow
0560 1307 03 GA55(W) - ICD170
2010 1089 9481 51 1 Dewpoint transmitter
2020 1617 9494 00 1 Sensor housing
2030 0583 8181 18 2 Coupling
2040 0582 0006 00 1 Pipe coupling
2050 0852 0010 45 2 Ball valve
2060 0603 4100 41 4 Hex. Nipple
2070 0070 6002 38 AR Ptfe tube
2090 1617 9471 00 1 Pipe
2110 8204 0941 09 1 Needle valve
2120 9740 2021 11 1 Hexagon nipple
2130 9740 2028 22 2 Socket
2140 9093 0032 71 1 Mini FIL08B-D
2150 9090 1519 00 1 Coupl. Elbow
- 1 Mini FIL08B
9093 0032 11 16bar
- 1 Mini REG 08B
9093 0033 01 16bar
- 1 Gauge
9090 1657 00 16bar
2200 0147 1242 03 2 Hex. head screw
2210 0301 2321 00 2 Plain washer
2250 0560 0200 16 1 Elbow
3010 0686 3716 29 2 Hexagon plug
3020 0653 1293 00 2 Flat gasket
3040 1617 9485 01 1 Label
Ref. Part number Qty Name Remarks
3050 1617 9485 02 1 Label
3070 0348 0101 13 5 Cable tie L=293
3080 0348 0101 17 5 Cable strip L=140
3090 0686 6128 00 3 Plug
3100 1089 0575 45 2 Press.transducer
3110 1089 0574 40 1 Temp.sensor
3220 0634 1000 66 1 Grooved couplin
3240 1088 1305 02 10 Push mount
3260 0147 1400 03 4 Hexagon bolt
3270 0301 2358 00 4 Washer
3280 1089 0575 51 2 Press.transducer
3300 1088 1001 01 1 Warning mark
4010 1089 0668 03 2 Solenoid valve
4020 9090 1518 00 3 Coupl. Elbow
4030 9090 1527 00 1 T coupling
4040 9090 1536 00 2 Coupling
4050 9090 1519 00 2 Coupl. elbow
4060 8204 0941 09 2 Needle valve
4070 0603 4101 05 2 Hex. nipple
4080 0070 6002 04 AR Plastic tube
4090 0160 6039 00 4 Screw
4100 0301 2315 00 4 Washer
5010 3176 3543 00 2 Adjustable elbow
5020 0070 0300 79 AR Pipe
5030 0582 0016 00 2 Pipe coupling
5040 9125 6303 00 2 Tredo
5050 0607 1100 86 1 Socket
5060 0560 0200 29 2 Elbow
5070 0603 4104 03 2 Hex. Nipple
5080 0830 1008 87 2 Safety valve
5090 9740 2028 44 2 Tee
6120 1 Nozzle
1617 6287 05 GA55(W) - ICD170 - 11bar
1617 6287 18 GA55(W) - ICD170 - 16bar
1617 6287 06 GA75(W) - ICD230 - 11bar
1617 6287 13 GA75(W) - ICD230 - 16bar
1617 6287 08 GA90C(W) - ICD280 - 11bar
1617 6287 20 GA90C(W) - ICD280 - 16bar
36 2930 1357 01
Parts list
20
61859_03
2930 1357 01 37
Parts list
By-pass dryer - WorkPlace FF with IFD 20
Ref. Part number Qty Name Remarks
8092 2451 02 1 Dryer by-pass
1025 0663 9868 00 • 2 O-ring
2020 1613 9586 01 • 1 Pipe
2025 1619 6153 09 • 1 Ball valve
2035 1089 0575 51 • 1 Press.transducer
2040 1613 9592 00 • 1 Pipe
2050 1613 9593 01 • 1 Pipe
2055 0266 2111 00 • 2 Nut
2060 0147 1366 03 • 2 Hexagon bolt
2065 0301 2344 00 • 4 Washer
2066 0663 9868 00 • 1 O-ring
2119 0605 8300 72 • 1 Bushing
2120 0852 0010 20 • 1 Ball valve
2122 0551 0001 55 • 1 Threaded pipe
2125 1613 9370 80 • 1 WSD250
0663 2111 27 •• 1 O-ring
0663 2133 00 •• 1 O-ring
0663 6136 00 •• 1 O-ring
0663 6147 00 •• 1 O-ring
Ref. Part number Qty Name Remarks
2127 1622 1002 00 • 2 Flange
2128 0147 1479 03 • 4 Hexagon bolt
2130 0663 3143 00 • 2 O-ring
2135 0686 3716 01 • 2 Hexagon plug
2140 0661 1000 38 • 4 Seal washer
2145 0686 3716 02 • 1 Hexagon plug
2150 0661 1000 39 • 1 Seal washer
2155 0581 0000 35 • 1 Coupling
2160 0070 6002 05 • AR Plastic tube
2165 0581 0000 34 • 1 Coupling
2170 0070 6002 04 • AR Plastic tube
2175 0586 1000 15 • 1 Coupling
2180 1619 2766 00 • 2 Bolt
38 2930 1357 01
Parts list
21
61868_09
2930 1357 01 39
Parts list
Regulating system 21
Ref. Part number Qty Name Remarks
1020 0603 4103 03 1 Hexagon nipple
1025 0564 0000 37 1 Tee
1030 1089 0575 20 1 DP transducer
1035 1079 5840 01 1 Nipple
1040 0661 1000 42 1 Seal washer
1045 0574 9917 04 1 Hose assembly
1060 1615 3624 00 1 Nozzle
1065 0661 1000 42 1 Seal washer
1070 0581 0031 01 1 Pipe coupling
1075 0661 1000 40 1 Seal washer
1080 1079 5840 03 1 Nipple
1085 0661 1000 40 1 Seal washer
1090 1 Hose assembly
0574 9911 02 GA
0574 9910 09 GA W
1095 1079 5840 03 1 Nipple
1100 0661 1000 40 1 Seal washer
1105 1089 0574 04 1 Temp.sensor
1110 1900 0710 11 1 Regulator elekt
1111 0147 1169 03 4 Hexagon bolt
1112 0301 2315 00 4 Washer
1113 1 AIE1 expansion
1900 0710 41 GA W
1115 1088 0031 30 1 Connector
1126 1 DIN-rail
1622 0665 00 GA W
1127 1 Cable
1622 0661 01 GA W
1130 0560 1302 03 1 Elbow
1135 2 Temp.sensor
1089 0574 40 GA W
1140 2 Cable
1622 0662 00 GA W
1146 3 Push mount
1088 1305 01 GA W
1147 3 Cable strip
1088 1301 01 GA W L=92
Ref. Part number Qty Name Remarks
1155 1 Hose assembly
1613 9788 00 GA W
1160 1 Hose clip
0347 6120 00 GA W
1165 1 Plate
1613 9789 00 GA W
1170 1 Bolt
1619 2766 00 GA W
1175 2 Cable strip
1088 1301 05 GA W L=338
1180 1613 0801 08 2 Clamp
1185 0266 2108 00 2 Nut
1190 0301 2321 00 2 Washer
2020 1 Wire harness
1613 8044 07 WorkPlace - CSA/UL
1613 8044 08 WorkPlace - IEC
1613 8044 10 Full Feature with IFD
1613 8044 11 Full Feature with ICD
2040 1 Solenoid valve
1089 0621 14 230V/50Hz
1089 0621 19 115V/60Hz - CSA/ UL
2041 0663 2104 83 • 2 O-ring
3020 0852 0010 20 1 Ball valve
3025 1613 6532 01 1 Oil can
3035 0070 6002 04 AR Plastic tube
3040 0070 6002 05 AR Plastic tube
3045 0581 0000 33 1 Coupling
3050 1 Adaptor
1614 5941 00 USA
3055 1 Flat gasket
0653 1331 00 USA
3060 0581 0000 35 1 Coupling
3065 0661 1000 38 1 Seal washer
3070 1619 7336 00 1 Cock
4020 1088 1305 01 AR Push mount
4025 1088 1301 01 AR Cable strip L=92
4040 1088 1301 02 AR Cable strip L=140
40 2930 1357 01
Parts list
22
61119_20
2930 1357 01 41
Parts list
Modulating control 22
Ref. Part number Qty Name Remarks
1 Modulating control
8092 2448 57 50Hz - IEC
8092 2448 65 60Hz - IEC
8092 2448 73 60Hz - CSA/UL
1025 • 1 Solenoid valve
1089 0621 02 120V/60Hz - CSA/UL
1089 0621 01 230V/50Hz - IEC
1089 0621 03 230V/60Hz - IEC
1030 • 1 Cable
1613 9584 01 60Hz - CSA/UL
1613 9584 00 IEC
1035 • 1 Nozzle
1613 6968 05 GA55(W)-7.5bar, GA10-bar,
GA55(W)-100psi,
GA55(W)-125psi
1613 6968 06 GA75(W)-10bar, GA75(W)-
13bar,
GA75(W)-125psi,
GA75(W)-150 psi
GA90C(W)-7.5bar,
GA90C(W)-8bar,
GA90C(W)-100psi
1613 6968 07 GA75(W)-175psi,
GA90C(W)-10bar,
GA90C(W)-13 bar,
GA90C(W)-125psi,
GA90C(W)-175psi
Ref. Part number Qty Name Remarks
2020 1613 9583 00 • 1 Plate
2025 0147 1321 03 • 1 Hexagon bolt
2030 0266 2110 00 • 1 Nut
2031 0301 2335 00 • 1 Washer
2035 <<< >>> • 1 Unloader
2040 0581 1200 23 • 1 Elbow coupling
2045 0070 6002 05 • AR Plastic tube
2050 0581 2000 27 • 1 Pipe coupling
2055 0070 6002 05 • AR Plastic tube
2060 0581 1200 26 • 1 Elbow coupling
2070 0560 4400 85 • 1 Cross
2075 0581 1200 16 • 1 Coupling(elbow)
2080 0070 6002 04 • AR Plastic tube
2085 0580 8402 00 • 1 Pipe coupling
2090 1513 0480 00 • 1 Pressure gauge
2095 1503 2564 01 • 1 Nipple
2100 1079 5840 25 • 1 Hexagon nipple
2105 0574 9914 10 • 1 Hose assembly
2110 1079 5840 25 • 1 Hexagon nipple
2120 1503 2564 10 • 1 Nipple
2125 1613 6961 00 • 1 Regulator
2130 1079 5840 23 • 1 Nipple
2135 0574 9914 09 • 1 Hose assembly
2140 1079 5840 14 • 1 Nipple
2145 0661 1000 40 • 1 Seal washer
42 2930 1357 01
Parts list
23
61100_03
2930 1357 01 43
Parts list
DD filter kit - WorkPlace FF with IFD 23
Ref. Part number Qty Name Remarks
8092 2467 87 1 DD260 filter kit
1010 0663 2104 98 • 1 O-ring
1015 0211 1362 03 • 2 Cap screw
1020 0663 2104 98 • 1 O-ring
1025 1613 9685 01 • 1 Pipe
1030 0211 1365 03 • 2 Cap screw
1035 0266 2111 00 • 2 Nut
1040 0583 8120 62 • 2 Push-in coupling
1045 0070 6002 20 • AR Plastic tube
1050 0583 8120 10 • 2 Elbow coupling
1055 1617 7098 00 • 1 Support
1060 1613 9564 00 • 1 Plate
1065 0147 1205 03 • 2 Hexagon bolt
1075 1613 9553 80 • 1 Wire assembly
1080 1617 7082 02 • 1 Quick coupling
1085 0581 1200 26 • 1 Elbow coupling
1090 0070 6002 05 • AR Plastic tube
1095 0581 2000 18 • 1 Coupling
8102 2603 23 • 1 DD260
1603 7000 08 •• 1 Head/bowl
2010 1617 7007 00 ••• 1 Head
2020 1617 7038 03 ••• 1 Dual lock strip
Ref. Part number Qty Name Remarks
2030 1617 7015 00 ••• 1 Bowl
2040 0663 2109 62 ••• 1 O-ring
2050 0160 0996 06 ••• 1 Screw
2060 0661 1010 00 ••• 1 Seal washer
2070 0663 9095 00 ••• 1 O-ring
2901 0562 00 •• 1 Sight glass kit
2050 ••• 2 Screw
2060 ••• 2 Tredo washer
2070 ••• 1 O-ring
2080 ••• 1 Sight glass
2100 1617 7034 00 ••• 1 Side plate
2110 0690 1110 01 ••• 1 House mark
2901 0544 00 •• 1 DD and DDp element kit
••• 1 Cartridge
3010 ••• 1 Filter element
3500 0663 2109 66 ••• 2 O-ring
2901 0563 00 •• 1 Automatic drain valve kit
4010 ••• 1 Autom.drain valve
4020 0663 2111 29 ••• 1 O-ring
4030 1617 7046 00 ••• 1 Nut
5010 1617 7269 00 ••• 1 Diff.press.gauge
5040 1617 7054 03 ••• 1 Label
44 2930 1357 01
Parts list
24
61098_03
2930 1357 01 45
Parts list
PD/DD filter kit - WorkPlace FF with IFD 24
Ref. Part number Qty Name Remarks
8092 2467 79 1 PD/DD Filter kit
1010 0663 2104 98 • 1 O-ring
1015 0211 1362 03 • 2 Cap screw
1020 0663 2104 98 • 1 O-ring
1025 0211 1363 03 • 2 Cap screw
1030 0266 2111 00 • 2 Nut
1035 0551 0002 25 • 1 Threaded pipe
1040 0583 8120 62 • 4 Push-in couplin
1045 0070 6002 20 • AR Plastic tube
1065 0583 8120 10 • 4 Elbow coupling
1070 1617 7098 00 • 2 Support
1075 1613 9564 00 • 1 Plate
1077 0129 3115 00 • 2 Blind rivet
1080 0147 1205 03 • 4 Hexagon bolt
1090 1613 9553 80 • 2 Wire assembly
1095 1617 7082 02 • 2 Quick coupling
1100 0581 1200 26 • 2 Elbow coupling
1105 0581 2000 18 • 2 Coupling
1110 0070 6002 05 • AR Plastic tube
1120 1088 1305 01 • 3 Push mount
1125 1088 1301 02 • 11 Cable strip
8102 2603 23 • 1 DD260
1603 7000 08 •• 1 Head/bowl
2010 1617 7007 00 ••• 1 Head
2020 1617 7038 03 ••• 2 Dual lock strip
2030 1617 7015 00 ••• 1 Bowl
2040 0663 2109 62 ••• 1 O-ring
2901 0562 00 •• 1 Sight glass kit
2050 ••• 2 Screw
2060 ••• 2 Seal washer
2070 ••• 1 O-ring
2080 ••• 1 Sight glass
2100 1617 7034 00 ••• 2 Side plate
2110 0690 1110 01 ••• 2 Atlas copco log
Ref. Part number Qty Name Remarks
2200 1079 9921 12 ••• 2 Label
2901 0544 00 •• 1 DD en DDp element kit
••• 1 Cartridge
3010 ••• 1 Filter element
3500 0663 2109 66 ••• 2 O-ring
2901 0563 00 •• 1 Automatic drain valve kit
4010 ••• 1 Autom.drain valve
4020 0663 2111 29 ••• 1 O-ring
4030 1617 7046 00 ••• 1 Nut
5010 1617 7269 00 ••• 1 Diff.press.gauge
5040 1617 7054 03 ••• 1 Label
8102 2603 31 • 1 PD260
1603 7000 08 •• 1 Head/bowl
6010 1617 7007 00 ••• 1 Head
6020 1617 7038 03 ••• 2 Dual lock strip
6030 1617 7015 00 ••• 1 Bowl
6040 0663 2109 62 ••• 1 O-ring
2901 0562 00 •• 1 Sight glass kit
6050 ••• 2 Screw
6060 ••• 2 Seal washer
6070 ••• 1 O-ring
6080 ••• 1 Sight glass
6100 1617 7034 00 ••• 2 Side plate
6110 0690 1110 01 ••• 2 Atlas copco logo
6200 1079 9921 12 ••• 1 Label
2901 0545 00 •• 1 PD element kit
7010 ••• 1 Filter element
7500 0663 2109 66 ••• 2 O-ring
2901 0563 00 •• 1 Automatic drain valve kit
8010 ••• 1 Autom.drain val
8020 0663 2111 29 ••• 1 O-ring
8030 1617 7046 00 ••• 1 Nut
9010 1617 7269 00 ••• 1 Diff.press.gauge
9040 1617 7054 01 ••• 1 Label PD260
46 2930 1357 01
Parts list
25
61857_06
2930 1357 01 47
Parts list
Drain system - Oil Separator condensate Drain 25
Ref. Part number Qty Name Remarks
8092 2450 94 1 Oil Separator condensate
Drain
2020 1613 8109 00 • 1 Support
2025 1619 2766 00 • 2 Bolt
2035 0147 1322 03 • 3 Hexagon bolt
2040 0301 2335 00 • 3 Washer
2045 1613 9735 00 • 1 Oil can
2050 1613 7327 00 • 1 Support
2055 1619 2766 00 • 1 Bolt
2075 0581 1200 37 • 2 Pipe coupling
2080 0070 6002 05 • AR Plastic tube
2085 0226 0326 00 • 4 Tapping screw
1613 7301 81 • 1 OSD assembly
3030 1079 9909 07 •• 1 Label
1613 7301 80 •• 1 OSD
4020 1613 7301 00 ••• 1 OSD housing
4025 0661 1054 00 ••• 1 Tredo washer
4030 1613 7297 00 ••• 1 Valve
4035 1613 7277 00 ••• 1 Oilfilter
4040 1613 7299 00 ••• 1 Filter
4045 1613 7298 00 ••• 1 Cover
4050 0653 9098 00 ••• 1 Flat gasket
4055 0686 3716 02 ••• 1 Hexagon plug
4060 0653 0500 02 ••• 1 Gasket
Ref. Part number Qty Name Remarks
4065 1613 7378 00 ••• 1 Strainer
4070 1079 9913 69 ••• 1 Inform.label
4075 1079 9912 07 ••• 1 Decal
4080 1079 9912 28 ••• 1 Decal
4085 1613 7945 00 ••• 1 Plug
1613 7865 80 • 1 Filter ass’y
5020 1613 7864 00 •• 1 Filter element
5025 1613 7865 00 •• 1 Filter housing
5030 0663 2104 06 •• 1 O-ring
6030 1079 9912 11 • 1 Decal
6055 1613 7384 00 • 1 Data plate
6060 0129 3104 00 • 4 Blind rivet
7020 1615 7264 00 • 1 Pressure gauge
7021 0584 9904 00 • 2 Sleeve
7025 0070 6002 04 • AR Plastic tube
7030 0581 2024 32 • 1 Coupling
7031 0653 0500 47 • 1 Gasket
7050 1613 7985 80 • 1 Elbow coupling
7055 0070 6002 14 • AR Plastic tube
7060 1613 7985 80 • 1 Elbow coupling
7065 0070 6002 14 • AR Plastic tube
7070 1613 7342 00 • 1 Elbow coupling
7075 1613 7341 00 • 1 Pipe coupling
48 2930 1357 01
Parts list
61858_06
26
2930 1357 01 49
Parts list
Ref. Part number Qty Name Remarks
1 Electronic Water Drain
8092 2450 78 230V
8092 2477 93 110V
1020 1613 8079 00 • 1 Support
1025 1619 2766 00 • 2 Bolt
1030 • 1 EWD330
1613 8810 01 230V
1613 8810 02 110V
1035 0605 8814 06 • 1 Bushing
1040 0581 1200 14 • 1 Elbow coupling
1045 1613 7720 08 • 1 Pipe
1050 0581 0000 37 • 1 Pipe coupling
1055 0661 1000 39 • 1 Seal washer
1060 1619 6153 04 • 1 Ball valve
1065 0661 1000 39 • 1 Seal washer
1070 0581 0000 53 • 1 Straight pipe coupling
Ref. Part number Qty Name Remarks
1075 0070 6002 06 • AR Plastic tube
1080 0581 0000 45 • 1 Pipe coupling
1085 0661 1000 38 • 2 Seal washer
1090 1613 8084 00 • 1 Pipe coupling
1095 0070 6002 05 • AR Plastic tube
1100 0581 0000 35 • 1 Coupling
1105 0661 1000 38 • 2 Seal washer
1110 0852 0010 11 • 1 Ball valve
1115 0581 0028 01 • 1 Pipe coupling
1120 1613 8108 01 • 1 Pipe
1125 0581 1228 04 • 1 Elbow
1130 0605 8814 06 • 1 Bushing
1135 0607 3000 13 • 1 Reducer
1140 0581 1200 23 • 1 Elbow coupling
1141 0070 6002 05 • AR Plastic tube
Drain system - Electronic Water Drain 26
50 2930 1357 01
Parts list
27 Start cubicle - star/delta - IEC - 50-60Hz
Ref. Part number Qty Name Remarks
1 Electr. panel
1900 2512 01 GA55(W) 230V/50Hz
1900 2512 02 GA55(W) 400V/50Hz
1900 2512 04 GA55(W) 230V/60Hz,
GA90C(W) 380V/60Hz
1900 2512 05 GA55(W) 380V/60Hz,
GA55(W) 500V/50Hz
1900 2512 06 GA55(W) 460V/60Hz
1900 2512 11 GA75(W) 230V/50Hz,
GA90C(W) 230V/50Hz
1900 2512 12 GA75(W) 400V/50Hz
1900 2512 13 GA75(W) 500V/50Hz
1900 2512 15 GA75(W) 380V/60Hz,
GA90C(W) 500V/50Hz
1900 2512 16 GA75(W) 460V/60Hz
1900 2512 22 GA90C(W) 400V/50Hz
1900 2512 81 GA55(W) 200V/50-60Hz
Japan
1900 2512 82 GA75(W) 200V/50-60Hz
Japan
1900 2512 83 GA90C(W) 200V/50-60Hz
Japan
1005 1079 9901 68 • 1 Label
1010 1079 9906 09 • 1 Label
1025 1088 0031 13 • 1 Connector
1035 1088 0031 29 • 1 Connector
1040 1088 0031 49 • 1 Connector
1050 1089 0362 50 • 2 Contact Block
1055 1089 0362 51 • 1 Emergency stop button
1056 • 2 Barrier
1089 0426 03 GA55(W) 400V/50Hz
1089 0426 03 GA55(W) 380V/60Hz,
GA55(W) 550V/50Hz
61405_12
Ref. Part number Qty Name Remarks
1089 0426 03 GA55(W) 460V/60Hz
1089 0426 03 GA75(W) 400V/50Hz
1089 0426 03 GA75(W) 500V/50Hz
1057 • 1 Terminal
1089 0506 04 GA55(W) 460V/60Hz
1089 0506 04 GA75(W) 460V/60Hz
1060 1089 0506 16 • 3 Fuse terminal
1062 • 3 Terminal
1089 0506 15 GA55(W) 400V/50Hz
1089 0506 15 GA55(W) 380V/60Hz,
GA55(W) 550V/50Hz
1089 0506 15 GA55(W) 460V/60Hz
1089 0506 15 GA75(W) 400V/50Hz
1089 0506 15 GA75(W) 500V/50Hz
1065 1089 0506 27 • 3 Terminal
1075 1089 0506 63 • 3 Terminal
1077 1089 0506 06 • 3 Terminal
1080 1089 0506 64 • 1 Terminal
1082 1089 0506 38 • 2 Terminal socket
1085 1089 0612 01 • 2 Fuse holder
1090 1089 0612 24 • 2 Fuse
1091 1089 0506 62 • 3 Terminal
1095 1089 9037 02 • 6 Fuse link
1100 1089 9136 93 • 1 Transformer
1105 • 1 Transformer
1089 9136 96 GA55(W) 230V/50Hz
1089 9136 96 GA75(W) 400V/50Hz
1089 9136 96 GA90C(W) 400V/50Hz
1089 9136 95 GA55(W) 400V/50Hz
1089 9136 97 GA75(W) 230V/50Hz
1089 9436 05 GA55(W) 230V/60Hz
1089 9436 02 GA55(W) 460V/60Hz
1089 9436 03 GA55(W) 380V/60Hz
2930 1357 01 51
Parts list
27
Ref. Part number Qty Name Remarks
1089 9436 03 GA75(W) 500V/50Hz
1089 9436 03 GA75(W) 380V/60Hz
1089 9436 03 GA75(W) 460V/60Hz
1089 9436 05 GA55(W) 200V/50-60Hz
Japan
1089 9436 06 GA75(W) 200V/50-60Hz
Japan
1089 9436 06 GA90C(W) 200V/50-60Hz
Japan
1106 • Contact Block
1089 9415 07 3 GA55(W) 400V/50Hz,
1089 9415 07 3 GA55(W) 380V/60Hz,
GA55(W) 550V/50Hz
1089 9415 07 3 GA55(W) 460V/60Hz,
1089 9415 07 3 GA75(W) 500V/50Hz
1089 9415 07 1 GA75(W) 460V/60Hz
1107 • Contact Block
1089 9415 08 3 GA55(W) 400V/50Hz
1089 9415 08 3 GA55(W) 380V/60Hz,
GA55(W) 550V/50Hz
1089 9415 08 3 GA55(W) 460V/60Hz
1089 9415 08 3 GA75(W) 500V/50Hz
1089 9415 08 1 GA75(W) 460V/60Hz
1110 • 1 Overload relay
1089 9205 15 GA55(W) 230V/50Hz
1089 9424 47 GA55(W) 400V/50Hz
1089 9424 47 GA55(W) 380V/60Hz,
GA55(W) 550V/50Hz
1089 9424 47 GA55(W) 460V/60Hz
1089 9424 48 GA75(W) 500V/50Hz
1089 9424 49 GA75(W) 400V/50Hz
1089 9205 05 GA55(W) 230V/60Hz
1089 9205 13 GA75(W) 380V/60Hz
1089 9205 13 GA75(W) 460V/60Hz
1089 9205 08 GA75(W) 230V/50Hz
1089 9205 14 GA90C(W) 400V/50Hz
1089 9205 06 GA55(W) 200V/50-60Hz
Japan
1089 9399 03 GA75(W) 200V/50-60Hz
Japan
1089 9399 03 GA90C(W) 200V/50-60Hz
Japan
1112 • 3 Connection
1089 9215 07 GA55(W) 230V/60Hz
1089 9215 07 GA75(W) 230V/50Hz
1089 9215 07 GA55(W) 200V/50-60Hz
Japan
1115 • 2 Contactor
1089 9221 03 GA55(W) 230V/50Hz
1089 9221 30 GA55(W) 230V/60Hz
1089 9415 41 GA55(W) 400V/50Hz
1089 9415 41 GA55(W) 460V/60Hz
1089 9415 42 GA55(W) 380V/60Hz
1089 9415 42 GA75(W) 400V/50Hz
1089 9415 42 GA75(W) 500V/50Hz
1089 9221 30 GA75(W) 230V/50Hz
1089 9221 03 GA75(W) 380V/60Hz
1089 9221 03 GA75(W) 460V/60Hz
1089 9221 03 GA90C(W) 400V/50Hz
1089 9221 30 GA55(W) 200V/50-60Hz
Japan
1089 9221 96 GA75(W) 200V/50-60Hz
Japan
1089 9221 96 GA90C(W) 200V/50-60Hz
Japan
Ref. Part number Qty Name Remarks
1120 • Contact Block
1089 9415 07 1 GA55(W) 230V/50Hz
1089 9415 07 3 GA75(W) 400V/50Hz
1089 9415 07 1 GA75(W) 380V/60Hz
1089 9415 07 1 GA90C(W) 400V/50Hz
1125 • Contact Block
1089 9415 08 1 GA55(W) 230V/50Hz
1089 9415 08 3 GA75(W) 400V/50Hz
1089 9415 08 1 GA75(W) 380V/60Hz
1089 9415 08 1 GA90C(W) 400V/50Hz
1130 • 1 Contactor
1089 9415 41 GA55(W) 230V/50Hz,
1089 9415 41 GA55(W) 380V/60Hz,
GA55(W) 550V/50Hz
1089 9415 41 GA75(W) 400V/50Hz
1089 9415 41 GA75(W) 500V/50Hz
1089 9415 41 GA90C(W) 400V/50Hz
1089 9415 32 GA55(W) 400V/50Hz
1089 9415 32 GA55(W) 460V/60Hz
1089 9221 03 GA75(W) 230V/50Hz
1089 9221 03 GA55(W) 230V/60Hz
1089 9415 42 GA75(W) 380V/60Hz
1089 9415 42 GA75(W) 460V/60Hz
1089 9221 03 GA55(W) 200V/50-60Hz
Japan
1089 9221 30 GA75(W) 200V/50-60Hz
Japan
1089 9221 30 GA90C(W) 200V/50-60Hz
Japan
1135 1089 9416 01 • 1 Contact Block
1140 • 1 Circuit breaker
1089 9416 29 GA55(W) 230V/50Hz
1089 9416 29 GA55(W) 230V/60Hz
1089 9416 26 GA55(W) 380V/60Hz,
GA55(W) 550V/50Hz
1089 9416 27 GA55(W) 400V/50Hz
1089 9416 27 GA55(W) 460V/60Hz
1089 9416 27 GA75(W) 400V/50Hz
1089 9416 28 GA75(W) 380V/60Hz
1089 9416 28 GA75(W) 460V/60Hz
1089 9416 30 GA75(W) 230V/50Hz
1089 9416 67 GA75(W) 500V/50Hz
1089 9416 28 GA90C(W) 400V/50Hz
1089 9416 30 GA55(W) 200V/50-60Hz
Japan
1089 9416 30 GA75(W) 200V/50-60Hz
Japan
1089 9416 71 GA90C(W) 200V/50-60Hz
Japan
1145 1613 6639 00 • 1 Data Plate
1150 1613 9522 00 • 1 Plate
1160 • 1 Connection element
1613 9629 00 GA55(W) 230V/50Hz
1613 9629 00 GA75(W) 380V/60Hz
1613 9629 00 GA75(W) 460V/60Hz
1613 9629 00 GA90C(W) 400V/50Hz
1613 9630 00 GA55(W) 230V/60Hz
1613 9630 00 GA75(W) 230V/50Hz
1613 9630 00 GA55(W) 200V/50-60Hz
Japan
1613 9631 00 GA75(W) 200V/50-60Hz
Japan
1613 9631 00 GA90C(W) 200V/50-60Hz
Japan
1165 9820 2958 41 • 1 Service diagram
52 2930 1357 01
Parts list
28 Start cubicle - star/delta - CSA/UL - 60 Hz
61408_12
Ref. Part number Qty Name Remarks
1 Electr. panel
1900 2512 50 GA55(W) 200V
1900 2512 51 GA55(W) 230V
1900 2512 52 GA55(W) 460V
1900 2512 53 GA55(W) 575V
1900 2512 60 GA75(W) 230V
1900 2512 62 GA75(W)-90C 460V
1900 2512 63 GA75(W)-90C 575V
1900 2512 71 GA90C(W) 230V
1005 1079 9901 68 • 1 Warning label
1010 1079 9906 09 • 1 Label
1015 1079 9911 01 • 1 Label
1020 1079 9920 86 • 1 Label
1025 1088 0031 13 • 1 Connector
1030 1088 0031 29 • 1 Connector
1035 1088 0031 49 • 1 Connector
1050 1089 0362 50 • 2 Contact block
1055 1089 0362 51 • 1 Emergency stop button
1060 • 2 Barrier
1089 0426 03 GA55(W) 460V/60Hz
1089 0426 03 GA55(W) 575V/60Hz
1089 0426 03 GA75(W) 575V, GA90C(W)
575V
Ref. Part number Qty Name Remarks
1065 • 3 Terminal
1089 0506 04 GA55(W) 460V
1089 0506 04 GA90C(W) 460V, GA75(W)
460V
1070 • 3 Terminal
1089 0506 15 GA55(W) 460V
1089 0506 15 GA55(W) 575V
1089 0506 15 GA75(W) 575V, GA90C(W)
575V
1080 1089 0506 27 • 3 Terminal
1085 1089 0506 38 • 2 Terminal socket
1090 1089 0506 06 • 3 Terminal
1091 1089 0506 62 • 3 Terminal
1095 1089 0506 63 • 3 Terminal
1100 1089 0506 64 • 1 Terminal
1105 • Fuse holder
1089 0612 01 5 GA55(W) 200V
1089 0612 01 5 GA55(W) 230V
1089 0612 01 5 GA55(W) 460V
1089 0612 01 5 GA75(W) 200V, GA75(W)
230V
1089 0612 01 5 GA90C(W) 460V, GA75(W)
460V
2930 1357 01 53
Parts list
28
Ref. Part number Qty Name Remarks
1089 0612 01 5 GA90C(W) 230V
1089 0612 01 3 GA75(W) 575V, GA90C(W)
575V
1089 9049 04 2 GA75(W) 575V, GA90C(W)
575V
1089 0612 01 3 GA55(W) 575V
1089 9049 04 2 GA55(W) 575V
1110 1089 9168 26 • 2 Fuse
1115 1089 9168 30 • 1 Fuse link
1120 1089 9168 02 • 2 Fuse
1125 1089 9136 27 • 1 Transformer
1130 • 1 Transformer
1089 9436 05 GA55(W) 200V
1089 9436 05 GA55(W) 230V
1089 9436 03 GA55(W) 460V
1089 9436 02 GA55(W) 575V
1089 9436 07 GA75(W) 200V, GA75(W)
230V
1089 9436 04 GA75(W) 460V, GA90C(W)
460V
1089 9436 03 GA75(W) 575V, GA90C(W)
575V
1089 9436 07 GA90C(W) 230V
1135 • 1 Overload relay
1089 9205 05 GA55(W) 230V
1089 9205 06 GA55(W) 200V
1089 9424 47 GA55(W) 460V
1089 9424 46 GA55(W) 575V
1089 9399 12 GA75(W) 200V, GA75(W)
230V
1089 9205 13 GA75(W) 460V, GA90C(W)
460V
1089 9399 12 GA90C(W) 230V
1089 9424 47 GA75(W) 575V, GA90C(W)
575V
1140 • 3 Connection strip
1089 9215 02 GA55(W) 200V
1145 • 1 Interlock
1089 9216 03 GA55(W) 200V
1089 9216 03 GA55(W) 230V
1089 9216 03 GA75(W) 200V, GA75(W)
230V
1089 9216 03 GA75(W) 460V, GA90C(W)
460V
1089 9216 03 GA90C(W) 230V
1089 9415 10 GA55(W) 460V
1089 9415 10 GA55(W) 575V
1089 9415 10 GA75(W) 575V, GA90C(W)
575V
1150 • 3 Contact block
1089 9415 07 GA55(W) 460V
1089 9415 07 GA55(W) 575V
1089 9415 07 GA75(W) 575V, GA90C(W)
575V
1155 • 3 Contact block
1089 9415 08 GA55(W) 460V
1089 9415 08 GA55(W) 575V
1089 9415 08 GA75(W) 575V, GA90C(W)
575V
1160 • 2 Contactor
1089 9221 43 GA55(W) 200V
Ref. Part number Qty Name Remarks
1089 9221 49 GA55(W) 230V
1089 9221 48 GA90C(W) 460V, GA75(W)
460V
1089 9221 50 GA75(W) 200V, GA75(W)
230V
1089 9221 50 GA90C(W) 230V
1089 9415 44 GA55(W) 575V
1089 9415 45 GA55(W) 460V
1089 9415 46 GA75(W) 575V, GA90C(W)
575V
1165 • 1 Contactor
1089 9221 93 GA55(W) 200V
1089 9221 48 GA55(W) 230V
1089 9221 48 GA90C(W) 460V, GA75(W)
460V
1089 9221 50 GA75(W) 200V, GA75(W)
230V
1089 9221 50 GA90C(W) 230V
1089 9415 44 GA55(W) 460V
1089 9415 44 GA55(W) 575V
1089 9415 46 GA75(W) 575V, GA90C(W)
575V
1175 • 2 Interlock link
1089 9415 90 GA55(W) 460V
1089 9415 90 GA55(W) 575V
1089 9415 90 GA75(W) 575V, GA90C(W)
575V
1180 1089 9416 01 • 1 Auxilary contact block
1185 • 1 Circuit breaker
1089 9416 26 GA55(W) 575V
1089 9416 27 GA55(W) 460V
1089 9416 27 GA75(W) 575V, GA90C(W)
575V
1089 9416 28 GA90C(W) 460V, GA75(W)
460V
1089 9416 29 GA55(W) 230V
1089 9416 30 GA55(W) 200V
1089 9416 30 GA75(W) 200V, GA75(W)
230V
1089 9416 71 GA90C(W) 230V
1190 1614 8949 00 • 1 Data plate
1195 1613 3431 00 • 1 Label
1200 1613 9522 00 • 1 Plate
1210 1613 9629 00 • 1 Connection element
1613 9629 00 GA90C(W) 460V/60Hz,
GA75(W) 460V/60Hz
1613 9629 00 GA75(W) 200V/60Hz,
GA75(W) 230V/60Hz
1613 9630 00 GA55(W) 200V/60Hz 115V
Ctrl
1613 9630 00 GA55(W) 230V/60Hz 115V
Ctrl
1613 9631 00 GA75(W) 200V/60Hz,
GA75(W) 230V/60Hz 115V
Ctrl
1613 9631 00 GA90C(W) 230V/60Hz
115V Ctrl
1500 9820 2958 41 • 1 Service diagram
2045 1613 5330 00 1 Listing mark
2050 0129 3104 00 4 Blind rivet
54 2930 1357 01
Parts list
61890_12
Ref. Part number Qty Name Remarks
1020 1613 9755 00 • 1 Support
1025 1613 9803 00 • 1 Support
1030 0147 1962 72 • 4 Hexagon bolt
1035 0261 2108 00 • 4 Nut
1040 0160 6089 00 • 4 Screw
1045 1089 9337 48 • 1 Switch
1088 1001 02 •• 1 Warning label
29 Main switch
Ref. Part number Qty Name Remarks
1 Main switch
8055 2402 49 GA55(W) 230V/50Hz,
GA75(W) 380-460V/60Hz
8055 2402 31 GA55(W) 380-460V/60Hz -
IEC
8055 2402 31 GA55(W) 400-500V/50Hz,
GA75(W) 400-500V/50Hz
8055 2402 49 GA90C(W) 400-500V/50Hz,
GA90C(W) 380-460V/60Hz -
IEC
2930 1357 01 55
Parts list
Freeze protection 30
61892_06
Ref. Part number Qty Name Remarks
1070 1613 9763 01 • 1 Cable
1075 1079 0900 02 • AR Tape
1080 1617 0710 00 • 3 Insulation plat
1085 0395 1010 05 • AR Insulating tape
1090 1613 9763 02 • 1 Cable
1095 1079 0900 02 • AR Tape
1100 • 1 Insulation assy
1617 0425 80 WorkPlace FF
1105 • AR Insulating tape
0395 1010 05 WorkPlace FF
1110 1079 9005 19 • 1 Insulation tube
1115 0395 1010 05 • AR Insulating tape
1125 1079 9902 01 • 2 Warning label
Ref. Part number Qty Name Remarks
1 Freeze protection
8092 2469 44 WorkPlace
8092 2469 51 Full Feature with Integrated
refigerant Dryer (ID)
1020 1613 9794 01 • 1 Wire harness
1025 0160 6039 00 • 2 Screw
1030 0333 3214 00 • 2 Lock washer
1035 0266 2106 00 • 2 Nut
1040 1089 0504 03 • 1 Heater
1045 0160 6063 00 • 2 Screw
1050 0333 3215 00 • 2 Lock washer
1055 0266 2107 00 • 2 Nut
1060 1088 1301 01 • 6 Cable strip
1065 0348 0110 01 • 6 Push mount
56 2930 1357 01
Parts list
31
61874_15
2930 1357 01 57
Parts list
Energy recovery system - GA55, GA55 W 31
Ref. Part number Qty Name Remarks
1 Energy recovery system
8092 2477 10 GA55
8092 2477 28 GA55 W
1020 1202 5896 00 • 1 4-way valve
2901 0200 00 •• 1 Service kit
1025 1202 5907 00 • 1 Therm.housing
1030 0663 3132 00 • 2 O-ring
1035 0147 1363 03 • 4 Hexagon bolt
1040 0301 2344 00 • 4 Washer
1045 1619 7333 00 • 1 Thermostat 40°C
1050 0686 4209 00 • 1 Hexagon plug
1055 0661 1000 45 • 1 Seal washer
1060 1202 5925 00 • 1 Decal
1065 0147 1321 03 • 3 Hexagon bolt
1070 0301 2335 00 • 3 Washer
1075 1202 5926 00 • 1 Handle
1080 1202 5927 00 • 2 Decal
1082 1079 9902 89 • 1 Warning label
1085 0147 1321 03 • 1 Hexagon bolt
1090 0301 2335 00 • 1 Washer
1095 1622 0972 00 • 1 Support
1096 1622 0973 00 • 1 Plate
1100 1619 2766 00 • 4 Bolt
1110 1613 7000 07 • 1 Flange
1115 0663 7136 00 • 1 O-ring
1120 0147 1363 03 • 2 Hexagon bolt
1125 0301 2344 00 • 2 Washer
1130 2250 4983 00 • 1 Nipple
1135 0661 1000 44 • 1 Seal washer
1145 1613 7000 07 • 1 Flange
1150 0663 7136 00 • 1 O-ring
1155 0147 1363 03 • 2 Hexagon bolt
1160 0301 2344 00 • 2 Washer
1164 2250 4983 00 • 1 Nipple
1165 0661 1000 44 • 1 Seal washer
1170 1613 9700 02 • 1 Pipe
1175 0663 7134 00 • 1 O-ring
1180 0301 2344 00 • 2 Washer
1185 0147 1363 03 • 2 Hexagon bolt
Ref. Part number Qty Name Remarks
1190 2250 4983 00 • 1 Nipple
1195 0661 1000 44 • 1 Seal washer
1200 1613 7634 00 • 1 Heat exchanger
1205 0147 1344 03 • 4 Hexagon bolt
1210 0301 2335 00 • 4 Washer
1215 2250 4983 00 • 1 Nipple
1220 0661 1000 44 • 1 Seal washer
1225 1613 9701 02 • 1 Pipe
1230 0663 3132 00 • 1 O-ring
1240 0302 1274 01 • 2 Washer
1245 0147 1363 03 • 2 Hexagon bolt
1250 0686 3716 01 • 1 Hexagon plug
1255 0661 1000 38 • 1 Seal washer
1260 0551 0001 73 • 1 Threaded pipe
1263 0551 0001 84 • 1 Threaded pipe
1265 0564 0000 29 • 2 Tee
1270 0605 8700 51 • 2 Bushing
1275 0661 1000 44 • 2 Seal washer
1310 1089 0574 40 • 2 Temp.sensor
2020 0574 9874 03 • 1 Hose assembly
2025 0574 9874 02 • 1 Hose assembly
2030 • 1 Thermostat
1202 5869 02 60°C
1202 5869 03 65°C
1202 5869 01 70°C
1202 5869 04 75°C
2050 1079 9913 69 • 1 Inform.label
2055 1079 9913 79 • 1 Inform.label
2060 1622 0663 01 • 1 Cable
2065 1622 0663 02 • 1 Cable
2075 • 1 DIN-rail
1622 0665 00 GA
2080 • 1 Cable
1622 0661 01 GA
1622 0661 02 GA W
2085 1088 1305 01 • 1 Push mount
2090 1088 1301 01 • 4 Cable strip
2095 1900 0710 41 • 1 AIE1 expansion
2105 1088 0031 04 • 1 Connector
58 2930 1357 01
Parts list
32
61856_15
2930 1357 01 59
Parts list
Energy recovery system - GA75, GA75 W, GA90C, GA90C W 32
Ref. Part number Qty Name Remarks
1 Energy recovery system
8092 2477 36 GA75, GA90C
8092 2477 44 GA75 W, GA90C W
1020 1202 5896 00 • 1 4-way valve
2901 0200 00 •• 1 Service kit
1025 1202 5907 00 • 1 Therm.housing
1030 0663 3132 00 • 2 O-ring
1035 0147 1363 03 • 4 Hexagon bolt
1040 0301 2344 00 • 4 Washer
1045 1619 7333 00 • 1 Thermostat 40°C
1050 0686 4209 00 • 1 Hexagon plug
1055 0661 1000 45 • 1 Seal washer
1060 1202 5925 00 • 1 Decal
1065 0147 1321 03 • 3 Hexagon bolt
1070 0301 2335 00 • 3 Washer
1075 1202 5926 00 • 1 Handle
1080 1202 5927 00 • 2 Decal
1082 1079 9902 89 • 1 Warning label
1085 0147 1321 03 • 1 Hexagon bolt
1090 0301 2335 00 • 1 Washer
1095 1622 0972 00 • 1 Support
1096 1622 0973 00 • 1 Plate
1100 1619 2766 00 • 4 Bolt
1110 1613 7000 07 • 1 Flange
1115 0663 7136 00 • 1 O-ring
1120 0147 1363 03 • 2 Hexagon bolt
1125 0301 2344 00 • 2 Washer
1130 2250 4983 00 • 2 Nipple
1135 0661 1000 44 • 2 Seal washer
1145 1613 7000 07 • 1 Flange
1150 0663 7136 00 • 1 O-ring
1155 0147 1363 03 • 2 Hexagon bolt
1160 0301 2344 00 • 2 Washer
1164 2250 4983 00 • 2 Nipple
1165 0661 1000 44 • 2 Seal washer
1170 1613 9694 01 • 1 Pipe
1175 0663 7134 00 • 1 O-ring
1180 0301 2344 00 • 2 Washer
1185 0147 1363 03 • 2 Hexagon bolt
Ref. Part number Qty Name Remarks
1190 2250 4983 00 • 2 Nipple
1195 0661 1000 44 • 2 Seal washer
1200 1613 7634 00 • 2 Heat exchanger
1205 0147 1344 03 • 8 Hexagon bolt
1210 0301 2335 00 • 8 Washer
1215 2250 4983 00 • 2 Nipple
1220 0661 1000 44 • 2 Seal washer
1222 1613 8106 00 • 4 Bush
1223 0661 1000 44 • 8 Seal washer
1225 1613 9695 01 • 1 Pipe
1230 0663 3132 00 • 1 O-ring
1240 0302 1274 01 • 2 Washer
1245 0147 1363 03 • 2 Hexagon bolt
1250 0686 3716 01 • 1 Hexagon plug
1255 0661 1000 38 • 1 Seal washer
1260 1613 9696 02 • 1 Pipe
1265 1613 9697 02 • 1 Pipe
1310 1089 0574 40 • 2 Temp.sensor
2020 0574 9874 03 • 1 Hose assembly
2025 0574 9874 02 • 1 Hose assembly
2030 • 1 Thermostat
1202 5869 02 60°C
1202 5869 03 65°C
1202 5869 01 70°C
1202 5869 04 75°C
2050 1079 9913 69 • 1 Inform.label
2055 1079 9913 79 • 1 Inform.label
2060 1622 0663 01 • 1 Cable
2065 1622 0663 02 • 1 Cable
2075 • 1 DIN-rail
1622 0665 00 GA
2080 • 1 Cable
1622 0661 01 GA
1622 0661 02 GA W
2085 1088 1305 01 • 1 Push mount
2090 1088 1301 01 • 4 Cable strip
2095 1900 0710 41 • 1 AIE1 expansion
2105 1088 0031 04 • 1 Connector
60 2930 1357 01
Parts list
33
61887_10
2930 1357 01 61
Parts list
Bodywork - GA 33
Ref. Part number Qty Name Remarks
1020 1622 0985 00 2 Beam
1030 1613 9537 00 1 Support
1040 1613 9967 80 1 Baffle assembly 1)
1065 1622 0975 80 1 Panel assembly 2)
1115 1613 9567 00 1 Support
1120 1622 0896 00 1 Support
1135 1613 9569 80 1 Plate assembly 3)
1145 1088 0801 20 1 Grommet
1150 1613 9570 80 2 Plate assembly 3)
1079 9901 18 • 1 Warning label
1165 1622 0986 80 1 Roof assembly 3)
1613 9963 00 • 4 Corner
0129 3270 30 • 8 Blind rivet
1180 1613 9539 82 1 Door assembly 3)
1613 9525 00 • 1 Hinge
0129 3270 29 • 2 Blind rivet
1079 9920 83 • 1 Label website
1619 7705 00 • 1 Lock
1185 1613 8560 00 1 Washer
1190 1613 9532 00 1 Pin
1195 1622 0897 80 1 Panel assembly 2)
1613 8485 00 • 4 Lock
1616 2987 00 • 2 Plug
1200 1622 0897 81 2 Panel assembly 2)
1613 8485 00 • 4 Lock
1616 2987 00 • 2 Plug
0690 1125 01 • 1 House mark
1210 1622 0898 80 1 Panel assembly 2)
1613 8485 00 • 2 Lock
1616 2987 00 • 2 Plug
1215 1613 8560 00 7 Washer
1220 1613 9532 00 7 Pin
1225 1613 9613 01 1 Plate
1230 0226 3343 59 2 Tapping screw
1245 0129 3103 00 4 Blind rivet
1250 1089 9068 01 2 Key
1252 1089 9154 02 1 Key
1255 1088 1301 03 1 Cable strip
1613 9969 81 1 Panel assembly 4)
2010 1613 9969 01 • 1 Panel
2020 0129 3270 29 • 2 Blind rivet
2030 1613 8484 01 • 1 Hinge
2040 1613 9549 00 • 1 Door
2050 1613 8486 00 • 1 Lock
2070 1613 8560 00 • 1 Washer
3020 1079 9901 09 4 Label
3025 1079 9901 29 1 Label
3030 1088 1001 04 1 Warning mark
3035 1079 9909 57 1 Label
3040 1079 9915 99 1 Label
3045 1088 1001 01 1 Warning mark
3050 1089 9125 05 1 Round disk
3055 1088 1001 03 1 Warning mark
3060 1079 9901 09 1 Label
3075 1079 9920 83 1 Label website
3080 1079 9922 39 2 Warning label
1 Fan ass’y
1613 9488 08 GA55-75 200V/50Hz
1613 9488 15 GA55 200V/60Hz
Ref. Part number Qty Name Remarks
1613 9488 01 GA55-75 230-400V/50Hz
1613 9488 11 GA55-75-90C 230V/380V/
460V/60Hz
1613 9488 03 GA55-75 500V/50Hz
1613 9488 12 GA55-75 575V/60Hz - CSA/UL
1613 9489 02 GA90C 230-400V/50Hz
1613 9489 04 GA90C 500V/50Hz
1613 9489 11 GA90C 230V/380V/460V/60Hz
- CSA/UL
1613 9489 12 GA90C 575V/60Hz - CSA/UL
4010 • 1 Fan
4020 • 1 Fan plate
1613 9490 00 GA55, GA75
1613 9490 00 GA90C - IEC
1613 9535 00 GA90C - CSA/UL
5020 1503 0786 00 2 Rotation arrow
5025 1088 1001 01 1 Warning mark
5030 1 Data plate
1613 7394 00 50Hz
1614 5933 00 60Hz
1613 8883 00 GA55-75/50-60Hz Japan
5035 1 Warning label
1079 9903 82 50Hz
1079 9903 83 60Hz
5040 1 Decal
1613 9027 25 GA55
1613 9027 26 GA75
1613 9027 27 GA90C
1613 9027 28 GA55 FF
1613 9027 29 GA75 FF
1613 9027 30 GA90C FF
6025 1 Standard option
1613 9703 00 Oil containing frame
AR Hexagon bolt
0147 1962 72 M8 x 25 - 8.8 Type E
1619 2766 00 M8 x 25 - 8.8 Type E
AR Tapping screw
0226 0300 46 M6 x 16 Type B1
0226 3343 59 Ø3.5 x 9.5 Type A1
AR Blind rivet
0129 3103 00 Ø2.4 x 5.1
0129 3270 29 Ø5 x 6.5
0129 3270 30 Ø5 x 7.5
AR Washer
0301 2335 00 Ø8.4 x 16 x 1.6
AR Lock washer
0333 3227 00 Ø8.4
AR Nut
0266 2110 00 M8
1-4) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
1) Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
2) Foam: 0395 6001 67 (AR) 30 x 2040 x 1650
3) Foam: 0395 6001 66 (AR) 25 x 2040 x 1650
4) Foam: 0395 6001 64 (AR) 20 x 2040 x 1650
62 2930 1357 01
Parts list
34
61888_10
2930 1357 01 63
Parts list
Bodywork GA W 34
Ref. Part number Qty Name Remarks
1020 1622 0985 00 2 Beam
1030 1613 9537 00 1 Support
1040 1613 9967 80 1 Baffle assembly 1)
1065 1622 0975 80 1 Panel assembly 2)
1130 1613 9740 80 1 Support assembly 3)
1135 1613 9690 80 1 Plate assembly 3)
1165 1622 0986 80 1 Roof assembly 3)
1613 9963 00 • 4 Corner
0129 3270 30 • 8 Blind rivet
1180 1613 9539 82 1 Door assembly 3)
1613 9525 00 • 1 Hinge
0129 3270 29 • 2 Blind rivet
1079 9920 83 • 1 Label website
1619 7705 00 • 1 Lock
1185 1613 8560 00 1 Washer
1190 1613 9532 00 1 Pin
1195 1622 0897 80 1 Panel assembly 2)
1613 8485 00 • 4 Lock
1616 2987 00 • 2 Plug
1200 1622 0897 81 2 Panel assembly 2)
1613 8485 00 • 4 Lock
1616 2987 00 • 2 Plug
0690 1125 01 • 1 House mark
1210 1622 0898 80 1 Panel assembly 2)
1613 8485 00 • 2 Lock
1616 2987 00 • 2 Plug
1215 1613 8560 00 7 Washer
1220 1613 9532 00 7 Pin
1225 1613 9613 01 1 Plate
1230 0226 3343 59 2 Tapping screw
1245 0129 3103 00 4 Blind rivet
1250 1089 9068 01 2 Key
1252 1089 9154 02 1 Key
1255 1088 1301 03 1 Cable strip
1613 9969 81 1 Panel assembly 4)
2010 1613 9969 01 • 1 Panel
2020 0129 3270 29 • 2 Blind rivet
2030 1613 8484 01 • 1 Hinge
2040 1613 9549 00 • 1 Door
2050 1613 8486 00 • 1 Lock
2070 1613 8560 00 • 1 Washer
3020 1079 9901 09 4 Label
3025 1079 9901 29 1 Label
3030 1088 1001 04 1 Warning mark
3035 1079 9909 57 1 Label
3040 1079 9915 99 1 Label
3045 1088 1001 01 1 Warning mark
3050 1089 9125 05 1 Round disk
Ref. Part number Qty Name Remarks
3055 1088 1001 03 1 Warning mark
3060 1079 9901 09 1 Label
3075 1079 9920 83 1 Label website
3080 1079 9922 39 2 Warning label
4020 1079 9913 69 1 Information label
4025 1079 9913 79 1 Information label
4030 1 Data plate
1613 7394 00 50Hz
1614 5933 00 60Hz
1613 8883 00 GA55-75/50-60Hz Japan
4035 1 Warning label
1079 9903 82 50Hz
1079 9903 83 60Hz
4040 1 Decal
1613 9027 25 GA55
1613 9027 26 GA75
1613 9027 27 GA90C
1613 9027 28 GA55 FF
1613 9027 29 GA75 FF
1613 9027 30 GA90C FF
5025 1 Standard option
1613 9703 00 Oil containing frame
AR Hexagon bolt
0147 1962 72 M8 x 25 - 8.8 Type E
1619 2766 00 M8 x 25 - 8.8 Type E
AR Tapping screw
0226 0300 46 M6 x 16 Type B1
0226 3343 59 Ø3.5 x 9.5 Type A1
AR Blind rivet
0129 3103 00 Ø2.4 x 5.1
0129 3270 29 Ø5 x 6.5
0129 3270 30 Ø5 x 7.5
AR Washer
0301 2335 00 Ø8.4 x 16 x 1.6
AR Lock washer
0333 3227 00 Ø8.4
AR Nut
0266 2110 00 M8
1-4) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
1) Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
2) Foam: 0395 6001 67 (AR) 30 x 2040 x 1650
3) Foam: 0395 6001 66 (AR) 25 x 2040 x 1650
4) Foam: 0395 6001 64 (AR) 20 x 2040 x 1650
64 2930 1357 01
Parts list
35 Bodywork - WorkPlace FF with ICD
62084_10
Ref. Part number Qty Name Remarks
1010 1617 6541 00 1 Frame
1020 1617 6542 00 1 Beam inner left
1030 1617 6543 00 1 Beam inner righ
1060 1617 6546 80 1 Assy roof
1617 6548 00 • 1 Plate
1613 9963 00 • 2 Corner
0129 3270 30 • 4 Blind rivet 5 x
1070 1617 6551 80 1 Assy cover
1079 2903 01 • 2 Clip
1080 1617 6553 80 1 Assy panel 1)
1090 1617 6556 80 1 Assy outer beam 1)
1100 1617 6558 80 1 Assy outer beam 1)
1079 2903 03 • 1 Pin
1110 1617 6596 80 2 Assy panel 1)
1613 8485 00 • 1 Lock
1616 2987 00 • 1 Plug
Ref. Part number Qty Name Remarks
2010 1617 6544 00 1 Plate
2020 1617 6545 00 1 Support
3030 1617 5664 00 1 Data plate ce m
3060 0129 3103 00 4 Blind rivet
3230 1619 2766 00 25 Bolt
4040 1613 9967 80 1 Baffle assembly 1)
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 66 (AR) 25 x 2040 x 1650
2930 1357 01 65
Parts list
Ref. Part number Qty Name Remarks
8092 2453 91 1 Rain protection
1020 1619 5188 00 • AR Seal
1035 1619 5188 00 • AR Seal
1040 1619 5188 00 • AR Seal
1050 0223 1322 02 • 2 Wing screw
1055 1619 5188 00 • AR Seal
1065 0129 3115 00 • 3 Blind rivet
1070 1619 5188 00 • AR Seal
2020 1613 9605 00 • 1 Plate
2025 1613 9604 00 • 2 Rain protection
2030 1613 9603 00 • 1 Rain protection
2045 1613 9615 80 • 1 Roof assembly 1)
1613 8344 00 •• 4 Corner
0129 3270 30 •• 8 Blind rivet
1613 8138 80 • 1 Baffle ass’y
Ref. Part number Qty Name Remarks
3020 •• 1 Baffle
3025 1503 1056 00 •• AR Seal
AR Hexagon bolt
0147 1322 03 M8 x 16 - 8.8
0147 1962 72 M8 x 25 - 8.8
1619 2765 00 M8 x 25
AR Nut
0261 2110 00 M8
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 66 (AR) 25 x 2040 x 1650
Rain protection 36
61860_10
66 2930 1357 01
Parts list
37 Service kits
Part number Qty Name Remarks
2901 0245 01 1 Oil can
ROTO-INJECTFLUID 5 l
2901 0522 00 1 Oil can
ROTO-INJECTFLUID 20 l
2901 0045 01 1 Oil barrel
ROTO-INJECTFLUID 209 l
2901 0074 00 1 Thermostatic valve kit
7.5-8-10 bar(e), 100-125-150 psig
0661 1000 47 • 1 Seal washer
0663 7137 00 • 1 O-ring
1619 7560 00 • 1 Thermostat 40 °C
2901 0218 00 1 Minimum pressure valve kit
0301 2344 00 • 4 Washer
0335 3111 00 • 1 Retaining ring
0663 3133 00 • 1 O-ring
0663 7134 00 • 1 O-ring
0663 7136 00 • 3 O-ring
0663 7138 00 • 2 O-ring
1612 4048 00 • 1 Compr.spring
1612 4049 00 • 1 Compr.spring
1613 3223 01 • 1 Washer
1614 4662 00 • 2 Piston ring
2901 0338 03 1 Grease cartridge 400gr
2901 0447 00 1 Thermostatic valve kit
13 bar(e), 175 psig
0661 1000 47 • 1 Seal washer
0663 7137 00 • 1 O-ring
1202 5869 02 • 1 Thermostat 60 °C
2901 0448 00 1 Unloader valve kit
0261 1090 67 • 1 Nut
0301 2358 00 • 2 Washer
0301 2378 00 • 4 Washer
0653 0500 02 • 4 Gasket
0653 9078 00 • 3 Flat gasket
0661 1000 26 • 1 Seal washer
0661 1000 32 • 1 Seal washer
0661 1000 40 • 1 Seal washer
0661 1000 46 • 1 Seal washer
0663 2104 83 • 2 O-ring
0663 2106 43 • 1 O-ring
0663 2107 37 • 1 O-ring
0663 7132 00 • 1 O-ring
0663 7142 00 • 1 O-ring
0663 7144 00 • 1 O-ring
1079 9903 82 • 1 Warning label
1079 9903 83 • 1 Warning label
1513 0011 00 • 1 Spring
1613 6783 00 • 1 Piston
1613 7262 00 • 1 Piston ring
1613 7372 01 • 1 Spring
1613 8068 00 • 1 Spring
1613 8072 00 • 1 Valve
Part number Qty Name Remarks
1 Air/Oil filter kit
2901 0775 00 GA55
2901 0776 00 GA75-90C
0661 1000 38 • 1 Seal washer
0661 1000 39 • 2 Seal washer
0663 2102 15 • 1 O-ring
1613 6105 00 • 2 Oil filter
• 1 Air filter element
1613 9501 00 GA55
1613 9503 00 GA75-90C
2901 0838 00 1 Thermostatic valve kit
Tropical version
0661 1000 47 • 1 Seal washer
0663 7137 00 • 1 O-ring
1202 5869 04 • 1 Thermostat 75 °C
2901 0845 00 1 Waterseparator kit
0661 1000 38 • 3 Seal washer
0661 1000 39 • 1 Seal washer
0663 3143 00 • 2 O-ring
2901 0749 00 • 1 Drain valve kit (WSD250)
2901 0858 00 1 Oil separator kit
0661 1000 40 • 2 Seal washer
0661 1000 42 • 1 Seal washer
0663 2111 16 • 2 O-ring
0663 7138 00 • 1 O-ring
0663 9868 00 • 1 O-ring
1613 9840 01 • 1 Oil sep.element
2901 0918 00 1 Combicooler kit GA W
0333 3227 00 • 12 Lock washer
0661 1000 40 • 1 Seal washer
0661 1000 44 • 2 Seal washer
0661 1033 00 • 2 Sealing washer
0663 7136 00 • 5 O-ring
0663 7138 00 • 2 O-ring
0663 9868 00 • 1 O-ring
1613 9731 06 • 6 O-ring
1613 9731 07 • 1 Division rib
1613 9731 08 • 2 Leakage ring
1 Shaft seal kit - Direct drive
2901 1074 00 GA75-7.5bar
1 Cover
1 Lipseal
1 Bushing
0663 2106 19 1 O-ring
1 Shaft seal kit - Gear box drive
2901 1075 00 GA55
1 Retainer
1 Bushing
0663 2106 19 1 O-ring
1 Lipseal
2930 1357 01 67
Parts list
37
Part number Qty Name Remarks
1 Shaft seal kit - Gear box drive
2901 1076 00 GA75, GA90C
1 Retainer
1 Bushing
0663 2106 19 1 O-ring
1 Lipseal
2901 1081 00 1 Element mounting kit
GA75(W), GA90C(W) Gearbox
drive
0147 1409 03 • 1 Hexagon bolt
0147 1409 03 • 1 Hexagon bolt
0335 2160 00 • 1 Circlip
0337 2293 23 • 1 Parallel key
0337 2293 23 • 1 Parallel key
0506 0100 09 • 1 Bearing
0508 1158 01 • 1 Roller bearing
0661 1000 40 • 3 Seal washer
0661 1000 44 • 2 Seal washer
0663 2107 37 • 1 O-ring
0663 2109 78 • 1 O-ring
0663 2111 46 • 1 O-ring
0663 7138 00 • 2 O-ring
1613 9499 00 • 1 Coupling element
1622 0977 00 • 1 Gasket
2901 1076 00 • 1 Lipseal kit
2901 1082 00 1 Element mounting kit
GA55(W) Gearbox drive
0147 1409 03 • 1 Hexagon bolt
0147 1409 03 • 1 Hexagon bolt
0335 2160 00 • 1 Circlip
0337 2293 23 • 1 Parallel key
0337 2293 23 • 1 Parallel key
0506 0100 09 • 1 Bearing
0508 1158 01 • 1 Roller bearing
0661 1000 40 • 3 Seal washer
0661 1000 44 • 2 Seal washer
0663 2107 37 • 1 O-ring
0663 2109 78 • 1 O-ring
0663 2111 46 • 1 O-ring
0663 7138 00 • 2 O-ring
1613 9585 00 • 1 Coupling element
1622 0977 00 • 1 Gasket
2901 1075 00 • 1 Lipseal kit
2901 1083 00 1 Element mounting kit
GA75(W)-7.5 Direct drive
0147 1409 03 • 1 Hexagon bolt
0337 2293 23 • 1 Parallel key
0661 1000 40 • 3 Seal washer
0661 1000 44 • 1 Seal washer
0663 2107 37 • 1 O-ring
0663 2109 78 • 1 O-ring
0663 2111 46 • 1 O-ring
0663 7138 00 • 2 O-ring
1613 9585 00 • 1 Coupling element
1622 0977 00 • 1 Gasket
2901 1074 00 • 1 Lipseal kit
Part number Qty Name Remarks
2901 1084 00 1 Oil stop valve - Check valve kit
0661 1000 38 • 1 Seal washer
0661 1000 39 • 1 Seal washer
0661 1000 44 • 2 Seal washer
0661 1000 44 • 2 Seal washer
0663 7138 00 • 1 O-ring
1613 2357 00 • 1 Spring
1622 0796 00 • 1 Spring
1622 0797 00 • 1 Valve
1622 0977 00 • 1 Gasket
1 Preventive maintenance kit
GA55
2901 1085 00 USA, Japan
2901 1086 00 Others
• 1 Filter kit
2901 0777 00 USA, Japan
2901 0775 00 Others
2901 0218 00 • 1 Min.press.valve
2901 0448 00 • 1 Unloader valve
2901 0845 00 • 1 Waterseparator
2901 0858 00 • 1 Oil separator kit
2901 1084 00 • 1 Oil stop valve -Check valve kit
1 Preventive maintenance kit
GA75-90C
2901 1087 00 USA, Japan
2901 1088 00 Others
• 1 Filter kit
2901 0778 00 USA, Japan
2901 0776 00 Others
2901 0218 00 • 1 Min.press.valve
2901 0448 00 • 1 Unloader valve
2901 0845 00 • 1 Waterseparator
2901 0858 00 • 1 Oil separator kit
2901 1084 00 • 1 Oil stop valve -Check valve kit
68 2930 1357 01
Parts list
Notes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Atlas Copco Stationary Air Compressors
GA55, GA75, GA90C
GA55 W, GA75 W, GA90C W
Elektronikon II regulator - WorkPlace / WorkPlace Full-feature with IFD or ICD
Parts list
No. 2930 1357 01 / DC 2003.10
What sets Atlas Copco apart as a company is our
conviction that we can only excel in what we do if we
provide the best possible know-how and technology to
really help our customers produce, grow and succeed.
There is a unique way of achieving that - we simply
call it the Atlas Copco way. It builds on interaction, on
long-term relationships and involvement in the customers’
process, needs and objectives. It means having the
flexibility to adapt to the diverse demands of the people
we cater for.
It’s the commitment to our customers’ business that
drives our effort towards increasing their productivity
through better solutions. It starts with fully supporting
existing products and continuously doing things better, but
it goes much further, creating advances in technology
through innovation. Not for the sake of technology, but
for the sake of our customer’s bottom line and peace-ofmind.
That is how Atlas Copco will strive to remain the first
choice, to succeed in attracting new business and to
maintain our position as the industry leader.
*2930135701*
(2901085800)
| SKU | 2901085800 |
| Model # | 8013 7556 00 |
| Brand | Atlas Copco |
| Shipping Weight | 15.0000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.200m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000020000m3 |
Be The First To Review This Product!
Help other Screw Compressor Spares users shop smarter by writing reviews for products you have purchased.
More From This Category
