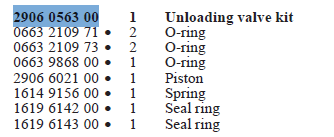

KIT-UNLOADER VALVE

Atlas Copco Stationary Air Compressors
No. 2930 1283 05
Replaces No. 2930 1283 04
Registration code : APC GA≥90 / 39
2005-12
GA90, GA110, GA132, GA160
GA90 W, GA110 W, GA132 W, GA160 W
• Copyright 2005, Atlas Copco Airpower n.v., Antwerp, Belgium.
Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular
to trademarks, model denominations, part numbers and drawings.
• Use only authorized parts. Any damage or malfunction caused by the use of unauthorized parts is not
covered by Warranty or Product Liability.
Parts list
www.atlascopco.com
From following serial No. onwards :
AIF - 056 813
2 2930 1283 05
Parts list
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Índice
Indholdsfortegnelse
Sisällysluettelo
Unloading valve
Ontlastventiel
Avlastningsventil
Entlastungsventil
Soupape de décharge
Válvula de descarga
Valvola di messa a vuoto
Aflastningsventil
Válvula de descarga
Avlastningsventil
Kevennysventtiili .........................................................................1
Drive arrangement
Aandrijfuitvoering
Drivarrangemang
Antriebsanordnung
Dispositif d’entraînement
Disposición de accionamiento
Disposizione di azionamento
Arrangement
Disposição de accionamento
Drivarrangement
Rakenne ........................................................................................2
Air inlet
Luchtinlaat
Luftintag
Lufteinlaß
Admission d’air
Entrada de aire
Presa d’aria
Luftindsug
Admissão de ar
Luftinnløp
Tuloilma
- GA ..........................................................................................3
- GA W......................................................................................4
- Standard option - Heavy duty filter .......................................5
Air receiver
Luchtketel
Luftbehållare
Luftbehälter
Réservoir d’air
Depósito de aire
Serbatoio dell’aria
Luftbeholder
Reservatório de ar
Luftbeholder
Ilmasäiliö
- GA 90-110-132-160 3) ..........................................................6
- GA 90-110 4) .........................................................................7
- GA 132-160 4) .......................................................................8
Air and oil system
Lucht- en oliesysteem
Luft- och oljesystem
Luft- und Ölsystem
Système d’air et d’huile
Sistema de aire y aceite
Sistema di aria e olio
Luft- og oliesystem
Circuitos de ar e óleo
Luft- og oljesystem
Ilma- ja öljyjärjestelmä
- GA ..........................................................................................9
- GA W..................................................................................10
Air outlet
Luchtuitlaat
Luftutlopp
Luftauslaß
Sortie d’air
Salida de aire
Mandata dell’aria
Luftafgang
Saida de ar
Luftutløp
Paineilmaputki
- Pack ....................................................................................11
- Full-feature .........................................................................12
- Full-feature + DD filter .....................................................13
Cooler(s)
Koeler(s)
Kylare
Kühler
Refroidisseur(s)
Refrigerador(es)
Refrigeratore(i)
Kølere
Refrigerador(es)
Kjøler(e)
Jäähdyttimet
- GA ......................................................................................14
- GA W..................................................................................15
Frame and coupling
Frame en koppeling
Ram och koppling
Rahmen und Kupplung
Châssis et accouplement
Bastidor y acoplamiento
Telaio e giunto
Ramme og kobling
Base e acopulamento
Ramme og kopling
Runko ja kytkin ........................................................................16
Fan and cooling duct plates - GA
Ventilator en koelluchtgeleideplaten
Fläkt och kylkanalplåtar
Ventilator und Kühlluftleitbleche
Ventilateur et conduits de refroidissement
Ventilador y paneles de conducción de refrigeración
Ventilatore e intubatura
Ventilator og køleledeplader
Ventilador e paineis das condutas de refrigeração
Vifte og kjølekanalplater
Puhallin ja jäähdytyskanavalevyt ............................................17
Regulating system
Regelsysteem
Reglersystem
Regelsystem
Système de régulation
Sistema de regulación
Sistema di regolazione
Reguleringssystem
Sistema de regulação
Reguleringssystem
Säätöjärjestelmä
- 1) ........................................................................................18
- 2) ........................................................................................19
2930 1283 05 3
Parts list
Drain system
Aftapsysteem
Avtappningssystem
Ablaßsystem
Système de vidange
Sistema de drenaje
Sistema di scarico
Drænsystem
Sistema de drenagem de condensados
Avtappingssystem
Lauhteenpoistojärjestelmä
- Basic- and DD-filter drain .................................................20
- Electronic Drain System ....................................................21
- Oil Separator Condensate Drain ........................................22
Bodywork
Carrosserie
Karosseri
Karosserie
Capotage
Carrocería
Cappottatura
Karosseri
Carroceria
Kabinett
Kotelo
- GA ......................................................................................23
- GA W..................................................................................24
Cubicle
Kast
Skåp
Schaltschrank
Armoire
Armario
Armadio elettrico
Elskab
Quadro
Skap
Kotelo
- 1) ........................................................................................25
- 2) ........................................................................................26
Air dryer
Luchtdroger
Lufttorkare
Lufttrockner
Sécheur d’air
Secador de aire
Essiccatore d’aria
Lufttørrer
Secador de ar
Lufttørker
Kuivain
- GA90-110 ...........................................................................27
- GA90-110 W......................................................................28
- GA132-160 ........................................................................29
- GA132-160 W....................................................................30
Energierecuperatiesysteem - Optional
Energiåtervinningssystem
Energierückgewinnungssystem
Système de récupération d’énergie
Sistema de recuperación de energía
Sistema di recupero energia
Energigenvinding
Sistema de recuperação de energia
Energigjenvinningssystem
Energian talteenottojärjestelmä ...............................................31
Start cubicle - star/delta
Startkast - ster/driehoek
Startskåp - stjärn/triangel
Anlaßschrank - Stern/Dreieck
Armoire de démarrage - étoile/triangle
Cubículo de arranque - estrella/triángulo
Armadio apparecch. di avviamento - stella/triangolo
Starterskab - stjerne/trekant
Cubículo-arranque estrela/triângulo
Startskap - stjerne-trekant
Käynnistinkotelo - Y/D
- Control Voltage 230/24V-Full options - 1) .......................32
- Control Voltage 230/24V-Full options - 2) .......................33
- Control Voltage 115/24V-CSA/UL-Full options - 1) .......34
- Control Voltage 115/24V-CSA/UL-Full options - 2) .......35
- Control Voltage 230/24V-COM 1option only - 1) ............36
- Control Voltage 230/24V-Basic parts - 2) .........................37
- Control Voltage 115/24V-CSA/UL-COM
option only - 1) ..................................................................38
Start cubicle - without starter
- Control Voltage 230/24V-Full options - 1) .......................39
- Control Voltage 230/24V-Full options - 2) .......................40
- Control Voltage 115/24V-CSA/UL-Full options - 1) .......41
- Control Voltage 115/24V-CSA/UL-Full options - 2) .......42
Service kits
Service kits
Service kits
Service Kits
Service kits
Service kits
Kit per la manutenzione
Service kits
Conjuntos de reparação
Servicesett
Huoltotarvikesarjat ...................................................................43
1-3) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
1) AIF-078 299
3) GA 90-110 : AIF-084 861, GA 132-160 :
AIF-084 239
2-4) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
2) AIF-078 300
4) GA 90-110 : AIF-084 862, GA 132-160 :
AIF-084 240
4 2930 1283 05
Parts list
1
61782_20
2930 1283 05 5
Parts list

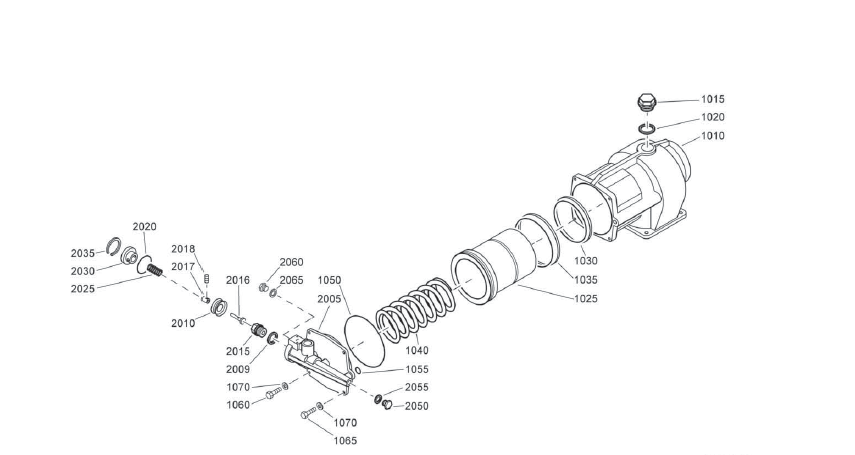

Unloading valve 1

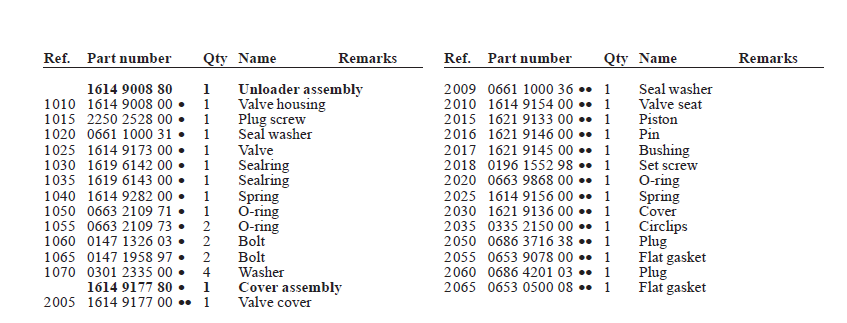

Ref. Part number Qty Name Remarks
1614 9008 80 1 Unloader assembly
1010 1614 9008 00 • 1 Valve housing
1015 2250 2528 00 • 1 Plug screw
1020 0661 1000 31 • 1 Seal washer
1025 1614 9173 00 • 1 Valve
1030 1619 6142 00 • 1 Sealring
1035 1619 6143 00 • 1 Sealring
1040 1614 9282 00 • 1 Spring
1050 0663 2109 71 • 1 O-ring
1055 0663 2109 73 • 2 O-ring
1060 0147 1326 03 • 2 Bolt
1065 0147 1958 97 • 2 Bolt
1070 0301 2335 00 • 4 Washer
1614 9177 80 • 1 Cover assembly
2005 1614 9177 00 •• 1 Valve cover
Ref. Part number Qty Name Remarks
2009 0661 1000 36 •• 1 Seal washer
2010 1614 9154 00 •• 1 Valve seat
2015 1621 9133 00 •• 1 Piston
2016 1621 9146 00 •• 1 Pin
2017 1621 9145 00 •• 1 Bushing
2018 0196 1552 98 •• 1 Set screw
2020 0663 9868 00 •• 1 O-ring
2025 1614 9156 00 •• 1 Spring
2030 1621 9136 00 •• 1 Cover
2035 0335 2150 00 •• 1 Circlips
2050 0686 3716 38 •• 1 Plug
2055 0653 9078 00 •• 1 Flat gasket
2060 0686 4201 03 •• 1 Plug
2065 0653 0500 08 •• 1 Flat gasket
6 2930 1283 05
Parts list
2 Drive arrangement
Ref. Part number Qty Name Remarks
1020 2989 0122 00 1 Service stage
2010 1619 6032 00 1 Nipple 1)
2015 1202 7003 00 1 Gasket
2020 0101 1626 00 2 Pin
2025 0147 1380 03 18 Bolt
2030 1616 5735 00 1 Drive shaft
2035 0508 2158 01 1 Roller bearing
2040 2252 5476 00 1 Locking plate
2045 0211 1409 00 8 Cap screw
2050 0506 0100 08 1 Roller bearing
2055 2252 5479 00 1 Retainer
2060 0663 2107 76 1 O-ring
2065 0147 1366 03 4 Bolt
2070 2252 5477 00 1 Washer
2075 2252 5478 00 1 Bushing
2085 1614 9429 00 1 Seal
2090 2254 8832 00 1 Bushing
2095 0337 6074 00 1 Parallel key
2096 1614 9159 00 1 Bushing
2100 2252 5470 00 1 Washer
2105 0211 1409 00 3 Cap screw
2110 0686 3716 02 1 Plug
2115 0661 1000 27 1 Seal washer
60695_01
Ref. Part number Qty Name Remarks
2130 2 Grating
1614 6611 00 2)3)4)5)
1614 9372 00 6)
1614 9371 00 7)
1 Gearcasing assembly
1614 9004 80 2)
1614 9005 80 3)
1614 9102 80 4)
1614 9103 80 5)
1614 9350 80 6)
1614 9400 80 7)
3005 • 1 Gear casing
1614 9004 00 • 2)
1614 9005 00 • 3)
1614 9102 00 • 4)
1614 9103 00 • 5)
1614 9350 00 • 6)
1614 9400 00 • 7)
3010 1614 9098 00 • 1 Nozzle
3015 0663 2104 63 • 1 O-ring
3020 0147 1244 03 • 1 Bolt
4020 1 Gear wheel
1614 9302 00 GA90(W)-6.9bar HAT/Yes
2930 1283 05 7
Parts list
2
Ref. Part number Qty Name Remarks
1614 9316 00 GA90(W)-6.9bar HAT/Yes
1614 9346 00 GA90(W)-6.9bar HAT/No
1614 9300 00 GA90(W)-7.5bar HAT/No
1614 9346 00 GA90(W)-7.5bar HAT/Yes
1614 9302 00 GA90(W)-8.5bar HAT/No
1614 9304 00 GA90(W)-8.5bar HAT/Yes
1614 9306 00 GA90(W)-8.6bar HAT/Yes
1614 9316 00 GA90(W)-8.6bar HAT/No
1614 9306 00 GA90(W)-10.4bar HAT/No
1614 9318 00 GA90(W)-10.4bar HAT/Yes
1614 9304 00 GA90(W)-10bar HAT/No
1614 9306 00 GA90(W)-10bar HAT/Yes
1614 9306 00 GA90(W)-13bar HAT/No
1614 9318 00 GA90(W)-13.8bar HAT/No
1614 9302 00 GA110(W)-6.9bar HAT/Yes
1614 9328 00 GA110(W)-6.9bar HAT/No
1614 9308 00 GA110(W)-7.5bar HAT/No
1614 9328 00 GA110(W)-7.5bar HAT/Yes
1614 9310 00 GA110(W)-8.5bar HAT/No
1614 9300 00 GA110(W)-8.5bar HAT/Yes
1614 9302 00 GA110(W)-8.6bar HAT/No
1614 9304 00 GA110(W)-8.6bar HAT/Yes
1614 9314 00 GA110(W)-10.4bar HAT/No
1614 9320 00 GA110(W)-10.4bar HAT/Yes
1614 9312 00 GA110(W)-10bar HAT/No
1614 9346 00 GA110(W)-10bar HAT/Yes
1614 9344 00 GA110(W)-13bar HAT/No
1614 9320 00 GA110(W)-13.8bar HAT/No
1614 9322 00 GA132(W)-7.5bar HAT/No
1614 9336 00 GA132(W)-7.5bar HAT/Yes
1621 9277 00 GA132(W)-8.5bar HAT/No
1614 9308 00 GA132(W)-8.5bar HAT/Yes
1614 9326 00 GA132(W)-10bar HAT/No
1614 9328 00 GA132(W)-10bar HAT/Yes
1614 9328 00 GA132(W)-13bar HAT/No
1614 9338 00 GA160(W)-6.9bar HAT/No
1614 9342 00 GA160(W)-6.9bar HAT/Yes
1614 9330 00 GA160(W)-7.5bar HAT/No
1614 9334 00 GA160(W)-7.5bar HAT/Yes
1614 9332 00 GA160(W)-8.5bar HAT/No
1614 9322 00 GA160(W)-8.5bar HAT/Yes
1614 9310 00 GA160(W)-8.6bar HAT/Yes
1614 9342 00 GA160(W)-8.6bar HAT/No
1614 9340 00 GA160(W)-10.4bar HAT/No
1614 9312 00 GA160(W)-10.4bar HAT/Yes
1614 9334 00 GA160(W)-10bar HAT/No
1614 9336 00 GA160(W)-10bar HAT/Yes
1614 9336 00 GA160(W)-13bar HAT/No
1614 9300 00 GA160(W)-13.8bar HAT/No
4030 1 Gear wheel
1614 9303 00 GA90(W)-6.9bar HAT/Yes
1614 9317 00 GA90(W)-6.9bar HAT/Yes
1614 9347 00 GA90(W)-6.9bar HAT/No
1614 9301 00 GA90(W)-7.5bar HAT/No
1614 9347 00 GA90(W)-7.5bar HAT/Yes
1614 9303 00 GA90(W)-8.5bar HAT/No
1614 9305 00 GA90(W)-8.5bar HAT/Yes
1614 9307 00 GA90(W)-8.6bar HAT/Yes
1614 9317 00 GA90(W)-8.6bar HAT/No
1614 9307 00 GA90(W)-10.4bar HAT/No
1614 9319 00 GA90(W)-10.4bar HAT/Yes
1614 9305 00 GA90(W)-10bar HAT/No
1614 9307 00 GA90(W)-10bar HAT/Yes
1614 9307 00 GA90(W)-13bar HAT/No
1614 9319 00 GA90(W)-13.8bar HAT/No
1614 9303 00 GA110(W)-6.9bar HAT/Yes
1614 9329 00 GA110(W)-6.9bar HAT/No
Ref. Part number Qty Name Remarks
1614 9309 00 GA110(W)-7.5bar HAT/No
1614 9329 00 GA110(W)-7.5bar HAT/Yes
1614 9311 00 GA110(W)-8.5bar HAT/No
1614 9301 00 GA110(W)-8.5bar HAT/Yes
1614 9303 00 GA110(W)-8.6bar HAT/No
1614 9305 00 GA110(W)-8.6bar HAT/Yes
1614 9315 00 GA110(W)-10.4bar HAT/No
1614 9321 00 GA110(W)-10.4bar HAT/Yes
1614 9313 00 GA110(W)-10bar HAT/No
1614 9347 00 GA110(W)-10bar HAT/Yes
1614 9345 00 GA110(W)-13bar HAT/No
1614 9321 00 GA110(W)-13.8bar HAT/No
1614 9323 00 GA132(W)-7.5bar HAT/No
1614 9337 00 GA132(W)-7.5bar HAT/Yes
1621 9278 00 GA132(W)-8.5bar HAT/No
1614 9309 00 GA132(W)-8.5bar HAT/Yes
1614 9327 00 GA132(W)-10bar HAT/No
1614 9329 00 GA132(W)-10bar HAT/Yes
1614 9329 00 GA132(W)-13bar HAT/No
1614 9339 00 GA160(W)-6.9bar HAT/No
1614 9343 00 GA160(W)-6.9bar HAT/Yes
1614 9331 00 GA160(W)-7.5bar HAT/No
1614 9335 00 GA160(W)-7.5bar HAT/Yes
1614 9333 00 GA160(W)-8.5bar HAT/No
1614 9323 00 GA160(W)-8.5bar HAT/Yes
1614 9311 00 GA160(W)-8.6bar HAT/Yes
1614 9343 00 GA160(W)-8.6bar HAT/No
1614 9341 00 GA160(W)-10.4bar HAT/No
1614 9313 00 GA160(W)-10.4bar HAT/Yes
1614 9335 00 GA160(W)-10bar HAT/No
1614 9337 00 GA160(W)-10bar HAT/Yes
1614 9337 00 GA160(W)-13bar HAT/No
1614 9301 00 GA160(W)-13.8bar HAT/No
1) Vibration monitoring “Shock Pulse Measurement” /
Trillingskontrole “SPM” / Vibrationskontroll “Stötpulsmätning”
/ Schwingungsüberwachung “SPM” / Surveillance
des vibrations “SPM” / Monitorización de
vibraciones “SPM” / Controlo di vibrazione “SPM” /
Vibrationsovervågning “SPM” / Controlo de vibrações
SPM / Vibrasjonsovervåking “SPM” / SPMtärinänvalvonta
2) GA90(W) IEC 7.5-8.5-10Bar/50Hz ABB motor,
GA90(W) IEC 8.6Bar ABB motor,
GA110(W) IEC 10-13Bar/50Hz ABB motor,
GA90(W)-110(W)-132(W)-160(W)
Without Motor IEC_FF_500
3) GA90(W)-GA110(W) 60Hz NEMA,
GA90(W)-110(W)-132(W)-160(W) 445TSDNEMA
motor
4) GA110 (W) IEC 10.4-13.8Bar/60Hz ABB motor,
GA90(W)-110(W)-132(W)-160(W)
without motor IEC_FF_600,
GA132(W) IEC 13Bar/50Hz ABB motor,
GA160(W) IEC 7.5-8.5Bar/50Hz ABB motor,
GA160(W) IEC 6.9-8.6-10.4Bar/60Hz ABB motor
5) GA90(W)-110(W)-132(W)-160(W) 505TSDNEMA
motor,
GA160(W) /60Hz NEMA WEG motor
6) GA90(W) IEC 13Bar/50Hz ABB motor,
GA90(W) IEC 6.9-10.4-13.8Bar/60Hz ABB motor,
GA110(W) IEC 7.5-8.5Bar/50Hz ABB motor
7) GA110(W) IEC 6.9-8.6Bar/60Hz ABB motor,
GA132(W) IEC 7.5-8.5-10Bar/50Hz ABB motor,
GA160(W) IEC 10-13Bar/50Hz ABB motor,
GA160(W) IEC 13.8Bar/60Hz ABB motor
8 2930 1283 05
Parts list
3
61378_02
2930 1283 05 9
Parts list
Air inlet - GA 3
Ref. Part number Qty Name Remarks
1010 1616 2987 00 4 Plug
1035 1 Hose assembly
1614 9091 00 GA90,GA110
1614 9376 00 GA132,GA160
1040 0347 6121 00 2 Hose clip
1050 1614 8004 01 1 Rod
1055 0147 1323 03 2 Bolt
1060 1030 0979 00 1 Air filter
1070 1614 9088 00 1 Plate
1075 0147 1325 03 4 Bolt
1080 0301 2358 00 1 Washer
1085 0296 1112 02 1 Wing nut
1614 9202 80 1 Air filter assembly
2020 1614 9202 00 • 1 Filter housing
2025 1614 9132 00 • 1 Silencing foam
3010 1614 6425 00 1 Housing
3015 2254 8075 00 1 Compr.spring
3020 2254 5324 00 1 Check valve
3025 0661 1000 25 2 Seal washer
Ref. Part number Qty Name Remarks
3030 0686 3716 01 2 Plug
3035 0663 2106 20 1 O-ring
3040 0147 1417 03 4 Bolt
4010 0663 2106 15 1 O-ring
4015 0663 2108 12 1 O-ring
4020 0147 1379 03 4 Bolt
1614 9185 80 1 Oil stop valve
5010 1614 9185 00 • 1 Valve housing
5015 0661 1000 25 • 1 Seal washer
5020 0686 3716 01 • 1 Plug
5025 2254 9868 00 • 1 Compr.spring
5030 2252 6269 00 • 1 Spring guide
5035 0335 2145 00 • 1 Int.circlip
5040 2255 2751 00 • 1 Valve
5045 2255 2813 00 • 1 Piston
5050 0663 2106 12 • 1 O-ring
5055 1614 9120 00 • 1 Cover
5060 0147 1325 03 • 4 Bolt
10 2930 1283 05
Parts list
4
61379_02
2930 1283 05 11
Parts list
Air inlet - GA W 4
Ref. Part number Qty Name Remarks
1008 1616 2987 00 8 Plug
1010 1 Support
1614 9370 00 GA132 W,GA160 W
1614 9763 00 GA90 W,GA110 W
1015 Bolt
1619 2766 00 4 GA132 W,GA160 W
1619 2766 00 5 GA90 W,GA110 W
1020 1 Support
1614 9770 00 GA90 W,GA110 W
1021 1 Bolt
1619 2766 00 GA90 W,GA110 W
1025 1 Hose assembly
1614 9091 00 GA132 W,GA160 W
1614 9376 00 GA90 W,GA110 W
1030 0347 6121 00 2 Hose clip
1035 1614 8004 01 1 Rod
1040 0147 1323 03 2 Bolt
1045 1030 0979 00 1 Air filter
1050 1614 9088 00 1 Plate
1055 0147 1325 03 4 Bolt
1060 0301 2358 00 1 Washer
1065 0296 1112 02 1 Wing nut
1070 1614 9772 00 1 Support
1075 0346 1000 27 1 Pipe clamp
1080 1619 2766 00 1 Bolt
Ref. Part number Qty Name Remarks
1614 9202 80 1 Air filter assembly
2020 1614 9202 00 • 1 Filter housing
2025 1614 9132 00 • 1 Silencing foam
3010 1614 6425 00 1 Housing
3015 2254 8075 00 1 Compr.spring
3020 2254 5324 00 1 Check valve
3025 0661 1000 25 2 Seal washer
3030 0686 3716 01 2 Plug
3035 0663 2106 20 1 O-ring
3040 0147 1417 03 4 Bolt
4010 0663 2106 15 1 O-ring
4015 0663 2108 12 1 O-ring
4020 0147 1379 03 4 Bolt
1614 9185 80 1 Oil stop valve
5010 1614 9185 00 • 1 Valve housing
5015 0661 1000 25 • 1 Seal washer
5020 0686 3716 01 • 1 Plug
5025 2254 9868 00 • 1 Compr.spring
5030 2252 6269 00 • 1 Spring guide
5035 0335 2145 00 • 1 Int.circlip
5040 2255 2751 00 • 1 Valve
5045 2255 2813 00 • 1 Piston
5050 0663 2106 12 • 1 O-ring
5055 1614 9120 00 • 1 Cover
5060 0147 1325 03 • 4 Bolt
12 2930 1283 05
Parts list
5
61203_02
2930 1283 05 13
Parts list
Air inlet - Standard option - Heavy duty filter 5
Ref. Part number Qty Name Remarks
1010 1614 9368 00 1 Clamp
1015 1614 9187 00 1 Support
1020 0147 1327 03 2 Bolt
1024 0301 2335 00 2 Washer
1025 0333 3227 00 2 Lock washer
1030 0266 2110 00 2 Nut
1035 0147 1322 03 4 Bolt
1040 0333 3227 00 4 Lock washer
1045 0266 2110 00 4 Nut
1050 1614 9091 00 1 Hose assy
1055 0347 6121 00 2 Hose clip
1614 9367 00 1 Air filter
2010 • 1 Filter housing
2015 2914 5017 00 • 1 Filter element
3010 1614 6425 00 1 Housing
3015 2254 8075 00 1 Compr.spring
3020 2254 5324 00 1 Check valve
3025 0661 1000 25 2 Seal washer
Ref. Part number Qty Name Remarks
3030 0686 3716 01 2 Plug
3035 0663 2106 20 1 O-ring
3040 0147 1417 03 4 Bolt
4010 0663 2106 15 1 O-ring
4015 0663 2108 12 1 O-ring
4020 0147 1379 03 4 Bolt
1614 9185 80 1 Oil stop valve
5010 1614 9185 00 • 1 Valve housing
5015 0661 1000 25 • 1 Seal washer
5020 0686 3716 01 • 1 Plug
5025 2254 9868 00 • 1 Compr.spring
5030 2252 6269 00 • 1 Spring guide
5035 0335 2145 00 • 1 Int.circlip
5040 2255 2751 00 • 1 Valve
5045 2255 2813 00 • 1 Piston
5050 0663 2106 12 • 1 O-ring
5055 1614 9120 00 • 1 Cover
5060 0147 1325 03 • 4 Bolt
14 2930 1283 05
Parts list
6
61384_03
2930 1283 05 15
Parts list
Air receiver - GA 90-110-132-160 - 3) 6
Ref. Part number Qty Name Remarks
1 Vessel assembly
1614 9001 82 GA90 (W)-110 (W) As
1614 9001 80 GA90 (W)-110 (W) CE
1614 9001 28 GA90 (W)-110 (W)
CHINA
1614 9480 80 GA90 (W)-110 (W) CE
(Italy)
1614 9001 85 GA90 (W)-110 (W) D,
SINGAPORE
1614 9100 82 GA132 (W)-160 (W) As
1614 9100 80 GA132 (W)-160 (W) CE
1614 9100 28 GA132 (W)-160 (W)
CHINA
1614 9483 80 GA132 (W)-160 (W) CE
(Italy)
1614 9101 85 GA132 (W)-160 (W) D,
SINGAPORE
1 005 • 1 Vessel
1614 9001 02 GA90 (W)-110 (W) As
1614 9001 08 GA90 (W)-110 (W) CE
1614 9001 18 GA90 (W)-110 (W)
CHINA
1614 9480 08 GA90 (W)-110 (W) CE
(Italy)
1614 9001 05 GA90 (W)-110 (W) D,
SINGAPORE
1614 9100 02 GA132 (W)-160 (W) As
1614 9100 08 GA132 (W)-160 (W) CE
1614 9100 18 GA132 (W)-160 (W)
CHINA
1614 9483 08 GA90 (W)-110 (W) CE
(Italy)
1614 9100 05 GA132 (W)-160 (W) D,
SINGAPORE
1 010 • 1 Valve housing
1614 9002 02 GA90 (W)-110 (W) As
1614 9002 08 GA90 (W)-110 (W) CE
1614 9002 18 GA90 (W)-110 (W)
CHINA
1614 9002 05 GA90 (W)-110 (W) D,
SINGAPORE
1614 9101 02 GA132 (W)-160 (W) As
1614 9101 08 GA132 (W)-160 (W) CE
1614 9101 18 GA132 (W)-160 (W)
CHINA
1614 9101 05 GA132 (W)-160 (W) D,
SINGAPORE
2 010 1 Shield
1614 9223 00 GA90 (W)-110 (W)
1614 9428 00 GA132 (W)-160 (W)
1614 9477 00 GA132 (W)-160 (W) Italy
2 015 1 Bushing
1614 9090 00 GA90 (W)-110 (W)
1614 9094 00 GA132 (W)-160 (W)
2 020 0663 2109 45 1 O-ring
2 025 1 Oil sep.element
1614 9054 00 1 GA90 (W)-110 (W)
1614 9056 00 1 GA132 (W)-160 (W)
2 030 0663 2109 45 1 O-ring
2 035 1 Pivot pin
1614 9089 00 GA90 (W)-160 (W)
1614 6432 00 GA90 (W)-160 (W) Italy
2 040 0147 1479 03 1 Bolt
2 045 1614 9184 00 1 Level gauge
2 050 0661 1000 31 1 Seal washer
2 055 2250 2528 00 1 Plug screw
2 060 1621 9144 00 1 Hose assembly
2 065 1614 9146 00 1 Plug
2 070 1 Flat gasket
0653 1100 00 GA90 (W)-110 (W)
0653 1124 00 GA132 (W)-160 (W)
2 075 1 Scavenge line
1614 9142 00 GA90 (W)-110 (W)
1614 9141 00 GA132 (W)-160 (W)
Ref. Part number Qty Name Remarks
2 080 Washer
0301 2394 00 15 GA90 (W)-110 (W)
0301 2394 00 16 GA132 (W)-160 (W)
2 085 Bolt
0147 1962 38 15 GA90 (W)-110 (W)
0147 1962 38 16 GA132 (W)-160 (W)
2 090 0663 2106 20 1 O-ring
2 095 1614 9003 00 1 Cover
2 100 0147 1962 29 11 Bolt
1614 6476 80 1 Minimum pressure valve
3 015 0665 0700 89 • 1 Back-up ring
3 020 1614 6479 00 • 1 Piston
3 021 1614 6477 00 • 1 Sleeve
3 025 2253 1860 00 • 1 Spring
3 030 1614 7294 00 • 1 Valve
3 031 1614 6478 00 • 1 Cover
3 035 1614 6957 00 • 1 Washer
3 036 0147 1958 97 • 2 Bolt
3 040 2254 9214 00 • 1 Washer
3 041 0301 2335 00 • 2 Washer
3 045 2254 9215 00 • 1 Lockplate
3 050 0147 1322 03 • 3 Bolt
3 070 0663 2106 58 • 1 O-ring
3 075 0147 1365 03 • 6 Bolt
4 010 1 Hexagon nipple
0603 4106 03 GA90 (W)-110 (W)
0603 4107 03 GA132 (W)-160 (W)
4 015 1 Tee
0564 0000 69 GA90 (W)-110 (W)
(11bar)
0564 0000 82 GA132 (W)-160 (W)
(11bar)
0564 0000 80 GA90 (W)-110 (W)
(15bar)
0564 0000 81 GA132 (W)-160 (W)
(15bar)
4 020 1 Flat gasket
0653 1189 00 GA90 (W)-110 (W)
(As,T)-(11bar)
0653 1189 00 GA132 (W)-160 (W)
(15bar)
0653 1227 00 GA132 (W)-160 (W)
(As,T)-(11bar)
0653 1165 00 GA90 (W)-110 (W)
(15bar)
4 025 1 Safety valve
0830 1008 12 GA90 (W)-110 (W) As,T
-11bar
0830 1008 13 GA132 (W)-160 (W) As,T
-11bar
0830 1008 28 GA90 (W)-110 (W) 15bar
0830 1008 18 GA132 (W)-160 (W) 15bar
5 020 1 Oil can
1613 6532 01 COMPTELLA S 46
1613 9546 00 HD-ROTOFLUID PLUS
5 025 1 Label
1079 9909 57 ROTO INJECT FLUID
1079 9920 76 HD ROTO FLUID Plus
3) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
3) GA 90-110 : AIF-084 861, GA 132-160 : AIF-084 239
16 2930 1283 05
Parts list
7
62987_03
2930 1283 05 17
Parts list
Air receiver - GA90-110 - 4) 7
Ref. Part number Qty Name Remarks
1 Air receiver
1621 9359 80 CE
1621 9359 85 ASME, DIR, SINGAPORE,
CHINA
1010 • 1 Valve housing
1621 9363 08 CE
1621 9363 05 ASME, DIR, SINGAPORE,
CHINA
1015 0663 2109 45 • 1 O-ring
1020 0663 2109 45 • 1 O-ring
1025 1614 9089 00 • 1 Pivot pin
1030 0301 2394 00 • 12 Washer
1035 0147 1962 38 • 12 Bolt
2005 • 1 Vessel
1621 9359 08 CE
1621 9359 05 ASME, DIR, SINGAPORE,
CHINA
2010 1621 9231 00 •• Plug
2015 0663 2111 17 •• O-ring
3015 0348 0101 12 3 Cable tie
3020 0147 1377 03 3 Bolt
3025 0661 1000 31 3 Seal washer
3035 1614 9223 00 1 Shield
3040 1614 9090 00 1 Bushing
3045 1621 9384 00 1 Oil sep.element
3050 0147 1479 03 1 Bolt
3055 1614 9184 00 1 Level gauge
3060 0661 1038 00 1 Sealing washer
3065 1619 6249 00 1 Nipple
3070 1621 9144 00 1 Hose assembly
3075 1614 9146 00 1 Plug
3080 0653 1100 00 1 Flat gasket
3085 1614 9142 00 1 Scavenge line
3090 0564 0000 34 1 Tee
3095 0603 4105 03 1 Hexagon nipple
3100 0661 1000 29 1 Seal washer
3105 0571 0035 05 1 Nipple
3110 0574 8231 26 1 Hose assembly
3120 0686 3716 30 1 Plug
3130 0661 1000 26 1 Seal washer
1614 6478 80 1 Min. press. valve
4010 1621 4977 00 • 1 Piston
4015 0665 0700 89 • 1 Back-up ring
Ref. Part number Qty Name Remarks
4020 1614 6477 00 • 1 Sleeve
4025 2253 1860 00 • 1 Spring
4030 1614 6478 00 • 1 Cover
4035 0147 1958 97 • 2 Bolt
4040 0301 2335 00 • 2 Washer
4045 1621 4324 00 • 1 Shaft
4050 1614 6957 00 • 1 Washer
4055 1621 4975 00 • 1 Ring
4060 1621 4976 00 • 1 Nut
4065 9125 7289 00 • 1 Set screw
4070 0663 2106 58 • 1 O-ring
4075 0147 1365 03 • 6 Bolt
5010 0603 4106 03 1 Hexagon nipple
5015 0560 0200 73 1 Elbow
5020 1 Flat gasket
0653 1189 00 11 bar(e)
0653 1165 00 15 bar(e)
5025 1 Safety valve
0830 1008 12 11 bar(e)
0830 1008 28 15 bar(e)
5035 1 Flat gasket
0653 1189 00 15 bar(e)
5040 1 Bushing
0605 8700 27 15 bar(e)
6020 2 Oil can
1613 6532 01 Roto Inject Fluid
1613 9546 00 HD-Rotofluid Plus
6025 1 Label
1079 9909 57 Roto Inject Fluid
1079 9920 76 HD-Rotofluid Plus
4) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
4) AIF-084 862
18 2930 1283 05
Parts list
8
62988_03
2930 1283 05 19
Parts list
Air receiver - GA132-160 - 4) 8
Ref. Part number Qty Name Remarks
1 Air receiver
1621 9360 80 CE
1621 9360 85 ASME, DIR, SINGAPORE,
CHINA
1010 • 1 Valve housing
1621 9364 08 CE
1621 9364 05 ASME, DIR, SINGAPORE,
CHINA
1015 0663 2109 45 • 1 O-ring
1020 0663 2109 45 • 1 O-ring
1025 1614 9089 00 • 1 Pivot pin
1030 0301 2394 00 • 12 Washer
1035 0147 1962 38 • 12 Bolt
2005 • 1 Vessel
1621 9360 08 CE
1621 9360 05 ASME, DIR, SINGAPORE,
CHINA
2010 1621 9231 00 •• Plug
2015 0663 2111 17 •• O-ring
3035 1614 9428 00 1 Shield
3040 1614 9094 00 1 Bushing
3045 1621 9385 00 1 Oil sep.element
3050 0147 1479 03 1 Bolt
3055 1614 9184 00 1 Level gauge
3060 0661 1038 00 1 Sealing washer
3065 1619 6249 00 1 Nipple
3070 1621 9144 00 1 Hose assembly
3075 1614 9146 00 1 Plug
3080 0653 1124 00 1 Flat gasket
3085 1614 9141 00 1 Scavenge line
3090 0564 0000 34 1 Tee
3095 0603 4105 03 1 Hexagon nipple
3100 0661 1000 29 1 Seal washer
3105 0571 0035 05 1 Nipple
3110 0574 8231 35 1 Hose assembly
1614 6476 80 1 Min.press.valve
4010 1614 6479 00 • 1 Piston
4015 0665 0700 89 • 1 Back-up ring
4020 1614 6477 00 • 1 Sleeve
4025 2253 1860 00 • 1 Spring
Ref. Part number Qty Name Remarks
4030 1614 6478 00 • 1 Cover
4035 0147 1958 97 • 2 Bolt
4040 0301 2335 00 • 2 Washer
4045 1614 7294 00 • 1 Valve
4050 1614 6957 00 • 1 Washer
4055 2254 9214 00 • 1 Washer
4060 2254 9215 00 • 1 Lockplate
4065 0147 1322 03 • 3 Bolt
4070 0663 2106 58 • 1 O-ring
4075 0147 1365 03 • 6 Bolt
5010 0603 4107 03 1 Hexagon nipple
5015 1 Tee
0564 0000 82 11 bar(e)
0564 0000 81 15 bar(e)
5020 1 Flat gasket
0653 1227 00 11 bar(e)
0653 1189 00 15 bar(e)
5025 1 Safety valve
0830 1008 13 11 bar(e)
0830 1008 18 15 bar(e)
6010 1 Oil can
1613 6532 01 Roto Inject Fluid
1613 9546 00 HD-Rotofluid Plus
6025 1 Label
1079 9909 57 Roto Inject Fluid
1079 9920 76 HD-Rotofluid Plus
4) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
4) AIF-084 240
20 2930 1283 05
Parts list
9
61204_02
2930 1283 05 21
Parts list
Air and oil system - GA 9
Ref. Part number Qty Name Remarks
1010 0663 2107 77 1 O-ring
1015 1614 9006 00 1 Oil filterhousing
1020 0301 2344 00 3 Washer
1025 0147 1363 03 3 Bolt
1040 0663 2107 77 1 O-ring
1045 1614 9007 00 1 Cover
1050 0301 2335 00 4 Washer
1055 0147 1325 03 4 Bolt
1060 1619 3770 00 3 Nipple
1065 1613 6105 00 3 Oil filter
1075 0686 3716 01 1 Plug
1080 0661 1000 25 1 Seal washer
1100 1 Hose assembly
1614 9050 00 GA90, GA110
1614 9081 00 GA132, GA160
1105 0663 2106 11 1 O-ring
1110 0147 1401 03 2 Bolt
1115 0301 2358 00 2 Washer
1120 0663 2109 68 1 O-ring
1125 0147 1363 03 2 Bolt
1130 0301 2344 00 2 Washer
2020 1 Pipe
1614 9040 00 GA90, GA110
1614 9069 00 GA132, GA160
2025 0663 2106 18 1 O-ring
2030 0147 1403 03 4 Bolt
2035 0301 2358 00 4 Washer
2040 1 Pipe
1614 9117 00 GA90, GA110
1614 9066 00 GA132, GA160
2045 2 Joint set
1614 9114 00 GA90, GA110
1614 9063 00 GA132, GA160
• 1 Joint
1614 9115 00 GA90, GA110
1614 9064 00 GA132, GA160
2050 0147 1369 03 4 Bolt
2060 1 Pipe
1614 9263 00 GA90, GA110
1614 9264 00 GA132, GA160
1614 9478 00 GA90, GA110 Italy
1614 9479 00 GA132, GA160Italy
2065 0663 2106 18 1 O-ring
2070 0147 1403 03 4 Bolt
2075 0301 2358 00 4 Washer
2077 0266 2112 00 4 Nut GA90-160
Italy
2080 2 Bolt
0147 1499 03 GA90, GA110
0147 1501 03 GA132, GA160
0147 1501 03 GA90, GA110 Italy
0147 1501 03 GA132, GA160Italy
2085 1614 8926 00 4 Absorber
2086 0300 0276 03 4 Washer
2087 0301 2344 00 4 Washer
2090 0291 1114 00 2 Locknut
Ref. Part number Qty Name Remarks
2100 1 Pipe
1614 9171 00 GA90, GA110
1614 9488 00 GA132, GA160
2105 0663 2106 17 1 O-ring
2110 0147 1364 03 4 Bolt
2115 0301 2344 00 4 Washer
2120 1 Pipe
1614 9117 00 GA90, GA110
1614 9066 00 GA132, GA160
2125 2 Joint set
1614 9114 00 GA90, GA110
1614 9063 00 GA132, GA160
• 1 Joint
1614 9115 00 GA90, GA110
1614 9064 00 GA132, GA160
2130 0147 1369 03 4 Bolt
2150 1 Pipe
1614 9169 00 GA90, GA110
1614 9217 00 GA132, GA160
2155 0663 2106 17 1 O-ring
2160 0147 1364 03 4 Bolt
2170 0301 2344 00 4 Washer
2180 2 Bolt
0147 1499 03 GA90, GA110
0147 1501 03 GA132, GA160
2185 1614 8926 00 4 Absorber
2186 0300 0276 03 4 Washer
2187 0301 2344 00 4 Washer
2190 0291 1114 00 2 Locknut
2200 1 Pipe
1614 9459 00 GA90, GA110
1614 9448 00 GA132, GA160
2205 0663 2106 15 1 O-ring
2210 0147 1364 03 4 Bolt
2215 0301 2344 00 4 Washer
2220 1 O-ring
0663 2107 94 GA90, GA110
0663 2109 69 GA132, GA160
2225 Bolt
0147 1476 03 2 GA90, GA110
0147 1401 03 4 GA132, GA160
2230 Washer
0301 2378 00 2 GA90, GA110
0301 2358 00 4 GA132, GA160
3005 1 Thermost.valve
1202 5869 03 13bar(e), 200psi
1619 7560 00 7.5bar(e), 8.5bar(e), 10bar(e)
100psi, 125psi, 150psi
4010 1 Waterseparator
1614 9373 00 GA90, GA110
Electronic Condensate Drain
1614 9374 00 GA132, GA160
Electronic Condensate Drain
1619 7474 01 GA90, GA110
0663 6136 00 • 1 O-ring
0663 6147 00 • 1 O-ring
1613 6728 00 GA132, GA160
22 2930 1283 05
Parts list
10
61205_02
2930 1283 05 23
Parts list
Air and oil system - GA W 10
Ref. Part number Qty Name Remarks
1 010 1 O-ring
0663 2107 77 GA90 W, GA110 W
0663 2106 11 GA132 W, GA160 W
1 015 1614 9006 00 1 Oil filterhousing
1 020 0301 2344 00 3 Washer
1 025 0147 1363 03 3 Bolt
1 040 1 O-ring
0663 2107 77 GA90 W, GA110 W
0663 2106 11 GA132 W, GA160 W
1 045 1614 9007 00 1 Cover
1 050 0301 2335 00 4 Washer
1 055 0147 1325 03 4 Bolt
1 060 1619 3770 00 3 Nipple
1 065 1613 6105 00 3 Oil filter
1 075 0686 3716 01 1 Plug
1 080 0661 1000 25 1 Seal washer
1 085 1614 6497 01 1 Flange
1 090 0663 2106 11 1 O-ring
1 100 1 Hose assembly
1614 9050 00 GA90 W, GA110 W
1614 9081 00 GA132 W, GA160 W
1 105 0663 2106 11 1 O-ring
1 110 0147 1403 03 2 Bolt
1 115 0301 2358 00 2 Washer
1 120 0663 2109 68 1 O-ring
1 125 0147 1363 03 2 Bolt
1 130 0301 2344 00 2 Washer
2 020 1 Pipe
1614 9040 00 GA90 W, GA110 W
1614 9069 00 GA132 W, GA160 W
2 025 0663 2106 18 1 O-ring
2 030 0147 1403 03 4 Bolt
2 035 0301 2358 00 4 Washer
2 040 1 Pipe
1614 9117 00 GA90 W, GA110 W
1614 9066 00 GA132 W, GA160 W
2 045 2 Joint set
1614 9114 00 GA90 W, GA110 W
1614 9063 00 GA132 W, GA160 W
• 1 Joint
1614 9115 00 GA90 W, GA110 W
1614 9064 00 GA132 W, GA160 W
2 050 0147 1369 03 4 Bolt
2 060 1 Pipe
1614 9263 00 GA90 W, GA110 W
1614 9264 00 GA132 W, GA160 W
2 065 0663 2106 18 1 O-ring
2 070 0147 1403 03 4 Bolt
2 075 0301 2358 00 4 Washer
2 080 2 Bolt
0147 1499 03 GA90 W, GA110 W
0147 1501 03 GA132 W, GA160 W
2 085 1614 8926 00 4 Absorber
2 086 0300 0276 03 4 Washer
2 087 0301 2344 00 4 Washer
2 090 0291 1114 00 2 Locknut
2 100 1 Pipe
1614 9266 00 GA90 W, GA110 W
1614 9289 00 GA132 W, GA160 W
2 105 0663 2106 17 1 O-ring
2 110 0147 1363 03 4 Bolt
2 115 0301 2344 00 4 Washer
2 120 1 Pipe
1614 9117 00 GA90 W, GA110 W
1614 9066 00 GA132 W, GA160 W
2 125 2 Joint set
1614 9114 00 GA90 W, GA110 W
1614 9063 00 GA132 W, GA160 W
• 1 Joint
1614 9115 00 GA90 W, GA110 W
1614 9064 00 GA132 W, GA160 W
Ref. Part number Qty Name Remarks
2 130 0147 1369 03 4 Bolt
2 150 1 Pipe
1614 9267 00 GA90 W, GA110 W
1614 9290 00 GA132 W, GA160 W
2 155 0663 2106 17 1 O-ring
2 160 0147 1363 03 4 Bolt
2 170 0301 2344 00 4 Washer
2 180 2 Bolt
0147 1499 03 GA90 W, GA110 W
0147 1501 03 GA132 W, GA160 W
2 185 1614 8926 00 4 Absorber
2 186 0300 0276 03 4 Washer
2 187 0301 2344 00 4 Washer
2 190 0291 1114 00 2 Locknut
2 200 1 Pipe
1614 9630 00 GA90 W, GA110 W
1614 9631 00 GA132 W, GA160 W
2 205 0663 2106 17 1 O-ring
2 210 0147 1363 03 4 Bolt
2 215 0301 2344 00 4 Washer
2 220 1 Pipe
1614 9117 00 GA90 W, GA110 W
1614 9066 00 GA132 W, GA160 W
2 225 2 Joint set
1614 9114 00 GA90 W, GA110 W
1614 9063 00 GA132 W, GA160 W
• 1 Joint
1614 9115 00 GA90 W, GA110 W
1614 9064 00 GA132 W, GA160 W
2 230 0147 1369 03 4 Bolt
2 235 1 Pipe
1614 9576 00 GA90 W, GA110 W
1614 9632 00 GA132 W, GA160 W
2 240 1 O-ring
0663 2107 94 GA90 W, GA110 W
0663 2109 69 GA132 W, GA160 W
2 245 Bolt
0147 1476 03 2 GA90 W, GA110 W
0147 1402 03 4 GA132 W, GA160 W
2 250 Washer
0301 2378 00 2 GA90 W, GA110 W
0301 2358 00 4 GA132 W, GA160 W
2 260 2 Bolt
0147 1499 03 GA90 W, GA110 W
0147 1501 03 GA132 W, GA160 W
2 265 1614 8926 00 4 Absorber
2 270 0300 0276 03 4 Washer
2 275 0301 2344 00 4 Washer
2 280 0291 1114 00 2 Locknut
2 300 1 Support
1614 9577 00 GA90 W, GA110 W
1614 9583 00 GA132 W, GA160 W
2 305 Bolt
1619 2766 00 4 GA90 W, GA110 W
1619 2766 00 2 GA132 W, GA160 W
2 310 1 Support
1614 9625 00 GA90 W, GA110 W
1614 9299 00 GA132 W, GA160 W
2 315 1619 2766 00 2 Bolt
3 005 1 Thermost.valve
1202 5869 03 13bar(e), 200psi
1619 7560 00 7.5bar(e), 8.5bar(e), 10bar(e)
100psi, 125psi, 150psi
4 010 1 Waterseparator
1614 9373 00 GA90 W, GA110 W
Electronic Condensate Drain
1614 9374 00 GA132 W, GA160 W
Electronic Condensate Drain
1619 7474 01 GA90 W, GA110 W
0663 6136 00 • 1 O-ring
0663 6147 00 • 1 O-ring
1613 6728 00 GA132 W, GA160 W
24 2930 1283 05
Parts list
11
63126_02
2930 1283 05 25
Parts list
Air outlet - Pack 11
Ref. Part number Qty Name Remarks
1020 1 Pipe
1614 9461 00 GA90(W), GA110(W)
1614 9450 00 GA132(W)-Low voltage,
GA160(W)-Low voltage
1614 9924 00 GA132(W)-Medium voltage,
GA160(W)-Medium voltage
1025 1 O-ring
0663 2107 94 GA90(W), GA110(W)
0663 2109 69 GA132(W), GA160(W)
1030 Bolt/Cap screw
0147 1476 03 2 GA90(W), GA110(W)
0211 1401 03 4 GA132(W), GA160(W)
1035 Washer
0301 2378 00 2 GA90(W), GA110(W)
0301 2358 00 4 GA132(W), GA160(W)
1050 1 Pipe
1614 9117 00 GA90(W), GA110(W)
1614 9066 00 GA132(W), GA160(W)
1055 2 Joint set
1614 9114 00 GA90(W), GA110(W)
1614 9063 00 GA132(W), GA160(W)
• 1 Joint
1614 9115 00 GA90(W), GA110(W)
1614 9064 00 GA132(W), GA160(W)
1060 0147 1369 03 4 Bolt
1070 1 Pipe
1614 9719 00 GA90(W)-ISO,
GA110(W)-ISO
1614 9720 00 GA90(W)-NPT,
GA110(W)-NPT
1614 9721 00 GA132(W)-ISO,
GA160(W)-ISO
1614 9722 00 GA132(W)-NPT,
GA160(W)-NPT
1072 0686 3716 01 1 Plug
1073 0653 1062 00 1 Flat gasket
Ref. Part number Qty Name Remarks
1075 2 Bolt
0147 1499 03 GA90(W), GA110(W)
0147 1501 03 GA132(W), GA160(W)
1080 1614 8926 00 4 Absorber
1085 0300 0276 03 4 Washer
1090 0301 2344 00 4 Washer
1095 0291 1114 00 2 Locknut
1100 1619 2766 00 2 Bolt
1105 1 Support
1614 9713 00 GA90(W), GA110(W),
GA132(W)-Low voltage,
GA160(W)-Low voltage
1614 9870 00 GA132(W)-Medium voltage,
GA160(W)-Medium voltage
1106 1 Support
1614 9869 00 GA132(W)-Medium voltage,
GA160(W)-Medium voltage
1108 1 Bolt
0147 1400 03 GA132(W)-Medium voltage,
GA160(W)-Medium voltage
1110 Bolt
1619 5337 01 5 GA90(W), GA110(W),
GA132(W)-Low voltage,
GA160(W)-Low voltage
1619 5337 01 6 GA132(W)-Medium voltage,
GA160(W)-Medium voltage
1130 0346 1000 27 1 Pipe clamp
1135 0266 2110 00 1 Nut
1140 1 Pipe clamp
0346 1000 27 GA132(W)-Low voltage,
GA160(W)-Low voltage
1145 1 Bolt
0147 1323 03 GA132(W)-Low voltage,
GA160(W)-Low voltage
1150 0266 2110 00 1 Nut
26 2930 1283 05
Parts list
12
61385_02
2930 1283 05 27
Parts list
Air outlet - Full-feature 12
Ref. Part number Qty Name Remarks
1020 1 Pipe
1614 9461 00 GA90(W), GA110(W)
1614 9450 00 GA132(W), GA160(W)
1025 1 O-ring
0663 2107 94 GA90(W), GA110(W)
0663 2109 69 GA132(W), GA160(W)
1030 Bolt/Cap screw
0147 1476 03 2 GA90(W), GA110(W)
0211 1401 03 4 GA132(W), GA160(W)
1035 Washer
0301 2378 00 2 GA90(W), GA110(W)
0301 2358 00 4 GA132(W), GA160(W)
1050 1 Pipe
1614 9117 00 GA90(W), GA110(W)
1614 9066 00 GA132(W), GA160(W)
1055 2 Joint set
1614 9114 00 GA90(W), GA110(W)
1614 9063 00 GA132(W), GA160(W)
• 1 Joint
1614 9115 00 GA90(W), GA110(W)
1614 9064 00 GA132(W), GA160(W)
1060 0147 1369 03 4 Bolt
1070 1 Pipe
1614 9465 00 GA90(W), GA110(W)
1614 9445 00 GA132(W), GA160(W)
1072 0686 3716 01 1 Plug
1073 0653 1062 00 1 Flat gasket
1075 2 Bolt
0147 1499 03 GA90(W), GA110(W)
0147 1501 03 GA132(W), GA160(W)
1080 1614 8926 00 4 Absorber
1085 0300 0276 03 4 Washer
Ref. Part number Qty Name Remarks
1090 0301 2344 00 4 Washer
1095 0291 1114 00 2 Locknut
1100 1619 2766 00 2 Bolt
1105 1 Valve
1614 9211 00 GA90(W), GA110(W)
1614 9212 00 GA132(W), GA160(W)
1110 1 Pipe
1614 9227 00 GA90(W)-ISO,
GA110(W)-ISO
1614 9228 00 GA90(W)-NPT,
GA110(W)-NPT
1614 9446 00 GA132(W)-ISO,
GA160(W)-ISO
1614 9447 00 GA132(W)-NPT,
GA160(W)-NPT
1112 0686 3716 01 1 Plug
1113 0653 1062 00 1 Flat gasket
1115 0147 1489 03 4 Bolt
1120 0301 2378 00 4 Washer
1125 0266 2114 00 4 Nut
1130 2 Valve
1614 9211 00 GA90(W), GA110(W)
1614 9212 00 GA132(W), GA160(W)
1135 2 Pipe
1614 9199 00 GA90(W), GA110(W)
1614 9444 00 GA132(W), GA160(W)
1140 0147 1489 03 8 Bolt
1145 0301 2378 00 8 Washer
1150 0266 2114 00 8 Nut
1155 0663 2106 18 2 O-ring
1160 0147 1403 03 8 Bolt
1165 0301 2358 00 8 Washer
28 2930 1283 05
Parts list
13
61386_02
2930 1283 05 29
Parts list
Air outlet - Full-feature + DD filter 13
Ref. Part number Qty Name Remarks
1020 1 Pipe
1614 9461 00 GA90(W), GA110(W)
1614 9450 00 GA132(W), GA160(W)
1025 1 O-ring
0663 2107 94 GA90(W), GA110(W)
0663 2109 69 GA132(W), GA160(W)
1030 Bolt/Cap screw
0147 1476 03 2 GA90(W), GA110(W)
0211 1401 03 4 GA132(W), GA160(W)
1035 Washer
0301 2378 00 2 GA90(W), GA110(W)
0301 2358 00 4 GA132(W), GA160(W)
1050 1 Pipe
1614 9117 00 GA90(W), GA110(W)
1614 9066 00 GA132(W), GA160(W)
1055 2 Joint set
1614 9114 00 GA90(W), GA110(W)
1614 9063 00 GA132(W), GA160(W)
• 1 Joint
1614 9115 00 GA90(W), GA110(W)
1614 9064 00 GA132(W), GA160(W)
1060 0147 1369 03 4 Bolt
1070 1 Pipe
1614 9465 00 GA90(W), GA110(W)
1614 9445 00 GA132(W), GA160(W)
1072 0686 3716 01 1 Plug
1073 0653 1062 00 1 Flat gasket
1075 2 Bolt
0147 1499 03 GA90(W), GA110(W)
0147 1501 03 GA132(W), GA160(W)
1080 1614 8926 00 4 Absorber
1085 0300 0276 03 4 Washer
1090 0301 2344 00 4 Washer
1095 0291 1114 00 2 Locknut
1105 1 Valve
1614 9211 00 GA90(W), GA110(W)
1614 9212 00 GA132(W), GA160(W)
1110 1 Pipe
1614 9251 00 GA90(W), GA110(W)
1614 9460 00 GA132(W), GA160(W)
1115 0147 1489 03 4 Bolt
1120 0301 2378 00 4 Washer
1125 0266 2114 00 4 Nut
1127 0147 1365 03 2 Bolt
1128 0333 3232 00 2 Lock washer
1129 0282 0000 06 2 Square nut
1130 2 Valve
1614 9211 00 GA90(W), GA110(W)
1614 9212 00 GA132(W), GA160(W)
1135 2 Pipe
1614 9199 00 GA90(W), GA110(W)
1614 9444 00 GA132(W), GA160(W)
1140 0147 1489 03 8 Bolt
1145 0301 2378 00 8 Washer
1150 0266 2114 00 8 Nut
1155 0663 2106 18 2 O-ring
1160 0147 1403 03 8 Bolt
1165 0301 2358 00 8 Washer
1180 1 Pipe
1614 9249 00 GA90(W)-ISO,
GA110(W)-ISO
1614 9250 00 GA90(W)-NPT,
GA110(W)-NPT
Ref. Part number Qty Name Remarks
1614 9245 00 GA132(W)-ISO,
GA160(W)-ISO
1614 9246 00 GA132(W)-NPT,
GA160(W)-NPT
1182 0686 3716 01 1 Plug
1183 0653 1062 00 1 Flat gasket
1185 0663 2106 16 2 O-ring
1190 0147 1365 03 2 Bolt
1195 0333 3232 00 2 Lock washer
1200 0282 0000 06 2 Square nut
1205 2 Bolt
0147 1328 03 GA90(W), GA110(W)
1619 2766 00 GA132(W), GA160(W)
2010 0581 0025 01 1 Pipe coupling
2015 0653 1046 00 1 Flat gasket
2020 1615 3624 00 1 Nozzle
2025 0653 1046 00 1 Flat gasket
2030 1079 5840 01 1 Nipple
2035 0653 1046 00 1 Flat gasket
2040 0560 4401 09 1 Tee
2045 1621 0148 00 1 Nipple
2050 1619 5205 00 1 Nipple
2055 0653 1062 00 1 Flat gasket
2060 0574 8231 16 1 Hose assembly
1 Filter DD 1)
8102 2603 64 DD390 GA90-110
8102 2604 06 DD520 GA132-160
• 1 Head/bowl assy
3010 1617 7008 00 •• 1 Head
3020 1617 7038 03 •• 2 Dual lock strip
3030 •• 1 Bowl
1617 7016 00 DD390 GA90-110
1617 7017 00 DD520 GA132-160
3040 0663 2109 63 •• 1 O-ring
3050 0160 0996 06 •• 2 Screw
3060 0661 1010 00 •• 2 Tredo washer
3070 0663 9095 00 •• 1 O-ring
3080 1617 7044 00 •• 1 Sight glass
3090 1617 7035 00 •• 2 Side plate
3100 0690 1112 01 •• 2 Atlas copco logo
• 1 Filter element
1617 7043 03 DD390 GA90-110
1617 7043 07 DD520 GA132-160
4010 •• 1 Element
4015 0663 2109 67 •• 2 O-ring
1603 7002 20 • 1 Automatic drain
5010 1617 7047 00 •• 1 Autom.drain valve
5020 0663 2111 29 •• 1 O-ring
5030 1617 7046 00 •• 1 Nut
6010 1617 7045 00 • 1 Diff.press.gauge
6040 • 1 Label
1617 7055 03 Dd390 GA90-110
1617 7055 07 Dd520 GA132-160
7010 1089 0575 20 1 Dp transducer
7020 1614 8519 02 1 Cable
1) See / Zie / Se / Siehe / Voir / Véase / Vedere / Se / Ver / Se
/ Katso
Service kits
2906 7000 00 : Spare element kit : DD390 :
GA90-110
2906 7003 00 : Spare element kit : DD520 :
GA132-160
30 2930 1283 05
Parts list
14
61273_02
2930 1283 05 31
Parts list
Coolers - GA 14
Ref. Part number Qty Name Remarks
1020 2 Oil cooler
1614 9358 00 GA90
1614 9188 00 GA110
1614 9365 00 GA132
1614 9189 00 GA160
1025 0147 1323 03 8 Bolt
1030 0300 8019 00 8 Washer
1050 1 Hose assembly
0574 8235 32 GA90, GA110
0574 8235 37 GA132, GA160
1055 1079 5840 15 2 Nipple
1060 0661 1000 27 2 Seal washer
1065 1614 9252 00 2 Plug
1067 1 Hose assembly
0574 8235 42 GA90, GA110
0574 8235 45 GA132, GA160
1070 0346 1012 44 1 Pipe clamp
1075 1619 5337 01 1 Bolt
1080 0686 3716 02 2 Plug
1085 0661 1000 27 2 Seal washer
1100 1 Aftercooler
1614 9200 00 GA90, GA110
1614 9201 00 GA132, GA160
1105 0147 1323 03 4 Bolt
1110 0300 8019 00 4 Washer
1115 1 Hose assembly
1614 9220 00 GA90, GA110
1621 9138 00 GA132, GA160
1120 0663 2109 68 2 O-ring
1125 0147 1363 03 4 Bolt
1130 0301 2344 00 4 Washer
1200 1 Hose assembly
1614 8961 00 GA90, GA110
1621 9137 00 GA132, GA160
1205 0663 2109 68 1 O-ring
1210 2 Bolt
0147 1362 03 GA90, GA110,
GA132, GA160
Ref. Part number Qty Name Remarks
0147 1372 03 GA90 Energy recovery,
GA110 Energy recovery
GA132 Energy recovery,
GA160 Energy recovery
1215 0301 2344 00 2 Washer
1220 0663 2109 68 1 O-ring
1225 0147 1363 03 2 Bolt
1230 0301 2344 00 2 Washer
1250 1 Hose assembly
1614 8959 00 GA90, GA110
1614 9474 00 GA90 Energy recovery,
GA110 Energy recovery
1621 9139 00 GA132, GA160
1614 9456 00 GA132 Energy recovery,
GA160 Energy recovery
1255 0663 2109 68 1 O-ring
1260 2 Bolt
0147 1362 03 GA90, GA110,
GA132, GA160
0147 1372 03 GA90 Energy recovery,
GA110 Energy recovery,
GA132 Energy recovery,
GA160 Energy recovery
1265 0301 2344 00 2 Washer
1270 0663 2109 68 1 O-ring
1275 0147 1363 03 2 Bolt
1280 0301 2344 00 2 Washer
1290 1 Plate
1614 9494 00 GA90
1614 9498 00 GA110
1614 9497 00 GA132
1300 1619 2766 00 4 Bolt
1311 1 Plate
1614 9495 00 GA90
1614 9497 00 GA132
1320 1619 2766 00 4 Bolt
2020 1619 2795 00 AR Rubber strip
32 2930 1283 05
Parts list
15
61272_02
2930 1283 05 33
Parts list
Coolers - GA W 15
Ref. Part number Qty Name Remarks
1020 1 Cooler
1614 9580 00 GA90 W, GA110 W
1614 9584 00 GA132 W, GA160 W
1030 1614 9578 00 1 Support
1035 1619 2766 00 4 Bolt
1040 1614 9567 00 1 Support
1045 1 Plate
1614 9581 00 GA90 W, GA110 W
1614 9585 00 GA132 W, GA160 W
1046 0147 1323 03 4 Bolt
1050 0147 1325 03 2 Bolt
1055 0301 2335 00 6 Washer
1150 1 Hose assembly
1614 8960 00 GA90 W, GA110 W
1614 8962 00 GA132 W, GA160 W
1155 0663 2109 68 1 O-ring
1160 2 Bolt
0147 1362 03 GA90 W, GA110 W,
GA132 W, GA160 W
0147 1372 03 GA90 W Energy recovery,
GA110 W Energy recovery,
GA132 W Energy recovery,
GA160 W Energy recovery
1165 0301 2344 00 2 Washer
1170 0663 2109 68 1 O-ring
1175 2 Bolt
0147 1362 03 GA90 W, GA110 W,
GA132 W, GA160 W
0147 1363 03 GA90 W Energy recovery,
GA110 W Energy recovery,
GA132 W Energy recovery,
GA160 W Energy recovery
1180 0301 2344 00 2 Washer
1200 1 Hose assembly
1614 8957 00 GA90 W, GA110 W
1614 8958 00 GA132 W, GA160 W
1614 9396 00 GA90 W Energy recovery,
GA110 W Energy recovery
1614 9397 00 GA132 W Energy recovery,
GA160 W Energy recovery
1201 0661 1000 25 2 Seal washer
1202 0686 3716 01 2 Plug
1205 0663 2109 68 1 O-ring
1210 2 Bolt
0147 1362 03 GA90 W, GA110 W,
GA132 W, GA160 W
0147 1372 03 GA90 W Energy recovery,
GA110 W Energy recovery,
GA132 W Energy recovery,
GA160 W Energy recovery
1215 0301 2344 00 2 Washer
Ref. Part number Qty Name Remarks
1220 0663 2109 68 1 O-ring
1225 2 Bolt
0147 1362 03 GA90 W, GA110 W,
GA132 W, GA160 W
0147 1363 03 GA90 W Energy recovery,
GA110 W Energy recovery,
GA132 W Energy recovery,
GA160 W Energy recovery
1230 0301 2344 00 2 Washer
1235 0346 1000 15 2 Pipe clamp
1240 1088 1305 02 5 Push mount
1245 1088 1301 03 7 Cable strip
1250 1 Inform.label
1079 9913 79 GA90 W Energy recovery,
GA110 W Energy recovery,
GA132 W Energy recovery,
GA160 W Energy recovery
1255 1 Inform.label
1079 9913 69 GA90 W Energy recovery,
GA110 W Energy recovery,
GA132 W Energy recovery,
GA160 W Energy recovery
2020 1 Pipe
1614 9272 00 Without air dryer
1614 9273 00 GA90 W With air dryer,
GA110 W With air dryer
1614 9932 00 GA132 W With air dryer,
GA160 W With air dryer
2025 1619 6153 08 1 Ball valve
2030 1614 9274 00 1 Pipe
2035 0634 1000 27 1 Pipe coupling
2040 1 Union
0586 1000 30 With air dryer
2050 1 Pipe
1614 9390 00 GA90 W With air dryer,
GA110 W With air dryer
1614 9391 00 GA90 W Without air dryer,
GA110 W Without air dryer
1614 9933 00 GA132 W With air dryer,
GA160 W With air dryer,
1614 9389 00 GA132 W Without air dryer,
GA160 W Without air dryer
2055 0634 1000 27 1 Pipe coupling
2060 1 Union
0586 1000 30 With air dryer
2080 1619 2861 01 2 Clamp
2085 1619 5337 01 2 Bolt
2100 1614 9579 00 1 Support
2105 1619 2766 00 2 Bolt
3005 2 Bushing
0605 8350 26 NPT
34 2930 1283 05
Parts list
16
62344_08
2930 1283 05 35
Parts list
Frame and coupling 16
Ref. Part number Qty Name Remarks
1 015 1614 9099 00 2 Support
1 020 0301 2358 00 12 Washer
1 025 4 Bolt
0147 1401 03 1)6)7)10)11)
0147 1400 03 2)3)4)5)8)9)
1 026 0266 2112 00 4 Nut
1 030 1020 5072 00 2 Rubber buffer
1 035 0301 2358 00 4 Washer
1 045 0147 1400 03 4 Bolt
1 046 0333 3244 00 2 Lock washer
1 048 0147 1479 03 2 Bolt
1 050 1 Rubber buffer
1020 5072 00 1)2)3)4)5)6)8)9)
1619 5318 01 7)
1 055 0301 2358 00 2 Washer
1 060 Bolt
0147 1400 03 2 1)3)4)5)6)7)8)9)
0147 1401 03 4 2)
1 065 1614 6600 00 1 Disc
1 070 0261 2114 00 1 Nut
1 075 1 Support
1614 6599 00 1)2)3)4)5)8)9)
1614 8743 00 6)7)
1 077 1 Spacer
1614 9710 00 6)7)
1 080 1 Stud
1614 6659 00 1)
1614 6597 00 2)3)4)5)8)9)
1614 9499 00 6)7)
1 110 1614 9542 00 3 Buffer
1 115 0266 2111 00 3 Nut
1 116 0333 3232 00 3 Lock washer
1 121 0017 2071 00 AR Cable
1 125 0694 5138 00 1 Cable lug
1 130 1088 0010 25 1 Cable lug
1 135 0147 1322 03 1 Bolt
1 140 0333 3227 00 1 Lock washer
1 145 0147 1358 03 1 Bolt
1 150 0333 3232 00 1 Lock washer
1 155 1619 2861 04 2 Clamp
1 160 1619 2766 00 1 Bolt
1 Frame
1614 9725 80 1)2)6)10)
1614 9726 80 3)4)5)7)8)9)11)
2 005 • 1 Frame
1614 9725 00 1)2)6)10)
1614 9726 00 3)4)5)7)8)9)11)
2 007 1614 9851 00 • 4 Pin
3 010 1614 8738 00 1 Flex.coupling
3 015 0337 5305 00 1 Parallel key
3 020 2254 7357 01 1 Coupling half
3 021 0196 1360 00 • 1 Screw
4 020 1 Coupling half
2254 7357 12 1)
2254 7357 04 6)
2254 7357 07 2)3)4)5)8)9)
2254 7357 06 7)
2254 7357 03 10)11)
4 021 0196 1360 00 • 1 Screw
4 030 Bolt
0147 1479 03 8 1)
0147 1550 03 8 6)7)
0147 1552 03 8 2)3)4)5)8)9)
1 Labels
2000 0211 61 2)3)4)5)7)8)9)
5 020 1079 9901 29 • 1 Label
5 025 1088 1001 04 • 1 Warning mark
5 030 1503 0786 00 • 1 Rotation arrow
5 300 1 Motor
ABB motor M2CA ...... - 4
1080 2855 44 GA90 13) 230V/50Hz
1080 2855 12 GA90 12) 400V/50Hz
1080 2855 41 GA90 13) 400V/50Hz
1080 2855 41 GA90 13) 400V/50Hz
Ref. Part number Qty Name Remarks
1080 2855 43 GA90 13) 500V/50Hz
1080 2855 51 GA90 13) 220-230V/60Hz
1080 2855 42 GA90 13) 380V/60Hz
1080 2855 19 GA90 12) 440-460V/60Hz
1080 2855 52 GA90 13) 440-460V/60Hz
1080 2855 52 GA90 13) 440-460V/60Hz
1080 4022 34 GA110 13) 230V/50Hz
1080 4022 02 GA110 12) 400V/50Hz
1080 4022 31 GA110 13) 400V/50Hz
1080 4022 31 GA110 13) 400V/50Hz
1080 4022 33 GA110 13) 500V/50Hz
1080 4023 51 GA110 13) 220-230V/60Hz
1080 4023 18 GA110 12) 380V/60Hz
1080 4023 32 GA110 13) 380V/60Hz
1080 4023 32 GA110 13) 380V/60Hz
1080 4023 19 GA110 12) 440-460V/60Hz
1080 4023 52 GA110 13) 440-460V/60Hz
1080 4023 52 GA110 13) 440-460V/60Hz
1080 4023 54 GA132 13) 230V/50Hz
1080 4023 02 GA132 12) 400V/50Hz
1080 4023 31 GA132 13) 400V/50Hz
1080 4023 31 GA132 13) 400V/50Hz
1080 4023 33 GA132 13) 500V/50Hz
1080 2857 54 GA160 13) 230V/50Hz
1080 2857 12 GA160 12) 400V/50Hz
1080 2857 51 GA160 13) 400V/50Hz
1080 2857 51 GA160 13) 400V/50Hz
1080 2857 53 GA160 13) 500V/50Hz
1080 2857 18 GA160 12) 380V/60Hz
1080 2857 52 GA160 13) 380V/60Hz
1080 2857 52 GA160 13) 380V/60Hz
1080 2857 19 GA160 12) 440-460V/60Hz
1080 2857 62 GA160 13) 440-460V/60Hz
1080 2857 62 GA160 13) 440-460V/60Hz
ABB motor HXR 315 LA - 4
1080 4038 21 GA132 12) 3KV/50Hz
1080 4038 22 GA132 12) 3.3KV/50Hz
1080 4038 25 GA132 12) 6KV/50Hz
1080 4038 41 GA160 12) 3KV/50Hz
1080 4038 42 GA160 12) 3.3KV/50Hz
1080 4038 45 GA160 12) 6KV/50Hz
1080 4038 61 GA160 12) 3.3KV/60Hz
1080 4038 62 GA160 12) 4.16KV/60Hz
1080 4038 63 GA160 12) 6.6KV/60Hz
WEG motor W21 ... /4
1080 4146 09 GA90 12) 440-460V/60Hz
1080 4146 10 GA90 12) 575V/60Hz
1080 4147 09 GA110 12) 440-460V/60Hz
1080 4147 10 GA110 12) 575V/60Hz
1080 4148 09 GA160 12) 440-460V/60Hz
1080 4148 10 GA160 12) 575V/60Hz
Standard option
1 Anchor pads
6 005 1621 5004 00 • 4 Plate
6 010 0226 9929 06 • 8 Wedge bolt
1) GA90/50Hz, GA110/50Hz (ABB motor),
GA90/60Hz (ABB motor)
2) GA110/60Hz (ABB motor)
3) GA132/50Hz-230/500V (ABB motor)
4) GA160/50Hz-230/500V (ABB motor)
5) GA160/60Hz-380/575V (ABB motor)
6) GA90/60Hz, GA110/60Hz (WEG motor)
7) GA160/60Hz (WEG motor)
8) GA132/60Hz-3,3/6,6KV,
GA160/60Hz-3,3/6,6KV (ABB motor)
9) GA132/50Hz-3/6KV,
GA160/50Hz-3/6KV (ABB motor)
10) GA90, GA110 (Without motor)
11) GA132, GA160 (Without motor)
12) Basic motor
13) Full option motor
36 2930 1283 05
Parts list
17
61391_04
2930 1283 05 37
Parts list
Fan and cooling duct plates - GA 17
Ref. Part number Qty Name Remarks
1025 0147 1362 03 5 Bolt
1030 0301 2344 00 5 Washer
1040 0147 1362 03 5 Bolt
1045 0301 2344 00 5 Washer
1050 1 Support
1614 9469 00 GA90, GA110
1614 9183 00 GA132, GA160
1052 1619 6449 00 AR Seal
1055 0147 1360 03 4 Bolt
1060 0301 2344 00 4 Washer
1070 Bolt
1619 2766 00 8 GA90, GA110
1619 2766 00 9 GA132, GA160
1080 1619 2766 00 5 Bolt
1090 Bolt
1619 2766 00 8 GA90, GA110
1619 2766 00 6 GA132, GA160
1105 Bolt
1619 2766 00 13 GA90, GA110
1619 2766 00 14 GA132, GA160
1120 Fan guard
1614 9882 00 1 GA90, GA110
1614 9403 00 2 GA132, GA160
1125 Bolt
0147 1363 03 5 GA90, GA110
0147 1363 03 10 GA132, GA160
1130 Lock washer
0333 3232 00 5 GA90, GA110
0333 3232 00 10 GA132, GA160
1135 Hinge
1614 9762 00 2 GA90, GA110
1614 9405 00 4 GA132, GA160
1140 Bolt
1619 5337 01 4 GA90, GA110
1619 5337 01 8 GA132, GA160
1145 Bolt
0147 1401 03 4 GA90, GA110
0147 1401 03 8 GA132, GA160
1150 Washer
0301 2358 00 4 GA90, GA110
0301 2358 00 8 GA132, GA160
1155 0346 1000 15 3 Pipe clamp
1160 1088 1301 04 5 Cable strip
2010 1614 9440 00 1 Beam 1)
2020 1614 9442 00 1 Silencing foam
2030 1079 9901 09 1 Label
3010 1 Beam
1614 9441 00 Standard 1)
1614 9422 00 Energy recovery 1)2)
3020 1614 9442 00 1 Silencing foam
3030 1079 9901 09 1 Label
3031 1079 9913 79 1 Inform.label
3035 1079 9913 69 1 Inform.label
4010 1 Baffle
1614 9197 00 GA90, GA110
1614 9215 00 GA132, GA160
4020 1619 6449 00 AR Seal
Ref. Part number Qty Name Remarks
4030 1619 6449 00 AR Seal
4040 1619 6449 00 AR Seal
4050 1088 0803 26 1 Grommet
5010 1614 9196 00 1 Baffle
5020 1619 6449 00 AR Seal
5030 1619 6449 00 AR Seal
5040 1503 1056 00 AR Seal
5050 1088 0803 26 2 Grommet
6010 1 Plate
1614 9466 00 GA90, GA110
1614 9216 00 GA132, GA160
6020 1619 2795 00 AR Rubber strip
6030 1619 6449 00 AR Seal
7010 1 Fan cowl
1614 9471 00 GA90, GA110
1614 9489 00 GA132, GA160
7020 1619 6449 00 AR Seal
8002 Washer
1614 6453 00 1 GA90, GA110
1614 6453 00 2 GA132, GA160
8005 Fan
1614 9285 00 1 GA90, GA110 50Hz
1614 9287 00 1 GA90, GA110 60Hz
1614 9287 00 2 GA132, GA16050Hz
1614 9424 00 2 GA132, GA16060Hz
8010 Washer
1614 6456 00 1 GA90, GA110
1614 6456 00 2 GA132, GA160
8016 Bolt
0147 1363 03 1 GA90, GA110
0147 1363 03 2 GA132, GA160
8019 1088 1001 01 1 Warning mark
8020 1503 0786 00 1 Rotation arrow
9010 Fan motor
1 GA90, GA110
1080 4034 42 230-400V/50Hz, 3.6KW
440-460V/60Hz 5HP
1080 4034 44 500V/50Hz, 3.6KW
575V/60Hz 5HP
1080 4034 47 220-230V/60Hz, 5HP
380V/60Hz 5HP
2 GA132, GA160
1080 4034 42 230-400V/50Hz, 3.6KW
440-460V/60Hz 5HP
1080 4034 44 500V/50Hz, 3.6KW
575V/60Hz 5HP
1080 4034 47 220-230V/60Hz, 5HP
380V/60Hz 5HP
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
2) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 59 (AR) 30 x 2040 x 1650
38 2930 1283 05
Parts list
18
61395_09
2930 1283 05 39
Parts list
Regulating system - 1) 18
Ref. Part number Qty Name Remarks
1020 1089 0574 07 3 Temp. sensor
1025 1089 0575 28 1 Press.transducer
1030 1089 0575 28 1 Press.transducer
1035 1089 0575 33 1 Press.transducer
1040 1089 0575 20 1 Dp transducer
1050 1900 0701 25 1 Regulator
1055 1503 2467 00 AR Seal cord
1060 0160 6059 00 4 Screw
1065 0301 2318 00 4 Washer
1070 1614 9406 00 1 Bracket
1100 1614 9149 00 1 Wire harness
2001 1 Spacer
1614 9237 00 GA90(W), GA110(W)
2002 1 O-ring
0663 2109 71 GA90(W), GA110(W)
2003 4 Cap screw
0211 1362 03 GA90(W), GA110(W)
2005 <<< >>> 1 Unloader assembly
2006 0663 2109 71 1 O-ring
2007 0301 2344 00 4 Washer
2008 0147 1363 03 4 Bolt
2010 1079 5840 19 1 Nipple
2015 0661 1000 27 1 Seal washer
2020 1 Hose assembly
0575 0791 37 GA90(W), GA110(W)
0575 0791 46 GA132(W), GA160(W)
2025 1079 5840 29 1 Hexagon nipple
2030 0661 1000 29 1 Seal washer
2035 1 Hose assembly
0574 8845 16 GA90(W), GA110(W)
0574 8845 43 GA132(W), GA160(W)
Ref. Part number Qty Name Remarks
2040 1079 5840 29 1 Hexagon nipple
2045 0661 1000 29 1 Seal washer
2050 0661 1000 24 1 Seal washer
2055 1615 3624 00 1 Nozzle
2060 0661 1000 24 1 Seal washer
2065 1079 5840 01 1 Nipple
2070 0661 1000 25 1 Seal washer
2075 0580 0013 32 1 Coupling
2080 0661 1000 30 1 Seal washer
2085 1614 9144 00 1 Hexagon nipple
2090 0575 0361 18 1 Hose assembly
3360 1 Solenoid valve
1089 0621 10 50Hz
1089 0621 11 60Hz CSA/UL
4020 1900 0701 91 1 Profibus
5010 1900 0701 45 1 Sioe
6010 1900 0701 63 1 COM1 module
7010 1900 0701 82 1 COM2 module
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-078 299
40 2930 1283 05
Parts list
19
61783_09
2930 1283 05 41
Parts list
Regulating system - 2) 19
Ref. Part number Qty Name Remarks
1005 1089 0574 07 1 Temp. sensor
1010 1089 0574 07 1 Temp. sensor
1015 1089 0574 07 1 Temp. sensor
1025 1089 0575 28 1 Press.transducer
1030 1089 0575 28 1 Press.transducer
1035 1089 0575 33 1 Press.transducer
1040 1089 0575 20 1 Dp transducer
1050 1900 0710 31 1 Regulator
1060 0160 6038 00 4 Screw
1065 0301 2315 00 4 Washer
1070 1614 9406 00 1 Bracket
1100 1621 0920 00 1 Wire harness
2001 1 Spacer
1614 9237 00 GA90, GA110
2002 1 O-ring
0663 2109 71 GA90, GA110
2003 4 Cap screw
0211 1362 03 GA90, GA110
2005 <<< >>> 1 Unloader assembly
2006 0663 2109 71 1 O-ring
2007 0301 2344 00 4 Washer
2008 0147 1363 03 4 Bolt
2010 1079 5840 19 1 Nipple
2015 0661 1000 27 1 Seal washer
2020 1 Hose assembly
0575 0791 37 GA90(W), GA110(W)
0575 0791 46 GA132(W), GA160(W)
2025 1079 5840 29 1 Hexagon nipple
2030 0661 1000 29 1 Seal washer
2035 1 Hose assembly
0574 8845 16 GA90, GA110
0574 8235 32 GA90 W, GA110 W
0574 8845 44 GA132(W), GA160(W)
2040 1079 5840 29 1 Hexagon nipple
2045 0661 1000 29 1 Seal washer
2050 0661 1000 24 1 Seal washer
Ref. Part number Qty Name Remarks
2055 1615 3624 00 1 Nozzle
2060 0661 1000 24 1 Seal washer
2065 1079 5840 01 1 Nipple
2070 0661 1000 25 1 Seal washer
2075 0580 0400 03 1 Str.coupling
2080 0661 1000 30 1 Seal washer
2085 1614 9144 00 1 Hexagon nipple
2090 0575 0361 18 1 Hose assembly
2095 1619 5205 00 1 Nipple
2100 0653 0500 02 1 Flat gasket
2105 1 Hose assembly
0574 8231 26 GA90(W), GA110(W)
0574 8231 35 GA132(W), GA160(W)
3360 1 Solenoid valve
1089 0621 10 50Hz
1089 0621 11 60Hz CSA/UL
4010 1900 0710 41 1 Regulator SIOEmodule
4020 1622 0661 03 1 Cable
5010 1900 0710 71 1 Regulator DIOEmodule
5020 1622 0661 03 1 Cable
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-078 300
42 2930 1283 05
Parts list
20 Drain system - Basic- and DD-filter drain
61243_06
Ref. Part number Qty Name Remarks
1010 0661 1000 25 1 Seal washer
1015 0581 0000 45 1 Pipe coupling
1030 0070 6002 06 AR Plastic tube
1035 0581 0000 86 1 Pipe coupling
1040 0653 1124 00 1 Flat gasket
1045 0581 0000 53 1 Pipe coupling
1050 0653 1062 00 1 Flat gasket
1055 0581 0000 45 1 Pipe coupling
1070 0070 6002 06 AR Plastic tube
1072 1621 1091 00 3 Clamp
Ref. Part number Qty Name Remarks
1075 0581 0000 86 1 Pipe coupling
1080 0653 1124 00 1 Flat gasket
1085 0581 0000 53 1 Pipe coupling
1090 0852 0010 33 1 Ball valve
2005 0070 6002 06 AR Plastic tube
2010 0347 6102 00 1 Hose clip
2015 0581 0000 86 1 Pipe coupling
2020 0661 1000 27 1 Seal washer
2025 0581 0000 53 1 Pipe coupling
2930 1283 05 43
Parts list
Drain system - Electronic drain system 21
Ref. Part number Qty Name Remarks
1005 1 Drain valve
8102 0425 80 230V 50-60Hz
8102 0425 98 110V 50-60Hz
1010 1617 1768 00 1 Support
1015 0301 2335 00 3 Washer
1020 0147 1323 03 3 Bolt
1025 0661 1000 29 1 Seal washer
1030 0605 8700 84 1 Bushing
1035 0661 1000 29 1 Seal washer
1040 0605 8820 05 1 Bushing
1045 0661 1000 27 1 Seal washer
GA90(W), GA110(W)
1050 1 Pipe coupling
0581 0000 71 GA90(W), GA110(W)
0581 1200 38 GA132(W), GA160(W)
Ref. Part number Qty Name Remarks
1055 0070 6002 13 AR Plastic tube
1060 0581 1200 38 1 Pipe coupling
1065 0661 1000 25 1 Seal washer
1070 1613 8084 00 1 Pipe coupling
1075 0070 6002 05 AR Plastic tube
1080 0581 1200 23 1 Elbow
1085 0581 0001 04 1 Pipe coupling
1090 0070 6002 13 AR Plastic tube
1092 1621 1091 00 2 Clamp
1095 0581 0000 86 1 Pipe coupling
1100 0661 1000 27 1 Seal washer
1105 0581 0000 71 1 Pipe coupling
61245_06
44 2930 1283 05
Parts list
22
61244_06
2930 1283 05 45
Parts list
Drain system - Oil Separator Condensate drain 22
Ref. Part number Qty Name Remarks
1010 1613 9735 00 1 Oil can
1015 1621 9084 00 1 Support
1020 1619 2766 00 4 Bolt
1025 0147 1322 03 3 Bolt
1030 0301 2335 00 3 Washer
1032 1622 0091 00 1 Support
1033 1619 2766 00 1 Bolt
1035 1079 9910 97 1 Label
1040 0661 1000 25 1 Seal washer
1045 0852 0010 29 1 Ball valve
1050 0661 1000 25 1 Seal washer
1055 0581 0000 35 1 Pipe coupling
1060 0070 6002 03 AR Flexible
1065 1621 1091 00 3 Clamp
1070 1613 7335 00 1 Hose nipple
1075 0070 6002 14 AR Flexible
1080 1614 9706 00 1 Hose nipple
1085 0070 6002 28 AR Plastic tube
1090 0347 6110 00 2 Hose clip
1095 1614 9876 00 1 Hose nipple
Ref. Part number Qty Name Remarks
1100 0661 1000 31 1 Seal washer
1105 1614 9881 00 1 Bushing
2005 1614 9351 00 1 Housing
2006 1613 7299 00 1 Strainer
2007 9125 6295 00 1 Seal washer
2008 1613 7297 00 1 Check valve
2010 1614 9352 00 1 Oil filter
2015 1614 9707 00 1 Cover
2020 0661 1000 25 1 Seal washer
2025 1614 9363 00 1 Pipe coupling
2030 1079 9913 69 1 Inform.label
2035 1079 9912 28 1 Information label
2040 1079 9912 07 1 Information label
2045 1079 9920 17 1 Information label
2050 0686 3716 45 1 Hexagon plug
2055 0661 1000 27 1 Seal washer
2060 0686 3716 44 1 Hexagon plug
2065 0661 1000 25 1 Seal washer
46 2930 1283 05
Parts list
23
61223_10
2930 1283 05 47
Parts list
Bodywork - GA 23
Ref. Part number Qty Name Remarks
1005 1614 9505 00 1 Stay 1)
1015 1621 9086 00 1 Stay 1)
1016 1079 9901 09 1 Label
1025 1614 9014 00 3 Stay 1)
1027 1619 2861 01 1 Clamp
1045 1 Panel/Door 1)
1614 9019 00 Panel 2)3)4)5)
1614 9399 00 Door 6)
1055 1 Door 1)
1614 9161 00 2)3)
1614 9017 00 4)5)6)
1057 1 Door 1)
1614 9929 00 3)
1614 9928 00 5)
1614 9161 00 2)
1614 9017 00 4)6)
1058 2252 7237 00 2 Doorlock
1059 1619 5188 00 AR Seal
1060 Door 1)
1614 9017 00 2 2)3)5)6)
1614 9017 00 3 4)
1061 0690 1140 01 1 House mark
1062 2252 7237 00 2 Doorlock
1063 1619 5188 00 AR Seal
1065 Door 1)
1614 9017 00 3 2)3)5)
1614 9017 00 4 4)6)
1067 1 Door 1)
1614 9928 00 3)5)
1614 9017 00 2)4)6)
1070 1614 9615 00 1 Panel 1)
1075 1089 9068 01 1 Key
1080 1614 8910 00 2 Stay 1)
1090 1 Stay 1)
1621 9087 00 2)3)
1621 9088 00 4)5)6)
1091 1079 9910 95 1 Label
1092 1079 9910 96 1 Label
1093 1079 9901 09 1 Label
1100 1 Panel 1)
1614 9401 00 6)
1614 9615 00 2)3)4)5)
1101 1088 0412 06 2 Flange 6)
Ref. Part number Qty Name Remarks
1102 1088 0497 06 2 Gasket 6)
2020 1 Roof 1)
1614 9492 00 2)3)
1614 9493 00 4)5)6)
2030 1 Roof 1)
1614 9433 00 2)3)
1614 9436 00 4)5)6)
2035 1 Roof 1)
1614 9434 00 2)3)
1614 9437 00 4)5)6)
2055 1 Baffle 1)
1614 9415 00 4)5)6)
3020 <<< >>> 1 Air dryer 3)5)
3035 1621 9085 00 1 Duct plate 3)5)
3048 1503 1056 00 AR Seal 3)5)
3050 1614 9927 00 1 Duct plate 3)5)
AR Bolt
0147 1322 03 M8 x 16
0147 1323 03 M8 x 20 8.8
1619 2766 00 M8 x 20
0147 1325 03 M8 x 25
1079 1472 06 M8 x 30
1619 5337 01 M8 x 30
0147 1405 03 M12 x 50
AR Washer
0301 2335 00 Ø8.4 x 16 x 1.6
0301 2358 00 Ø13 x 24 x 2.5
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
2) GA90-110 Pack (Low voltage),
GA90-110 Pack (No motor)
3) GA90-110 FF (Low voltage),
GA90-110 FF (No motor)
4) GA132-160 Pack (Low voltage),
GA132-160 Pack (No motor)
5) GA132-160 FF (Low voltage),
GA132-160 FF (No motor)
6) GA132-160 Pack (Medium voltage)
48 2930 1283 05
Parts list
24
61239_10
2930 1283 05 49
Parts list
Bodywork - GA W 24
Ref. Part number Qty Name Remarks
1005 1614 9505 00 1 Stay 1)
1015 1621 9086 00 1 Stay 1)
1016 1079 9901 09 1 Label
1025 1614 9014 00 3 Stay 1)
1027 1619 2861 01 1 Clamp
1045 1614 9019 00 1 Panel 1)
1055 2 Door panel 1)
1614 9161 00 GA90W - 110W
1614 9017 00 GA132W - 160W
1056 2252 7237 00 2 Doorlock
1057 1619 5188 00 AR Seal
1060 1614 9017 00 3 Door panel 1)
1061 0690 1140 01 1 House mark
1065 1614 9017 00 3 Door panel 1)
1066 2252 7237 00 2 Doorlock
1067 1619 5188 00 AR Seal
1070 1614 9615 00 2 Panel 1)
1075 1089 9068 01 1 Key
1080 1614 8910 00 2 Stay 1)
1081 1079 9901 09 1 Label
1090 1 Stay 1)
1621 9087 00 GA90W - 110W
1621 9088 00 GA132W - 160W
1091 1079 9910 95 1 Label
1092 1079 9910 96 1 Label
1093 1079 9901 09 1 Label
2005 1 Roof 1)
1614 9765 00 GA90W - 110W
1614 9764 00 GA132W - 160W
2015 1 Roof 1)
1614 9660 00 1 GA90W - 110W
1614 9662 00 1 GA132W - 160W
2020 1 Roof 1)
1614 9434 00 GA90W - 110W
1614 9437 00 GA132W - 160W
Ref. Part number Qty Name Remarks
2030 1614 9766 00 1 Stay 1)
2031 1079 9901 09 1 Label
2032 1079 9913 69 1 Inform.label
2033 1079 9913 79 1 Inform.label
2040 1614 8910 00 1 Stay 1)
2041 1079 9901 09 1 Label
3005 1 Fan assembly
1614 9608 01 230 D 400 Y 50Hz
1614 9608 02 500 Y 50Hz
1614 9608 03 220 D 230 D 380 Y 60Hz
1614 9608 04 440 Y 460 Y 60Hz
1614 9608 05 575 Y 60Hz
3010 0147 1250 03 3 Bolt
3015 0300 0274 35 3 Washer
3020 1503 0786 00 1 Rotation arrow
3025 1088 1001 01 1 Warning mark
AR Bolt
0147 1322 03 M8 x 16
0147 1323 03 M8 x 20 8.8
1619 2766 00 M8 x 20
0147 1325 03 M8 x 25
1079 1472 06 M8 x 30
1619 5337 01 M8 x 30
0147 1405 03 M12 x 50
AR Washer
0301 2335 00 Ø8.4 x 16 x 1.6
0301 2358 00 Ø13 x 24 x 2.5
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
50 2930 1283 05
Parts list
25
61396_12
2930 1283 05 51
Parts list
Cubicle - 1) 25
Ref. Part number Qty Name Remarks
1 Cubicle
1614 9712 80 HAT version
1614 9430 80 Others
1005 • 1 Cubicle
1614 9712 00 HAT version
1614 9430 00 Others
1015 1614 9105 00 • 1 Door
1019 1202 6584 00 • AR Seal
1025 1614 9106 03 • 2 Pin
1030 1619 7704 00 • 2 Lock
2020 1614 8924 00 1 Screen
2031 1614 9108 00 1 Bracket
2040 0296 1108 02 4 Wing nut
2050 1089 9154 02 1 Key
2055 1614 9379 00 1 Bracket
2060 1614 9380 00 1 Bracket
2065 1619 2766 00 5 Bolt
2120 1614 6571 00 1 Cable box
2125 1088 0524 09 2 Plug
2130 1088 0524 10 2 Plug
2135 1614 6567 00 1 Seal
2140 0147 1322 03 6 Bolt
2145 0301 2335 00 6 Washer
2147 1088 1001 04 1 Warning mark
2150 1079 9901 67 1 Label
2151 1613 3431 00 1 Label (CSA/UL)
2155 1088 1001 01 1 Warning mark
2161 1614 6566 00 1 Plate
2165 0147 1322 03 2 Bolt
2166 1613 5330 00 1 Listing mark (CSA/UL)
2170 0301 2335 00 2 Washer
Ref. Part number Qty Name Remarks
2171 1614 7146 00 1 Flange (CSA/UL)
2175 1614 6562 00 2 Clamp
2176 1614 7145 00 1 Gasket (CSA/UL)
2180 0147 1325 03 6 Bolt (CSA/UL)
2181 1614 6563 00 2 Clamp
2185 0266 2110 00 6 Nut (CSA/UL)
2186 1614 6565 00 2 Clamp
2190 1614 6564 00 2 Clamp
2195 0147 1250 03 8 Bolt
2200 0301 2321 00 8 Washer
2205 0266 2108 00 8 Nut
2210 1614 8071 00 1 Label
2225 1079 9920 56 1 Label
3010 1 Fan HAT version
1089 0598 01 230V/50-60Hz
1089 0598 02 115V/50-60Hz CSA/UL
3020 1089 0598 03 1 Filter HAT version
1) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-078 299
52 2930 1283 05
Parts list
26
61807_12
2930 1283 05 53
Parts list
Cubicle - 2) 26
Ref. Part number Qty Name Remarks
1 Cubicle
1621 4505 80 HAT version
1621 4500 80 Others
1005 • 1 Cubicle
1621 4505 00 HAT version
1621 4500 00 Others
1015 1621 4600 00 • 1 Door
1020 1202 6584 00 • AR Seal
1025 1614 9106 03 • 2 Pin
1030 1619 7704 00 • 2 Lock
2020 1621 9285 00 1 Screen
2025 1619 2766 00 2 Bolt
2031 1614 9108 00 1 Bracket
2040 0296 1108 02 4 Wing nut
2050 1089 9154 02 1 Key
2055 1614 9379 00 1 Bracket
2060 1614 9380 00 1 Bracket
2065 1619 2766 00 5 Bolt
2120 1614 6571 00 1 Cable box
2125 1088 0524 09 2 Plug
2130 1088 0524 10 2 Plug
2135 1614 6567 00 1 Seal
2140 0147 1322 03 6 Bolt
2145 0301 2335 00 6 Washer
2147 1088 1001 04 1 Warning mark
2150 1079 9901 67 1 Label
2151 1613 3431 00 1 Label (CSA/UL)
2155 1088 1001 01 1 Warning mark
2161 1614 6566 00 1 Plate
2165 0147 1322 03 2 Bolt
2170 0301 2335 00 2 Washer
Ref. Part number Qty Name Remarks
2175 1614 6562 00 2 Clamp
2180 1614 6563 00 2 Clamp
2185 1614 6565 00 2 Clamp
2190 1614 6564 00 2 Clamp
2195 0147 1250 03 8 Bolt
2200 0301 2321 00 8 Washer
2205 0266 2108 00 8 Nut
2210 1621 0478 00 1 Label
2230 1613 5330 00 1 Listing mark (CSA/UL)
2235 1614 7146 00 1 Flange (CSA/UL)
2240 1614 7145 00 1 Gasket (CSA/UL)
2245 0147 1325 03 6 Bolt (CSA/UL)
2250 0266 2110 00 6 Nut (CSA/UL)
2255 1621 0478 00 1 Label (CSA/UL)
3010 1 Fan HAT version
1089 0598 01 230V/50-60Hz
1089 0598 02 115V/50-60Hz CSA/UL
3020 1089 0598 03 1 Filter HAT version
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-078 300
54 2930 1283 05
Parts list
27
61201_17
2930 1283 05 55
Parts list
Air dryer - GA90-110 27
Ref. Part number Qty Name Remarks
1 Air dryer
1617 2160 80 GA90 220-230V/50Hz,
GA110 220-230V/50Hz
1617 2160 81 GA90 380-415V/50Hz,
GA110 380-415V/50Hz
1617 2160 82 GA90 500V/50Hz,
GA110 500V/50Hz
1617 2160 85 GA90 220-230V/60Hz,
GA110 220-230V/60Hz
1617 2160 86 GA90 440-460V/60Hz,
GA110 440-460V/60Hz
1617 2160 87 GA90 380V/60Hz,
GA110 380V/60Hz
1617 2160 88 GA90 575V/60Hz,
GA110 575V/60Hz
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear 1)
1060 1603 2123 80 • 1 Box ass’y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 0745 00 • 1 Data plate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1617 2056 00 • 1 Liquid receiver
2020 1617 0477 00 • 1 Sleeve
2030 1617 0476 00 • 1 Nut
2040 1617 0320 00 • 1 Ring
2050 1617 0386 00 • 1 Sleeve
2060 1617 0314 00 • 1 Nut
2070 1617 0315 00 • 1 Ring
2090 1619 6768 17 • 1 Expansion valve
2110 1619 5563 06 • 2 Non return valve
2140 1617 2098 00 • 1 Valve
2150 1617 2248 00 • 1 Safety valve
2180 1617 0314 00 • 1 Nut
2190 1617 0474 00 • 1 Sleeve
2200 1617 0315 00 • 1 Ring
2210 1617 0476 00 • 1 Nut
2220 1617 0477 00 • 1 Sleeve
2230 1617 0320 00 • 1 Ring
2240 1617 2384 00 • 1 Non return valve
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2107 46 • 1 O-ring
4010 0653 1062 00 • 2 Flat gasket
4030 0581 0000 35 • 2 Straight coupling
4040 0070 6002 05 • AR Plastic tube
4100 0070 6002 13 • AR Plastic tube
5020 1617 2050 00 • 1 Condensor
5030 1617 0708 00 • 1 Liquid separator
5200 1617 1495 01 • 1 Filter drier
5210 1617 0123 00 • 1 Stop valve
5220 1619 5567 02 • 1 Sight glass
Ref. Part number Qty Name Remarks
5400 1503 0786 00 • 1 Rotation arrow
6010 1617 1246 00 • 1 Connector
6020 1619 7474 01 • 1 Waterseparator
0663 6147 00 •• 1 O-ring
6030 0686 6132 00 • 2 Plug
6040 0686 6128 00 • 1 Plug
6050 0663 3143 00 • 2 O-ring
6080 1617 2049 00 • 1 Flange
6090 0215 0003 21 • 4 Cap srew
7010 • 1 Refrigerant compressor
1614 7168 13 GA90 380-415V/50Hz,
GA110 380-415V/50Hz,
GA90 440-460V/60Hz,
GA110 440-460V/60Hz
1614 7168 14 GA90 220-230V/50Hz,
GA110 220-230V/50Hz
1614 7168 16 GA90 220-230V/60Hz,
GA110 220-230V/60Hz
1614 7168 18 GA90 380V/60Hz,
GA110 380V/60Hz
1614 7168 20 GA90 500V/50Hz,
GA110 500V/50Hz,
GA90 575V/60Hz,
GA110 575V/60Hz
7040 • 1 Fan ass’y
1617 1183 82 GA90 500V/50Hz,
GA110 500V/50Hz,
GA90 575V/60Hz,
GA110 575V/60Hz
1617 1183 81 Others
•• 1 Fan motor
1617 2383 00 GA90 500V/50Hz,
GA110 500V/50Hz,
GA90 575V/60Hz,
GA110 575V/60Hz
1617 2382 00 Others
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7080 • 1 Cable (compressor)
1617 2172 01 60Hz CSA/UL
1617 2172 03 50Hz
7085 • 1 Cable (fanmotor)
1617 2172 02 60Hz CSA/UL
1617 2172 04 50Hz
7090 • 1 Wiring (regulating)
1617 2173 00 60Hz CSA/UL
1617 2312 00 50Hz
7100 0698 0154 00 • 2 Grommet
8010 1089 9214 10 • 1 Pressure switch
8045 1617 2618 00 • 2 Capillar connection
8050 1089 9214 33 • 1 Pressure switch
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
56 2930 1283 05
Parts list
28
61209_17
2930 1283 05 57
Parts list
Air dryer - GA 90 W-110 W 28
Ref. Part number Qty Name Remarks
1 Air dryer
1617 2161 80 GA90 W 220-230V/50Hz,
GA110 W 220-230V/50Hz
1617 2161 81 GA90 W 380-415V/50Hz,
GA110 W 380-415V/50Hz
1617 2161 82 GA90 W 500V/50Hz,
GA110 W 500V/50Hz
1617 2161 85 GA90 W 220-230V/60Hz,
GA110 W 220-230V/60Hz
1617 2161 86 GA90 W 440-460V/60Hz,
GA110 W 440-460V/60Hz
1617 2161 87 GA90 W 380V/60Hz,
GA110 W 380V/60Hz
1617 2161 88 GA90 W 575V/60Hz,
GA110 W 575V/60Hz
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear 1)
1060 1603 2123 80 • 1 Box ass’y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 0745 00 • 1 Data plate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1617 2056 00 • 1 Liquid receiver
2020 1617 0477 00 • 1 Sleeve
2030 1617 0476 00 • 1 Nut
2040 1617 0320 00 • 1 Ring
2050 1617 0386 00 • 1 Sleeve
2060 1617 0314 00 • 1 Nut
2070 1617 0315 00 • 1 Ring
2090 1619 6768 17 • 1 Expansion valve
2110 1619 5563 06 • 2 Non return valve
2140 1617 2098 00 • 1 Valve
2150 1617 2248 00 • 1 Safety valve
2180 1617 0314 00 • 1 Nut
2190 1617 0474 00 • 1 Sleeve
2200 1617 0315 00 • 1 Ring
2210 1617 0476 00 • 1 Nut
2220 1617 0477 00 • 1 Sleeve
2230 1617 0320 00 • 1 Ring
2240 1617 2384 00 • 1 Non return valve
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2107 46 • 1 O-ring
Ref. Part number Qty Name Remarks
4010 0653 1062 00 • 2 Flat gasket
4030 0581 0000 35 • 2 Straight coupling
4040 0070 6002 05 • AR Plastic tube
4100 0070 6002 13 • AR Plastic tube
5020 1617 2395 01 • 1 Tube condensor
5030 1617 0708 00 • 1 Liquid separator
5040 1617 2002 03 • 1 Regulating valve
5190 1617 1495 01 • 1 Filter drier
5200 1617 0123 00 • 1 Stop valve
5210 1619 5567 02 • 1 Sight glass
6010 1617 1246 00 • 1 Connector
6020 1619 7474 01 • 1 Waterseparator
0663 6147 00 •• 1 O-ring
6030 0686 6132 00 • 2 Plug
6040 0686 6128 00 • 1 Plug
6050 0663 3143 00 • 2 O-ring
6080 1617 2049 00 • 1 Flange
6090 0215 0003 21 • 4 Cap srew
7010 • 1 Refrigerant compressor
1614 7168 13 GA90 W 380-415V/50Hz,
GA110 W 380-415V/50Hz,
GA90 W 440-460V/60Hz,
GA110 W 440-460V/60Hz
1614 7168 14 GA90 W 220-230V/50Hz,
GA110 W 220-230V/50Hz
1614 7168 16 GA90 W 220-230V/60Hz,
GA110 W 220-230V/50Hz
1614 7168 18 GA90 W 380V/60Hz,
GA110 W 380V/60Hz
1614 7168 20 GA90 W 500V/50Hz,
GA110 W 500V/50Hz,
GA90 W 575V/60Hz,
GA110 W 575V/60Hz
7080 • 1 Cable (compressor)
1617 2172 01 60Hz CSA/UL
1617 2172 03 50Hz
7090 • 1 Wiring (regulating)
1617 2173 00 60Hz CSA/UL
1617 2312 00 50Hz
7100 0698 0154 00 • 2 Grommet
8010 1089 9214 10 • 1 Pressure switch
8045 1617 2618 00 • 2 Capillar connection
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
58 2930 1283 05
Parts list
29
61202_17
2930 1283 05 59
Parts list
Air dryer - GA132-160 29
Ref. Part number Qty Name Remarks
1 Air dryer
1617 2535 80 GA132 220-230V/50Hz,
GA160 220-230V/50Hz
1617 2535 81 GA132 380-415V/50Hz,
GA160 380-415V/50Hz
1617 2535 82 GA132 500V/50Hz,
GA160 500V/50Hz
1617 2535 86 GA160 440-460V/60Hz
1617 2535 87 GA160 380V/60Hz
1617 2535 88 GA160 575V/60Hz
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear 1)
1060 1603 2123 80 • 1 Box ass’y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 0745 00 • 1 Data plate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2020 1619 5566 04 • 1 Freon dryer
2030 1619 5567 04 • 1 Sight glass
2040 1617 0314 00 • 1 Nut
2050 1617 0107 00 • 1 Sleeve
2070 1617 2231 01 • 1 Thermostatic valve
(bulb)
2071 1617 2232 01 • 1 Thermostatic valve
(orifice)
2072 1617 2233 01 • 1 Thermostatic valve
(body)
2090 1619 5563 05 • 2 Non return valve
2100 1617 0488 00 • 1 Sleeve
2110 1617 0476 00 • 1 Nut
2130 1617 2528 01 • 1 Capacitor
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2170 1617 0386 00 • 1 Sleeve
2180 1617 0314 00 • 1 Nut
2210 1617 2529 00 • 1 Liquid separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2107 46 • 1 O-ring
4010 0653 1062 00 • 2 Flat gasket
4030 0581 0000 35 • 2 Straight coupling
4040 0070 6002 05 • AR Plastic tube
Ref. Part number Qty Name Remarks
4100 0070 6002 13 • AR Plastic tube
5020 1617 2051 00 • 1 Condensor
6010 1617 1247 00 • 1 Connector
6020 1613 6728 00 • 1 Waterseparator
6030 0663 2107 46 • 2 O-ring
7010 • 1 Refrigerant compressor
1619 7674 18 GA132 220-230V/50Hz,
GA160 220-230V/50Hz,
1619 7674 19 GA132 380-415V/50Hz,
GA160 380-415V/50Hz,
GA160 440-460V/60Hz
1619 7674 21 GA160 380V/60Hz
1619 7674 22 GA132 500V/50Hz,
GA160 500V/50Hz,
7040 • 1 Fan ass’y
1617 1183 82 GA132 500V/50Hz,
GA160 500V/50Hz,
GA160 575V/60Hz
1617 1183 81 Others
•• 1 Fan motor
1617 2383 00 GA132 500V/50Hz,
GA160 500V/50Hz,
GA160 575V/60Hz
1617 2382 00 Others
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7080 • 1 Cable (compressor)
1617 2172 01 60Hz CSA/UL
1617 2172 03 50Hz
7085 • 1 Cable (fanmotor)
1617 2172 02 60Hz CSA/UL
1617 2172 04 50Hz
7090 • 1 Wiring (regulating)
1617 2173 00 60Hz CSA/UL
1617 2312 00 50Hz
7100 0698 0154 00 • 2 Grommet
8010 1089 9214 10 • 1 Pressure switch
8045 1617 2618 00 • 2 Capillar connection
8050 1089 9214 33 • 1 Pressure switch
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
60 2930 1283 05
Parts list
30
61210_17
2930 1283 05 61
Parts list
Air dryer - GA 132 W-160 W 30
Ref. Part number Qty Name Remarks
1 Air dryer
1617 2536 80 GA132 W 220-230V/50Hz,
GA160 W 220-230V/50Hz
1617 2536 81 GA132 W 380-415V/50Hz,
GA160 W 380-415V/50Hz
1617 2536 82 GA132 W 500V/50Hz,
GA160 W 500V/50Hz
1617 2536 86 GA160 W 440-460V/60Hz
1617 2536 87 GA160 W 380V/60Hz
1617 2536 88 GA160 W 575V/60Hz
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear 1)
1060 1603 2123 80 • 1 Box ass’y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 0745 00 • 1 Data plate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2020 1619 5566 04 • 1 Freon dryer
2030 1619 5567 04 • 1 Sight glass
2040 1617 0314 00 • 1 Nut
2050 1617 0107 00 • 1 Sleeve
2070 1617 2231 01 • 1 Thermostatic valve
(bulb)
2071 1617 2232 01 • 1 Thermostatic valve
(orifice)
2072 1617 2233 01 • 1 Thermostatic valve
(body)
2090 1619 5563 02 • 4 Schraderventiel
2100 1617 0488 00 • 1 Sleeve
2110 1617 0476 00 • 1 Nut
2120 1617 2527 02 • 1 Liquid gas mixer
2130 1617 2528 02 • 1 Capacitor
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
Ref. Part number Qty Name Remarks
2170 1617 0386 00 • 1 Sleeve
2180 1617 0314 00 • 1 Nut
2210 1617 2529 00 • 1 Liquid separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2107 46 • 1 O-ring
4010 0653 1062 00 • 2 Flat gasket
4030 0581 0000 35 • 2 Straight coupling
4040 0070 6002 05 • AR Plastic tube
4100 0070 6002 13 • AR Plastic tube
5020 1617 2395 01 • 1 Tube condensor
5040 1617 2617 01 • 1 Regulating valve
6010 1617 1247 00 • 1 Connector
6020 1613 6728 00 • 1 Waterseparator
6030 0663 2107 46 • 2 O-ring
7010 • 1 Refrigerant compressor
1619 7674 18 GA132 W 220-230V/50Hz,
GA160 W 220-230V/50Hz
1619 7674 19 GA132 W 380-415V/50Hz,
GA160 W 380-415V/50Hz,
GA160 W 440-460V/60Hz
1619 7674 21 GA160 W 380V/60Hz
1619 7674 22 GA132 W 500V/50Hz,
GA160 W 500V/50Hz,
GA160 W 575V/60Hz
7080 • 1 Cable (compressor)
1617 2172 01 60Hz CSA/UL
1617 2172 03 50Hz
7090 • 1 Wiring (regulating)
1617 2173 00 60Hz CSA/UL
1617 2312 00 50Hz
7100 0698 0154 00 • 2 Grommet
8010 1089 9214 10 • 1 Pressure switch
8045 1617 2618 00 • 2 Capillar connection
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit /Garnir de / Rivestido de / Allineato con / Foret med
/ Revestido com / Kledd med / Vuorattu :
Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
62 2930 1283 05
Parts list
31
61263_15
2930 1283 05 63
Parts list
Energy recovery system - Optional 31
Ref. Part number Qty Name Remarks
1001 1614 9407 00 1 Heat exchanger
1005 1614 9408 00 1 Support
1010 0147 1362 03 4 Bolt
1015 1614 9409 00 2 Bracket
1020 0147 1328 03 4 Bolt
1025 0301 2335 00 4 Washer
1030 1614 9410 00 1 Connect.block
1035 0663 2107 77 1 O-ring
1040 0211 1375 00 2 Cap screw
1045 1614 8821 00 1 Connection pipe
1050 0663 2107 77 1 O-ring
1055 0211 1375 00 2 Cap screw
1060 1614 9411 00 2 Pipe
1065 0663 2107 77 2 O-ring
1070 0147 1362 03 4 Bolt
1075 0301 2344 00 4 Washer
1080 1614 9413 00 1 Pipe
1085 0663 2108 00 1 O-ring
1090 0147 1400 03 2 Bolt
1095 0301 2358 00 2 Washer
1099 1619 7560 00 1 Thermost.valve
1100 1614 6028 00 1 Therm.valve housing
1101 0686 3716 29 1 Plug
1102 0661 1000 33 1 Seal washer
1103 0686 3716 07 1 Plug
1104 0661 1000 30 1 Seal washer
1105 0663 2108 00 1 O-ring
1110 0147 1402 03 2 Bolt
1115 1614 7152 00 1 Tee
1120 0663 2106 11 1 O-ring
1125 0147 1363 03 2 Bolt
1130 0301 2344 00 2 Washer
1135 1614 9414 00 1 Pipe
1140 0663 2106 11 1 O-ring
1145 0147 1362 03 2 Bolt
1150 0301 2344 00 2 Washer
1155 0663 2107 77 1 O-ring
1160 0147 1362 03 2 Bolt
1165 1614 9417 00 1 Pipe
1170 0663 2107 77 1 O-ring
1175 0246 1956 36 3 Stud
Ref. Part number Qty Name Remarks
1180 0301 2344 00 3 Washer
1185 0266 2111 00 3 Nut
1190 0663 2107 77 1 O-ring
1195 0147 1479 03 4 Bolt
1200 0266 2114 00 4 Nut
1205 1614 9419 00 1 Pipe
1210 0686 3115 52 1 Plug
1215 0663 2109 68 1 O-ring
1219 0246 1956 36 2 Stud
1221 0301 2344 00 2 Washer
1223 0266 2111 00 2 Nut
1225 0663 2107 77 1 O-ring
1230 0147 1479 03 4 Bolt
1235 0266 2114 00 4 Nut
1240 1614 9420 00 1 Hose assembly
1245 0663 2106 11 1 O-ring
1250 0147 1362 03 2 Bolt
1255 0663 2107 77 1 O-ring
1260 0147 1479 03 4 Bolt
1265 0266 2114 00 4 Nut
1270 1614 9421 00 1 Hose assembly
1275 0663 2108 00 1 O-ring
1280 0147 1362 03 2 Bolt
1285 0663 2107 77 1 O-ring
1290 0147 1479 03 4 Bolt
1295 0266 2114 00 4 Nut
1300 0653 1124 00 1 Flat gasket
1305 1079 5840 15 1 Nipple
1310 0574 8235 07 1 Hose assembly
1315 1614 9252 00 1 Plug
1320 1079 9906 57 1 Instruct.label
1335 1202 5869 01 1 Thermost.valve 70°C - 85°C
1340 1202 5869 02 1 Thermost.valve 60°C - 75°C
1345 1202 5869 03 1 Thermost.valve 65°C - 80°C
1350 1202 5869 04 1 Thermost.valve 75°C - 90°C
1351 1202 5868 00 • 1 Spring
1614 6900 82 1 4-way valve
2020 1614 6900 00 • 1 4-way valve
2025 1614 6904 00 • 1 Wrench
64 2930 1283 05
Parts list
32 Start cubicle - star/delta - Control Voltage 230/24V - Full options - 1)-21)
Ref. Part number Qty Name Remarks
1 Control panel
1900 3100 51 GA90 230V/50Hz
1900 3100 12 GA110 230V/50Hz
1900 3100 13 GA132 230V/50Hz
1900 3100 14 GA160 230V/50Hz
1900 3100 25 GA90 400V/50Hz
1900 3100 26 GA110 400V/50Hz
1900 3100 17 GA132 400V/50Hz
1900 3100 58 GA160 400V/50Hz
1900 3100 19 GA90 500V/50Hz
1900 3100 27 GA110 500V/50Hz
1900 3100 28 GA132 500V/50Hz
1900 3100 29 GA160 500V/50Hz
1900 3102 11 GA90 220-230V/60Hz
1900 3102 12 GA110 220-230V/60Hz
1901 3102 15 GA90 380V/60Hz
1901 3102 16 GA110 380V/60Hz
1902 3102 27 GA160 380V/60Hz
1902 3102 19 GA90 440-460V/60Hz
1903 3102 20 GA110 440-460V/60Hz
1903 3102 21 GA160 440-460V/60Hz
1010 1079 9906 09 • 1 Label
1015 9823 1821 01 • 1 Label
61397_12
Ref. Part number Qty Name Remarks
1020 1613 6639 00 • 1 Data plate
1025 1079 9901 68 • 1 Label
1030 1089 9398 11 • 36 Terminal
1035 1089 0506 27 • 10 Terminal
1040 1089 0506 06 • 6 Terminal
1045 1088 0024 04 • 1 Connector
1050 1088 0024 10 • 1 Connector
1055 1088 0024 18 • 1 Connector
1060 1088 0000 06 • 1 Connector
1065 1088 0024 02 • 2 Connector
1070 • 1 Overload relay
1089 9205 30 1)17)
1089 9399 03 2)3)4)
1089 9205 24 5)
1089 9205 26 6)15)
1089 9205 08 7)20)
1089 9205 30 8)
1089 9205 13 9)
1089 9205 24 10)
1089 9205 07 11)12)
1089 9399 03 13)14)
1089 9205 06 16)19)
1089 9205 23 18)
2930 1283 05 65
Parts list
32 Ref. Part number Qty Name Remarks
1 075 • 1 Circuit breaker
1089 9203 11 1)2)3)4)7)8)13)14)16)17)19)20)
1089 9203 21 5)6)9)10)11)12)15)18)
1 080 1089 9203 04 • 2 Circuit breaker
1 085 • Connecting link
1089 9215 07 6 1)8)17)
1089 9215 07 3 7)11)12)20)
1 090 • 2 Contactor
1089 9221 30 1)7)8)11)12)16)17)19)20)
1089 9221 96 2)3)14)
1089 9421 14 4)
1089 9421 11 5)6)10)15)18)
1089 9221 03 9)
1089 9421 12 13)
1 095 • 1 Contactor
1089 9421 11 1)2)13)
1089 9221 30 3)14)
1089 9421 12 4)
1089 9415 41 5)6)10)15)18)19)
1089 9415 42 7)11)12)16)20)
1089 9221 03 8)17)
1089 9415 32 9)
1 096 • 1 Contact block
1089 9415 70
5)6)7)9)10)11)12)15)16)18)19)20)
1 100 • 1 Circuit breaker
1089 9416 26 1)2)13)14)
1089 9416 27 3)4)
1089 9416 22 5)6)15)
1089 9416 24 7)8)16)17)
1089 9416 21 9)10)11)12)18)
1089 9416 23 19)20)
1 105 1089 0362 50 • 1 Contact block
1 110 1089 0362 51 • 1 Emergency stop button
1 115 1089 0362 58 • 1 Contact block
1 120 1089 9082 24 • 1 Key switch
1 125 • 1 Transformer
1089 9136 98 1)2)7)8)13)14)
1089 9136 99 3)4)
1089 9136 97 5)6)
1089 9436 05 9)10)11)12)15)18)
1089 9436 07 16)17)19)20)
1 130 1089 9436 11 • 1 Transformer
1 135 1614 9110 00 • 1 Mounting plate
1 136 1089 9388 01 • 1 Interface relay
1 137 1089 9221 95 • 1 Contact block
1 140 • Contactor
1089 9415 22 1 1)2)13)14) Air cooled
1089 9415 12 1 5)6)9)10) Air cooled
1089 9415 21 1 15)16)18)19) Air cooled
1089 9415 22 2 3)4) Air cooled
1089 9415 12 2 7)8)11)12) Air cooled
1089 9415 21 2 17)20) Air cooled
1089 9415 11 1 Water cooled
1 145 • Contact block
1089 9416 07 1 1)2)5)6)9)10) Air cooled
1089 9416 07 1 13)14)15)16)18)19)
Air cooled
1089 9416 07 2 3)4)7)8)11)12)17)20)
Air cooled
1089 9416 07 1 Water cooled
1 150 • Circuit breaker
1089 9416 71 1 1)2)13)14) Air cooled
1089 9416 28 1 5)6)9)10) Air cooled
1089 9416 69 1 15)16)18)19) Air cooled
1089 9416 71 2 3)4) Air cooled
1089 9416 28 2 7)8)11)12) Air cooled
1089 9416 69 2 17)20) Air cooled
1089 9416 24 1 1)2)3)4) Water cooled
1089 9416 21 1 5)6)7)8)15)16)17) Water cooled
1089 9416 20 1 9)10)11)12)18)19)20)
Water cooled
1 155 • Connection element
1089 9416 91 1 1)2)13)14) Air cooled
1089 9416 91 1 15)16)18)19) Air cooled
1089 9416 06 1 5)6)9)10) Air cooled
1089 9416 91 2 3)4) Air cooled
Ref. Part number Qty Name Remarks
1089 9416 06 2 7)8)11)12) Air cooled
1089 9416 91 2 17)20) Air cooled
1089 9416 06 1 Water cooled
1 160 • 1 Contactor
1089 9415 23 1)2)13)14)17)20)
1089 9415 31 3)4)
1089 9415 21 5)6)9)10)
1089 9415 22 7)8)11)12)15)16)18)19)
1 165 1089 9415 11 • 1 Contactor Air cooled
1 170 • 1 Circuit breaker
1089 9416 73 1)2)17)
1089 9416 84 3)4)
1089 9416 70 5)6)9)10)
1089 9416 71 7)8)11)12)15)16)18)19)
1089 9416 74 13)14)
1089 9416 72 20)
1 175 • 1 Connection element
1089 9416 90 3)4)
1089 9416 91 Others
1 176 1089 9416 06 • 1 Connection element
Air cooled
1 180 • Contact block
1089 9416 07 2 Air cooled
1089 9416 07 1 Water cooled
1 185 • 1 Circuit breaker Air cooled
1089 9416 24 1)2)3)4)
1089 9416 21 5)6)7)8)
1089 9416 20 9)10)11)12)
1089 9416 25 13)14)
1089 9416 23 15)16)17)18)19)20)
1 190 1089 9203 23 • 1 Circuit breaker
1 195 1089 9203 23 • 1 Circuit breaker
1 200 • 1 Phase sequence relay
1089 9461 03 9)10)11)12)18)19)20)
1089 9461 01 Others
1 210 1088 0024 02 • 1 Connector COM1 (5x1)
1 220 1088 0024 02 • 1 Connector THM (3x1.1)
1 230 1088 0024 02 • 1 Connector COM2 (7x1)
1 240 1088 0024 02 • 1 Connector PROFIBUS
(7x1)
1) GA90 230V/50Hz
2) GA110 230V/50Hz
3) GA132 230V/50Hz
4) GA160 230V/50Hz
5) GA90 400V/50Hz
6) GA110 400V/50Hz
7) GA132 400V/50Hz
8) GA160 400V/50Hz
9) GA90 500V/50Hz
10) GA110 500V/50Hz
11) GA132 500V/50Hz
12) GA160 500V/50Hz
13) GA90 220-230V/60Hz
14) GA110 220-230V/60Hz
15) GA90 380V/60Hz
16) GA110 380V/60Hz
17) GA160 380V/60Hz
18) GA90 440-460V/60Hz
19) GA110 440-460V/60Hz
20) GA160 440-460V/60Hz
21) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-078 299
66 2930 1283 05
Parts list
62356_12
33
2930 1283 05 67
Parts list
Ref. Part number Qty Name Remarks
1 Control panel
1900 3127 10 GA90 230V/50Hz,
GA90 220-230V/60Hz,
GA160 380V/60Hz
1900 3127 12 GA110 230V/50Hz,
GA160 400V/50Hz
1900 3127 13 GA132 230V/50Hz,
GA110 220-230V/60Hz
1900 3127 14 GA132 400V/50Hz,
GA160 440-460V/60Hz
1900 3127 15 GA160 230V/50Hz
1901 3127 16 GA160 500V/50Hz,
GA110 380V/60Hz
1900 3127 18 GA90 400V/50Hz
1900 3127 19 GA110 400V/50Hz,
GA90 500V/50Hz,
GA110 500V/50Hz,
GA132 500V/50Hz,
GA90 380V/60Hz,
GA90 440-460V/60Hz,
GA110 440-460V/60Hz
1005 1079 9906 09 • 1 Label
1010 9823 1821 11 • 1 Label
1015 1613 6639 00 • 1 Data plate
1020 1079 9901 68 • 1 Label
1025 1089 0506 06 • 6 Terminal
1030 1089 9398 12 • 1 Terminal
1035 1088 0031 03 • 1 Connector
1040 1088 0031 02 • 1 Connector
1045 1089 0506 27 • 11 Terminal
1050 1089 9398 11 • 29 Terminal
1055 1088 0031 49 • 1 Connector
1060 1088 0031 29 • 1 Connector
1065 1088 0031 30 • 1 Connector
1070 1088 0031 13 • 1 Connector
1075 1089 0612 01 • 2 Fuse holder
1080 1089 0612 25 • 2 Fuse
1085 • 1 Electric overload relay
1089 9446 22 GA90-GA110 230V/50Hz,
GA90 220-230V/60Hz,
GA160 380V/60Hz,
GA160 400V/50Hz
1089 9446 23 GA110 220-230V/60Hz,
GA132-160 230V/50Hz
1089 9446 21 GA90-GA110-GA132 400V/
50Hz,
GA90-GA110 380V/60Hz
GA90-GA110-GA160 440-
460V/60Hz
GA90-GA110-GA132-GA160
500V/50Hz
1090 1089 9203 11 • 1 Circuit breaker
1095 1089 9203 11 • 2 Circuit breaker
1100 1089 9415 17 • 1 Contactor
1105 • 2 Contactor
1089 9415 78 GA90-GA110 230V/50Hz,
GA90 220-230V/60Hz,
GA160 380V/60Hz,
GA160 400V/50Hz
1089 9415 79 GA110 220-230V/60Hz,
GA132 230V/50Hz
1089 9415 60 GA132 400V/50Hz,
GA160 440-460V/60Hz
1089 9415 74 GA160 230V/50Hz
Ref. Part number Qty Name Remarks
1089 9415 59 GA110 380V/60Hz,
GA160 500V/50Hz
1089 9415 58 GA90-GA110 400V/50Hz,
GA90 380V/60Hz,
GA90-GA110 440-460V/
60Hz,
GA90-GA110-GA132 500V/
50Hz
1110 1089 9415 09 • 2 Contact block
1115 1089 9415 07 • 2 Contact block
GA90-GA110-GA132 400V/
50Hz,
GA90-GA110 380V/60Hz,
GA90-GA110-GA160 440-
460V/60Hz,
GA90-GA110-GA132-GA160
500V/50Hz
1120 1089 9415 08 • 1 Contact block
GA90-GA110-GA132 400V/
50Hz,
GA90-GA110 380V/60Hz,
GA90-GA110-GA160 440-
460V/60Hz,
GA90-GA110-GA132-GA160
500V/50Hz
1125 • 1 Contactor
1089 9415 58 GA90-GA110-GA132 230V/
50Hz,
GA90GA110 220-230V/60Hz,
GA160 380V/60Hz ,
GA160 400V/50Hz
1089 9415 42 GA90-GA110 380V/60Hz,
GA110-GA132 400V/50Hz,
GA90-GA110-GA160 440-
460V/60Hz,
GA90-GA110-GA132-GA160
500V/50Hz
1089 9415 78 GA160 230V/50Hz
1089 9415 41 GA90 400V/50Hz
1130 1089 0362 51 • 1 Emergency stop button
1135 1089 0362 58 • 1 Contact block
1140 1089 9436 07 • 1 Trafo
1145 1089 9136 93 • 1 Trafo
2005 1614 9110 00 • 1 Mounting plate
1 Option Fan
1900 3133 01 GA90-GA110 220-230V/50-
60Hz
1900 3133 02 GA132-GA160 220-230V/50-
60Hz
1900 3133 03 GA90-GA110 380-500V/50Hz
1900 3133 04 GA132-GA160 380-500V/
50Hz
1900 3133 05 GA90-GA110 380-460V/60Hz
1900 3133 06 GA160 380-460V/60Hz
1900 3133 10 GA90 W-GA160 W 220-
240V/50-60Hz
1900 3133 11 GA90 W-GA160 W 380-
415V/60Hz
1900 3133 12 GA90 W-GA160 W 440-
500V/50-60Hz
3005 • 1 Contactor
1089 9415 22 GA90-160 220-230V/50-60Hz
1089 9415 12 GA90-160 380-500V/50Hz
1089 9415 13 GA90-160 380-460V/60Hz
1089 9415 11 GA90 W-GA160 W
Start cubicle - without starter - Control Voltage 230/24V - Full options - 2) 33
68 2930 1283 05
Parts list
33
62356_12
2930 1283 05 69
Parts list
Start cubicle - star/delta - Control Voltage 230/24V - Full options - 2) 33
Ref. Part number Qty Name Remarks
3010 • 1 Contactor
1089 9415 22 GA132-GA160 220-230V/50-
60Hz
1089 9415 12 GA132-GA160 380-500V/
50Hz
1089 9415 13 GA160 380-460V/60Hz
3015 • 1 Circuit breaker
1089 9416 71 GA90-160 220-230V/50-60Hz
1089 9416 28 GA90-160 380-500V/50Hz
1089 9416 29 GA90-160 380-460V/60Hz
1089 9416 24 GA90 W-GA160 W 220-240V/
50-60Hz
1089 9416 21 GA90 W-GA160 W 380-415V/
60Hz
1089 9416 20 GA90 W-GA160 W 440-500V/
50-60Hz
3020 • 1 Circuit breaker
1089 9416 71 GA132-GA160 220-230V/50-
60Hz
1089 9416 28 GA132-GA160 380-500V/
50Hz
1089 9416 29 GA160 380-460V/60Hz
3025 1089 9416 07 • 1 Contact block
3030 • 1 Contact block
1089 9416 07 GA132-GA160 220-230V/50-
60Hz,
GA132-GA160 380-500V/
50Hz,
GA160 380-460V/60Hz
3035 • 1 Connecting element
1089 9416 91 GA90-160 220-230V/50-60Hz
1089 9416 06 Others
3040 • 1 Connecting element
1089 9416 91 GA132-GA160 220-230V/50-
60Hz
1089 9416 06 GA132-GA160 380-500V/
50Hz,
GA160 380-460V/60Hz
1900 3134 01 1 Option Motor Heater
4005 1088 0031 02 • 1 Connector
1900 3134 02 1 Option Condensate Drain
5005 1088 0031 05 • 1 Connector
5010 1089 9203 31 • 1 Circuit breaker
1900 3134 03 1 Option Condensate Drain
Dryer
6005 1088 0031 05 • 1 Connector
6010 1089 9203 31 • 1 Circuit breaker
1 Option Phase Sequence
Relay
1900 3134 04 230-400V
1900 3134 05 500V
7005 1088 0031 08 • 1 Connector
7010 1089 0612 24 • 1 Fuse
7015 1089 0612 01 • 1 Fuse holder
7020 • 1 Phase sequence relay
1089 9461 01 230-400V
1089 9461 03 500V
1 Option Dryer
1900 3134 20 GA90-GA110 220-240V/50Hz
1900 3134 21 GA132-GA160 220-240V/
50Hz
1900 3134 22 GA90-GA110 380-415V/50Hz
1900 3134 23 GA132-GA160 380-415V/
50Hz
1900 3134 24 GA132-GA160 500V/50Hz
1900 3134 25 GA90-GA110 220-230V/60Hz
Ref. Part number Qty Name Remarks
1900 3134 27 GA90-GA110 380V/60Hz,
GA90-GA110 440-460V/60Hz
1900 3134 28 GA160 380V/60Hz
1900 3134 29 GA160 440-460V/60Hz
1900 3134 30 GA90-GA110 500V/50Hz
1900 3134 41 GA90 W-GA110 W 220-240V/
50Hz,
GA160 W 380V/60Hz
1900 3134 42 GA132 W-GA160 W 220-
240V/50Hz
1900 3134 43 GA90 W-GA110 W 400V/
50Hz,
GA90 W-GA110 W 380-415V/
50Hz
1900 3134 44 GA90 W-GA110 W 380V/
60Hz,
GA90 W-GA110 W 440-460V/
60Hz,
GA132 W-GA160 W 400V/
50Hz,
GA132 W-GA160 W 380-
415V/50Hz,
GA132 W-GA160 W 500V/
50Hz,
1900 3134 45 GA90 W-GA110 W 500V/50Hz
1900 3134 46 GA90 W-GA110 W 220-230V/
60Hz
1900 3134 47 GA160 W 440-460V/60Hz
8005 1088 0031 10 • 1 Connector
8010 • 1 Contactor
1089 9415 21 GA90(W)-GA110(W) 380-
415V/50Hz,
GA90 W-GA110 W 400V/50Hz
1089 9415 22 GA90(W)-GA110(W)-
GA132(W)-GA160(W) 500V/
50Hz,
GA90(W)-GA110(W) 380V/
60Hz,
GA90(W)-GA110(W) 440-
460V/60Hz,
GA132(W)-GA160(W) 380-
415V/50Hz,
GA132 W-GA160 W 400V/
50Hz
1089 9415 23 GA90(W)-GA110(W) 220-
240V/50Hz,
GA90(W)-GA110(W) 220-
230V/60Hz,
GA160(W) 380V/60Hz,
GA160(W) 440-460V/60Hz
1089 9415 31 GA132(W)-GA160(W) 220-
240V/50Hz
8015 • 1 Contactor
1089 9415 11 Aircooled
8020 • 1 Circuit breaker
1089 9416 69 GA90(W)-GA110(W) 500V/
50Hz
1089 9416 70 GA90(W)-GA110(W) 380-
415V/50Hz,
GA90 W-GA110 W 400V/50Hz
1089 9416 71 GA90(W)-GA110(W) 380V/
60Hz,
GA90(W)-GA110(W) 440-
460V/60Hz,
GA132 W-GA160 W 400V/
50Hz,
70 2930 1283 05
Parts list
33
62356_12
2930 1283 05 71
Parts list
Ref. Part number Qty Name Remarks
GA132(W)-GA160(W)
500V/50Hz,
GA132(W)-GA160(W) 380-
415V/50Hz
1089 9416 72 GA160(W) 440-460V/60Hz
1089 9416 73 GA90(W)-GA110(W) 220-
240V/50Hz,
GA160(W) 380V/60Hz,
1089 9416 74 GA90(W)-GA110(W) 220-
230V/60Hz,
1089 9416 84 GA132(W)-GA160(W) 220-
240V/50Hz
8025 • 1 Connecting element
1089 9416 90 GA132(W)-GA160(W) 220-
240V/50Hz
1089 9416 91 Others
8030 1089 9416 07 • 1 Contact block
8035 • 1 Contact block
1089 9416 07 Aircooled
8040 • 1 Circuit breaker
1089 9416 24 GA90-GA110-GA132-
GA160 220-240V/50Hz
1089 9416 21 GA90-GA110-GA132-
GA160 380-415V/50Hz
1089 9416 20 GA90-GA110-GA132-
GA160 500V/50Hz
1089 9416 25 GA90-GA110 220-230V/
60Hz
1089 9416 23 GA90-GA110-GA160 380V/
60Hz,
GA90-GA110-GA160 440-
460V/60Hz
8045 • 1 Connection element
1089 9416 06 Aircooled
1900 3134 12 1 Option HAT
1900 3134 13 1 Option Energy Recovery
1900 3134 14 1 Option DDP-Filter
1900 3134 15 1 Option PT1000
1900 3134 16 1 Option Profibus
1900 3134 17 1 Option Modbus
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-078 300
Start cubicle - star/delta - Control Voltage 230/24V - Full options - 2) 33
72 2930 1283 05
Parts list
34
61399_12
2930 1283 05 73
Parts list
Start cubicle - star/delta - Control Voltage 115/24V - CSA/UL - Full options - 1)-7) 34
Ref. Part number Qty Name Remarks
1 Control panel C,U
1900 3101 19 GA90 440-460V/60Hz
1900 3101 20 GA110 440-460V/60Hz
1900 3101 21 GA160 440-460V/60Hz
1900 3101 23 GA90 575V/60Hz
1900 3101 24 GA110 575V/60Hz
1900 3101 25 GA160 575V/60Hz
1010 1079 9906 09 • 1 Label
1015 9823 1821 01 • 1 Label
1020 1613 3046 00 • 1 Data plate
1025 1079 9901 68 • 1 Label
1026 1079 9911 01 • 1 Label
1030 1089 9398 11 • 36 Terminal
1035 1089 0506 27 • 10 Terminal
1040 1089 0506 06 • 2 Terminal
1045 1088 0024 04 • 1 Connector
1050 1088 0024 10 • 1 Connector
1055 1088 0024 18 • 1 Connector
1060 1088 0000 06 • 1 Connector
1065 1088 0024 02 • 2 Connector
1070 • 1 Overload relay
1089 9205 23 1)5)
1089 9205 05 2)6)
1089 9205 08 3)
1089 9205 12 4)
1075 • 1 Circuit breaker
1089 9203 37 1)4)5)
2)3)6)
1080 1089 9203 36 • 2 Circuit breaker
1085 • 3 Connecting link
1089 9215 02 3)
1090 • 2 Contactor
1089 9221 93 1)5)
1089 9221 49 2)6)
1089 9221 43 3)
1089 9221 48 4)
1095 • 1 Contactor
1089 9221 47 1)4)5)
1089 9221 44 2)6)
1089 9221 48 3)
1096 1089 9221 95 • 1 Contact block
1097 1089 9216 03 • 1 Interlock
1100 • 1 Circuit breaker
1089 9416 21 1)
1089 9416 23 2)3)
1089 9416 20 4)5)
1089 9416 22 6)
1105 1089 0362 50 • 1 Contact block
1110 1089 0362 51 • 1 Emergency stop button
1115 1089 0362 58 • 1 Contact block
1120 1089 9082 24 • 1 Key switch
1125 • 1 Transformer
1089 9436 06 1)4)5)
1089 9436 08 2)3)6)
1130 1089 9436 11 • 1 Transformer
1135 1614 9110 00 • 1 Mounting plate
1136 1089 9388 01 • 1 Interface relay
1140 • Contactor
1089 9415 24 1 1)2)4)5) Air cooled
1089 9415 24 2 3)6) Air cooled
1089 9415 14 1 Water cooled
Ref. Part number Qty Name Remarks
1145 • Contact block
1089 9416 07 1 1)2)4)5) Air cooled
1089 9416 07 2 3)6) Air cooled
1089 9416 07 1 Water cooled
1150 • Circuit breaker
1089 9416 69 1 1)2) Air cooled
1089 9416 67 1 4)5) Air cooled
1089 9416 69 2 3) Air cooled
1089 9416 67 2 6) Air cooled
1089 9416 21 1 1)2)3) Water cooled
1089 9416 20 1 4)5)6) Water cooled
1155 • Connection element
1089 9416 91 1 1)2)4)5) Air cooled
1089 9416 91 2 3)6) Air cooled
1089 9416 06 1 Water cooled
1160 • 1 Contactor
1089 9415 25 1)2)6)
1089 9415 26 3)
1089 9415 24 4)5)
1165 1089 9415 14 • 1 Contactor Air cooled
1170 • 1 Circuit breaker
1089 9416 71 1)2)6)
1089 9416 72 3)
1089 9416 70 4)5)
1175 1089 9416 91 • 1 Connection element
1176 1089 9416 06 • 1 Connection element Air
cooled
1180 • Contact block
1089 9416 07 2 Air cooled
1089 9416 07 1 Water cooled
1185 • 1 Circuit breaker Air cooled
1089 9416 22 1)2)3)
1089 9416 21 4)5)6)
1190 1089 9203 31 • 1 Circuit breaker
1195 1089 9203 31 • 1 Circuit breaker
1200 • 1 Phase sequence relay
1089 9461 03 1)2)3)
1089 9461 04 4)5)6)
1210 1088 0024 02 • 1 Connector COM1 (5x1)
1220 1088 0024 02 • 1 Connector THM (3x1.1)
1230 1088 0024 02 • 1 Connector COM2 (7x1)
1240 1088 0024 02 • 1 Connector PROFIBUS
(7x1)
1) GA90 440-460V/60Hz
2) GA110 440-460V/60Hz
3) GA160 440-460V/60Hz
4) GA90 575V/60Hz
5) GA110 575V/60Hz
6) GA160 575V/60Hz
7) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-078 299
74 2930 1283 05
Parts list
35 Start cubicle - star/delta - Control Voltage 115/24V - CSA/UL - Full options - 2)
Ref. Part number Qty Name Remarks
1 Control panel C,U
1900 3128 10 GA90(W) 440-460V/60Hz,
GA90(W) 575V/60Hz
1900 3128 11 GA110(W) 440-460V/60Hz,
GA160(W) 575V/60Hz
1900 3128 12 GA110(W) 575V/60Hz
1900 3128 13 GA160(W) 440-460V/60Hz
1005 1079 9906 09 • 1 Label
1010 9823 1821 11 • 1 Label
1015 1614 8949 00 • 1 Data plate
1020 1079 9901 68 • 1 Label
1025 1079 9911 01 • 1 Label
1030 1079 9922 70 • 1 Fuselabel
1035 1089 0506 06 • 6 Terminal
1040 1089 9398 12 • 1 Terminal
1045 1088 0031 03 • 1 Connector
1050 1088 0031 02 • 1 Connector
62357_12
Ref. Part number Qty Name Remarks
1055 1089 0506 27 • 11 Terminal
1060 1089 9398 11 • 29 Terminal
1065 1088 0031 49 • 1 Connector
1070 1088 0031 29 • 1 Connector
1075 1088 0031 30 • 1 Connector
1080 1088 0031 13 • 1 Connector
1085 1089 0612 01 • 2 Fuse holder
1090 1089 9168 26 • 2 Fuse
1095 1089 9446 21 • 1 Electrical overload relay
1100 1089 9203 38 • 1 Circuit breaker
1105 1089 9203 36 • 2 Circuit breaker
1110 1089 9415 17 • 1 Contactor
1115 • 2 Contactor
1089 9415 61 GA90(W) 440-460V/60Hz,
GA90(W)-GA110(W) 575V/
60Hz
2930 1283 05 75
Parts list
35
Ref. Part number Qty Name Remarks
1089 9415 62 GA110(W) 440-460V/60Hz,
GA160(W) 575V/60Hz
1089 9415 63 GA160(W) 440-460V/60Hz
1120 1089 9415 61 • 1 Contactor
1125 1089 9415 09 • 2 Contact block
1130 1089 9415 91 • 1 Mechanical interlock
1135 1089 0362 51 • 1 Emergency stop button
1140 1089 0362 58 • 1 Contact block
1145 1089 9436 08 • 1 Trafo
1150 1089 9436 11 • 1 Trafo
2005 1614 9110 00 • 1 Mounting plate
1900 3134 01 1 Option Motor Heater
3005 1088 0031 02 • 1 Connector
1900 3134 02 1 Option Condensate Drain
4005 1088 0031 05 • 1 Connector
4010 1089 9203 31 • 1 Circuit breaker
1900 3134 03 1 Option Condensate Drain
Dryer
5005 1088 0031 05 • 1 Connector
5010 1089 9203 31 • 1 Circuit breaker
1 Option Fan
1900 3133 20 GA90-GA110 440-460V/60Hz
1900 3133 21 GA160 440-460V/60Hz
1900 3133 22 GA90-GA110 575V/60Hz
1900 3133 23 GA160 575V/60Hz
1900 3133 30 GA90 W-GA160 W 440-460V/
60Hz
1900 3133 31 GA90 W-GA160 W 575V/
60Hz
6005 1089 9415 24 • 1 Contactor
6010 • 1 Contactor
1089 9415 24 GA160 440-460V/60Hz,
GA160 575V/60Hz
6015 • 1 Circuit breaker
1089 9416 69 GA90-GA110-GA160 440-
460V/60Hz
1089 9416 67 GA90-GA110-GA160 575V/
60Hz
1089 9416 61 GA90 W-GA160 W 440-460V/
60Hz
1089 9416 60 GA90 W-GA160 W 575V/
60Hz
6020 • 1 Circuit breaker
1089 9416 69 GA160 440-460V/60Hz
1089 9416 67 GA160 575V/60Hz
6025 1089 9416 07 • 1 Contact block
6030 • 1 Contact block
1089 9416 07 GA160 440-460V/60Hz,
GA160 575V/60Hz
6035 1089 9416 75 • 1 Connection block
6040 • 1 Connection block
1089 9416 75 GA160 440-460V/60Hz,
GA160 575V/60Hz
6045 1089 9416 91 • 1 Connecting element
6050 • 1 Connecting element
1089 9416 91 GA160 440-460V/60Hz,
GA160 575V/60Hz
1 Option Phase Sequence Relay
1900 3134 06 440-460V
1900 3134 07 575V
7005 1079 9922 78 • 1 Fuse label
7010 1088 0031 08 • 1 Male connector
7015 1089 9168 24 • 1 Fuse
7020 1089 0612 01 • 1 Fuse holder
Ref. Part number Qty Name Remarks
7025 • 1 Watch relay
1089 9461 03 440-460V
1089 9461 04 575V
1 Option Dryer
1900 3134 51 GA90-GA110 440-460V/60Hz
1901 3134 52 GA160 440-460V/60Hz
1901 3134 53 GA90-GA110 575V/60Hz
1902 3134 54 GA160 575V/60Hz
1902 3134 61 GA90 W-GA160 W 440-460V/
60Hz,
GA160 W 575V/60Hz
1903 3134 62 GA160 W 440-460V/60Hz
1903 3134 63 GA90 W-GA110 W 575V/60Hz
8005 1088 0031 10 • 1 Connector
8010 • 1 Contactor
1089 9415 25 GA90(W)-GA110(W) 440-
460V/60Hz,
GA160(W) 575V/60Hz
1089 9415 26 GA160(W) 440-460V/60Hz
1089 9415 24 GA90(W)-GA110(W) 575V/
60Hz
8015 • 1 Contactor
1089 9415 24 GA90-GA110-GA160 440-
460V/60Hz,
GA90-GA110-GA160 575V/
60Hz
8020 • 1 Circuit breaker
1089 9416 71 GA90(W)-GA110(W) 440-
460V/60Hz,
GA160(W) 575V/60Hz
1089 9416 72 GA160(W) 440-460V/60Hz
1089 9416 70 GA90(W)-GA110(W) 575V/
60Hz
8025 1089 9416 91 • 1 Connecting element
8030 1089 9416 07 • 1 Contact block
8035 • 1 Contact block
1089 9416 07 Aircooled
8040 • 1 Circuit breaker
1089 9416 62 GA90-GA110-GA160 440-
460V/60Hz
1089 9416 61 GA90-GA110-GA160 575V/
60Hz
8045 • 1 Connecting element
1089 9416 91 Aircooled
8050 1089 9416 75 • 1 Connection block
8055 • 1 Connection block
1089 9416 75 Aircooled
1900 3134 12 1 Option HAT
1900 3134 13 1 Option Energy Recovery
1900 3134 14 1 Option DDP-Filter
1900 3134 15 1 Option PT1000
1900 3134 16 1 Option Profibus
1900 3134 17 1 Option Modbus
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-078 300
76 2930 1283 05
Parts list
36
61401_12
2930 1283 05 77
Parts list
Start cubicle - star/delta - Control Voltage 230/24V - COM 1 option only - 1)-15) 36
Ref. Part number Qty Name Remarks
1 Control panel
1900 3100 35 GA90 400V/50Hz
1900 3100 36 GA110 400V/50Hz
1900 3100 33 GA132 400V/50Hz
1900 3100 38 GA160 400V/50Hz
1900 3100 45 GA90 W 400V/50Hz
1900 3100 46 GA110 W 400V/50Hz
1900 3100 43 GA132 W 400V/50Hz
1900 3100 48 GA160 W 400V/50Hz
1902 3102 31 GA90 440-460V/60Hz
1903 3102 32 GA110 440-460V/60Hz
1903 3102 33 GA160 440-460V/60Hz
1902 3102 41 GA90 W 440-460V/60Hz
1903 3102 42 GA110 W 440-460V/60Hz
1903 3102 43 GA160 W 440-460V/60Hz
1010 1079 9906 09 • 1 Label
1015 9823 1821 02 • 1 Label
1020 1613 6639 00 • 1 Data plate
1025 1079 9901 68 • 1 Label
1030 1089 9398 11 • 19 Terminal
1035 1089 0506 27 • 4 Terminal
1045 1088 0024 04 • 1 Connector
1050 1088 0024 10 • 1 Connector
1055 1088 0024 18 • 1 Connector
1060 1088 0000 06 • 1 Connector
1065 1088 0024 02 • 1 Connector
1070 • 1 Overload relay
1089 9205 24 1)5)
1089 9205 26 2)6)
1089 9205 08 3)7)11)14)
1089 9205 30 4)8)
1089 9205 23 9)12)
1089 9205 06 10)13)
1075 • 1 Circuit breaker
1089 9203 11 10)13)
1089 9203 21 Others
1080 1089 9203 11 • 2 Circuit breaker
1085 • Connecting link
1089 9215 07 3 3)7)11)14)
1089 9215 07 6 4)8)
1090 • 2 Contactor
1089 9421 11 1)2)5)6)9)12)
1089 9221 30 3)4)7)8)10)11)13)14)
1095 • 1 Contactor
1089 9415 41 1)2)5)6)9)10)12)13)
1089 9415 42 3)7)11)14)
1089 9221 03 4)8)
1096 • 1 Contact block
1089 9415 70
1)2)3)5)6)7)9)10)11)12)13)14)
1100 • 1 Circuit breaker
1089 9416 22 1)2)3)4)5)6)7)8)
1089 9416 21 9)11)12)14)
1089 9416 23 10)13)
1105 1089 0362 50 • 1 Contact block
1110 1089 0362 51 • 1 Emergency stop button
1115 1089 0362 58 • 1 Contact block
1120 1089 9082 24 • 1 Key switch
Ref. Part number Qty Name Remarks
1125 • 1 Transformer
1089 9136 97 1)2)3)4)5)6)7)8)
1089 9436 05 9)11)12)14)
1089 9436 07 10)13)
1130 1089 9136 93 • 1 Transformer
1135 1614 9110 00 • 1 Mounting plate
1140 • Contactor
1089 9415 12 1 1)2)
1089 9415 21 1 9)10)
1089 9415 12 2 3)4)
1089 9415 21 2 11)
1089 9415 11 1 5)6)7)8)12)13)14)
1145 • Contact block
1089 9416 07 1 1)2)5)6)7)8)9)10)12)13)14)
1089 9416 07 2 3)4)11)
1150 • Circuit breaker
1089 9416 28 1 1)2)
1089 9416 68 1 9)10)
1089 9416 20 1 12)13)14)
1089 9416 28 2 3)4)
1089 9416 68 2 11)
1089 9416 21 1 5)6)7)8)
1155 • Connection element
1089 9416 06 1 1)2)5)6)7)8)12)13)14)
1089 9416 91 1 9)10)
1089 9416 06 2 3)4)
1089 9416 91 2 11)
1160 1089 9388 01 • 1 Interface relay
1165 1089 9221 95 • 1 Contact block
1170 1088 0024 02 • 1 Connector
1) GA90 400V/50Hz
2) GA110 400V/50Hz
3) GA132 400V/50Hz
4) GA160 400V/50Hz
5) GA90 W 400V/50Hz
6) GA110 W 400V/50Hz
7) GA132 W 400V/50Hz
8) GA160 W 400V/50Hz
9) GA90 440-460V/60Hz
10) GA110 440-460V/60Hz
11) GA160 440-460V/60Hz
12) GA90 W 440-460V/60Hz
13) GA110 W 440-460V/60Hz
14) GA160 W 440-460V/60Hz
15) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-078 299
78 2930 1283 05
Parts list
37
62355_12
2930 1283 05 79
Parts list
Start cubicle - star/delta - Control Voltage 230/24V - Basic parts - 2) 37
Ref. Part number Qty Name Remarks
1 Control panel
1900 3129 01 GA90 400V/50Hz
1900 3129 05 GA110 400V/50Hz
1900 3129 03 GA132 400V/50Hz
1900 3129 04 GA160 400V/50Hz
1005 1079 9906 09 • 1 Label
1010 9823 1821 13 • 1 Label
1015 1613 6639 00 • 1 Data plate
1020 1079 9901 68 • 1 Label
1025 1088 0031 03 • 1 Connector
1030 1088 0031 02 • 1 Connector
1035 1089 0506 27 • 4 Terminal
1040 • Terminal
1089 9398 11 18 GA90
1089 9398 11 19 GA110, GA132, GA160
1045 1088 0031 49 • 1 Connector
1050 1088 0031 29 • 1 Connector
1055 1088 0031 30 • 1 Connector
1060 1088 0031 13 • 1 Connector
1065 • 2 Fuse
1089 0612 24 GA90, GA110, GA132
1089 0612 25 GA160
1070 1089 0612 01 • 2 Fuse holder
1075 • 1 Electric overload relay
1089 9446 21 GA90, GA110, GA132
1089 9446 22 GA160
1080 • 1 Circuit breaker
1089 9203 21 GA90, GA110, GA132
1089 9203 11 GA160
1085 1089 9203 11 • 2 Circuit breaker
1090 1089 9415 17 • 1 Contactor
1095 • 2 Contactor
1089 9415 58 GA90, GA110
1089 9415 60 GA132
1089 9415 78 GA160
1100 • 2 Contact block
1089 9138 16 GA90
1089 9415 09 GA110, GA132, GA160
1105 • 2 Contact block
1089 9415 07 GA90, GA110, GA132
Ref. Part number Qty Name Remarks
1110 • 1 Contact block
1089 9415 08 GA90, GA110, GA132
1115 • 1 Contactor
1089 9415 41 GA90
1089 9415 42 GA110, GA132
1089 9415 58 GA160
1120 1089 9415 12 • 1 Contactor
1125 • 1 Contactor
1089 9415 12 GA132, GA160
1130 1089 9416 06 • 1 Connection element
1135 • 1 Connection element
1089 9416 06 GA132, GA160
1140 1089 9416 28 • 1 Circuit breaker
1145 • 1 Circuit breaker
1089 9416 28 GA132, GA160
1150 1089 9416 07 • 1 Contact block
1155 • 1 Contact block
1089 9416 07 GA132, GA160
1160 1089 0362 51 • 1 Emergency stop button
1165 1089 0362 58 • 1 Contact block
1170 • 1 Trafo
1089 9136 97 GA90, GA110, GA132
1089 9136 98 GA160
1175 1089 9136 93 • 1 Trafo
2005 1614 9110 00 • 1 Mounting plate
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-078 300
80 2930 1283 05
Parts list
38
61402_12
2930 1283 05 81
Parts list
Start cubicle - star/delta - Control Voltage 115/24V - COM 1 option only - 1)-7) 38
Ref. Part number Qty Name Remarks
1 Control panel C,U
1900 3101 31 GA90 440-460V/60Hz
1900 3101 32 GA110 440-460V/60Hz
1900 3101 33 GA160 440-460V/60Hz
1900 3101 41 GA90 W 440-460V/60Hz
1900 3101 42 GA110 W 440-460V/60Hz
1900 3101 43 GA160 W 440-460V/60Hz
1010 1079 9906 09 • 1 Label
1015 9823 1821 02 • 1 Label
1020 1613 3046 00 • 1 Data plate
1025 1079 9901 68 • 1 Label
1030 1089 9398 11 • 19 Terminal
1035 1089 0506 27 • 4 Terminal
1045 1088 0024 04 • 1 Connector
1050 1088 0024 10 • 1 Connector
1055 1088 0024 18 • 1 Connector
1060 1088 0000 06 • 1 Connector
1065 1088 0024 02 • 1 Connector
1070 • 1 Overload relay
1089 9205 23 1)4)
1089 9205 05 2)5)
1089 9205 08 3)6)
1075 • 1 Circuit breaker
1089 9203 37 1)4)
2)3)5)6)
1080 1089 9203 35 • 2 Circuit breaker
1085 • 3 Connecting link
1089 9215 02 3)6)
1090 • 2 Contactor
1089 9221 93 1)4)
1089 9221 49 2)5)
1089 9221 43 3)6)
1095 • 1 Contactor
1089 9221 47 1)4)
1089 9221 44 2)5)
1089 9221 48 3)6)
1097 1089 9216 03 • 1 Interlock
1100 • 1 Circuit breaker
1089 9416 21 1)4)
1089 9416 23 2)3)5)6)
1105 1089 0362 50 • 1 Contact block
1110 1089 0362 51 • 1 Emergency stop button
1115 1089 0362 58 • 1 Contact block
1120 1089 9082 24 • 1 Key switch
Ref. Part number Qty Name Remarks
1125 • 1 Transformer
1089 9436 06 1)4)
1089 9436 08 2)3)5)6)
1130 1089 9136 27 • 1 Transformer
1135 1614 9110 00 • 1 Mounting plate
1140 • Contactor
1089 9415 24 1 1)2)
1089 9415 24 2 3)
1089 9415 14 1 4)5)6)
1145 • Contact block
1089 9416 07 1 1)2)4)5)6)
1089 9416 07 2 3)
1150 • Circuit breaker
1089 9416 69 1 1)2)
1089 9416 69 2 3)
1089 9416 21 1 4)5)6)
1155 • Connection element
1089 9416 91 1 1)2)
1089 9416 91 2 3)
1089 9416 06 1 4)5)6)
1160 1089 9388 01 • 1 Interface relay
1165 1089 9221 95 • 1 Contact block
1170 1088 0024 02 • 1 Connector
1) GA90 440-460V/60Hz
2) GA110 440-460V/60Hz
3) GA160 440-460V/60Hz
4) GA90 W 440-460V/60Hz
5) GA110 W 440-460V/60Hz
6) GA160 W 440-460V/60Hz
7) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-078 299
82 2930 1283 05
Parts list
39
61406_12
2930 1283 05 83
Parts list
Start cubicle, without starter - Control Voltage 230/24V - Full options - 1)-21) 39
Ref. Part number Qty Name Remarks
1 Control panel
1900 3100 01 GA90-160 50Hz
1900 3102 01 GA90-160 60Hz
1010 1079 9906 09 • 1 Label
1015 9823 1821 03 • 1 Label
1020 1613 6639 00 • 1 Data plate
1025 1079 9901 68 • 1 Label
1030 1089 9398 11 • 36 Terminal
1035 1089 0506 27 • 10 Terminal
1040 1089 0506 06 • 6 Terminal
1045 1088 0024 04 • 1 Connector
1050 1088 0024 10 • 1 Connector
1055 1088 0024 18 • 1 Connector
1060 1088 0000 06 • 1 Connector
1065 1088 0024 02 • 2 Connector
1075 1089 9203 11 • 1 Circuit breaker
1080 1089 9203 04 • 2 Circuit breaker
1085 1089 9438 02 • 1 Relay
1090 • 1 Circuit breaker
1089 9416 25 GA90-160 50Hz
1089 9416 24 GA90-160 60Hz
1095 1089 0362 50 • 1 Contact block
1100 1089 0362 51 • 1 Emergency stop button
1105 1089 0362 58 • 1 Contact block
1110 1089 9082 24 • 1 Key switch
1115 1089 9436 08 • 1 Transformer
1120 1089 9436 11 • 1 Transformer
1125 1614 9110 00 • 1 Mounting plate
1130 1089 9388 01 • 1 Interface relay
1140 • Contactor
1089 9415 22 1 1)2)13)14) Air cooled
1089 9415 12 1 5)6)9)10) Air cooled
1089 9415 21 1 15)16)18)19) Air cooled
1089 9415 22 2 3)4) Air cooled
1089 9415 12 2 7)8)11)12) Air cooled
1089 9415 21 2 17)20) Air cooled
1089 9415 11 1 Water cooled
1145 • Contact block
1089 9416 07 1 1)2)5)6)9)10) Air cooled
1089 9416 07 1 13)14)15)16)18)19)
Air cooled
1089 9416 07 2 3)4)7)8)11)12)17)20)
Air cooled
1089 9416 07 1 Water cooled
1150 • Circuit breaker
1089 9416 71 1 1)2)13)14) Air cooled
1089 9416 28 1 5)6)9)10) Air cooled
1089 9416 69 1 15)16)18)19) Air cooled
1089 9416 71 2 3)4) Air cooled
1089 9416 28 2 7)8)11)12) Air cooled
1089 9416 69 2 17)20) Air cooled
1089 9416 24 1 1)2)3)4) Water cooled
1089 9416 21 1 5)6)7)8)15)16)17)
Water cooled
1089 9416 20 1 9)10)11)12)18)19)20)
Water cooled
1155 • Connection element
1089 9416 91 1 1)2)13)14) Air cooled
1089 9416 91 1 15)16)18)19) Air cooled
1089 9416 06 1 5)6)9)10) Air cooled
1089 9416 91 2 3)4) Air cooled
1089 9416 06 2 7)8)11)12) Air cooled
1089 9416 91 2 17)20) Air cooled
1089 9416 06 1 Water cooled
1160 • 1 Contactor
1089 9415 23 1)2)13)14)17)20)
1089 9415 31 3)4)
Ref. Part number Qty Name Remarks
1089 9415 21 5)6)9)10)
1089 9415 22 7)8)11)12)15)16)18)19)
1165 1089 9415 11 • 1 Contactor Air cooled
1170 • 1 Circuit breaker
1089 9416 73 1)2)17)
1089 9416 84 3)4)
1089 9416 70 5)6)9)10)
1089 9416 71 7)8)11)12)15)16)18)19)
1089 9416 74 13)14)
1089 9416 72 20)
1175 • 1 Connection element
1089 9416 90 3)4)
1089 9416 91 Others
1176 1089 9416 06 • 1 Connection element
Air cooled
1180 • Contact block
1089 9416 07 2 Air cooled
1089 9416 07 1 Water cooled
1185 • 1 Circuit breaker Air cooled
1089 9416 24 1)2)3)4)
1089 9416 21 5)6)7)8)
1089 9416 20 9)10)11)12)
1089 9416 25 13)14)
1089 9416 23 15)16)17)18)19)20)
1190 1089 9203 23 • 1 Circuit breaker
1195 1089 9203 23 • 1 Circuit breaker
1200 • 1 Phase sequence relay
1089 9461 03 9)10)11)12)18)19)20)
1089 9461 01 Others
1210 1088 0024 02 • 1 Connector COM1 (5x1)
1220 1088 0024 02 • 1 Connector THM (3x1.1)
1230 1088 0024 02 • 1 Connector COM2 (7x1)
1240 1088 0024 02 • 1 Connector PROFIBUS (7x1)
1) GA90 230V/50Hz
2) GA110 230V/50Hz
3) GA132 230V/50Hz
4) GA160 230V/50Hz
5) GA90 400V/50Hz
6) GA110 400V/50Hz
7) GA132 400V/50Hz
8) GA160 400V/50Hz
9) GA90 500V/50Hz
10) GA110 500V/50Hz
11) GA132 500V/50Hz
12) GA160 500V/50Hz
13) GA90 220-230V/60Hz
14) GA110 220-230V/60Hz
15) GA90 380V/60Hz
16) GA110 380V/60Hz
17) GA160 380V/60Hz
18) GA90 440-460V/60Hz
19) GA110 440-460V/60Hz
20) GA160 440-460V/60Hz
21) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-078 299
84 2930 1283 05
Parts list
40
62360_12
2930 1283 05 85
Parts list
Start cubicle, without starter - Control Voltage 230/24V - Full options - 2) 40
Ref. Part number Qty Name Remarks
1 Control panel
1900 3127 01 GA90-160 50/60Hz
1005 1079 9906 09 • 1 Label
1010 9823 1821 12 • 1 Label
1015 1613 6639 00 • 1 Data plate
1020 1079 9901 68 • 1 Label
1035 1089 0506 06 • 6 Terminal
1040 1089 9398 12 • 1 Terminal
1045 1088 0031 03 • 1 Connector
1050 1088 0031 02 • 1 Connector
1055 1089 0506 27 • 11 Terminal
1060 1089 9398 11 • 30 Terminal
1065 1088 0031 49 • 1 Connector
1070 1088 0031 29 • 1 Connector
1075 1088 0031 30 • 1 Connector
1080 1088 0031 13 • 1 Connector
1085 1089 0612 25 • 2 Fuse
1090 1089 0612 01 • 2 Fuse holder
1095 1089 9203 11 • 1 Circuit breaker
1100 1089 9203 11 • 2 Circuit breaker
1105 1089 9415 17 • 1 Contactor
1110 1089 9438 02 • 1 Relay
1115 1089 0362 51 • 1 Emergency stop button
1120 1089 0362 58 • 1 Contact block
1125 1089 9436 07 • 1 Trafo
1130 1089 9136 93 • 1 Trafo
2005 1614 9110 00 • 1 Mounting plate
1 Option Fan
1900 3133 01 GA90-GA110 220-230V/50-
60Hz
1900 3133 02 GA132-GA160 220-230V/50-
60Hz
1900 3133 03 GA90-GA110 380-500V/50Hz
1900 3133 04 GA132-GA160 380-500V/
50Hz
1900 3133 05 GA90-GA110 380-460V/60Hz
1900 3133 06 GA160 380-460V/60Hz
1900 3133 10 GA90 W-GA160 W 220-240V/
50-60Hz
1900 3133 11 GA90 W-GA160 W 380-415V/
60Hz
1900 3133 12 GA90 W-GA160 W 440-500V/
50-60Hz
3005 • 1 Contactor
1089 9415 22 GA90-160 220-230V/50-60Hz
1089 9415 12 GA90-160 380-500V/50Hz
1089 9415 13 GA90-160 380-460V/60Hz
1089 9415 11 GA90 W-GA160 W
3010 • 1 Contactor
1089 9415 22 GA132-GA160 220-230V/50-
60Hz
1089 9415 12 GA132-GA160 380-500V/
50Hz
1089 9415 13 GA160 380-460V/60Hz
3015 • 1 Circuit breaker
1089 9416 71 GA90-160 220-230V/50-60Hz
1089 9416 28 GA90-160 380-500V/50Hz
1089 9416 29 GA90-160 380-460V/60Hz
1089 9416 24 GA90 W-GA160 W 220-240V/
50-60Hz
1089 9416 21 GA90 W-GA160 W 380-415V/
60Hz
1089 9416 20 GA90 W-GA160 W 440-500V/
50-60Hz
3020 • 1 Circuit breaker
Ref. Part number Qty Name Remarks
1089 9416 71 GA132-GA160 220-230V/50-
60Hz
1089 9416 28 GA132-GA160 380-500V/
50Hz
1089 9416 29 GA160 380-460V/60Hz
3025 1089 9416 07 • 1 Contact block
3030 • 1 Contact block
1089 9416 07 GA132-GA160 220-230V/50-
60Hz,
GA132-GA160 380-500V/
50Hz,
GA160 380-460V/60Hz
3035 • 1 Connecting element
1089 9416 91 GA90-160 220-230V/50-60Hz
1089 9416 06 Others
3040 • 1 Connecting element
1089 9416 91 GA132-GA160 220-230V/50-
60Hz
1089 9416 06 GA132-GA160 380-500V/
50Hz,
GA160 380-460V/60Hz
1900 3134 01 1 Option Motor Heater
4005 1088 0031 02 • 1 Connector
1900 3134 02 1 Option Condensate Drain
5005 1088 0031 05 • 1 Connector
5010 1089 9203 31 • 1 Circuit breaker
1900 3134 03 1 Option Condensate Drain
Dryer
6005 1088 0031 05 • 1 Connector
6010 1089 9203 31 • 1 Circuit breaker
1 Option Phase Sequence Relay
1900 3134 04 230-400V
1900 3134 05 500V
7005 1088 0031 08 • 1 Connector
7010 1089 0612 24 • 1 Fuse
7015 1089 0612 01 • 1 Fuse holder
7020 • 1 Phase sequence relay
1089 9461 01 230-400V
1089 9461 03 500V
1 Option Dryer
1900 3134 20 GA90-GA110 220-240V/50Hz
1900 3134 21 GA132-GA160 220-240V/
50Hz
1900 3134 22 GA90-GA110 380-415V/50Hz
1900 3134 23 GA132-GA160 380-415V/
50Hz
1900 3134 24 GA132-GA160 500V/50Hz
1900 3134 25 GA90-GA110 220-230V/60Hz
1900 3134 27 GA90-GA110 380V/60Hz,
GA90-GA110 440-460V/60Hz
1900 3134 28 GA160 380V/60Hz
1900 3134 29 GA160 440-460V/60Hz
1900 3134 30 GA90-GA110 500V/50Hz
1900 3134 41 GA90 W-GA110 W 220-240V/
50Hz,
GA160 W 380V/60Hz
1900 3134 42 GA132 W-GA160 W 220-
240V/50Hz
1900 3134 43 GA90 W-GA110 W 400V/
50Hz,
GA90 W-GA110 W 380-415V/
50Hz
1900 3134 44 GA90 W-GA110 W 380V/
60Hz,
86 2930 1283 05
Parts list
40
62360_12
2930 1283 05 87
Parts list
Start cubicle, without starter - Control Voltage 230/24V - Full options - 2) 40
Ref. Part number Qty Name Remarks
GA90 W-GA110 W 440-
460V/60Hz,
GA132 W-GA160 W 400V/
50Hz,
GA132 W-GA160 W 380-
415V/50Hz,
GA132 W-GA160 W 500V/
50Hz,
1900 3134 45 GA90 W-GA110 W 500V/
50Hz
1900 3134 46 GA90 W-GA110 W 220-
230V/60Hz
1900 3134 47 GA160 W 440-460V/60Hz
8005 1088 0031 10 • 1 Connector
8010 • 1 Contactor
1089 9415 21 GA90(W)-GA110(W) 380-
415V/50Hz,
GA90 W-GA110 W 400V/
50Hz
1089 9415 22 GA90(W)-GA110(W)-
GA132(W)-GA160(W)
500V/50Hz,
GA90(W)-GA110(W) 380V/
60Hz,
GA90(W)-GA110(W) 440-
460V/60Hz,
GA132(W)-GA160(W) 380-
415V/50Hz,
GA132 W-GA160 W 400V/
50Hz
1089 9415 23 GA90(W)-GA110(W) 220-
240V/50Hz,
GA90(W)-GA110(W) 220-
230V/60Hz,
GA160(W) 380V/60Hz,
GA160(W) 440-460V/60Hz
1089 9415 31 GA132(W)-GA160(W) 220-
240V/50Hz
8015 • 1 Contactor
1089 9415 11 Aircooled
8020 • 1 Circuit breaker
1089 9416 69 GA90(W)-GA110(W) 500V/
50Hz
1089 9416 70 GA90(W)-GA110(W) 380-
415V/50Hz,
GA90 W-GA110 W 400V/
50Hz
1089 9416 71 GA90(W)-GA110(W) 380V/
60Hz,
GA90(W)-GA110(W) 440-
460V/60Hz,
GA132 W-GA160 W 400V/
50Hz,
GA132(W)-GA160(W)
500V/50Hz,
GA132(W)-GA160(W) 380-
415V/50Hz
1089 9416 72 GA160(W) 440-460V/60Hz
1089 9416 73 GA90(W)-GA110(W) 220-
240V/50Hz,
GA160(W) 380V/60Hz,
1089 9416 74 GA90(W)-GA110(W) 220-
230V/60Hz,
1089 9416 84 GA132(W)-GA160(W) 220-
240V/50Hz
Ref. Part number Qty Name Remarks
8025 • 1 Connecting element
1089 9416 90 GA132(W)-GA160(W) 220-
240V/50Hz
1089 9416 91 Others
8030 1089 9416 07 • 1 Contact block
8035 • 1 Contact block
1089 9416 07 Aircooled
8040 • 1 Circuit breaker
1089 9416 24 GA90-GA110-GA132-
GA160 220-240V/50Hz
1089 9416 21 GA90-GA110-GA132-
GA160 380-415V/50Hz
1089 9416 20 GA90-GA110-GA132-
GA160 500V/50Hz
1089 9416 25 GA90-GA110 220-230V/
60Hz
1089 9416 23 GA90-GA110-GA160 380V/
60Hz,
GA90-GA110-GA160 440-
460V/60Hz
8045 • 1 Connection element
1089 9416 06 Aircooled
1900 3134 12 1 Option HAT
1900 3134 13 1 Option Energy Recovery
1900 3134 14 1 Option DDP-Filter
1900 3134 15 1 Option PT1000
1900 3134 16 1 Option Profibus
1900 3134 17 1 Option Modbus
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-078 300
88 2930 1283 05
Parts list
41
61407_12
2930 1283 05 89
Parts list
Start cubicle, without starter - Control Voltage 115/24V - CSA/UL - Full options - 1)-7) 41
Ref. Part number Qty Name Remarks
1 Control panel C,U
1900 3101 01 GA90-160 60Hz
1010 1079 9906 09 • 1 Label
1015 9823 1821 03 • 1 Label
1020 1613 3046 00 • 1 Data plate
1025 1079 9901 68 • 1 Label
1030 1089 9398 11 • 36 Terminal
1035 1089 0506 27 • 10 Terminal
1040 1089 0506 06 • 6 Terminal
1045 1088 0024 04 • 1 Connector
1050 1088 0024 10 • 1 Connector
1055 1088 0024 18 • 1 Connector
1060 1088 0000 06 • 1 Connector
1065 1088 0024 02 • 2 Connector
1070 1079 9911 01 • 1 Label
1075 • 1 Circuit breaker
1080 1089 9203 36 • 2 Circuit breaker
1085 1089 9438 03 • 1 Relay
1090 1089 9416 23 • 1 Circuit breaker
1095 1089 0362 50 • 1 Contact block
1100 1089 0362 51 • 1 Emergency stop button
1105 1089 0362 58 • 1 Contact block
1110 1089 9082 24 • 1 Key switch
1115 1089 9436 08 • 1 Transformer
1120 1089 9436 11 • 1 Transformer
1125 1614 9110 00 • 1 Mounting plate
1130 1089 9388 01 • 1 Interface relay
1140 • Contactor
1089 9415 24 1 1)2)4)5) Air cooled
1089 9415 24 2 3)6) Air cooled
1089 9415 14 1 Water cooled
1145 • Contact block
1089 9416 07 1 1)2)4)5) Air cooled
1089 9416 07 2 3)6) Air cooled
1089 9416 07 1 Water cooled
1150 • Circuit breaker
1089 9416 69 1 1)2) Air cooled
1089 9416 67 1 4)5) Air cooled
1089 9416 69 2 3) Air cooled
1089 9416 67 2 6) Air cooled
1089 9416 21 1 1)2)3) Water cooled
1089 9416 20 1 4)5)6) Water cooled
1155 • Connection element
1089 9416 91 1 1)2)4)5) Air cooled
1089 9416 91 2 3)6) Air cooled
1089 9416 06 1 Water cooled
1160 • 1 Contactor
1089 9415 25 1)2)6)
1089 9415 26 3)
1089 9415 24 4)5)
Ref. Part number Qty Name Remarks
1165 1089 9415 14 • 1 Contactor Air cooled
1170 • 1 Circuit breaker
1089 9416 71 1)2)6)
1089 9416 72 3)
1089 9416 70 4)5)
1175 1089 9416 91 • 1 Connection element
1176 1089 9416 06 • 1 Connection element
Air cooled
1180 • Contact block
1089 9416 07 2 Air cooled
1089 9416 07 1 Water cooled
1185 • 1 Circuit breaker Air cooled
1089 9416 22 1)2)3)
1089 9416 21 4)5)6)
1190 1089 9203 31 • 1 Circuit breaker
1195 1089 9203 31 • 1 Circuit breaker
1200 • 1 Phase sequence relay
1089 9461 03 1)2)3)
1089 9461 04 4)5)6)
1210 1088 0024 02 • 1 Connector COM1 (5x1)
1220 1088 0024 02 • 1 Connector THM (3x1.1)
1230 1088 0024 02 • 1 Connector COM2 (7x1)
1240 1088 0024 02 • 1 Connector PROFIBUS
(7x1)
1) GA90 440-460V/60Hz
2) GA110 440-460V/60Hz
3) GA160 440-460V/60Hz
4) GA90 575V/60Hz
5) GA110 575V/60Hz
6) GA160 575V/60Hz
7) Up to serial No. :
Tot serienummer:
T.o.m. tillverkningsnummer:
Bis Seriennummer:
Jusqu’au numéro de série:
Hasta el número de serie:
Fino al numeri di serie:
Gælder til følgende serienumre:
Até o número de série:
Til følgende serienummer:
Seuraavaan valmistusnumeroon asti, No.:
AIF-078 299
90 2930 1283 05
Parts list
42
62361_12
Ref. Part number Qty Name Remarks
1 Control panel C,U
1900 3128 01 GA90-160 60Hz
1005 1079 9906 09 • 1 Label
1010 9823 1821 12 • 1 Label
1015 1614 8949 00 • 1 Data plate
1020 1079 9901 68 • 1 Label
1025 1079 9911 01 • 1 Label
1030 1079 9922 70 • 1 Fuse label
1035 1089 0506 06 • 6 Terminal
1040 1089 9398 12 • 1 Terminal
Ref. Part number Qty Name Remarks
1045 1088 0031 03 • 1 Connector
1050 1088 0031 02 • 1 Connector
1055 1089 0506 27 • 11 Terminal
1060 1089 9398 11 • 30 Terminal
1065 1088 0031 49 • 1 Connector
1070 1088 0031 29 • 1 Connector
1075 1088 0031 30 • 1 Connector
1080 1088 0031 13 • 1 Connector
1085 1089 9168 26 • 2 Fuse
1090 1089 0612 01 • 2 Fuse holder
2930 1283 05 91
Parts list
Start cubicle, without starter - Control Voltage 115/24V - CSA/UL - Full options - 2) 42
Ref. Part number Qty Name Remarks
1095 1089 9203 38 • 1 Circuit breaker
1100 1089 9203 36 • 2 Circuit breaker
1105 1089 9415 17 • 1 Contactor
1110 1089 9438 03 • 1 Relay
1115 1089 0362 51 • 1 Emergency stop button
1120 1089 0362 58 • 1 Contact block
1125 1089 9436 08 • 1 Trafo
1130 1089 9436 11 • 1 Trafo
2005 1614 9110 00 • 1 Mounting plate
1900 3134 01 1 Option Motor Heater
3005 1088 0031 02 • 1 Connector
1900 3134 02 1 Option Condensate Drain
4005 1088 0031 05 • 1 Connector
4010 1089 9203 31 • 1 Circuit breaker
1900 3134 03 1 Option Condensate Drain
Dryer
5005 1088 0031 05 • 1 Connector
5010 1089 9203 31 • 1 Circuit breaker
1 Option Fan
1900 3133 20 GA90-GA110 440-460V/60Hz
1900 3133 21 GA160 440-460V/60Hz
1900 3133 22 GA90-GA110 575V/60Hz
1900 3133 23 GA160 575V/60Hz
1900 3133 30 GA90 W-GA160 W 440-460V/
60Hz
1900 3133 31 GA90 W-GA160 W 575V/
60Hz
6005 1089 9415 24 • 1 Contactor
6010 • 1 Contactor
1089 9415 24 GA160 440-460V/60Hz,
GA160 575V/60Hz
6015 • 1 Circuit breaker
1089 9416 69 GA90-GA110-GA160 440-
460V/60Hz
1089 9416 67 GA90-GA110-GA160 575V/
60Hz
1089 9416 61 GA90 W-GA160 W 440-460V/
60Hz
1089 9416 60 GA90 W-GA160 W 575V/
60Hz
6020 • 1 Circuit breaker
1089 9416 69 GA160 440-460V/60Hz
1089 9416 67 GA160 575V/60Hz
6025 1089 9416 07 • 1 Contact block
6030 • 1 Contact block
1089 9416 07 GA160 440-460V/60Hz,
GA160 575V/60Hz
6035 1089 9416 75 • 1 Connection block
6040 • 1 Connection block
1089 9416 75 GA160 440-460V/60Hz,
GA160 575V/60Hz
6045 1089 9416 91 • 1 Connecting element
6050 • 1 Connecting element
1089 9416 91 GA160 440-460V/60Hz,
GA160 575V/60Hz
1 Option Phase Sequence Relay
1900 3134 06 440-460V
1900 3134 07 575V
7005 1079 9922 78 • 1 Fuse label
7010 1088 0031 08 • 1 Male connector
7015 1089 9168 24 • 1 Fuse
7020 1089 0612 01 • 1 Fuse holder
7025 • 1 Watch relay
1089 9461 03 440-460V
1089 9461 04 575V
Ref. Part number Qty Name Remarks
1 Option Dryer
1900 3134 51 GA90-GA110 440-460V/
60Hz
1901 3134 52 GA160 440-460V/60Hz
1901 3134 53 GA90-GA110 575V/60Hz
1902 3134 54 GA160 575V/60Hz
1902 3134 61 GA90 W-GA160 W 440-
460V/60Hz,
GA160 W 575V/60Hz
1903 3134 62 GA160 W 440-460V/60Hz
1903 3134 63 GA90 W-GA110 W 575V/
60Hz
8005 1088 0031 10 • 1 Connector
8010 • 1 Contactor
1089 9415 25 GA90(W)-GA110(W) 440-
460V/60Hz,
GA160(W) 575V/60Hz
1089 9415 26 GA160(W) 440-460V/60Hz
1089 9415 24 GA90(W)-GA110(W) 575V/
60Hz
8015 • 1 Contactor
1089 9415 24 GA90-GA110-GA160 440-
460V/60Hz,
GA90-GA110-GA160 575V/
60Hz
8020 • 1 Circuit breaker
1089 9416 71 GA90(W)-GA110(W) 440-
460V/60Hz,
GA160(W) 575V/60Hz
1089 9416 72 GA160(W) 440-460V/60Hz
1089 9416 70 GA90(W)-GA110(W) 575V/
60Hz
8025 1089 9416 91 • 1 Connecting element
8030 1089 9416 07 • 1 Contact block
8035 • 1 Contact block
1089 9416 07 Aircooled
8040 • 1 Circuit breaker
1089 9416 62 GA90-GA110-GA160 440-
460V/60Hz
1089 9416 61 GA90-GA110-GA160 575V/
60Hz
8045 • 1 Connecting element
1089 9416 91 Aircooled
8050 1089 9416 75 • 1 Connection block
8055 • 1 Connection block
1089 9416 75 Aircooled
1900 3134 12 1 Option HAT
1900 3134 13 1 Option Energy Recovery
1900 3134 14 1 Option DDP-Filter
1900 3134 15 1 Option PT1000
1900 3134 16 1 Option Profibus
1900 3134 17 1 Option Modbus
2) From following serial No. onwards:
Geldig vanaf volgend serienummer:
Fr.o.m. tillverkningsnummer:
Gültig ab Seriennummer:
Valable à partir du numéro de série suivant:
A partir del siguiente número de serie:
Dai seguenti numeri di serie in avanti:
Gælder fra følgende serienumre:
A partir do número de série:
Fra og med følgende serienummer:
Alkaen valmistusnumerosta
AIF-078 300
92 2930 1283 05
Parts list
43 Service kits
Ref. Part number Qty Name Remarks
2906 0092 00 1 Air/oil filter kit
0653 1046 00 • 1 Flat gasket
0653 1100 00 • 1 Flat gasket
0653 1124 00 • 1 Flat gasket
0661 1000 25 • 2 Seal washer
0661 1000 27 • 3 Seal washer
0661 1000 31 • 1 Seal washer
1621 0547 99 • 1 Air filter element
1613 6105 90 • 3 Oil filter element
2906 0093 00 1 Check valve kit
0661 1000 25 • 1 Seal washer
0663 2106 18 • 1 O-ring
0663 2106 20 • 1 O-ring
2254 5324 00 • 1 Check valve
2254 8075 00 • 1 Spring
2906 0094 00 1 Oil stop valve kit
0661 1000 25 • 1 Seal washer
0663 2106 11 • 2 O-ring(W-unit)
0663 2106 12 • 1 O-ring
0663 2106 15 • 1 O-ring
0663 2108 12 • 1 O-ring
0663 2109 68 • 1 O-ring
2254 9868 00 • 1 Spring
2906 0095 00 1 Min. pressure valve kit
0663 2106 58 • 1 O-ring
0665 0700 89 • 1 Sealring
1614 6957 00 • 1 Washer
2254 9215 00 • 1 Lockplate
2906 0170 00 1 Oil filter kit
0653 1046 00 • 1 Flat gasket
0653 1100 00 • 1 Flat gasket
0653 1124 00 • 1 Flat gasket
0661 1000 25 • 2 Seal washer
0661 1000 27 • 3 Seal washer
0661 1000 31 • 1 Seal washer
1613 6105 90 • 3 Oil filter element
2906 0186 00 1 Compressor element
overhaul kit
0211 1407 00 • 6 Cap screw
0508 2115 01 • 2 Roller bearing
0653 1124 00 • 2 Flat gasket
0663 7154 00 • 2 O-ring
1079 5081 05 • 2 Bearing
1616 5380 00 • 2 Wave spring
1616 5603 70 • 2 Spacer
1616 6446 00 • 1 Gasket
2906 0219 00 1 Exchange element
installation kit
0211 1409 00 • 3 Cap screw
0337 6074 00 • 1 Key driven gear
0663 2104 63 • 1 O-ring
0663 2106 15 • 1 O-ring
0663 2106 20 • 1 O-ring
0663 2108 12 • 1 O-ring
0663 2109 71 • 1 O-ring
0663 2109 71 • 1 O-ring
1202 7003 00 • 1 Gasket
Ref. Part number Qty Name Remarks
2906 0563 00 1 Unloading valve kit
0663 2109 71 • 2 O-ring
0663 2109 73 • 2 O-ring
0663 9868 00 • 1 O-ring
2906 6021 00 • 1 Piston
1614 9156 00 • 1 Spring
1619 6142 00 • 1 Seal ring
1619 6143 00 • 1 Seal ring
2906 0566 00 1 Cooler kit for GA 90-160
0663 2106 15 • 1 O-ring
0663 2106 17 • 1 O-ring
0663 2109 68 • 4 O-ring
2906 0567 00 1 Cooler kit for GA90-160 W
0634 1000 49 • 2 Gasket
0663 2106 17 • 2 O-ring
0663 2109 68 • 2 O-ring
2906 0569 00 1 Gearbox overhaul kit
0211 1409 00 • 8 Cap screw
0506 0100 08 • 1 Bearing
0508 2158 01 • 1 Bearing
0663 2107 76 • 1 O-ring
1621 4839 00 • 1 Seal ring
2252 5478 00 • 1 Bushing
2906 0571 00 2 Kit for flexmaster joint on
GA 90/110 and GA 90//110
W
0291 1114 00 • 2 Locknut
0300 0276 03 • 4 Washer
1614 9115 00 • 2 Rubber joint
1614 8926 00 • 4 Absorber
2906 0572 00 2 Kit for flexmaster joint on
GA 132/160 and GA 132/
160 W
0291 1114 00 • 2 Locknut
0300 0276 03 • 4 Washer
1614 9064 00 • 2 Rubber joint
1614 8926 00 • 4 Absorber
2906 0578 00 1 Seal washer kit
0653 0500 08 • 3 Flat Cu Gasket
0653 1046 00 • 3 Flat Cu Gasket
0653 1062 00 • 12 Flat Cu Gasket
0653 1100 00 • 3 Flat Cu Gasket
0653 1124 00 • 3 Flat Cu Gasket
0653 1165 00 • 3 Flat Cu Gasket
0653 1189 00 • 3 Flat Cu Gasket
0653 1227 00 • 3 Flat Cu Gasket
0653 9078 00 • 3 Flat Cu Gasket
0661 1000 25 • 9 Seal washer
0661 1000 27 • 12 Seal washer
0661 1000 29 • 6 Seal washer
0661 1000 31 • 3 Seal washer
0661 1000 36 • 3 Seal washer
2906 0751 00 1 Oil separator kit GA 90/
110, GA90/110 W
0663 2106 17 • 1 O-ring
0663 2109 45 • 2 O-ring
1621 9384 99 • 1 Oil separator element
2930 1283 05 93
Parts list
Ref. Part number Qty Name Remarks
2906 0571 00 • 1 Flexmaster joint kit
2906 0752 00 1 Oil separator kit GA 132/
160, GA132/160 W
0663 2106 17 • 1 O-ring
0663 2109 45 • 2 O-ring
1621 9385 99 • 1 Oil separator element
2906 0572 00 • 1 Flexmaster joint kit
2906 0573 00 1 4000 h maintenance kit for
GA90-160 and GA90-160
(W)
0661 1000 25 • 1 Seal washer
0663 2106 18 • 1 O-ring
0663 2106 20 • 1 O-ring
2254 8075 00 • 1 Spring
2906 0092 00 • 1 Air/oil filter kit
2906 0094 00 • 1 Oil stop valve kit
2906 0095 00 • 1 Min press valve kit
2906 0755 00 1 8000 h maintenance kit for
GA90/110 and GA90/110
(W)
0663 2107 77 • 1 O-ring
1619 7560 00 • 1 Thermostatic valve (7.5-
10bar(e))
2901 0749 00 • 1 Drain valve kit
2906 0092 00 • 1 Air/oil filter kit
2906 0093 00 • 1 Check valve kit
2906 0094 00 • 1 Oil stop valve kit
2906 0095 00 • 1 Min press valve kit
2906 0563 00 • 1 Unloading valve kit
2906 0751 00 • 1 Oil separator kit
2906 0571 00 • 2 Flexmaster joint kit
2906 0756 00 1 8000 h maintenance kit for
GA132/160 and GA 132/160
(W)
0663 2107 77 • 1 O-ring oil filter housing
1619 7560 00 • 1 Thermostatic valve (7.5-
10bar(e))
2901 0749 00 • 1 Drain valve kit
2906 0092 00 • 1 Air/oil filter kit
2906 0093 00 • 1 Check valve kit
2906 0094 00 • 1 Oil stop valve kit
2906 0095 00 • 1 Min press valve kit
2906 0563 00 • 1 Unloading valve kit
2906 0752 00 • 1 Oil separator kit
2906 0572 00 • 2 Flexmaster joint kit
94 2930 1283 05
Parts list
Notes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2930 1283 05 95
Parts list
Notes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
96 2930 1283 05
Parts list
Notes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Atlas Copco Stationary Air Compressors
GA90, GA110, GA132, GA160
GA90 W, GA110 W, GA132 W, GA160 W
Parts list
*2930128305*

(2906056300)

SKU	2906056300
Model #	8341 7556 00
Brand	Atlas Copco
Shipping Weight	0.0500kg
Shipping Width	0.010m
Shipping Height	0.040m
Shipping Length	0.050m
Shipping Cubic	0.000020000m3

Be The First To Review This Product!

Help other Screw Compressor Spares users shop smarter by writing reviews for products you have purchased.

Write a product review

Others Also Bought

2901 0749 00 KIT-DRAIN WSD 25

$319.00

2906 0563 00 KIT-UNLOADER VALVE

Calculate Shipping

Be The First To Review This Product!

Others Also Bought

2901 0749 00 KIT-DRAIN WSD 25

More From This Category

HOSE ASSEMBLY-GA 90-160

1617538006 MD600 Kit SEAL RING

HOSE ASSEMBL

O-RING

STAY

PRIMARY FILTER ELEMENT

PIPE

LOADING SOLENOID VALVE

Want to stay in the loop?

Secure Shopping

Get Connected

Service

About Us

Information

Popular Categories

2906 0563 00 KIT-UNLOADER VALVE

Notify me when back in stock

Be The First To Review This Product!

Others Also Bought

More From This Category

Want to stay in the loop?

Secure Shopping

Get Connected

Service

About Us

Information

Popular Categories

Terms & Conditions

Privacy Policy
