2906 0775 00 KIT, Atlas Copco

KIT, 2906 0775 00. Original Atlas Copco part

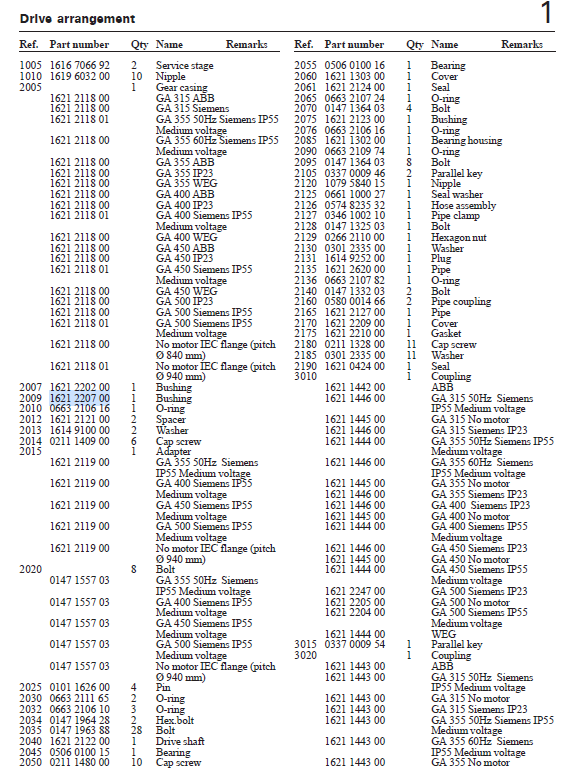

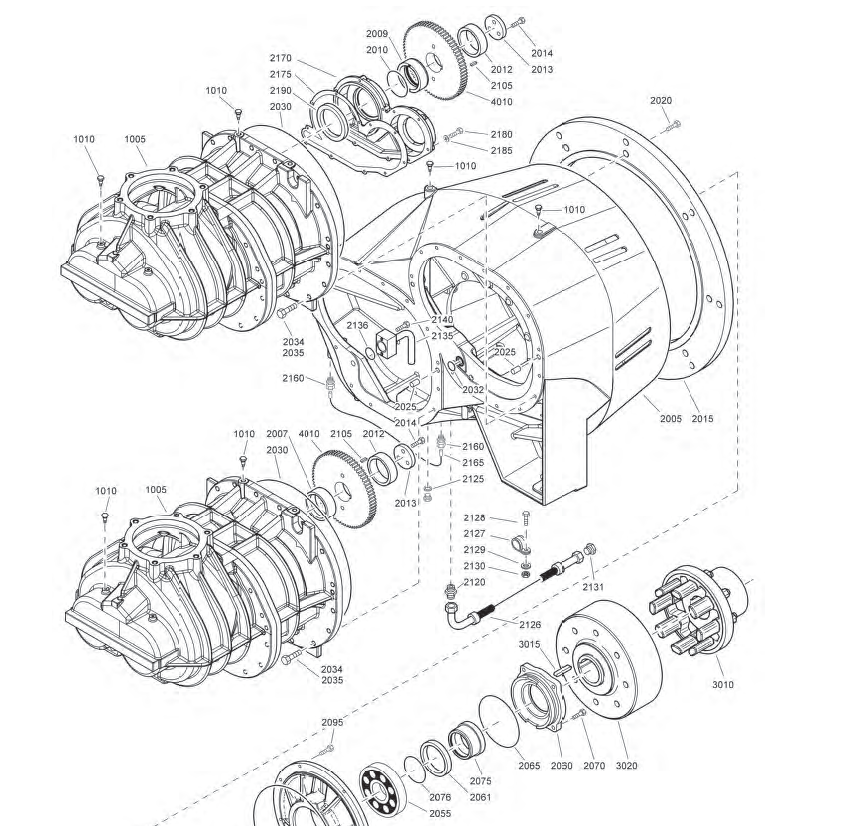

Ref. Part number Qty Name Remarks
1005 1616 7066 92 2 Service stage
1010 1619 6032 00 10 Nipple
2005 1 Gear casing
1621 2118 00 GA 315 ABB
1621 2118 00 GA 315 Siemens
1621 2118 01 GA 355 50Hz Siemens IP55
Medium voltage
1621 2118 00 GA 355 60Hz Siemens IP55
Medium voltage
1621 2118 00 GA 355 ABB
1621 2118 00 GA 355 IP23
1621 2118 00 GA 355 WEG
1621 2118 00 GA 400 ABB
1621 2118 00 GA 400 IP23
1621 2118 01 GA 400 Siemens IP55
Medium voltage
1621 2118 00 GA 400 WEG
1621 2118 00 GA 450 ABB
1621 2118 00 GA 450 IP23
1621 2118 01 GA 450 Siemens IP55
Medium voltage
1621 2118 00 GA 450 WEG
1621 2118 00 GA 500 IP23
1621 2118 00 GA 500 Siemens IP55
1621 2118 01 GA 500 Siemens IP55
Medium voltage
1621 2118 00 No motor IEC flange (pitch
Ø 840 mm)
1621 2118 01 No motor IEC flange (pitch
Ø 940 mm)
2007 1621 2202 00 1 Bushing
2009 1621 2207 00 1 Bushing
2010 0663 2106 16 1 O-ring
2012 1621 2121 00 2 Spacer
2013 1614 9100 00 2 Washer
2014 0211 1409 00 6 Cap screw
2015 1 Adapter
1621 2119 00 GA 355 50Hz Siemens
IP55 Medium voltage
1621 2119 00 GA 400 Siemens IP55
Medium voltage
1621 2119 00 GA 450 Siemens IP55
Medium voltage
1621 2119 00 GA 500 Siemens IP55
Medium voltage
1621 2119 00 No motor IEC flange (pitch
Ø 940 mm)
2020 8 Bolt
0147 1557 03 GA 355 50Hz Siemens
IP55 Medium voltage
0147 1557 03 GA 400 Siemens IP55
Medium voltage
0147 1557 03 GA 450 Siemens IP55
Medium voltage
0147 1557 03 GA 500 Siemens IP55
Medium voltage
0147 1557 03 No motor IEC flange (pitch
Ø 940 mm)
2025 0101 1626 00 4 Pin
2030 0663 2111 65 2 O-ring
2032 0663 2106 10 3 O-ring
2034 0147 1964 28 2 Hex.bolt
2035 0147 1963 88 28 Bolt
2040 1621 2122 00 1 Drive shaft
2045 0506 0100 15 1 Bearing
2050 0211 1480 00 10 Cap screw
Ref. Part number Qty Name Remarks
2055 0506 0100 16 1 Bearing
2060 1621 1303 00 1 Cover
2061 1621 2124 00 1 Seal
2065 0663 2107 24 1 O-ring
2070 0147 1364 03 4 Bolt
2075 1621 2123 00 1 Bushing
2076 0663 2106 16 1 O-ring
2085 1621 1302 00 1 Bearing housing
2090 0663 2109 74 1 O-ring
2095 0147 1364 03 8 Bolt
2105 0337 0009 46 2 Parallel key
2120 1079 5840 15 1 Nipple
2125 0661 1000 27 1 Seal washer
2126 0574 8235 32 1 Hose assembly
2127 0346 1002 10 1 Pipe clamp
2128 0147 1325 03 1 Bolt
2129 0266 2110 00 1 Hexagon nut
2130 0301 2335 00 1 Washer
2131 1614 9252 00 1 Plug
2135 1621 2620 00 1 Pipe
2136 0663 2107 82 1 O-ring
2140 0147 1332 03 2 Bolt
2160 0580 0014 66 2 Pipe coupling
2165 1621 2127 00 1 Pipe
2170 1621 2209 00 1 Cover
2175 1621 2210 00 1 Gasket
2180 0211 1328 00 11 Cap screw
2185 0301 2335 00 11 Washer
2190 1621 0424 00 1 Seal
3010 1 Coupling
1621 1442 00 ABB
1621 1446 00 GA 315 50Hz Siemens
IP55 Medium voltage
1621 1445 00 GA 315 No motor
1621 1446 00 GA 315 Siemens IP23
1621 1444 00 GA 355 50Hz Siemens IP55
Medium voltage
1621 1446 00 GA 355 60Hz Siemens
IP55 Medium voltage
1621 1445 00 GA 355 No motor
1621 1446 00 GA 355 Siemens IP23
1621 1446 00 GA 400 Siemens IP23
1621 1445 00 GA 400 No motor
1621 1444 00 GA 400 Siemens IP55
Medium voltage
1621 1446 00 GA 450 Siemens IP23
1621 1445 00 GA 450 No motor
1621 1444 00 GA 450 Siemens IP55
Medium voltage
1621 2247 00 GA 500 Siemens IP23
1621 2205 00 GA 500 No motor
1621 2204 00 GA 500 Siemens IP55
Medium voltage
1621 1444 00 WEG
3015 0337 0009 54 1 Parallel key
3020 1 Coupling
1621 1443 00 ABB
1621 1443 00 GA 315 50Hz Siemens
IP55 Medium voltage
1621 1443 00 GA 315 No motor
1621 1443 00 GA 315 Siemens IP23
1621 1443 00 GA 355 50Hz Siemens IP55
Medium voltage
1621 1443 00 GA 355 60Hz Siemens
IP55 Medium voltage
1621 1443 00 GA 355 No motor
