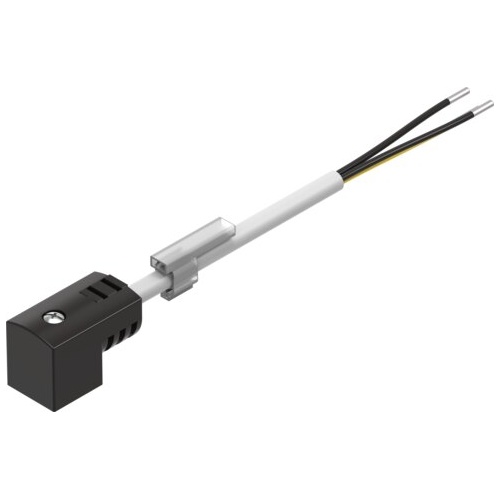

Plug socket with cable

KMEB-1-24-5-LED

151689





GTIN: 4052568010737

Cable length
5 m

Technical Data

  • Signal status displayYellow LED
  • Mounting positionoptional
  • Product weight230 g
  • Electrical connection 1Socket, to EN 175301-803, type C
  • Electrical connection 1, designAngular
  • Electrical connection 1, connection typeSocket
  • Electrical connection 1, cable outletAngled
  • Electrical connection 1, note on cable outlet90°
  • Electrical connection 1, number of connections/cores3
  • Electrical connection 1, type of mountingOn solenoid valve via M2.5 central screw
  • Electrical connection 2, connector systemOpen end
  • Electrical connection 2, number of connections/cores3
  • Nominal operating voltage DC24 V
  • Immunity to surge0.8 kV
  • Protective conductor connectionAvailable
  • Cable length5 m
  • Cable characteristicStandard
  • Cable diameter5.2 mm
  • Cable structure3 x 0.5 mm²
  • Wire endsWire ferrule
  • Degree of protectionIP65 To IEC 60529
  • Ambient temperature-20 °C ... 80 °C
  • CE mark (see declaration of conformity)In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Pollution degree3
  • Corrosion resistance class CRC1 - Low corrosion stress
  • Material cable sheathPVC
  • Material housingPA66-GF30
  • Material sealsNBR
  • Material electrical contactSilver-plated copper alloy



SKU 151689
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
