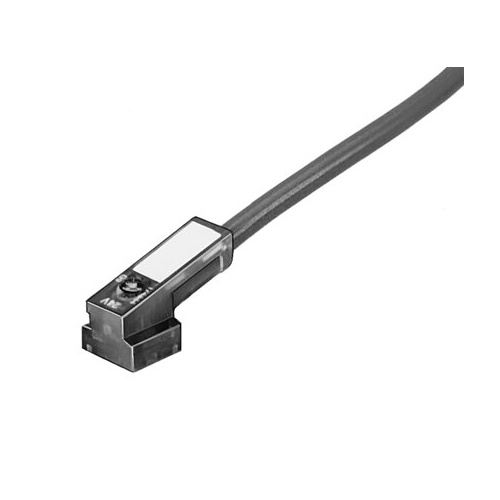

Plug socket with cableKMEB-2-230-5

174847

GTIN: 4052568037611

Electrical connection
4-pin - Angled socket - Type C - To DIN EN 175301-803
Cable length
5 m



Technical Data Plug socket with cable KMEB-2-230-5

  • Type of mountingOn solenoid valve via M2.5 central screw
  • Mounting positionAny
  • Product weight400 g
  • Electrical connection4-pin Angled socket Type C To DIN EN 175301-803
  • Nominal operating voltage AC230 V
  • Protective conductor connectionAvailable
  • Cable length5 m
  • Cable diameter6.2 mm
  • Cable structure3 x 0.75 mm²
  • Degree of protectionIP65 To IEC 60529
  • Ambient temperature-20 °C ... 80 °C
  • CE mark (see declaration of conformity)To EU Low Voltage Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS compliant
  • Material cable sheathTPE-U(PUR)
  • Material housingPA POM
  • Material electrical contactBronze



SKU 174847
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
