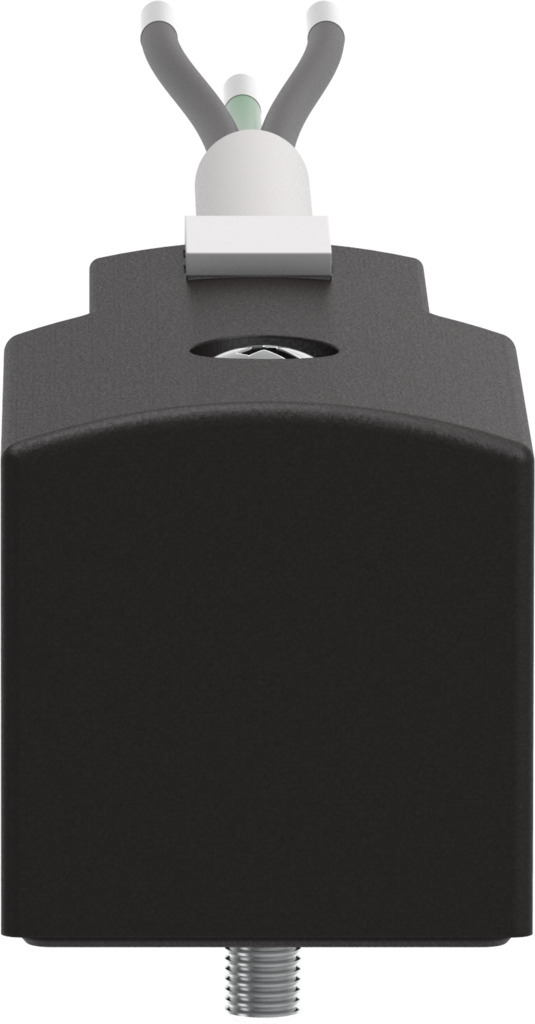

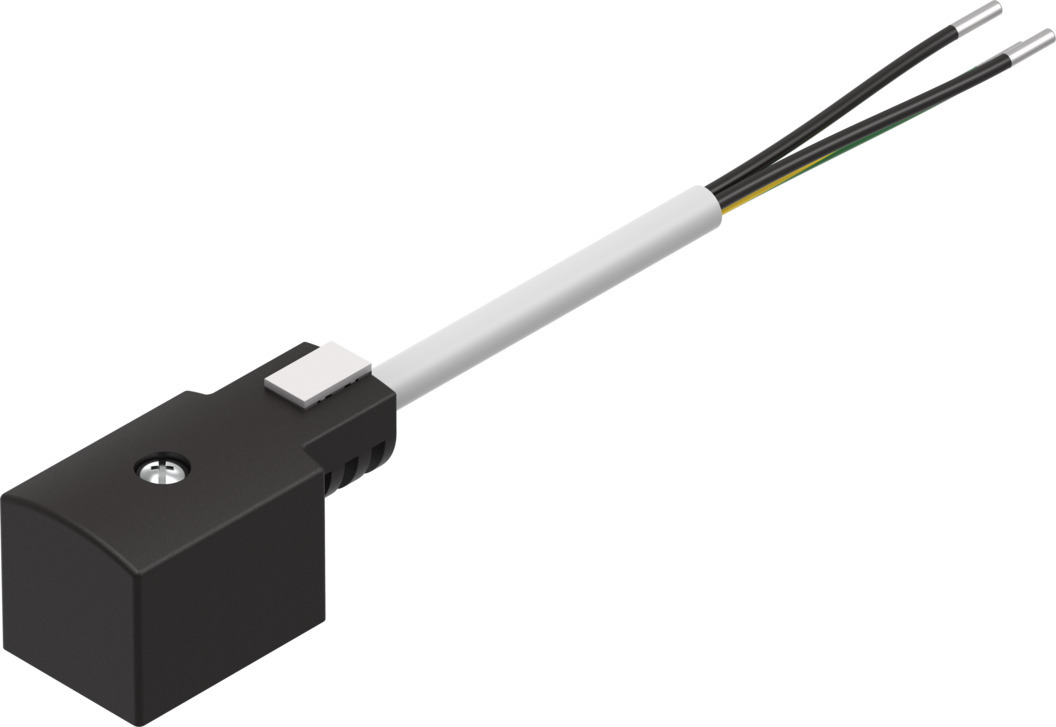

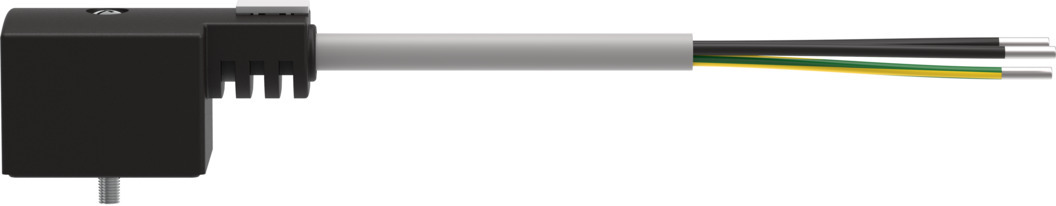

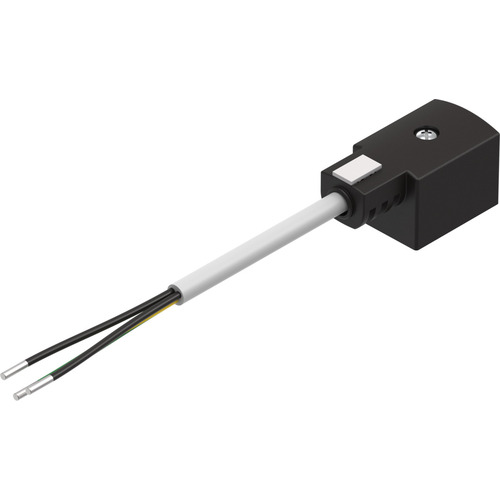

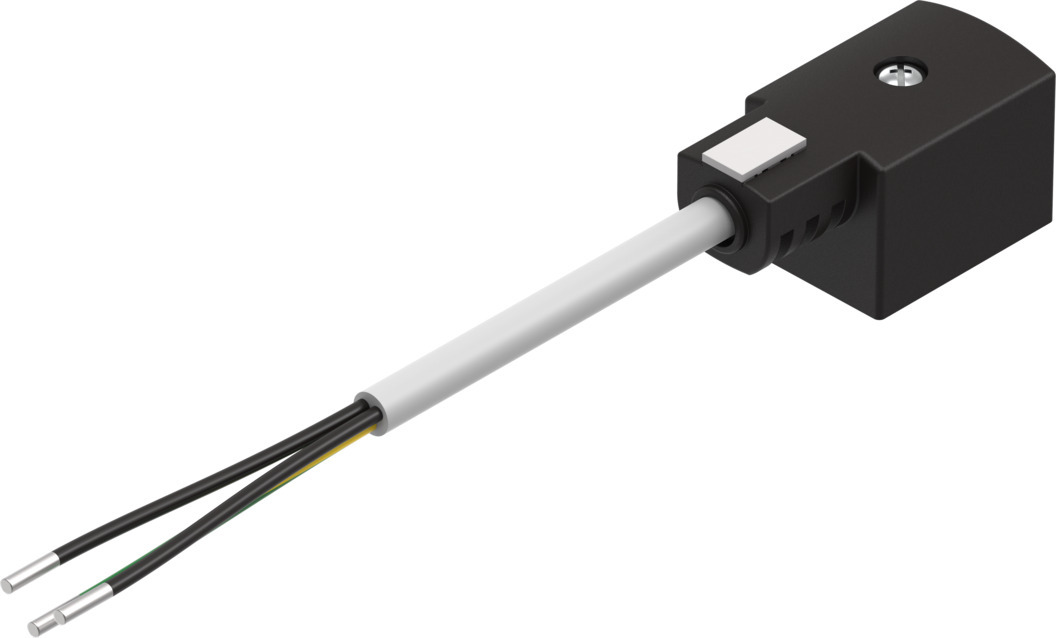

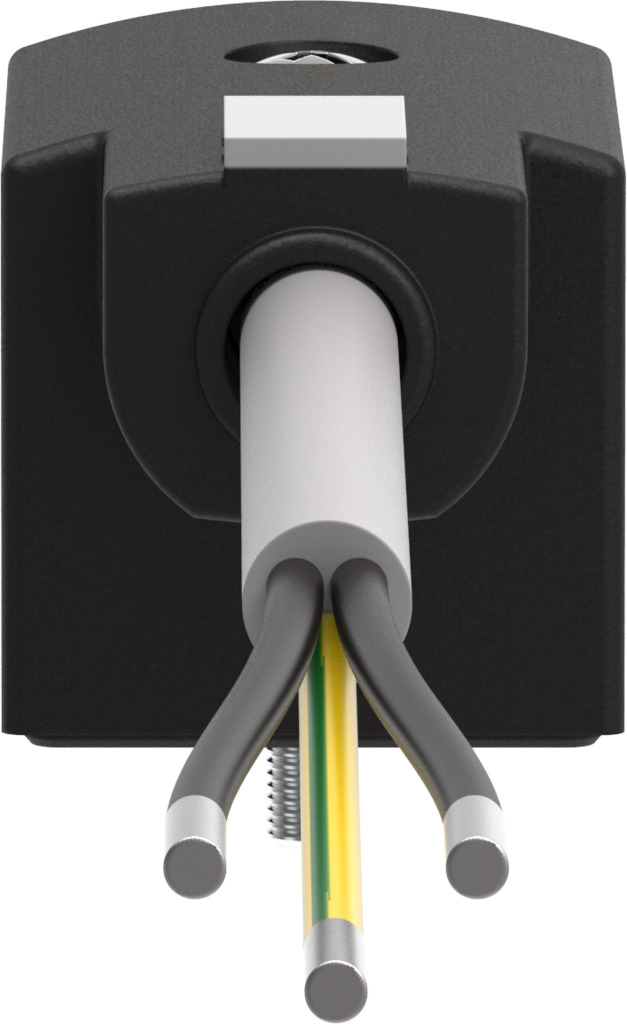

Plug socket with cable (x10 pack)

KMF-1-230AC-2.5

30936

Technical Data

  • Type of mountingOn solenoid valve via M3 central screw
  • Mounting positionoptional
  • Product weight170 g
  • Electrical connectionSocket
  • Nominal operating voltage AC230 V
  • Protective conductor connectionAvailable
  • Cable length2.5 m
  • Cable diameter6 mm
  • Cable structure3 x 0.75 mm²
  • Degree of protectionIP67 To IEC 60529
  • Ambient temperature-20 °C ... 80 °C
  • CE mark (see declaration of conformity)To EU Low Voltage Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Material cable sheathPVC
  • Material housingPC POM
  • Material electrical contactBronze

GTIN: 4052568022822

Downloads



NEBV_B2W3_EN.PDF

Technical data

Links

Spare parts

Plug socket with cable

Technical Data

  • Type of mountingOn solenoid valve via M3 central screw
  • Mounting positionoptional
  • Product weight170 g
  • Electrical connectionSocket
  • Nominal operating voltage AC230 V
  • Protective conductor connectionAvailable
  • Cable length2.5 m
  • Cable diameter6 mm
  • Cable structure3 x 0.75 mm²
  • Degree of protectionIP67 To IEC 60529
  • Ambient temperature-20 °C ... 80 °C
  • CE mark (see declaration of conformity)To EU Low Voltage Directive In accordance with EU RoHS Directive
  • CE marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Material cable sheathPVC
  • Material housingPC POM
  • Material electrical contactBronze
SKU 30936
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
