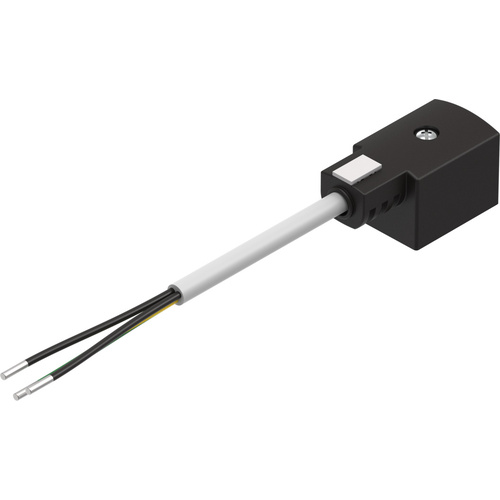

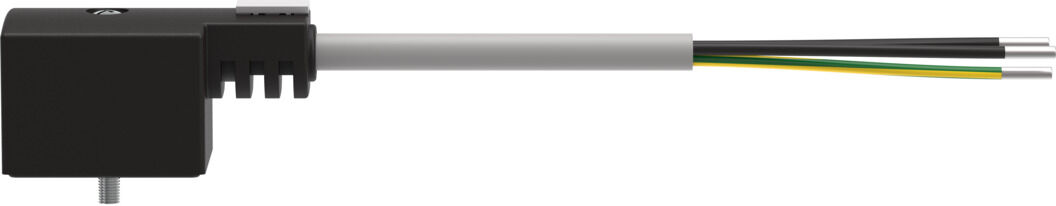

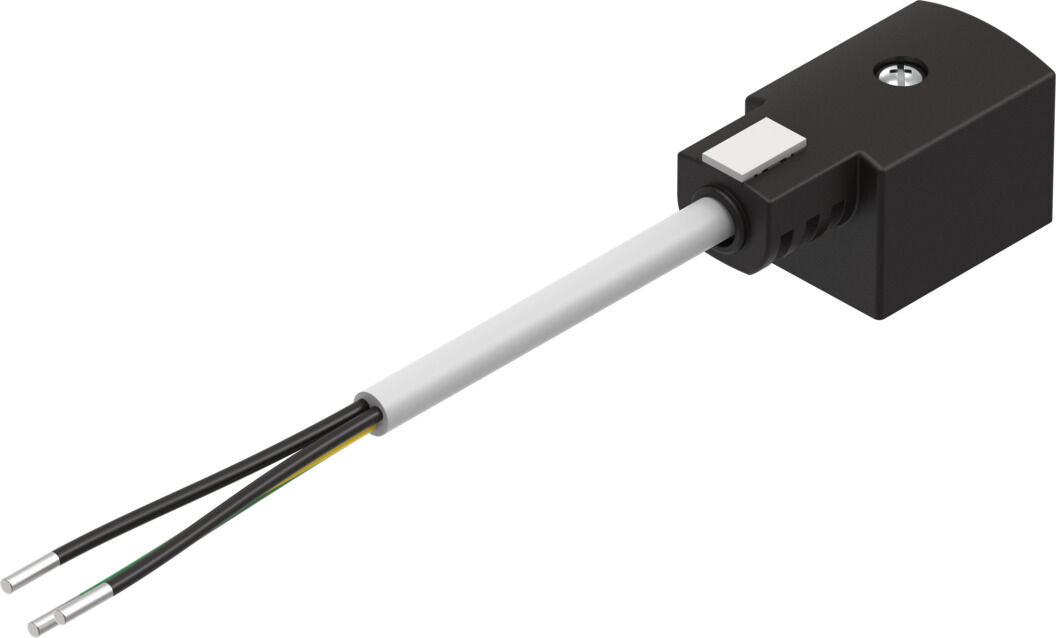

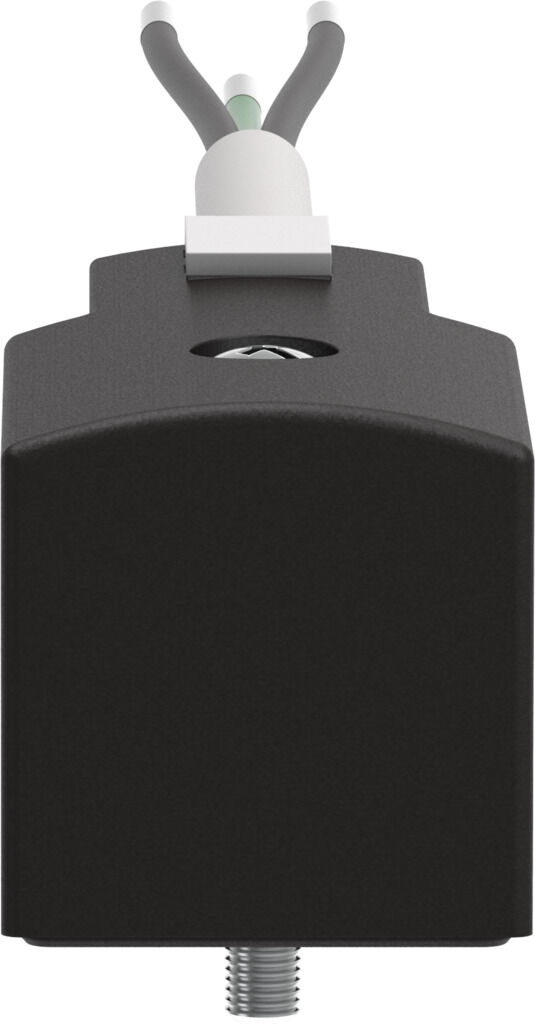

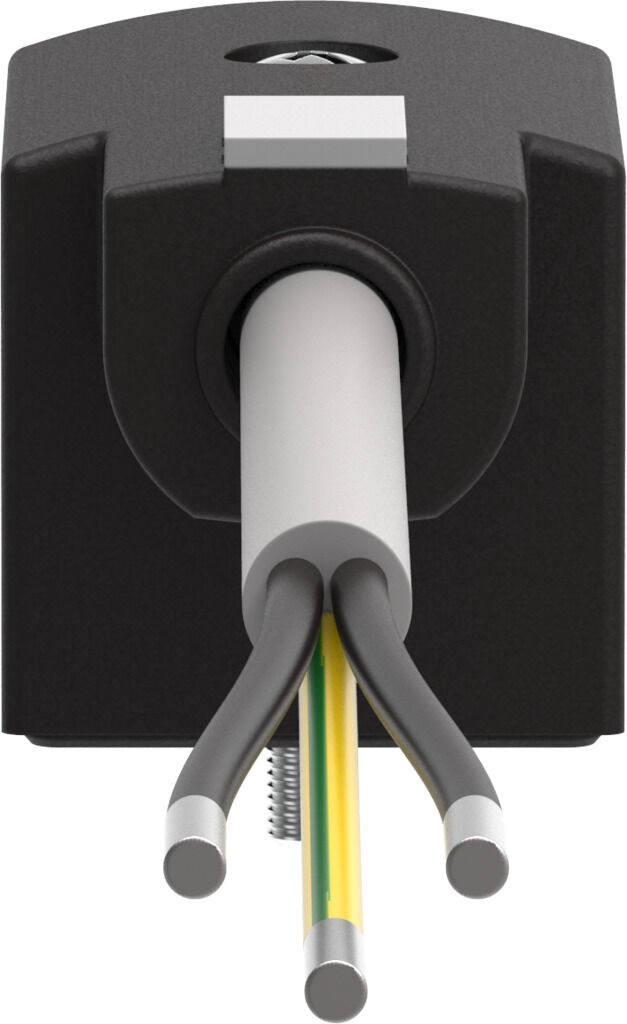

Plug socket with cable

KMF-1-24DC-2.5-LED

30935

Electrical connection
Socket
Cable length
2.5 m



GTIN: 4052568003777

Technical Data

  • Switching position indicatorLED
  • Type of mountingOn solenoid valve via M3 central screw
  • Mounting positionoptional
  • Product weight170 g
  • Electrical connectionSocket
  • Nominal operating voltage DC24 V
  • Protective conductor connectionAvailable
  • Cable length2.5 m
  • Cable diameter6 mm
  • Cable structure3 x 0.75 mm²
  • Degree of protectionIP67 To IEC 60529
  • Ambient temperature-20 °C ... 80 °C
  • CE mark (see declaration of conformity)In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Material cable sheathPVC
  • Material housingPC POM
  • Material electrical contactBronze
SKU 30935
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
