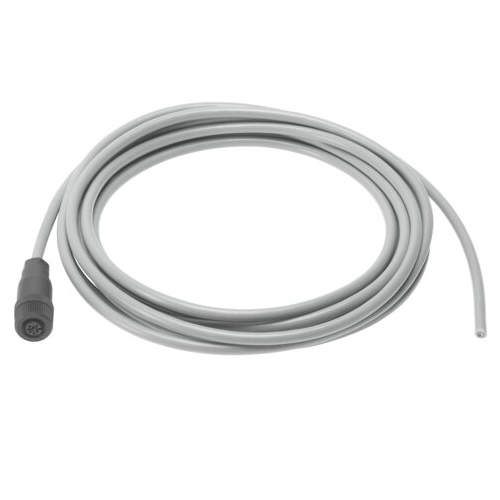

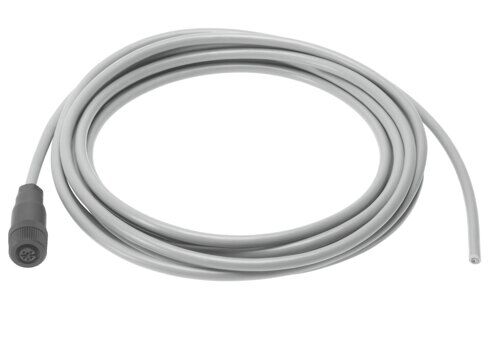

Plug socket with cable

KMPYE-5

151909





GTIN: 4052568070038

Technical Data

  • Conforms to standardEN 61076-2-101
  • Cable designationWith accessories
  • Product weight305 g
  • Electrical connection 1, functionField device side
  • Electrical connection 1, designRound
  • Electrical connection 1, connection typeSocket
  • Electrical connection 1, cable outletStraight
  • Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
  • Electrical connection 1, number of connections/cores4
  • Electrical connection 1, used connections/cores4
  • Electrical connection 1, type of mountingScrew-type lock with 18 mm hexagon and longitudinal knurl
  • Electrical connection 1, connection pattern00995385
  • Electrical connection 2, functionController side
  • Electrical connection 2, connection typeCable
  • Electrical connection 2, connector systemOpen end
  • Electrical connection 2, number of connections/cores4
  • Electrical connection 2, used connections/cores4
  • Operational voltage range DC0 V ... 30 V
  • Nominal operating voltage DC24 V
  • Permissible current load4 A
  • Immunity to surge2.5 kV
  • Shieldingyes
  • Cable length5 m
  • Test conditions cableTest conditions on request
  • Bending radius, moving cable≥90 mm
  • Cable diameter6.2 mm
  • Cable diameter tolerance± 0.3 mm
  • Cable structure4 x 0.25 mm²
  • Nominal cross section conductor0.25 mm²
  • Wire endsCut off bluntly
  • Degree of protectionIP65
  • Note on degree of protectionIn assembled state
  • Ambient temperature-40 °C ... 80 °C
  • Ambient temperature with moving cable-25 °C ... 80 °C
  • CE mark (see declaration of conformity)In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS-compliant
  • Pollution degree3
  • Material cable sheathPVC
  • Cable sheath colourGrey
  • Material housingPA
  • Housing colourBlack
  • Material screw-type lockPA
  • Material electrical contactBrass





SKU 151909
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
