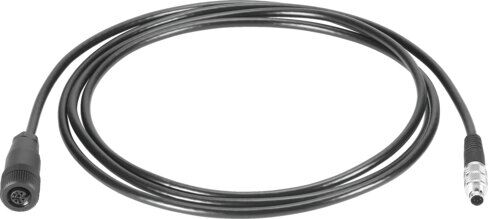

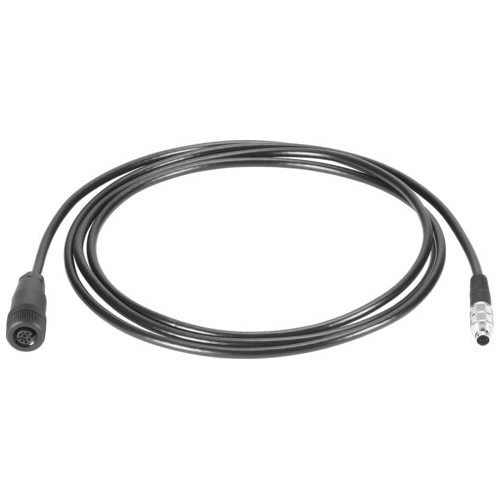

Connecting cable

Technical Data

• Conforms to standardEN 61076-2-101
• Additional functionsProduct-specific pin allocation
• Cable designationWith accessories
• Frequency of connection500
• Electrical connection 1, functionField device side
• Electrical connection 1, designRound
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletStraight
• Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
• Electrical connection 1, number of connections/cores4
• Electrical connection 1, used connections/cores4
• Electrical connection 1, type of mountingScrew-type lock with 18 mm A/F and longitudinal knurl
• Electrical connection 1, connection pattern00995385
• Electrical connection 2, functionControl side
• Electrical connection 2, designRound
• Electrical connection 2, connection typePlug
• Electrical connection 2, cable outletStraight
• Electrical connection 2, connector systemM9x0.5
• Electrical connection 2, number of connections/cores7
• Electrical connection 2, used connections/cores6
• electrical connection 2, type of mountingScrew-type lock
• Electrical connection 2, connection pattern00995748
• Operational voltage range DC0 V ... 50 V
• Current rating at 40° C1 A
• Immunity to surge2 kV
• ShieldingYes
• Cable length2 m
• Cable characteristicSuitable for energy chains
• Test conditions cableTest conditions on request
• Bending radius, moving cable≥75 mm
• Cable diameter5.6 mm
• Cable structure8 x 0.24 mm²
• Nominal cross section conductor0.24 mm²
• Degree of protectionIP65
• Note on degree of protectionIn mounted state
• Ambient temperature-25 °C ... 85 °C
• Ambient temperature with moving cable-5 °C ... 80 °C
• LABS (PWIS) conformityVDMA24364-B2-L
• Note on materialsRoHS compliant
• Pollution degree1
• Material cable sheathTPE-U(PUR)
• Cable sheath colourBlack
