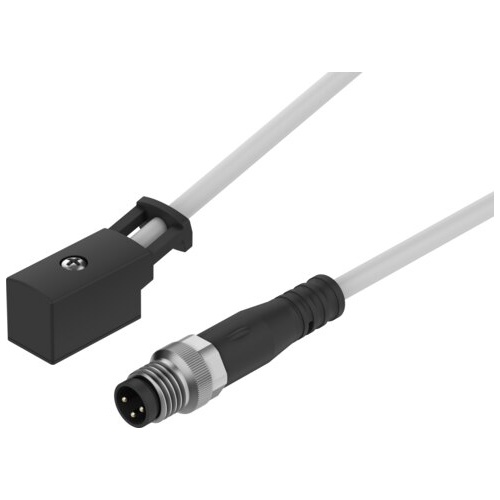

Connecting cableKMYZ-2-24-M8-2,5-LED

177678

GTIN: 4052568075613

Electrical connection
2-pin / 3-pin - Angled socket/straight plug - Square design/M8x1
Cable length
2.5 m





Technical Data Connecting cable KMYZ-2-24-M8-2,5-LED

  • Switching position indicatorLED
  • Type of mountingOn solenoid valve via self-tapping screw
  • Mounting positionAny
  • Product weight54 g
  • Electrical connection2-pin / 3-pin Angled socket/straight plug Square design/M8x1
  • Nominal operating voltage DC24 V
  • Current rating at 40° C1 A
  • Protective conductor connectionNot provided
  • Cable length2.5 m
  • Cable characteristicStandard
  • Cable diameter3.4 mm
  • Cable structure2 x 0.25 mm²
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 50 °C
  • CE mark (see declaration of conformity)In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS compliant
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • Material cable sheathTPE-U(PUR)
  • Material housingPA
  • Material sealsTPE-O
  • Material electrical contactBronze
  • Material threaded sleeveNickel-plated brass
SKU 177678
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
