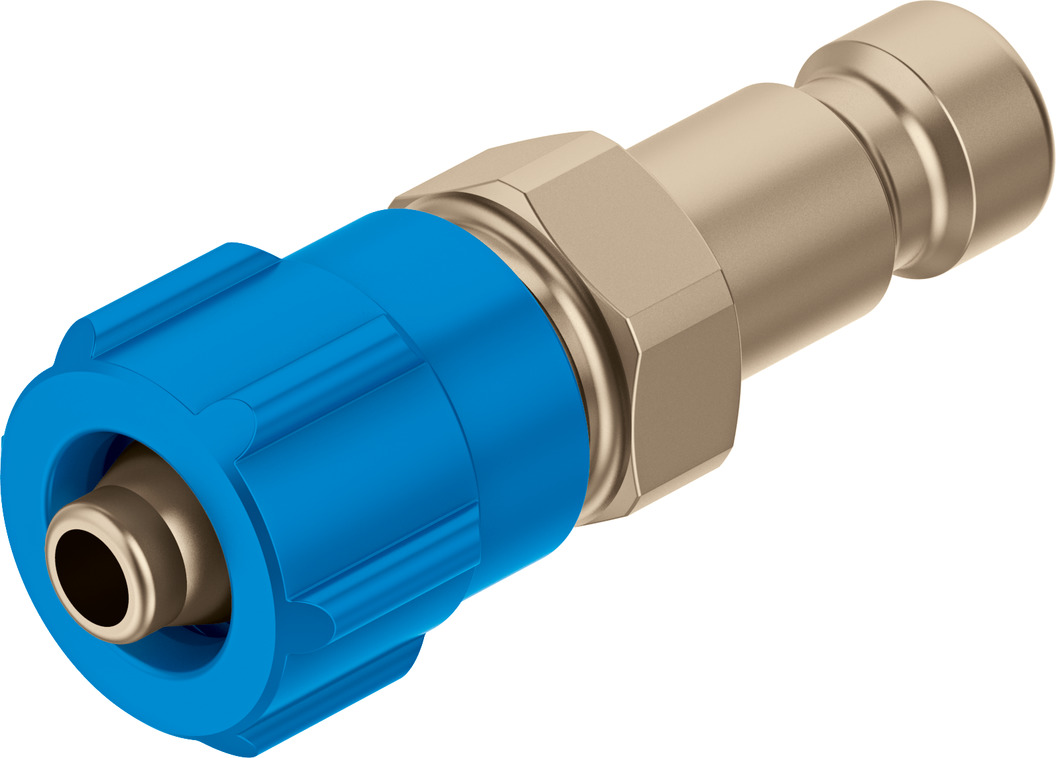

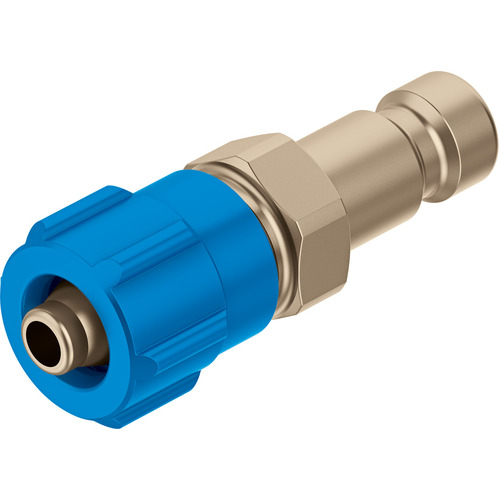

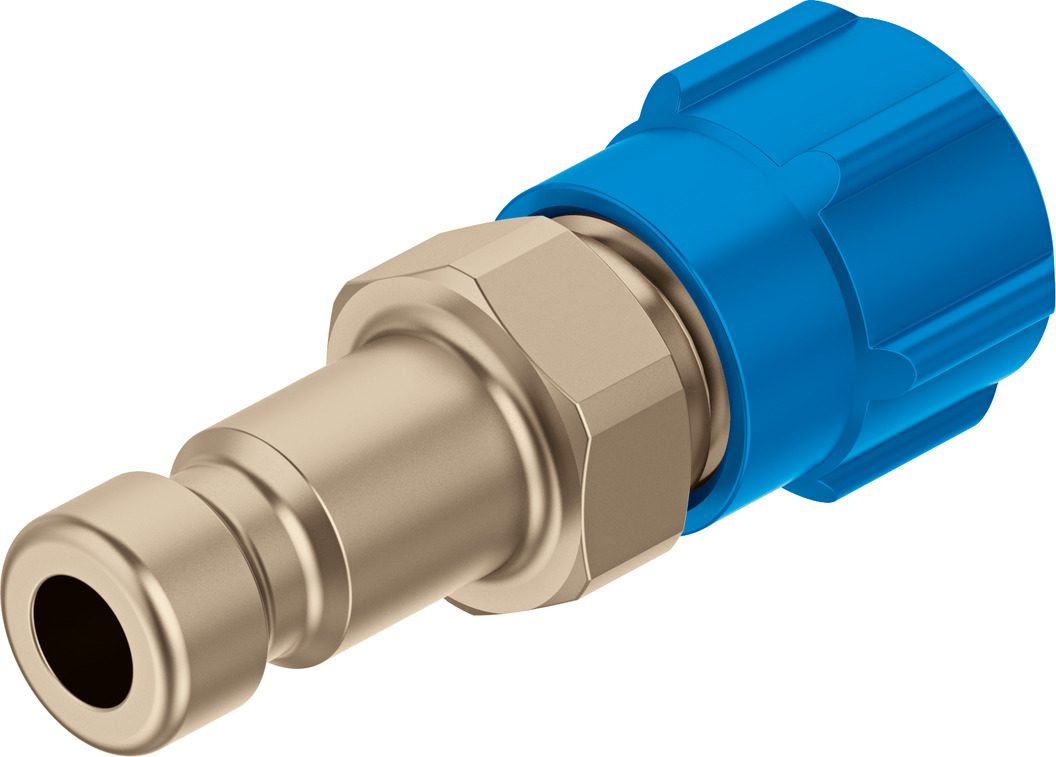

Quick coupling plug (x10 pack)

KS2-CK-3

4091

Pneumatic connection, port 1
For tubing outer diameter of 4 mm - For barbed fitting I.D. 3 mm with union nut
Standard nominal flow rate (standardised to DIN 1343)
68 l/min - 84 l/min

GTIN: 4052568018665

Technical Data

  • Nominal size2 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343)68 l/min ... 84 l/min
  • Nominal flow rate standardised according to ISO 877873.7 l/min ... 91.1 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight4 g
  • Pneumatic connection, port 1For tubing outer diameter of 4 mm For barbed fitting I.D. 3 mm with union nut
  • Material union nutWrought aluminium alloy, anodised
  • Note on materialsRoHS-compliant
  • Information on materialsBrass, nickel plated

Downloads

QUICK-COUPLINGS_EN.PDF

Technical data

Links

Spare parts

Quick coupling plugQuick coupling plug

SKU 4091
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
