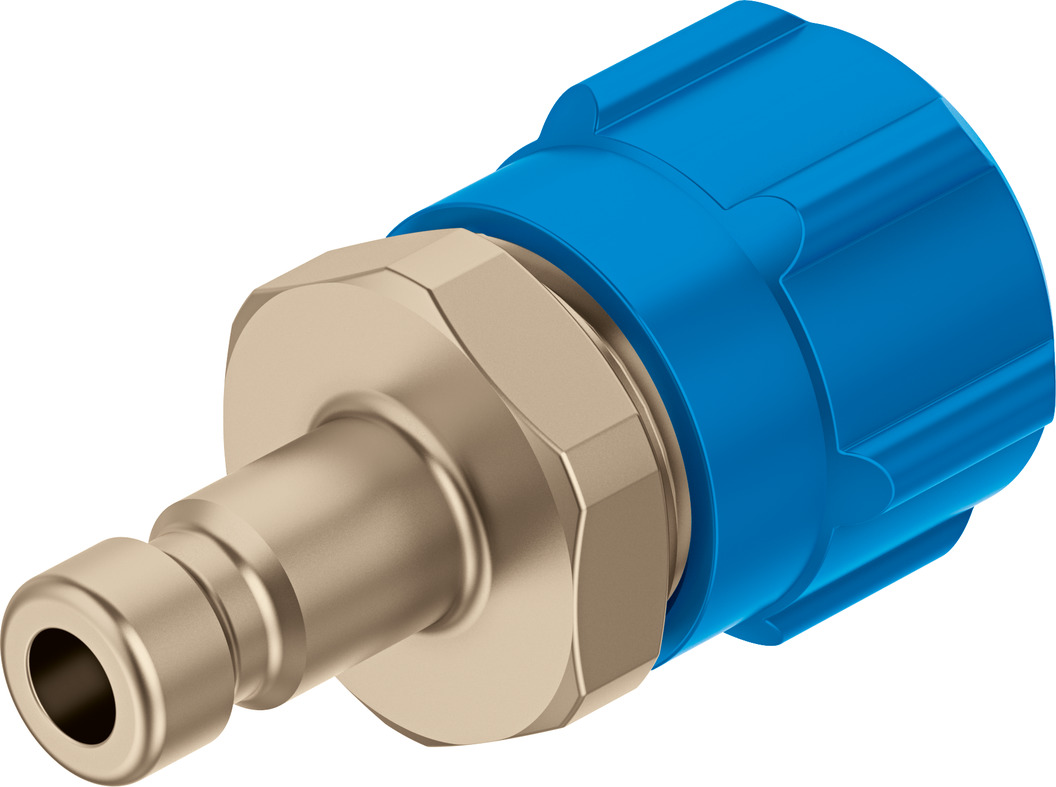

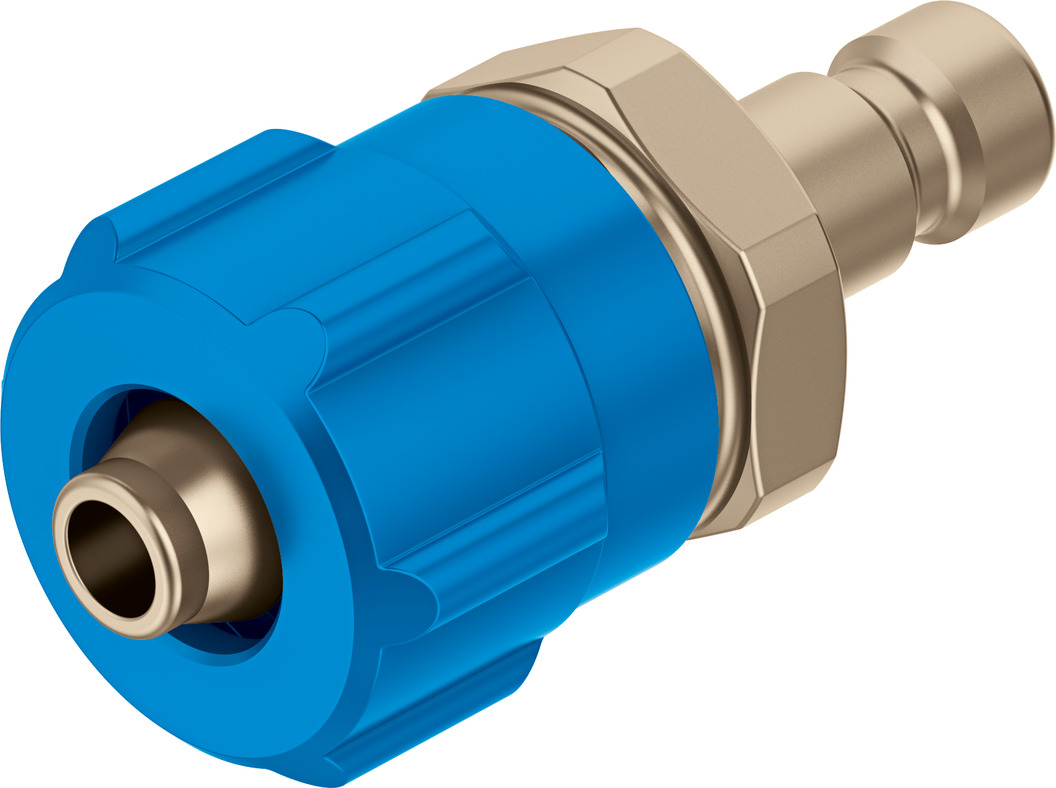

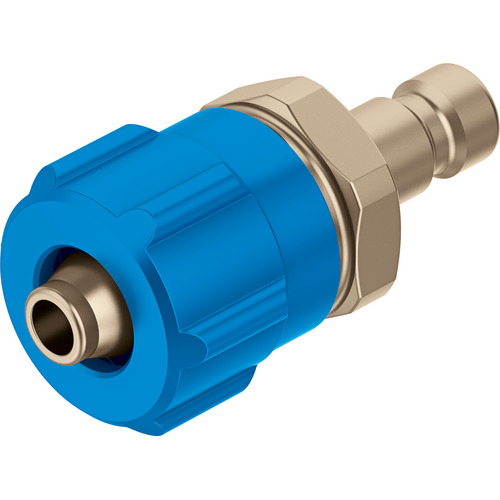

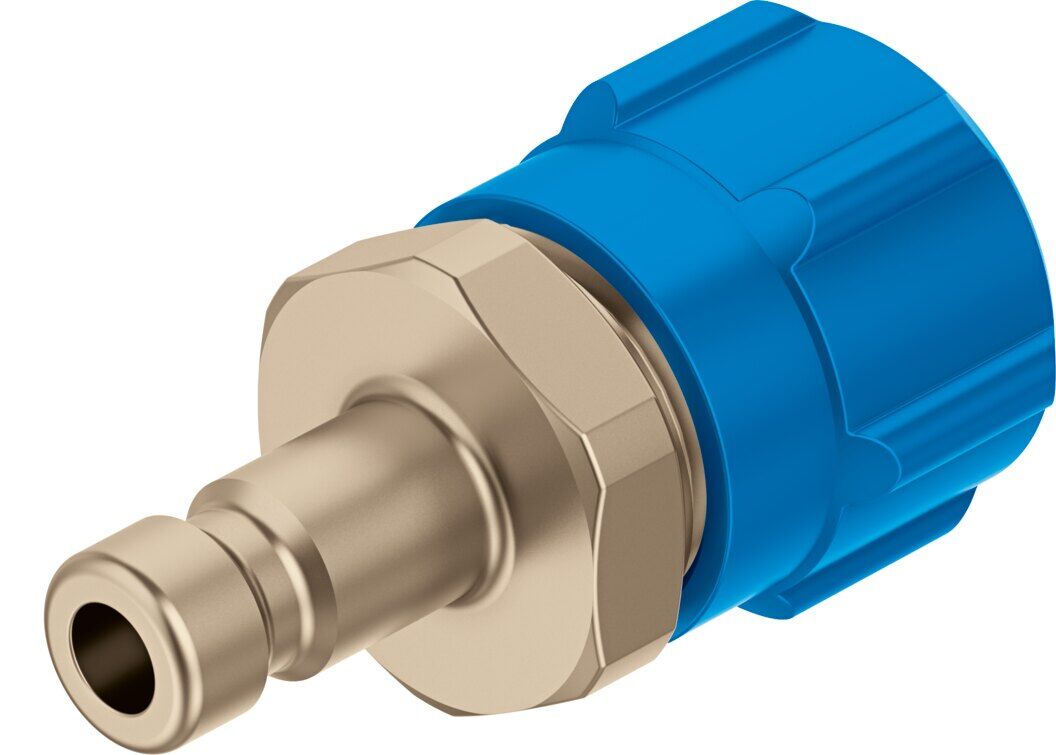

Quick coupling plug

KS2-CK-4

4090

Technical Data

  • Nominal size2.7 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343)86 l/min ... 129 l/min
  • Nominal flow rate standardised according to ISO 877893.2 l/min ... 139.8 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight11 g
  • Pneumatic connection, port 1For tubing outside diameter of 6 mm For barbed fitting I.D. 4 mm with union nut
  • Material union nutWrought aluminium alloy, anodised
  • Note on materialsRoHS-compliant
  • Information on materialsBrass, nickel plated

GTIN: 4052568018658
