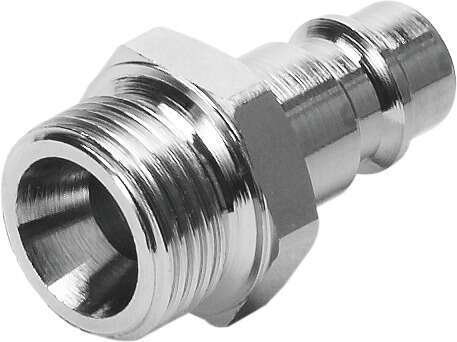

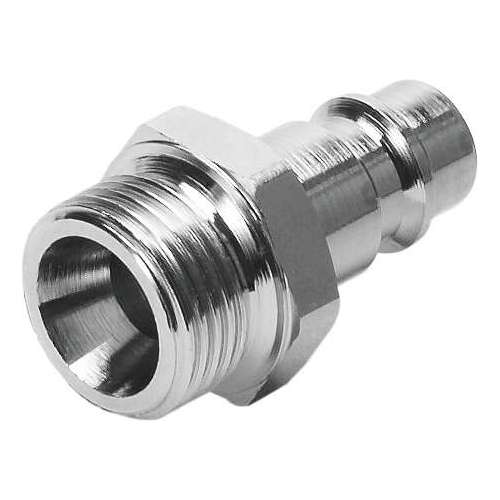

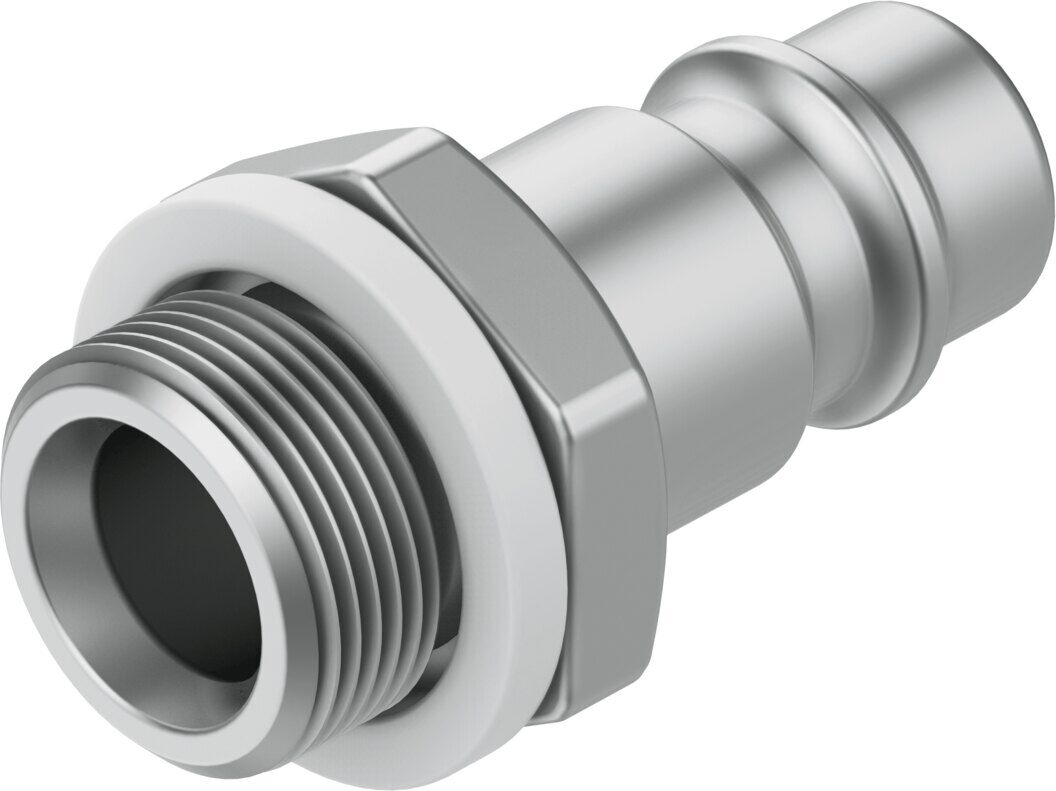

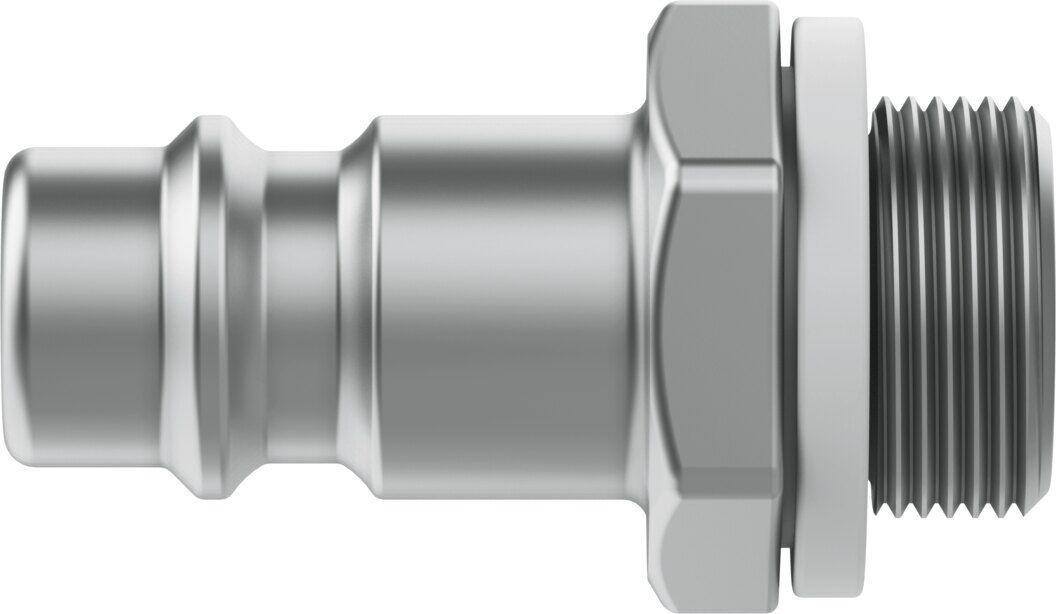

Quick coupling plug

KS4-1/4-A

2154 x100 pack

Pneumatic connection, port 1
Male thread G1/4
Standard nominal flow rate (standardised to DIN 1343)
756 l/min - 1323 l/min



GTIN: 4052568018047

Technical Data

  • Nominal size7.85 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343)756 l/min ... 1323 l/min
  • Nominal flow rate standardised according to ISO 8778819.5 l/min ... 1434.1 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque9.5 Nm
  • Tolerance for nominal tightening torque± 15%
  • Product weight21 g
  • Pneumatic connection, port 1Male thread G1/4
  • Note on materialsRoHS-compliant
  • Material thread sealPA66-GF30/TPE-U
  • Information on materialsBrass, nickel plated



QUICK-COUPLINGS_EN.PDF

SKU 2154
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
