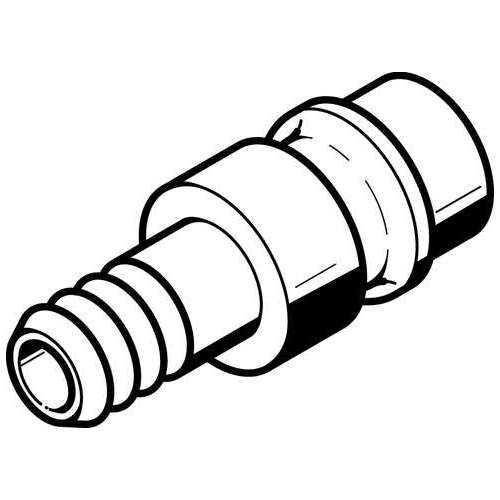

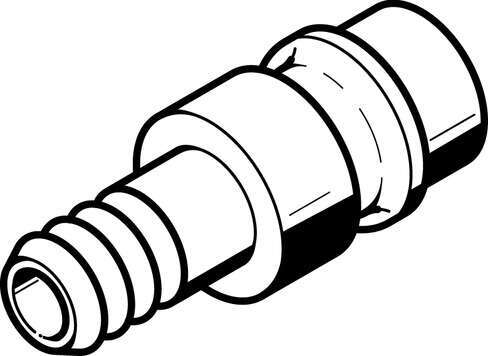

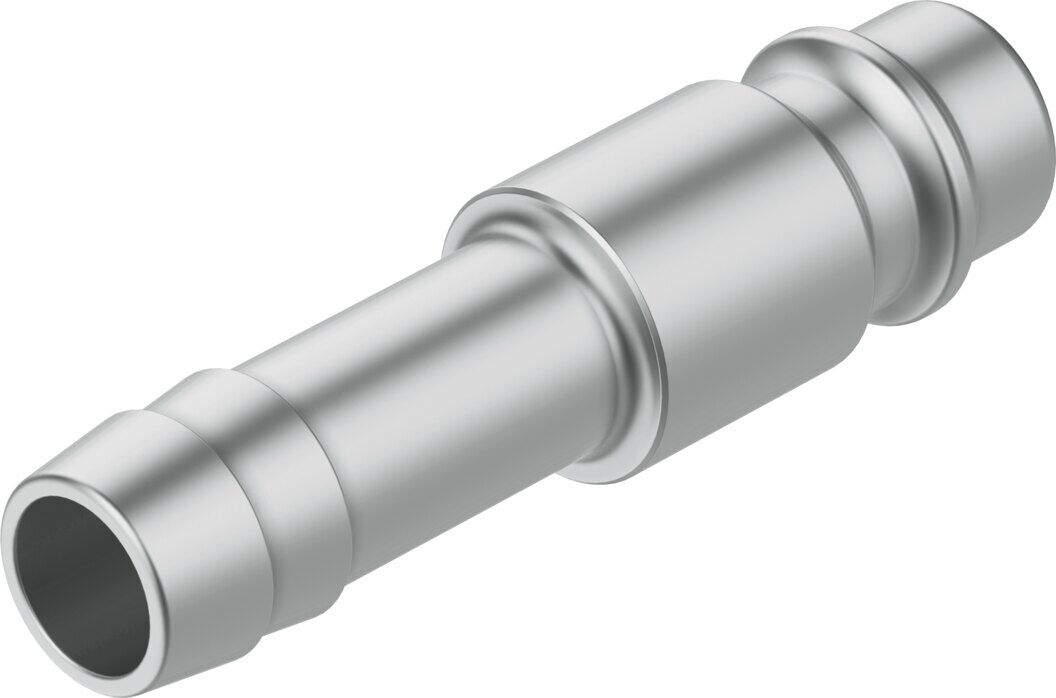

Quick coupling plug

KS4-N-6

2152 x100 pack

Technical Data

  • Nominal size4.5 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343)441 l/min ... 495 l/min
  • Nominal flow rate standardised according to ISO 8778478 l/min ... 536.6 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight15 g
  • Pneumatic connection, port 1Barbed hose fitting 6 mm
  • Note on materialsRoHS-compliant
  • Information on materialsBrass, nickel plated

GTIN: 4052568018023

Pneumatic connection, port 1
Barbed hose fitting 6 mm
Standard nominal flow rate (standardised to DIN 1343)
441 l/min - 495 l/min



QUICK-COUPLINGS_EN.PDF

SKU 2152
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
