FESTO KS4-N-9 Quick coupling plug 2153 x100 pack

KS4-N-9

$824.00
RRP $920.00
SAVE $96.00 (10%)

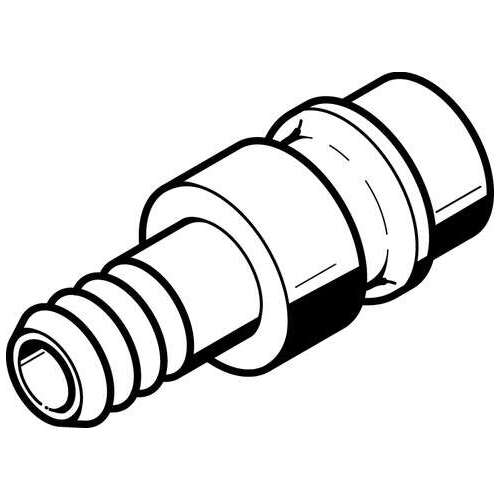

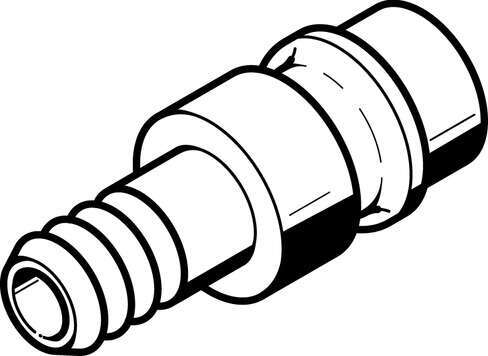

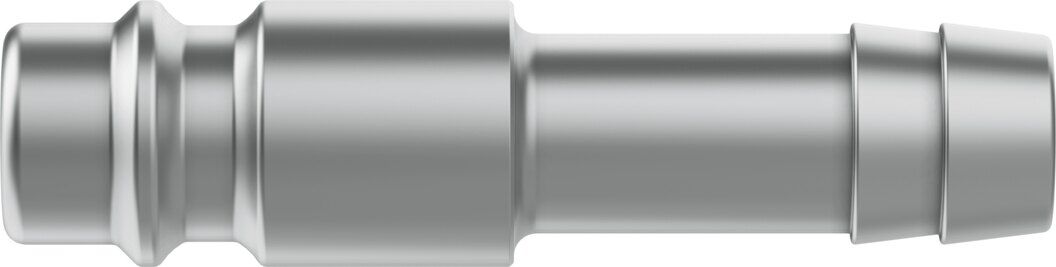

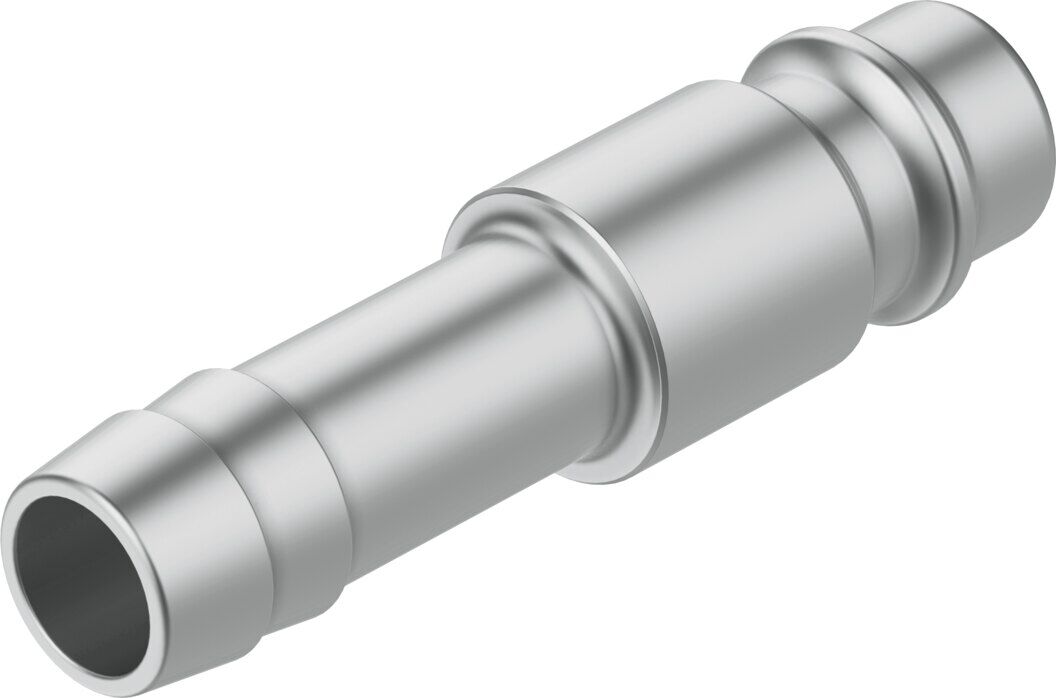

Quick coupling plug

KS4-N-9

2153 x100 pack

Pneumatic connection, port 1
Barbed hose fitting 9 mm
Standard nominal flow rate (standardised to DIN 1343)
711 l/min - 1134 l/min



GTIN: 4052568018030

Technical Data

  • Nominal size7 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343)711 l/min ... 1134 l/min
  • Nominal flow rate standardised according to ISO 8778770.7 l/min ... 1229.3 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight18 g
  • Pneumatic connection, port 1Barbed hose fitting 9 mm
  • Note on materialsRoHS-compliant
  • Information on materialsBrass, nickel plated



QUICK-COUPLINGS_EN.PDF

(2153)

SKU 2153
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
