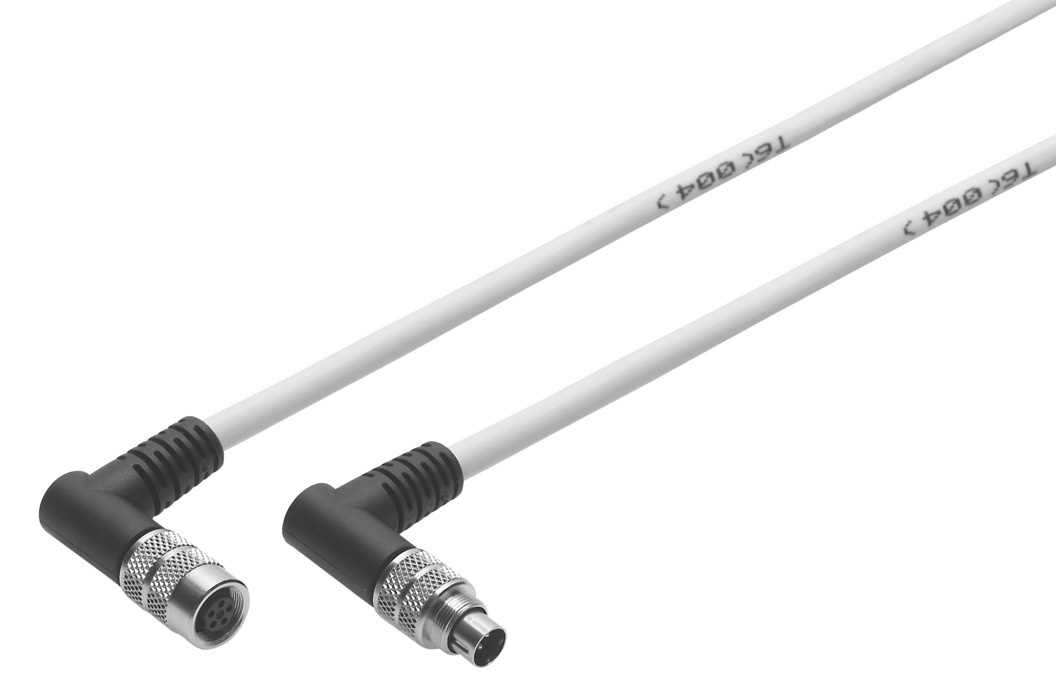

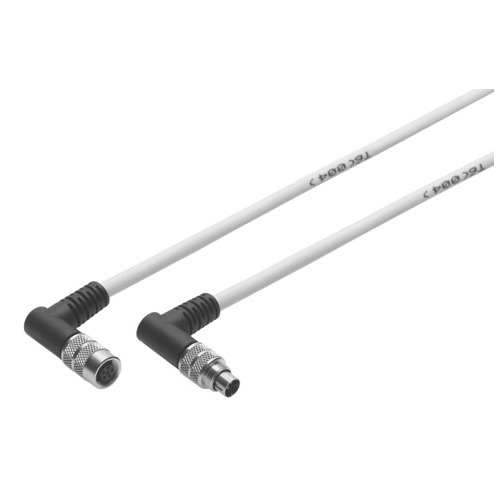

Connecting cable

KVI-CP-3-WS-WD-0,5

540328





GTIN: 4052568090371

Downloads

Product information

Technical data

CAD data

Links

Spare parts

Pieces



Electrical connection 1, connection type Socket

Electrical connection 1, connector system M9x0.5

Electrical connection 2, connection type Plugs

Electrical connection 2, connector system M9x0.5

Cable length 0.5 m

Technical Data

• Additional functions Contact 3 of socket 1 mm leading
• Cable designation With accessories
• Frequency of connection 500
• Product weight 45.4 g
• Electrical connection 1, function Field device side
• Electrical connection 1, design Round
• Electrical connection 1, connection type Socket
• Electrical connection 1, cable outlet Angled
• Electrical connection 1, connector system M9x0.5
• Electrical connection 1, number of connections/cores 5
• Electrical connection 1, used connections/cores 5
• Electrical connection 1, type of mounting Screw-type lock
• Electrical connection 1, connection pattern 00995398
• Electrical connection 2, function Controller side
• Electrical connection 2, design Round
• Electrical connection 2, connection type Plugs
• Electrical connection 2, cable outlet Angled
• Electrical connection 2, connector system M9x0.5
• Electrical connection 2, number of connections/cores 5
• Electrical connection 2, used connections/cores 5
• electrical connection 2, type of mounting Screw-type lock
• Electrical connection 2, connection pattern 00992012
• Operational voltage range DC0 V ... 30 V
• Current rating at 40° C1.6 A
• Note on permissible current load at 40°C2.3 A for 0.34 mm² 3.6 A for 0.49 mm²
• Immunity to surge1.5 kV
• Shielding yes
• Cable length 0.5 m
• Cable characteristic Suitable for energy chains
• Test conditions cableTest conditions on request
• Bending radius, moving cable ≥75 mm
• Cable diameter 5.5 mm
• Cable structure 2 x 0.25 mm² + 2 x 0.34 mm² + 0.49 mm²
• Nominal cross section conductor 0.34 mm²
• Degree of protection IP65 IP67
• Note on degree of protection In assembled state
• Ambient temperature -20 °C ... 80 °C
• Ambient temperature with moving cable -5 °C ... 80 °C
• CE mark (see declaration of conformity) In accordance with EU RoHS Directive
• CE marking (see declaration of conformity) To UK RoHS instructions
• LABS (PWIS) conformity VDMA24364-B2-L
• Note on materials RoHS-compliant
• Pollution degree 1
• Corrosion resistance class CRC1 - Low corrosion stress
• Material cable sheathTPE-U (PUR)
• Cable sheath colour Light grey
• Material housingPA PBT TPE-U (PUR)
• Housing colour Black
• Material screw-type lock Nickel-plated brass
• Material electrical contact Gold-plated bronze Gold-plated brass
• Material insulating sheathTPE-U (PUR)
