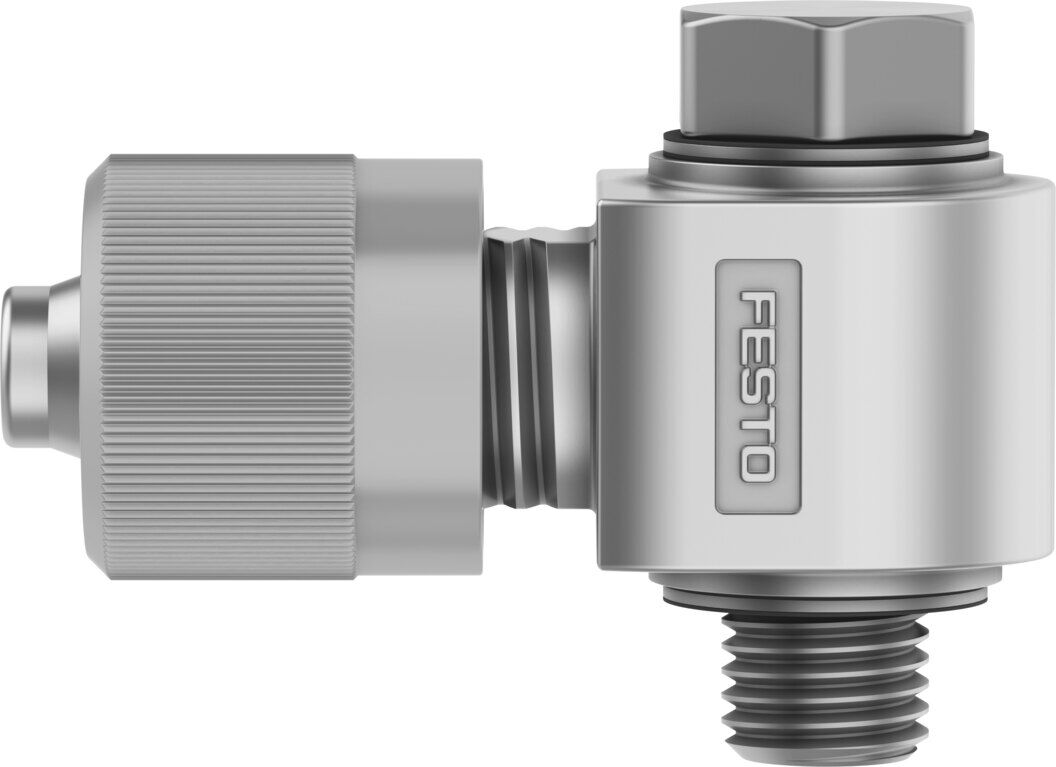

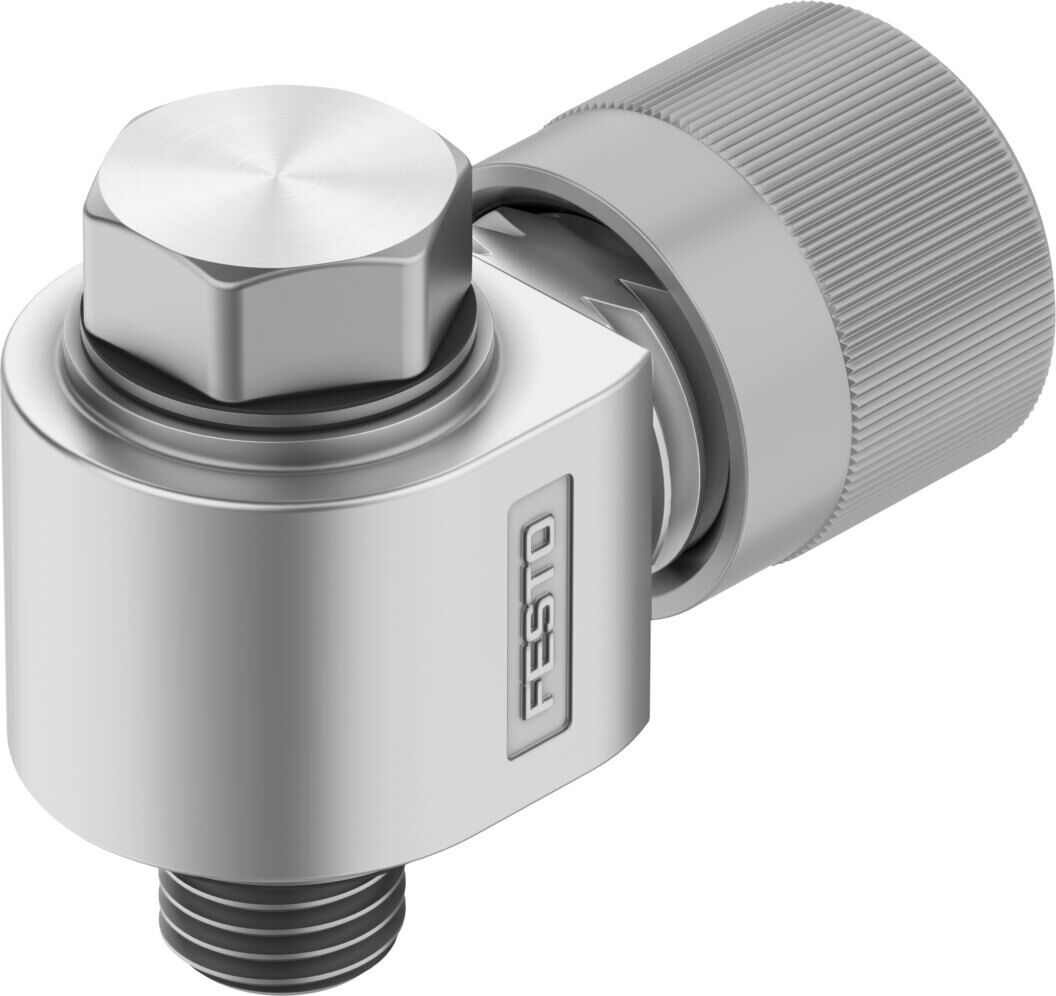

FESTO LCK-M5-PK-4 Elbow quick connector 4562

Phone 1300 925 073

My Account

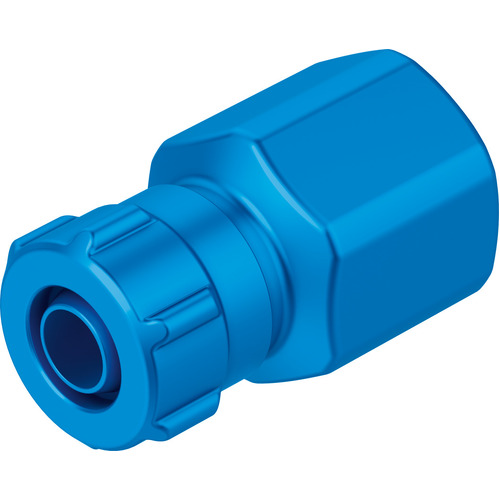

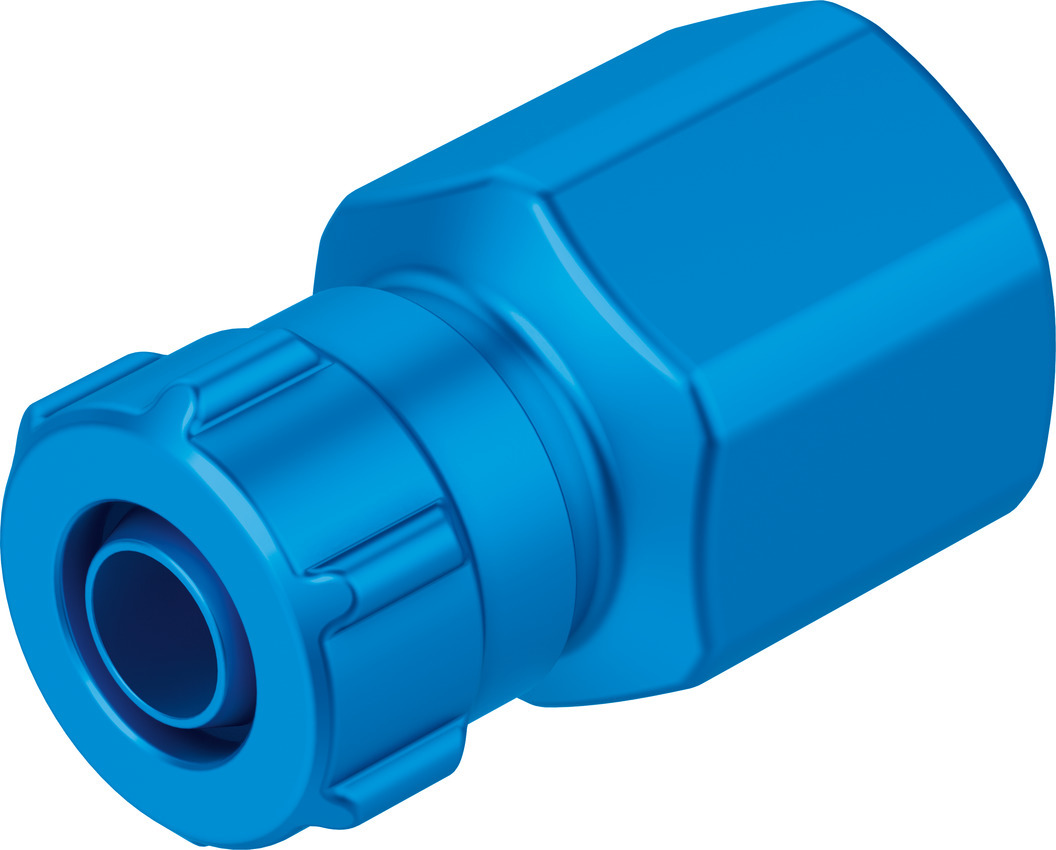

Quick connector FESTO (x10 pack)

ACK-1/4-PK-4

3713

Pneumatic connection, port 1

Male thread M5

Pneumatic connection, port 2

For tubing outside diameter of 6 mm - For barbed fitting inside diameter of 4 mm with nut

Ambient temperature

-10 °C - 60 °C

GTIN: 4052568018597

Technical Data

Nominal size2.4 mm
Type of seal on screwed plugSealing ring
Mounting positionoptional
DesignL-shape
Size of pack10
Operating pressure complete temperature range-0.095 MPa ... 1 MPa
Operating pressure complete temperature range-0.95 bar ... 10 bar
Operating pressure complete temperature range-13.775 psi ... 145 psi
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 °C ... 60 °C
Nominal torque1.33 Nm
Tolerance for nominal tightening torque± 20%
Pneumatic connection, port 1Male thread M5
Pneumatic connection, port 2For tubing outside diameter of 6 mm For barbed fitting inside diameter of 4 mm with nut
Material union nutWrought aluminium alloy, anodised
Note on materialsRoHS-compliant
Material sealing ringNBR High-alloy stainless steel
Material hollow boltGalvanised steel
Material swivel fittingDie-cast zinc

Technical Data

Nominal size2.4 mm
Type of seal on screwed plugSealing ring
Mounting positionoptional
DesignL-shape
Size of pack10
Operating pressure complete temperature range-0.095 MPa ... 1 MPa
Operating pressure complete temperature range-0.95 bar ... 10 bar
Operating pressure complete temperature range-13.775 psi ... 145 psi
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 °C ... 60 °C
Nominal torque1.33 Nm
Tolerance for nominal tightening torque± 20%
Pneumatic connection, port 1Male thread M5
Pneumatic connection, port 2For tubing outside diameter of 6 mm For barbed fitting inside diameter of 4 mm with nut
Material union nutWrought aluminium alloy, anodised
Note on materialsRoHS-compliant
Material sealing ringNBR High-alloy stainless steel
Material hollow boltGalvanised steel
Material swivel fittingDie-cast zinc

Downloads

Technical data

Links

Spare parts

Pieces

Pneumatic connection, port 1

Female thread G1/4

Pneumatic connection, port 2

For tubing outside diameter of 6 mm - For barbed fitting inside diameter of 4 mm with nut

Ambient temperature -10 °C - 60 °C

SKU	4562
Brand	FESTO
Shipping Weight	1.0000kg
Shipping Width	0.080m
Shipping Height	0.200m
Shipping Length	0.200m
