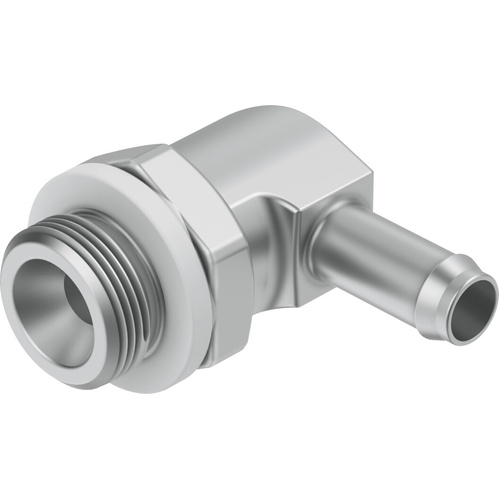

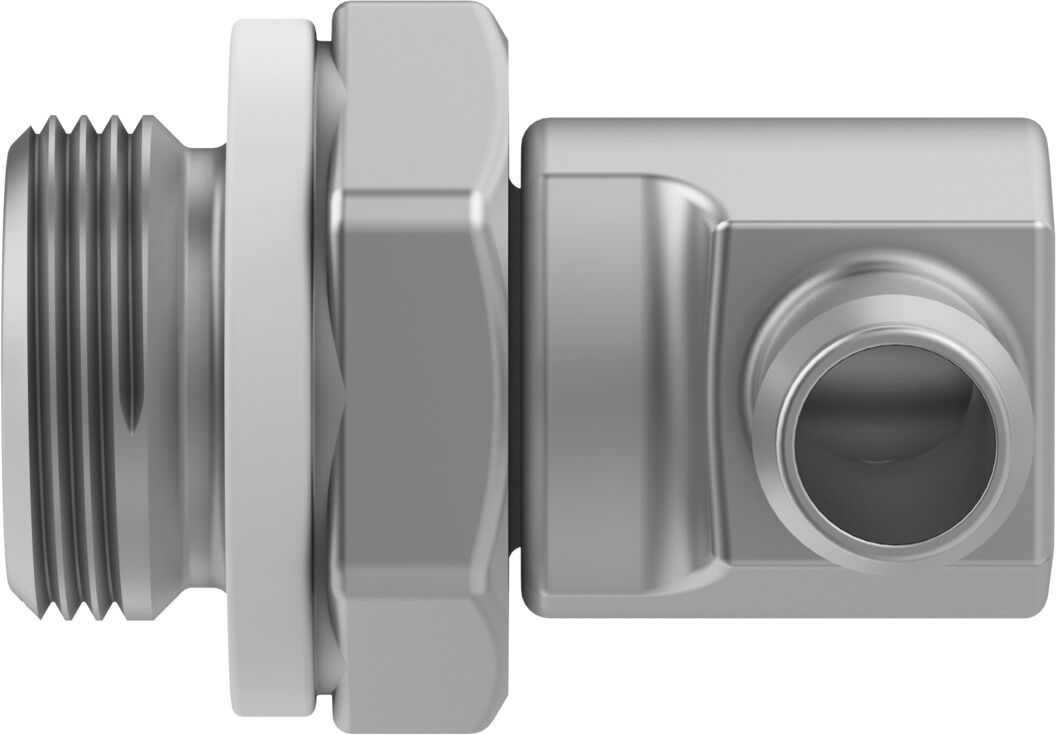

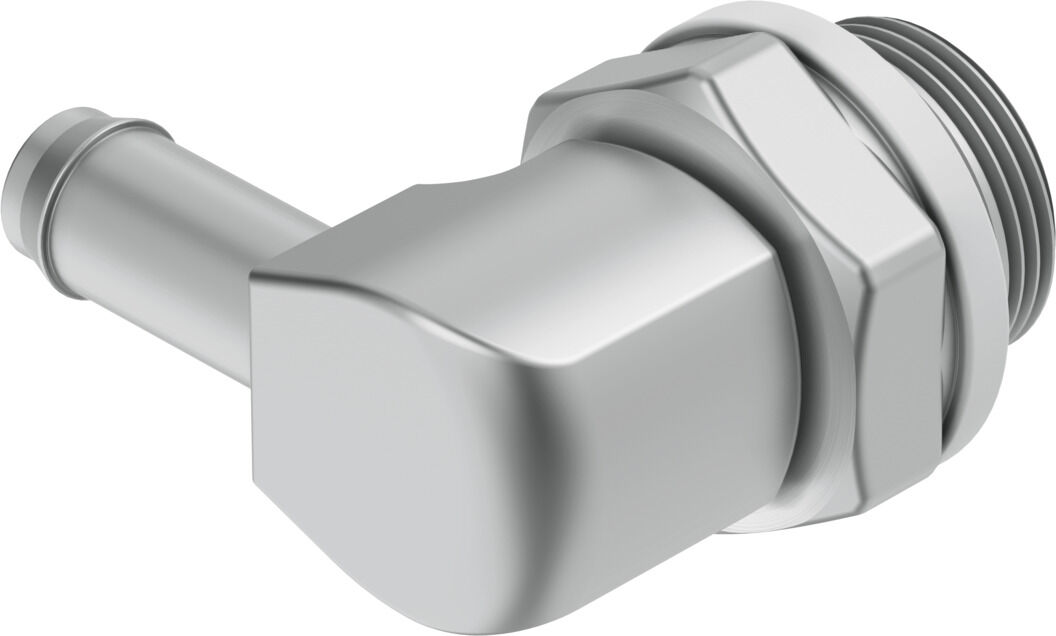

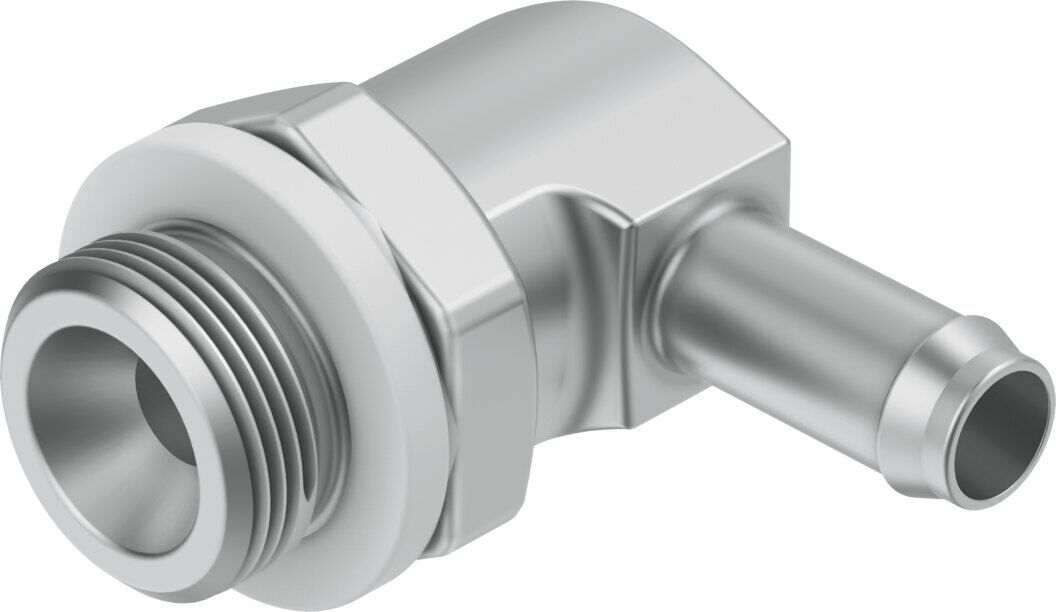

Barbed elbow fitting

LCN-M3-PK-2-B

30491





GTIN: 4052568022662

Pneumatic connection, port 1
Male thread M3
Pneumatic connection, port 2
For tubing outer diameter of 3 mm
Nominal size
1.3 mm
Ambient temperature
0 °C - 60 °C

Technical Data

  • Nominal size1.3 mm
  • Type of seal on screwed plugSealing ring
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Pneumatic connection, port 1Male thread M3
  • Pneumatic connection, port 2For tubing outer diameter of 3 mm
  • Note on materialsRoHS-compliant
  • Material housingDie-cast zinc High-alloy stainless steel



SKU 30491
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
