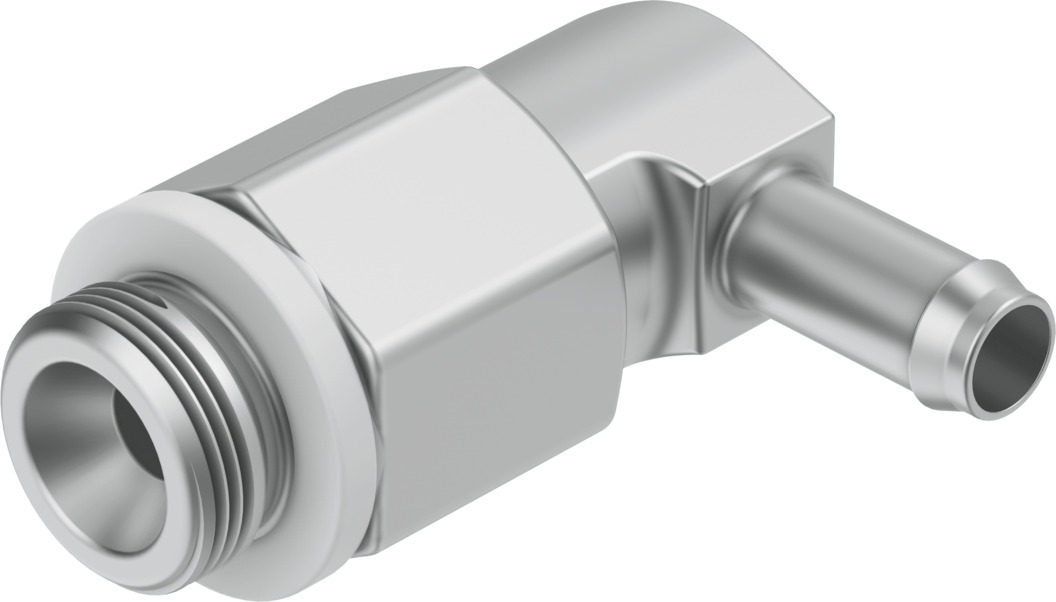

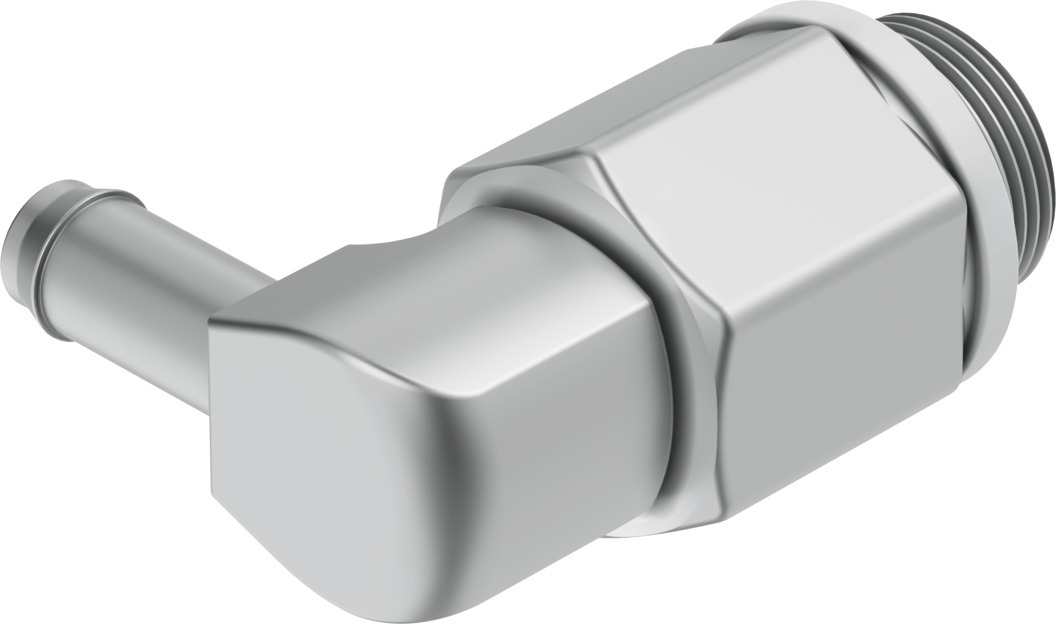

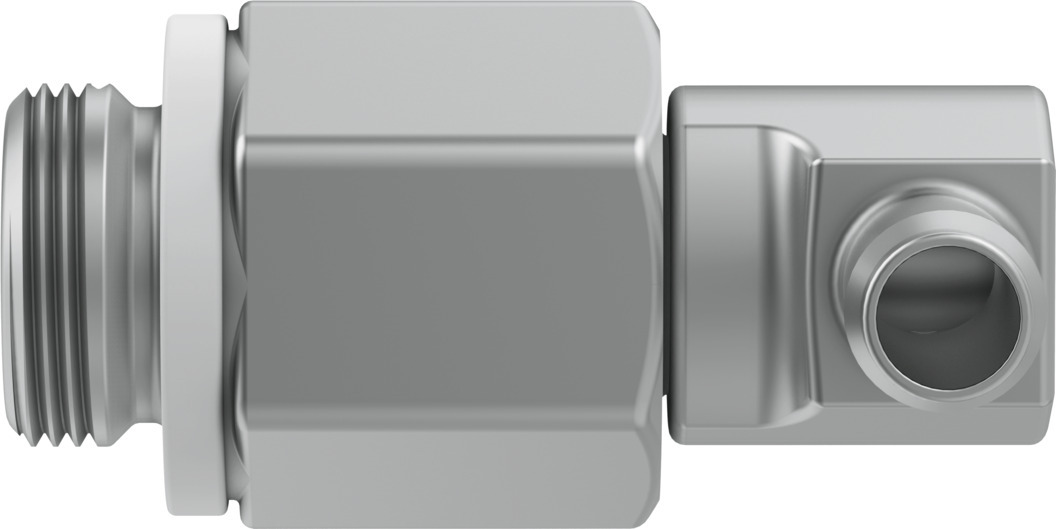

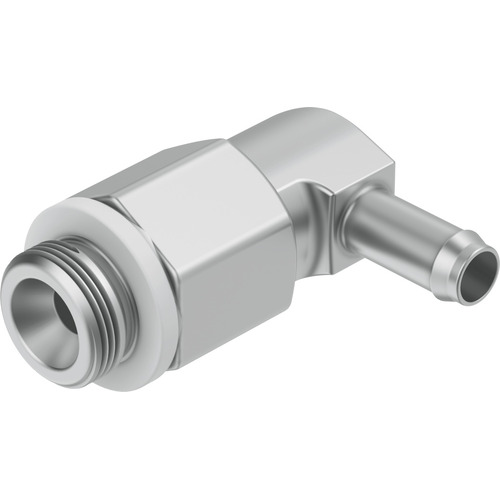

Barbed elbow fitting

Barbed elbow fitting

LCNH-1/4-PK-4

35988



Pneumatic connection, port 1
Male thread G1/4
Pneumatic connection, port 2
For tubing outside diameter of 6 mm
Nominal size
2.9 mm
Ambient temperature
0 °C - 60 °C

GTIN: 4052568023362

Technical Data

  • Nominal size2.9 mm
  • Type of seal on screwed plugSealing ring
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Pneumatic connection, port 1Male thread G1/4
  • Pneumatic connection, port 2For tubing outside diameter of 6 mm
  • Note on materialsRoHS-compliant
  • Material housingDie-cast zinc

Downloads



CN_EN.PDF

Technical data

Links

Spare parts

Pneumatic connection, port 1

Male thread G1/4

Pneumatic connection, port 2

For tubing outside diameter of 6 mm

Nominal size

2.9 mm

Ambient temperature

0 °C - 60 °C

SKU 35988
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
