1614 9184 00 LEVEL GAUGE Atlas Copco

LEVEL GAUGE item 2023

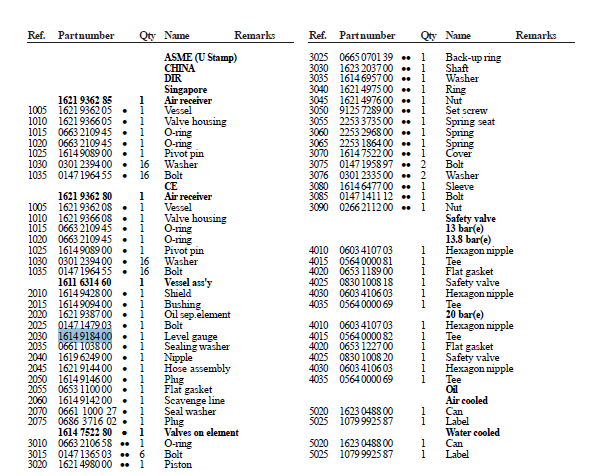

Ref. Part number Qty Name Remarks
ASME (U Stamp)
CHINA
DIR
Singapore

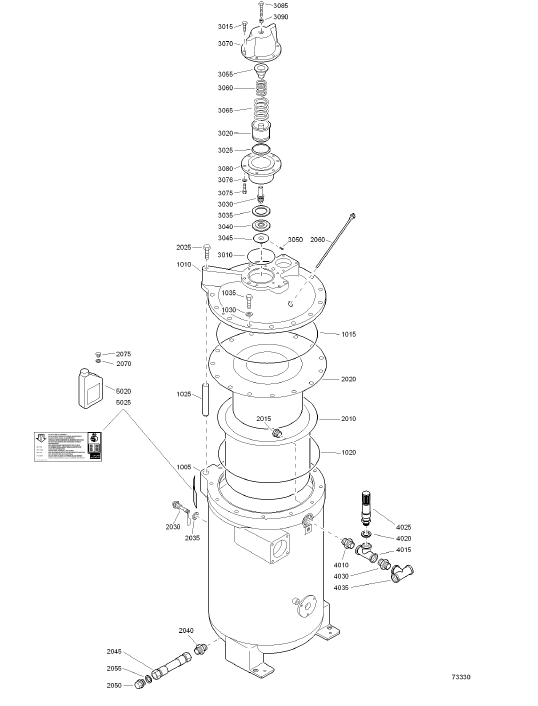

1621 9362 85 1 Air receiver
1005 1621 9362 05 • 1 Vessel
1010 1621 9366 05 • 1 Valve housing
1015 0663 2109 45 • 1 O-ring
1020 0663 2109 45 • 1 O-ring
1025 1614 9089 00 • 1 Pivot pin
1030 0301 2394 00 • 16 Washer
1035 0147 1964 55 • 16 Bolt
CE
1621 9362 80 1 Air receiver
1005 1621 9362 08 • 1 Vessel
1010 1621 9366 08 • 1 Valve housing
1015 0663 2109 45 • 1 O-ring
1020 0663 2109 45 • 1 O-ring
1025 1614 9089 00 • 1 Pivot pin
1030 0301 2394 00 • 16 Washer
1035 0147 1964 55 • 16 Bolt
1611 6314 60 1 Vessel ass'y
2010 1614 9428 00 • 1 Shield
2015 1614 9094 00 • 1 Bushing
2020 1621 9387 00 • 1 Oil sep.element
2025 0147 1479 03 • 1 Bolt

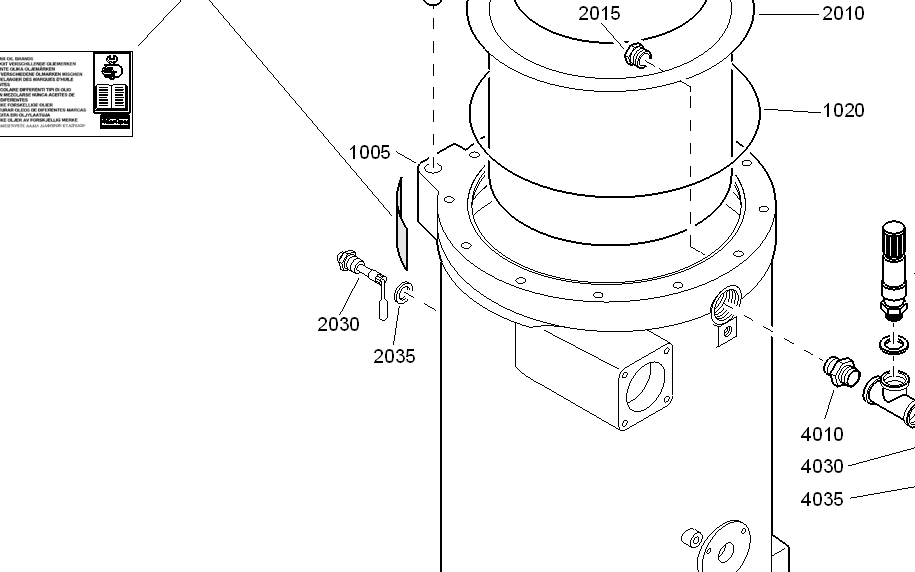

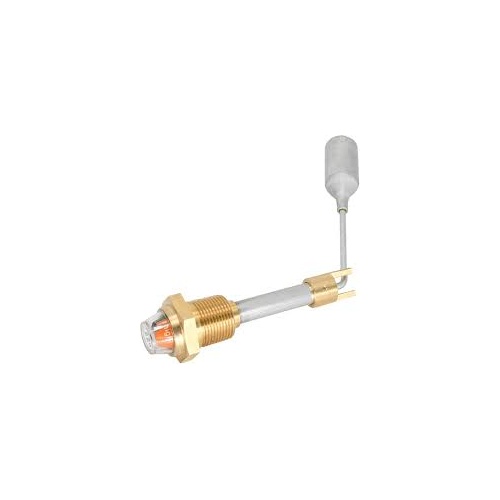

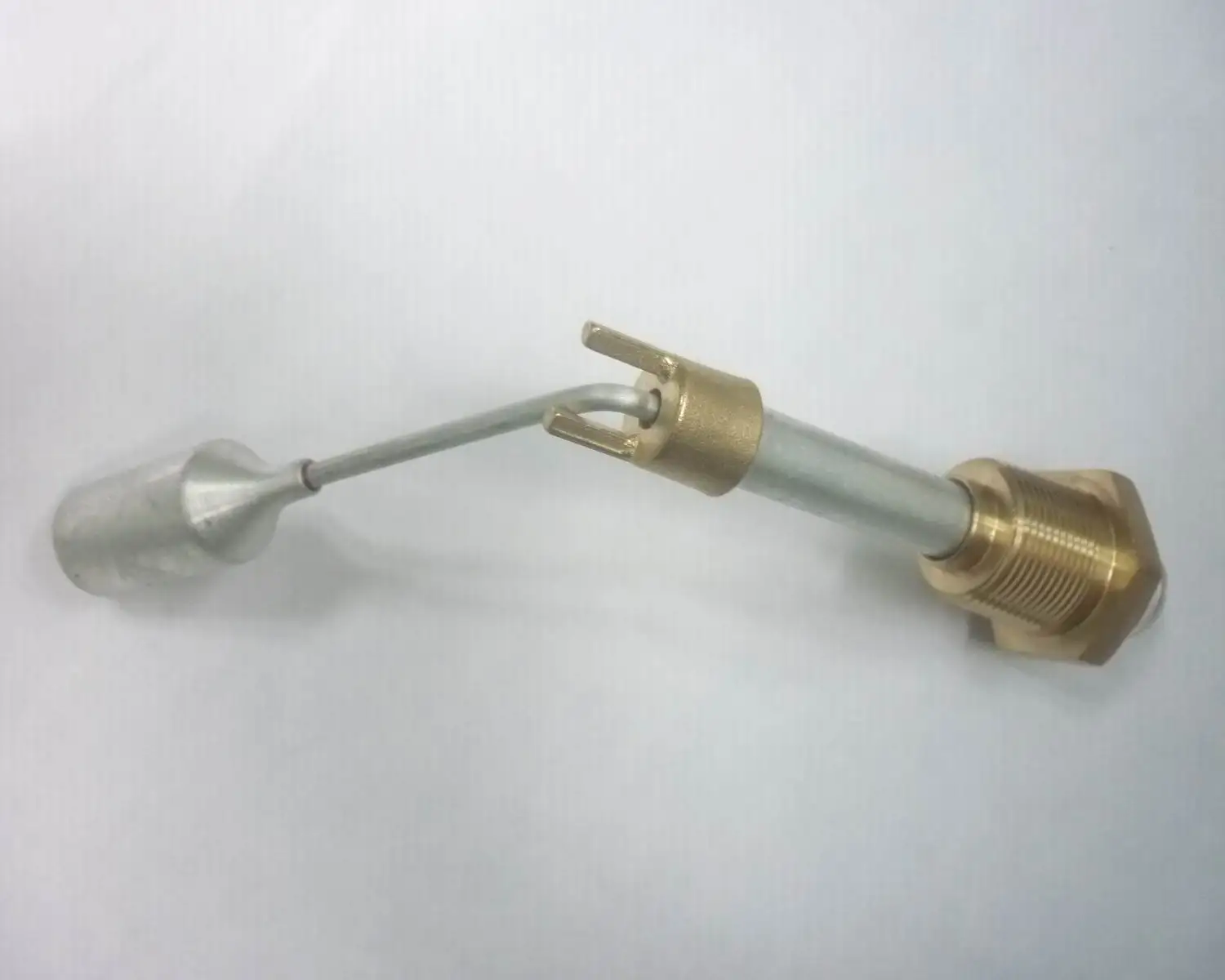

2030 1614 9184 00 • 1 Level gauge
2035 0661 1038 00 • 1 Sealing washer
2040 1619 6249 00 • 1 Nipple
2045 1621 9144 00 • 1 Hose assembly
2050 1614 9146 00 • 1 Plug
2055 0653 1100 00 • 1 Flat gasket
2060 1614 9142 00 • 1 Scavenge line
2070 0661 1000 27 • 1 Seal washer
2075 0686 3716 02 • 1 Plug
1614 7522 80 • 1 Valves on element
3010 0663 2106 58 •• 1 O-ring
3015 0147 1365 03 •• 6 Bolt
3020 1621 4980 00 •• 1 Piston
Ref. Part number Qty Name Remarks
3025 0665 0701 39 •• 1 Back-up ring
3030 1623 2037 00 •• 1 Shaft
3035 1614 6957 00 •• 1 Washer
3040 1621 4975 00 •• 1 Ring
3045 1621 4976 00 •• 1 Nut
3050 9125 7289 00 •• 1 Set screw
3055 2253 3735 00 •• 1 Spring seat
3060 2253 2968 00 •• 1 Spring
3065 2253 1864 00 •• 1 Spring
3070 1614 7522 00 •• 1 Cover
3075 0147 1958 97 •• 2 Bolt
3076 0301 2335 00 •• 2 Washer
3080 1614 6477 00 •• 1 Sleeve
3085 0147 1411 12 •• 1 Bolt
3090 0266 2112 00 •• 1 Nut
Safety valve
13 bar(e)
13.8 bar(e)
4010 0603 4107 03 1 Hexagon nipple
4015 0564 0000 81 1 Tee
4020 0653 1189 00 1 Flat gasket
4025 0830 1008 18 1 Safety valve
4030 0603 4106 03 1 Hexagon nipple
4035 0564 0000 69 1 Tee
20 bar(e)
4010 0603 4107 03 1 Hexagon nipple
4015 0564 0000 82 1 Tee
4020 0653 1227 00 1 Flat gasket
4025 0830 1008 20 1 Safety valve
4030 0603 4106 03 1 Hexagon nipple
4035 0564 0000 69 1 Tee
Oil
Air cooled
5020 1623 0488 00 1 Can
5025 1079 9925 87 1 Label
Water cooled
5020 1623 0488 00 1 Can
5025 1079 9925 87 1 Label

Atlas Copco Stationary Air Compressors
No. 2930 1822 00
Registration code : APC GA>90
2014-01
GR 110, GR 132, GR 160, GR 200,
GR 110 W, GR 132 W,GR 160 W, GR 200 W
Parts list
• Copyright 2014, Atlas Copco Airpower n.v., Antwerp, Belgium.
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and
drawings.
• Use only authorized parts. Any damage or malfunction caused by the use
of unauthorized parts is not covered by Warranty or Product Liability.
This book is based on configurator 9823910300-15 ed 16
www.atlascopco.com
2
Parts list
2930 1822 00
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Indice
Indholdsfortegnelse
Sisällysluettelo
Elements and drive arrangement .......................................1
Valves on element ..............................................................2
Gears ..................................................................................3
Air filter ..............................................................................4
- Heavy duty filter ..........................................................5
Unloading valve ................................................................6
Air receiver ........................................................................7
Air flow
- GR ................................................................................8
- GR W............................................................................9
Air outlet
- Pack ......................................................................... 10
- Full Feature ..............................................................11
- Full Feature + DD Filter ........................................... 12
Cooler(s)
- GR ........................................................................... 13
- GR W....................................................................... 14
- GR W - Aftercooler parts .................................... 15
- GR W - Oilcooler parts ........................................ 16
3
Parts list
2930 1822 00
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Indice
Indholdsfortegnelse
Sisällysluettelo
Fan and cooling duct plates - GR ................................. 17
Frame and motor ........................................................... 18
Drain system
- Basic + DD Filter - Full Feature ............................... 19
- Electronic Condensate Drain .................................. 20
- Oil Separator Condensate Drain ............................. 21
Regulating system ........................................................ 22
- With Modulating control ........................................ 23
Control system ............................................................. 24
Control panel ................................................................ 25
Bodywork
- Cubicle box.............................................................. 26
- GR ........................................................................... 27
- GR W....................................................................... 28
Air dryer
- GR ........................................................................... 29
- GR W....................................................................... 30
Service kits ................................................................... 31
4
Parts list
2930 1822 00
1
73324
5
Parts list
2930 1822 00
Elements and drive arrangement 1
Ref. Part number Qty Name Remarks
Element
LP
1010 1616 7257 91 1 Service stage
HP
2010 1616 7612 90 1 Service stage
Gear casing
50 Hz ABB motor
No motor IEC FF 500
3025 1619 6032 00 1 Nipple
3035 2252 5484 00 1 Drive shaft
3040 0211 1407 00 10 Cap screw
3045 0506 5109 00 1 Roller bearing
3050 0506 0100 08 1 Roller bearing
3055 2252 5485 00 1 Adaptor
3060 1614 7949 00 1 Protection
3065 0663 7177 00 1 O-ring
3070 0147 1365 03 8 Bolt
3075 2254 8831 00 1 Bushing
3080 0337 6074 00 1 Parallel key
3085 2252 5470 00 1 Washer
3090 0211 1409 00 3 Cap screw
3095 1202 7009 00 1 Gasket
3100 0101 1626 00 2 Pin
3105 0147 1380 03 18 Bolt
3110 1604 6368 00 1 Bushing
3115 0337 6062 00 1 Parallel key
3120 1613 2197 00 1 Washer
3125 0147 1409 03 1 Bolt
3130 1202 7010 00 1 Gasket
3135 0101 1626 00 2 Pin
3140 0147 1371 03 13 Bolt
3150 0686 3716 02 1 Plug
3155 0661 1000 27 1 Seal washer
3160 1614 6792 00 1 Coupl.housing
3165 1614 6611 00 3 Grating
3170 0147 1482 03 8 Bolt
3175 0266 2114 00 8 Nut
3180 2252 5483 00 1 Gear casing
3185 0147 1367 03 12 Bolt
3190 0266 2111 00 12 Nut
3195 2252 5477 00 1 Washer
3200 2252 5478 00 1 Bushing
3205 1619 5177 00 2 Sealing ring
3210 2252 5479 00 1 Retainer
3215 0663 2107 76 1 O-ring
3220 0147 1366 03 4 Bolt
3225 2254 7604 00 1 Ring
3230 2252 5489 00 2 Oil nozzle
3235 0663 3117 00 2 O-ring
3240 0147 1244 03 2 Bolt
3245 2252 5492 00 1 Drain pipe
3250 0147 1244 03 1 Bolt
3255 2252 5487 00 1 Cover
3260 1202 7011 00 1 Gasket
3265 0147 1364 03 4 Bolt
50 Hz ABB GR132-160
60 Hz ABB GR110-160
60 Hz WEG
Siemens GR200
No motor IEC FF 600
3025 1619 6032 00 1 Nipple
3035 2252 5484 00 1 Drive shaft
Ref. Part number Qty Name Remarks
3040 0211 1407 00 10 Cap screw
3045 0506 5109 00 1 Roller bearing
3050 0506 0100 08 1 Roller bearing
3055 2252 5485 00 1 Adaptor
3060 1614 7949 00 1 Protection
3065 0663 7177 00 1 O-ring
3070 0147 1365 03 8 Bolt
3075 2254 8831 00 1 Bushing
3080 0337 6074 00 1 Parallel key
3085 2252 5470 00 1 Washer
3090 0211 1409 00 3 Cap screw
3095 1202 7009 00 1 Gasket
3100 0101 1626 00 2 Pin
3105 0147 1380 03 18 Bolt
3110 1604 6368 00 1 Bushing
3115 0337 6062 00 1 Parallel key
3120 1613 2197 00 1 Washer
3125 0147 1409 03 1 Bolt
3130 1202 7010 00 1 Gasket
3135 0101 1626 00 2 Pin
3140 0147 1371 03 13 Bolt
3150 0686 3716 02 1 Plug
3155 0661 1000 27 1 Seal washer
3160 1614 6796 00 1 Coupl.housing
3165 1614 6611 00 3 Grating
3170 0147 1555 03 8 Bolt
3175 0266 2116 00 8 Nut
3180 2252 5483 00 1 Gear casing
3185 0147 1367 03 12 Bolt
3190 0266 2111 00 12 Nut
3195 2252 5477 00 1 Washer
3200 2252 5478 00 1 Bushing
3205 1619 5177 00 2 Sealing ring
3210 2252 5479 00 1 Retainer
3215 0663 2107 76 1 O-ring
3220 0147 1366 03 4 Bolt
3225 2254 7604 00 1 Ring
3230 2252 5489 00 2 Oil nozzle
3235 0663 3117 00 2 O-ring
3240 0147 1244 03 2 Bolt
3245 2252 5492 00 1 Drain pipe
3250 0147 1244 03 1 Bolt
3255 2252 5487 00 1 Cover
3260 1202 7011 00 1 Gasket
3265 0147 1364 03 4 Bolt
No motor 445 TSD NEMA
3025 1619 6032 00 1 Nipple
3035 2252 5484 00 1 Drive shaft
3040 0211 1407 00 10 Cap screw
3045 0506 5109 00 1 Roller bearing
3050 0506 0100 08 1 Roller bearing
3055 2252 5485 00 1 Adaptor
3060 1614 7949 00 1 Protection
3065 0663 7177 00 1 O-ring
3070 0147 1365 03 8 Bolt
3075 2254 8831 00 1 Bushing
3080 0337 6074 00 1 Parallel key
3085 2252 5470 00 1 Washer
3090 0211 1409 00 3 Cap screw
3095 1202 7009 00 1 Gasket
3100 0101 1626 00 2 Pin
3105 0147 1380 03 18 Bolt
6
Parts list
2930 1822 00
1
73324
7
Parts list
2930 1822 00
Elements and drive arrangement 1
Ref. Part number Qty Name Remarks
3085 2252 5470 00 1 Washer
3090 0211 1409 00 3 Cap screw
3095 1202 7009 00 1 Gasket
3100 0101 1626 00 2 Pin
3105 0147 1380 03 18 Bolt
3110 1604 6368 00 1 Bushing
3115 0337 6062 00 1 Parallel key
3120 1613 2197 00 1 Washer
3125 0147 1409 03 1 Bolt
3130 1202 7010 00 1 Gasket
3135 0101 1626 00 2 Pin
3140 0147 1371 03 13 Bolt
3150 0686 3716 02 1 Plug
3155 0661 1000 27 1 Seal washer
3160 1614 6798 00 1 Coupl.housing
3165 1614 6611 00 3 Grating
3170 0147 1555 03 8 Bolt
3175 0266 2116 00 8 Nut
3180 2252 5483 00 1 Gear casing
3185 0147 1367 03 12 Bolt
3190 0266 2111 00 12 Nut
3195 2252 5477 00 1 Washer
3200 2252 5478 00 1 Bushing
3205 1619 5177 00 2 Sealing ring
3210 2252 5479 00 1 Retainer
3215 0663 2107 76 1 O-ring
3220 0147 1366 03 4 Bolt
3225 2254 7604 00 1 Ring
3230 2252 5489 00 2 Oil nozzle
3235 0663 3117 00 2 O-ring
3240 0147 1244 03 2 Bolt
3245 2252 5492 00 1 Drain pipe
3250 0147 1244 03 1 Bolt
3255 2252 5487 00 1 Cover
3260 1202 7011 00 1 Gasket
3265 0147 1364 03 4 Bolt
2253 2423 80 1 Safety valve
4020 • 1 Valve housing
4025 2253 3033 00 • 1 Seal
4030 2253 2424 00 • 1 Valve
4035 2253 1809 00 • 1 Spring
4040 2253 2425 00 • 1 Spacer
4045 0335 2145 00 • 1 Int.circlip
Ref. Part number Qty Name Remarks
3110 1604 6368 00 1 Bushing
3115 0337 6062 00 1 Parallel key
3120 1613 2197 00 1 Washer
3125 0147 1409 03 1 Bolt
3130 1202 7010 00 1 Gasket
3135 0101 1626 00 2 Pin
3140 0147 1371 03 13 Bolt
3150 0686 3716 02 1 Plug
3155 0661 1000 27 1 Seal washer
3160 1614 6794 00 1 Coupl.housing
3165 1614 6611 00 3 Grating
3170 0147 1555 03 8 Bolt
3175 0266 2116 00 8 Nut
3180 2252 5483 00 1 Gear casing
3185 0147 1367 03 12 Bolt
3190 0266 2111 00 12 Nut
3195 2252 5477 00 1 Washer
3200 2252 5478 00 1 Bushing
3205 1619 5177 00 2 Sealing ring
3210 2252 5479 00 1 Retainer
3215 0663 2107 76 1 O-ring
3220 0147 1366 03 4 Bolt
3225 2254 7604 00 1 Ring
3230 2252 5489 00 2 Oil nozzle
3235 0663 3117 00 2 O-ring
3240 0147 1244 03 2 Bolt
3245 2252 5492 00 1 Drain pipe
3250 0147 1244 03 1 Bolt
3255 2252 5487 00 1 Cover
3260 1202 7011 00 1 Gasket
3265 0147 1364 03 4 Bolt
No motor 505 TSD NEMA
3025 1619 6032 00 1 Nipple
3035 2252 5484 00 1 Drive shaft
3040 0211 1407 00 10 Cap screw
3045 0506 5109 00 1 Roller bearing
3050 0506 0100 08 1 Roller bearing
3055 2252 5485 00 1 Adaptor
3060 1614 7949 00 1 Protection
3065 0663 7177 00 1 O-ring
3070 0147 1365 03 8 Bolt
3075 2254 8831 00 1 Bushing
3080 0337 6074 00 1 Parallel key
8
Parts list
2930 1822 00
2
73325
9
Parts list
2930 1822 00
Valves on element 2
Ref. Part number Qty Name Remarks
Mounts on Element
GR 110
GR 132
1075 0147 1374 03 2 Screw
1080 0147 1365 03 2 Screw
1085 0663 9873 00 1 O-ring
1090 1626 5478 01 1 Housing
1095 2252 8450 11 1 Connection
1100 0663 2106 13 2 O-ring
1105 2252 8449 11 1 Housing
1106 0686 3716 01 1 Plug
1107 0661 1000 25 1 Seal washer
1108 0686 4201 03 1 Plug
1109 0653 1046 00 1 Flat gasket
1110 0686 4201 03 1 Plug
1115 0653 1046 00 1 Flat gasket
1120 0663 2106 20 1 O-ring
1125 0147 1403 03 4 Bolt
1130 2252 9814 11 1 Connection
1135 0663 2108 12 1 O-ring
1140 0663 2106 15 1 O-ring
1145 0147 1362 03 4 Bolt
1150 2252 8934 05 1 Nozzle
1155 0663 2106 10 2 O-ring
1160 0147 1364 03 2 Bolt
1230 0663 2108 12 1 O-ring
1235 0663 2106 15 1 O-ring
1240 0147 1379 03 4 Bolt
1245 2252 8455 11 1 Valve housing
1250 0686 3716 02 1 Plug
1255 0661 1000 27 1 Seal washer
1260 2253 9671 00 2 Valve
1265 2254 8075 00 2 Compr.spring
1270 2253 1298 00 1 Valve seat
1275 0663 2106 15 4 O-ring
1280 0211 1244 00 1 Cap screw
1285 1614 7864 00 1 Bushing
1290 0147 1381 03 6 Bolt
1295 0686 3716 02 1 Plug
1300 0653 1124 00 1 Flat gasket
1305 0686 3716 30 1 Plug
1310 0653 1100 00 1 Flat gasket
GR 160
GR 200
13 bar(e)
13.8 bar(e)
1075 0147 1374 03 2 Screw
1080 0147 1365 03 2 Screw
1085 0663 9873 00 1 O-ring
1090 1626 5478 01 1 Housing
1095 2252 8450 11 1 Connection
1100 0663 2106 13 2 O-ring
1105 2252 8449 11 1 Housing
1106 0686 3716 01 1 Plug
1107 0661 1000 25 1 Seal washer
1108 0686 4201 03 1 Plug
1109 0653 1046 00 1 Flat gasket
1110 0686 4201 03 1 Plug
1115 0653 1046 00 1 Flat gasket
1120 0663 2106 20 1 O-ring
1125 0147 1403 03 4 Bolt
1130 2252 9814 11 1 Connection
1135 0663 2108 12 1 O-ring
Ref. Part number Qty Name Remarks
1140 0663 2106 15 1 O-ring
1145 0147 1362 03 4 Bolt
1150 2252 8934 09 1 Nozzle
1155 0663 2106 10 2 O-ring
1160 0147 1364 03 2 Bolt
1230 0663 2108 12 1 O-ring
1235 0663 2106 15 1 O-ring
1240 0147 1379 03 4 Bolt
1245 2252 8455 11 1 Valve housing
1250 0686 3716 02 1 Plug
1255 0661 1000 27 1 Seal washer
1260 2253 9671 00 2 Valve
1265 2254 8075 00 2 Compr.spring
1270 2253 1298 00 1 Valve seat
1275 0663 2106 15 4 O-ring
1280 0211 1244 00 1 Cap screw
1285 1614 7864 00 1 Bushing
1290 0147 1381 03 6 Bolt
1295 0686 3716 02 1 Plug
1300 0653 1124 00 1 Flat gasket
1305 0686 3716 30 1 Plug
1310 0653 1100 00 1 Flat gasket
20 bar(e)
1075 0147 1374 03 2 Screw
1080 0147 1365 03 2 Screw
1085 0663 9873 00 1 O-ring
1090 1626 5478 01 1 Housing
1095 2252 8450 11 1 Connection
1100 0663 2106 13 2 O-ring
1105 2252 8449 11 1 Housing
1106 0686 3716 01 1 Plug
1107 0661 1000 25 1 Seal washer
1108 0686 4201 03 1 Plug
1109 0653 1046 00 1 Flat gasket
1110 0686 4201 03 1 Plug
1115 0653 1046 00 1 Flat gasket
1120 0663 2106 20 1 O-ring
1125 0147 1403 03 4 Bolt
1130 2252 9814 11 1 Connection
1135 0663 2108 12 1 O-ring
1140 0663 2106 15 1 O-ring
1145 0147 1362 03 4 Bolt
1150 2252 8934 07 1 Nozzle
1155 0663 2106 10 2 O-ring
1160 0147 1364 03 2 Bolt
1230 0663 2108 12 1 O-ring
1235 0663 2106 15 1 O-ring
1240 0147 1379 03 4 Bolt
1245 2252 8455 11 1 Valve housing
1250 0686 3716 02 1 Plug
1255 0661 1000 27 1 Seal washer
1260 2253 9671 00 2 Valve
1265 2254 8075 00 2 Compr.spring
1270 2253 1298 00 1 Valve seat
1275 0663 2106 15 4 O-ring
1280 0211 1244 00 1 Cap screw
1285 1614 7864 00 1 Bushing
1290 0147 1381 03 6 Bolt
1295 0686 3716 02 1 Plug
1300 0653 1124 00 1 Flat gasket
1305 0686 3716 30 1 Plug
1310 0653 1100 00 1 Flat gasket
10
Parts list
2930 1822 00
2
73325
11
Parts list
2930 1822 00
Ref. Part number Qty Name Remarks
1614 9185 80 1 Valve oil stop
2010 1614 9185 00 • 1 Valve housing
2015 0661 1000 25 • 1 Seal washer
2020 0686 3716 01 • 1 Plug
2025 2254 9868 00 • 1 Compr.spring
2030 2252 6269 00 • 1 Spring guide
Valves on element 2
Ref. Part number Qty Name Remarks
2035 0335 2145 00 • 1 Int.circlip
2040 1623 1354 00 • 1 Valve oil stop
2045 2255 2813 00 • 1 Piston
2050 0663 2106 12 • 1 O-ring
2055 1614 9120 00 • 1 Cover
2060 0147 1325 03 • 4 Bolt
12
Parts list
2930 1822 00
3
73326
13
Parts list
2930 1822 00
Gears 3
Ref. Part number Qty Name Remarks
GR 110
20 bar(e) 60 Hz
1005 1616 5654 00 1 Gear wheel
1010 1616 5655 00 1 Gear wheel
1015 1616 5656 00 1 Gear wheel
20 bar(e) 50 Hz
13.8 bar(e) 60 Hz
1005 1621 9059 00 1 Gearwheel
1010 1621 9060 00 1 Gearwheel
1015 1621 9061 00 1 Gearwheel
13 bar(e) 50 Hz
1005 2253 0013 00 1 Gear wheel
1010 1202 8269 00 1 Gear wheel
1015 1202 8270 00 1 Gear wheel
GR 132
13 bar(e) 50 Hz
1005 1616 5657 00 1 Gear wheel
1010 1616 5658 00 1 Gear wheel
1015 1616 5659 00 1 Gear wheel
GR 160
13 bar(e) 50 Hz
1005 1616 5653 00 1 Gear wheel
1010 1616 5651 00 1 Gear wheel
Ref. Part number Qty Name Remarks
1015 1616 5652 00 1 Gear wheel
13.8 bar(e) 60 Hz
1005 2254 1719 00 1 Gearwheel
1010 2254 1720 00 1 Gear wheel
1015 1615 6393 00 1 Gear wheel
GR 200
20 bar(e) 50 Hz
1005 1621 9062 00 1 Gearwheel
1010 1621 9063 00 1 Gearwheel
1015 1621 9064 00 1 Gearwheel
13.8 bar(e) 60 Hz
1005 1616 5653 00 1 Gear wheel
1010 1616 5651 00 1 Gear wheel
1015 1616 5652 00 1 Gear wheel
13 bar(e) 50 Hz
1005 1615 6810 00 1 Gear wheel
1010 1615 6811 00 1 Gear wheel
1015 1615 6812 00 1 Gear wheel
20 bar(e) 60 Hz
1005 1616 6401 00 1 Gearwheel
1010 1616 6402 00 1 Gearwheel
1015 1616 6403 00 1 Gearwheel
14
Parts list
2930 1822 00
4
73327
15
Parts list
2930 1822 00
Air filter 4
Ref. Part number Qty Name Remarks
Air cooled
1010 1616 2987 00 6 Plug
1035 1621 9548 00 1 Hose assembly
1040 0347 6100 47 2 Hose clamp
1060 1621 5742 00 1 Filter element
1070 1614 9088 00 1 Plate
1075 0147 1325 03 4 Bolt
1080 0301 2358 00 1 Washer
1085 0296 1112 02 1 Wing nut
1090 0248 9979 60 1 Threaded rod
1095 0266 2112 00 1 Nut
1100 0301 2358 00 1 Washer
1105 1621 4873 00 2 Plate
1110 1621 5580 00 2 Gasket
1115 1621 5581 00 1 Gasket
1120 1621 5392 00 1 Support
1125 0266 2112 00 1 Nut
1130 0301 2358 00 1 Washer
1135 0291 1128 18 8 Lock nut
1140 0301 2335 00 8 Washer
Water cooled
1010 1616 2987 00 4 Plug
1035 1621 9549 00 1 Hose assembly
Ref. Part number Qty Name Remarks
1040 0347 6100 47 2 Hose clamp
1055 1614 9370 00 1 Support
1057 1619 2766 00 6 Bolt
1060 1621 5742 00 1 Filter element
1070 1614 9088 00 1 Plate
1075 0147 1325 03 4 Bolt
1080 0301 2358 00 1 Washer
1085 0296 1112 02 1 Wing nut
1090 0248 9979 60 2 Threaded rod
1095 0266 2112 00 2 Nut
1100 0301 2358 00 1 Washer
1103 0301 2358 00 1 Washer
1105 1621 4873 00 2 Plate
1110 1621 5580 00 2 Gasket
1115 1621 5581 00 1 Gasket
1120 1621 5392 00 1 Support
1125 0266 2112 00 1 Nut
1130 0301 2358 00 1 Washer
1135 0291 1128 18 8 Lock nut
1140 0301 2335 00 8 Washer
1621 5035 80 1 Housing
2005 • 1 Housing
2010 1621 9917 00 • 1 Silencing foam
16
Parts list
2930 1822 00
5
73328
17
Parts list
2930 1822 00
Air filter - Heavy duty filter 5
Ref. Part number Qty Name Remarks
1005 1614 9367 00 1 Air filter
1008 1616 2987 00 8 Plug
1010 1614 9368 00 1 Clamp
1015 1614 9187 00 1 Support
1020 0147 1327 03 2 Bolt
1024 0301 2335 00 2 Washer
1035 0147 1322 03 4 Bolt
1040 0333 3227 00 4 Lock washer
Ref. Part number Qty Name Remarks
1045 0266 2110 00 4 Hexagon nut
1050 1621 9548 00 1 Hose assembly
1055 0347 6100 47 2 Hose clamp
1060 1614 9873 00 1 Support
1065 1614 9299 00 1 Support
1070 0346 1000 27 1 Pipe clamp
1075 1619 2766 00 3 Bolt
18
Parts list
2930 1822 00
6
73329
19
Parts list
2930 1822 00
Unloading valve 6
Ref. Part number Qty Name Remarks
1614 9008 81 1 Unloader assembly
1010 1614 9008 01 • 1 Valve housing
1015 2250 2528 00 • 1 Plug screw
1020 0661 1000 31 • 1 Seal washer
1025 1614 9173 00 • 1 Valve
1030 1619 6142 00 • 1 Sealring
1035 1619 6143 00 • 1 Sealring
1040 1614 9282 00 • 1 Spring
1050 0663 2109 71 • 1 O-ring
1055 0663 2109 73 • 2 O-ring
1060 1621 9151 00 • 2 Washer
1065 0147 1326 03 • 2 Bolt
1070 0147 1958 97 • 2 Bolt
1075 0301 2335 00 • 4 Washer
1080 0686 3716 01 • 1 Plug
1085 0653 0500 02 • 1 Flat gasket
1090 0575 0125 03 • 1 Hose assembly
1095 1079 5840 15 • 2 Nipple
1100 0653 1124 00 • 2 Flat gasket
With Modulating control
1614 9008 82 1 Unloader assembly
1010 1621 9127 00 • 1 Valve housing
1015 2250 2528 00 • 1 Plug screw
1020 0661 1000 31 • 1 Seal washer
1025 1614 9173 00 • 1 Valve
1030 1619 6142 00 • 1 Sealring
1035 1619 6143 00 • 1 Sealring
1040 1614 9282 00 • 1 Spring
1050 0663 2109 71 • 1 O-ring
Ref. Part number Qty Name Remarks
1055 0663 2109 73 • 2 O-ring
1060 1621 9151 00 • 1 Washer
1065 0147 1326 03 • 2 Bolt
1070 0147 1958 97 • 2 Bolt
1075 0301 2335 00 • 4 Plain washer
1080 0686 3716 01 • 1 Plug
1085 0653 0500 02 • 1 Flat gasket
1090 0575 0125 03 • 1 Hose assembly
1095 1079 5840 15 • 2 Nipple
1100 0653 1124 00 • 2 Flat gasket
1614 9177 81 • 1 Cover assembly
2005 1614 9177 00 •• 1 Valve cover
2009 0661 1000 36 •• 1 Seal washer
2010 1614 9154 00 •• 1 Valve seat
2015 1621 9133 00 •• 1 Piston
2016 1621 9669 00 •• 1 Pin
2017 1621 9670 00 •• 1 Bushing
2018 0196 1553 13 •• 1 Set screw
2020 0663 9868 00 •• 1 O-ring
2025 1614 9156 00 •• 1 Spring
2030 1621 9136 00 •• 1 Cover
2035 0335 2150 00 •• 1 Circlips
2060 0686 4201 03 •• 1 Plug
2065 0653 0500 08 •• 1 Flat gasket
2070 0603 5106 03 •• 1 Hexagon nipple
2075 0560 0200 23 •• 1 Elbow
2080 1619 5338 11 •• 1 Pressure valve
2085 0686 4201 03 •• 1 Plug
2090 0653 0500 08 •• 1 Flat gasket
20
Parts list
2930 1822 00
7
73330
21
Parts list
2930 1822 00
Air receiver 7
Ref. Part number Qty Name Remarks
ASME (U Stamp)
CHINA
DIR
Singapore
1621 9362 85 1 Air receiver
1005 1621 9362 05 • 1 Vessel
1010 1621 9366 05 • 1 Valve housing
1015 0663 2109 45 • 1 O-ring
1020 0663 2109 45 • 1 O-ring
1025 1614 9089 00 • 1 Pivot pin
1030 0301 2394 00 • 16 Washer
1035 0147 1964 55 • 16 Bolt
CE
1621 9362 80 1 Air receiver
1005 1621 9362 08 • 1 Vessel
1010 1621 9366 08 • 1 Valve housing
1015 0663 2109 45 • 1 O-ring
1020 0663 2109 45 • 1 O-ring
1025 1614 9089 00 • 1 Pivot pin
1030 0301 2394 00 • 16 Washer
1035 0147 1964 55 • 16 Bolt
1611 6314 60 1 Vessel ass'y
2010 1614 9428 00 • 1 Shield
2015 1614 9094 00 • 1 Bushing
2020 1621 9387 00 • 1 Oil sep.element
2025 0147 1479 03 • 1 Bolt
2030 1614 9184 00 • 1 Level gauge
2035 0661 1038 00 • 1 Sealing washer
2040 1619 6249 00 • 1 Nipple
2045 1621 9144 00 • 1 Hose assembly
2050 1614 9146 00 • 1 Plug
2055 0653 1100 00 • 1 Flat gasket
2060 1614 9142 00 • 1 Scavenge line
2070 0661 1000 27 • 1 Seal washer
2075 0686 3716 02 • 1 Plug
1614 7522 80 • 1 Valves on element
3010 0663 2106 58 •• 1 O-ring
3015 0147 1365 03 •• 6 Bolt
3020 1621 4980 00 •• 1 Piston
Ref. Part number Qty Name Remarks
3025 0665 0701 39 •• 1 Back-up ring
3030 1623 2037 00 •• 1 Shaft
3035 1614 6957 00 •• 1 Washer
3040 1621 4975 00 •• 1 Ring
3045 1621 4976 00 •• 1 Nut
3050 9125 7289 00 •• 1 Set screw
3055 2253 3735 00 •• 1 Spring seat
3060 2253 2968 00 •• 1 Spring
3065 2253 1864 00 •• 1 Spring
3070 1614 7522 00 •• 1 Cover
3075 0147 1958 97 •• 2 Bolt
3076 0301 2335 00 •• 2 Washer
3080 1614 6477 00 •• 1 Sleeve
3085 0147 1411 12 •• 1 Bolt
3090 0266 2112 00 •• 1 Nut
Safety valve
13 bar(e)
13.8 bar(e)
4010 0603 4107 03 1 Hexagon nipple
4015 0564 0000 81 1 Tee
4020 0653 1189 00 1 Flat gasket
4025 0830 1008 18 1 Safety valve
4030 0603 4106 03 1 Hexagon nipple
4035 0564 0000 69 1 Tee
20 bar(e)
4010 0603 4107 03 1 Hexagon nipple
4015 0564 0000 82 1 Tee
4020 0653 1227 00 1 Flat gasket
4025 0830 1008 20 1 Safety valve
4030 0603 4106 03 1 Hexagon nipple
4035 0564 0000 69 1 Tee
Oil
Air cooled
5020 1623 0488 00 1 Can
5025 1079 9925 87 1 Label
Water cooled
5020 1623 0488 00 1 Can
5025 1079 9925 87 1 Label
22
Parts list
2930 1822 00
8
73331
23
Parts list
2930 1822 00
Air flow - GR 8
Ref. Part number Qty Name Remarks
Connection air
1020 1621 9050 00 1 Hose assembly
1025 0663 2106 18 1 O-ring
1030 0147 1403 03 4 Bolt
1035 0301 2358 00 4 Washer
1040 0663 2106 17 1 O-ring
1045 0147 1403 03 4 Bolt
1050 0301 2358 00 4 Washer
1055 1621 9052 00 1 Hose assembly
1060 0663 2106 17 1 O-ring
1065 0147 1364 03 4 Bolt
1070 0301 2344 00 4 Washer
1075 0663 2106 17 1 O-ring
1080 0147 1364 03 4 Bolt
1085 0301 2344 00 4 Washer
1090 1614 9448 11 1 Pipe
1095 0663 2106 15 1 O-ring
Ref. Part number Qty Name Remarks
1100 0147 1364 03 4 Bolt
1105 0301 2344 00 4 Washer
1110 0663 2109 69 1 O-ring
1115 0211 1401 03 4 Cap screw
1120 0301 2358 00 4 Washer
Water seperator
13 bar(e)
13.8 bar(e)
2010 1613 9463 80 1 Water seperator
13 bar(e) Electronic
condensate drain
13.8 bar(e) Electronic
condensate drain
2010 1613 9463 81 1 Water seperator
20 bar(e)
2010 1613 9463 82 1 Water seperator
24
Parts list
2930 1822 00
9
73332
25
Parts list
2930 1822 00
Air flow - GR W 9
Ref. Part number Qty Name Remarks
Connection air
1020 1621 9050 00 1 Hose assembly
1025 0663 2106 18 1 O-ring
1030 0147 1403 03 4 Bolt
1035 0301 2358 00 4 Washer
1040 0663 2106 17 1 O-ring
1045 0147 1403 03 4 Bolt
1050 0301 2358 00 4 Washer
1055 1621 9094 00 1 Hose assembly
1060 0663 2106 17 1 O-ring
1065 0147 1364 03 4 Bolt
1070 0301 2344 00 4 Washer
1075 0663 2106 19 1 O-ring
1080 0147 1402 03 4 Bolt
1085 0301 2358 00 4 Washer
1090 1621 9096 11 1 Pipe
1095 0663 2106 19 1 O-ring
Ref. Part number Qty Name Remarks
1100 0147 1402 03 4 Bolt
1105 0301 2358 00 4 Washer
1110 0663 2109 69 1 O-ring
1115 0211 1401 03 4 Cap screw
1120 0301 2358 00 4 Washer
Water seperator
13 bar(e)
13.8 bar(e)
2010 1613 9463 80 1 Water seperator
13 bar(e) Electronic
condensate drain
13.8 bar(e) Electronic
condensate drain
2010 1613 9463 81 1 Water seperator
20 bar(e)
2010 1613 9463 82 1 Water seperator
26
Parts list
2930 1822 00
10
Ref. Part number Qty Name Remarks
1020 1621 9080 00 1 Hose assembly
1025 0663 2109 69 1 O-ring
1030 0211 1401 03 4 Cap screw
1035 0301 2358 00 4 Washer
1040 1614 9457 00 1 Support
1045 1619 5337 01 3 Bolt
1046 0346 2900 15 1 U-bolt
1047 0301 2358 00 2 Washer
1048 0266 2112 00 2 Nut
1050 1621 9081 00 1 Pipe
1055 0663 2106 17 1 O-ring
1060 0147 1481 03 4 Bolt
Air outlet - Pack
Ref. Part number Qty Name Remarks
1065 0301 2378 00 8 Washer
1070 0266 2114 00 4 Nut
1075 0686 3716 01 1 Plug
1080 0653 1062 00 1 Flat gasket
1085 1619 2766 00 2 Bolt
1090 0346 1000 27 1 Pipe clamp
1095 0266 2110 00 1 Hexagon nut
1100 0346 1000 27 1 Pipe clamp
1105 0147 1323 03 1 Hex. head screw
1110 0266 2110 00 1 Hexagon nut
Adaptor
2010 1614 7202 00 1 Adaptor
73333
27
Parts list
2930 1822 00
Air outlet - Full Feature 11
Ref. Part number Qty Name Remarks
1020 1621 9057 00 1 Hose assembly
1025 0663 2109 69 1 O-ring
1030 0211 1401 03 4 Cap screw
1035 0301 2358 00 4 Washer
1036 0686 3115 58 1 Plug
1045 1619 2766 00 2 Bolt
1050 0686 3716 01 1 Plug
1055 0653 1062 00 1 Flat gasket
1060 1621 9069 00 1 Valve
1065 0147 1489 03 4 Bolt
1070 0301 2378 00 8 Washer
1075 0266 2114 00 4 Nut
Ref. Part number Qty Name Remarks
1085 1621 9069 00 2 Valve
1090 0147 1489 03 8 Bolt
1095 0301 2378 00 16 Washer
1100 0266 2114 00 8 Nut
1105 0663 2106 18 2 O-ring
1110 0147 1403 03 8 Bolt
1115 0301 2358 00 8 Washer
1614 9446 80 1 Pipes
2020 1614 9446 11 • 1 Pipe
2025 1614 9444 11 • 2 Pipe
Adaptor
3010 1614 7202 00 1 Adaptor
73334
28
Parts list
2930 1822 00
12
73335
29
Parts list
2930 1822 00
Air outlet - Full Feature + DD Filter 12
Ref. Part number Qty Name Remarks
1020 1621 9057 00 1 Hose assembly
1025 0663 2109 69 1 O-ring
1030 0211 1401 03 4 Cap screw
1035 0301 2358 00 4 Washer
1036 0686 3115 58 1 Plug
1045 1621 9069 00 1 Valve
1050 0147 1489 03 4 Bolt
1055 0301 2378 00 8 Washer
1060 0266 2114 00 4 Nut
1065 0147 1365 03 2 Screw
1070 0333 3232 00 2 Lock washer
1075 0282 0000 06 2 Square nut
1085 1621 9069 00 2 Valve
1090 0147 1489 03 8 Bolt
1095 0301 2378 00 16 Washer
1100 0266 2114 00 8 Nut
1105 0663 2106 18 2 O-ring
1110 0147 1403 03 8 Bolt
1115 0301 2358 00 8 Washer
1125 0686 3716 01 1 Plug
1130 0653 1062 00 1 Flat gasket
1135 0663 2106 16 2 O-ring
1140 0147 1365 03 2 Screw
1145 0333 3232 00 2 Lock washer
Ref. Part number Qty Name Remarks
1150 0282 0000 06 2 Square nut
1155 1619 2766 00 2 Bolt
1614 9245 80 1 Pipes
2020 • 1 Pipe
2025 1614 9444 11 • 2 Pipe
2030 1614 9460 00 1 Pipe
DD filter
3005 8102 2604 06 1 Dd filter
3010 0581 0025 01 1 Pipe coupling
3015 0661 1000 24 1 Seal washer
3020 1615 3624 00 1 Nozzle
3025 0661 1000 24 1 Seal washer
3030 1079 5840 01 1 Nipple
3035 0661 1000 24 1 Seal washer
3040 0560 4401 09 1 Tee
3045 1621 0148 00 1 Nipple
3050 1619 5205 00 1 Nipple
3055 0661 1000 25 1 Seal washer
3060 0574 8231 16 1 Hose assembly
4010 1089 9625 01 1 Dp transducer
4020 1623 1191 00 1 Wire harness
Adaptor
5010 1614 7202 00 1 Adaptor
30
Parts list
2930 1822 00
13
73336
31
Parts list
2930 1822 00
Cooler(s) - GR 13
Ref. Part number Qty Name Remarks
GR110
1020 1621 9487 00 1 Oilcooler
1025 1621 9486 00 1 Oilcooler
1030 0147 1323 03 8 Hex. head screw
1035 0300 8019 00 8 Washer
1040 0575 0125 37 1 Hose assembly
1045 1079 5840 15 2 Nipple
1050 0661 1000 27 2 Seal washer
1055 1614 9252 00 2 Plug
1060 0575 0125 40 1 Hose assembly
1065 0346 1012 44 1 Pipe clamp
1070 1619 5337 01 1 Bolt
1075 0686 3716 02 2 Plug
1080 0661 1000 27 2 Seal washer
1085 1621 9045 00 1 Aftercooler
1090 0147 1323 03 4 Hex. head screw
1095 0300 8019 00 4 Washer
1100 1623 7295 00 1 Hose assembly
1105 0663 2109 68 2 O-ring
1110 0147 1362 03 4 Bolt
1115 0301 2344 00 4 Washer
1120 1621 9137 00 1 Hose assembly
1125 0663 2109 68 1 O-ring
1130 0147 1362 03 2 Bolt
1135 0301 2344 00 2 Washer
1140 0663 2109 68 1 O-ring
1145 0147 1363 03 2 Bolt
1150 0301 2344 00 2 Washer
1155 1621 9139 00 1 Hose assembly
1160 0663 2109 68 1 O-ring
1165 0147 1362 03 2 Bolt
1170 0301 2344 00 2 Washer
1175 0663 2109 68 1 O-ring
1180 0147 1363 03 2 Bolt
1185 0301 2344 00 2 Washer
1300 1619 2766 00 4 Bolt
1614 9497 80 2 Plate
2010 • 1 Plate
2020 1619 2795 00 • AR Rubber strip
GR132
GR160
GR200
1020 1621 9488 00 1 Oilcooler
1025 1621 9489 00 1 Oilcooler
1030 0147 1323 03 8 Hex. head screw
1035 0300 8019 00 8 Washer
1040 0575 0125 37 1 Hose assembly
1045 1079 5840 15 2 Nipple
1050 0661 1000 27 2 Seal washer
1055 1614 9252 00 2 Plug
1060 0575 0125 40 1 Hose assembly
1065 0346 1012 44 1 Pipe clamp
1070 1619 5337 01 1 Bolt
1075 0686 3716 02 2 Plug
1080 0661 1000 27 2 Seal washer
1085 1621 9045 00 1 Aftercooler
1090 0147 1323 03 4 Hex. head screw
1095 0300 8019 00 4 Washer
1100 1623 7295 00 1 Hose assembly
1105 0663 2109 68 2 O-ring
Ref. Part number Qty Name Remarks
1110 0147 1363 03 4 Bolt
1115 0301 2344 00 4 Washer
1120 1621 9137 00 1 Hose assembly
1125 0663 2109 68 1 O-ring
1130 0147 1362 03 2 Bolt
1135 0301 2344 00 2 Washer
1140 0663 2109 68 1 O-ring
1145 0147 1363 03 2 Bolt
1150 0301 2344 00 2 Washer
1155 1621 9139 00 1 Hose assembly
1160 0663 2109 68 1 O-ring
1165 0147 1362 03 2 Bolt
1170 0301 2344 00 2 Washer
1175 0663 2109 68 1 O-ring
1180 0147 1363 03 2 Bolt
1185 0301 2344 00 2 Washer
Connection oil
3010 0663 2107 77 1 O-ring
3015 1614 9006 02 1 Oil filter housing
3020 0301 2344 00 3 Washer
3025 0147 1363 03 3 Bolt
3040 0663 2107 77 1 O-ring
3045 1614 9007 00 1 Cover
3050 0301 2335 00 4 Washer
3055 0147 1325 03 4 Bolt
3060 2254 7257 00 3 Nipple
3065 1202 8040 02 3 Oilfilter
3075 0686 3716 01 1 Plug
3076 0661 1000 25 1 Seal washer
3100 1621 9140 00 1 Hose assembly
3105 0663 2106 11 1 O-ring
3110 0147 1401 03 2 Bolt
3115 0301 2358 00 2 Washer
3120 0663 2109 68 1 O-ring
3125 0147 1362 03 2 Bolt
3130 0301 2344 00 2 Washer
Thermostatic valve
GR 110
13 bar(e)
13.8 bar(e)
4005 1202 5869 03 1 Thermostatic valve
1202 5868 00 • 1 Spring
20 bar(e)
4005 1202 5869 01 1 Thermostatic valve
1202 5868 00 • 1 Spring
GR 132
GR 160
20 bar(e)
4005 1202 5869 03 1 Thermostatic valve
1202 5868 00 • 1 Spring
13 bar(e)
13.8 bar(e)
4005 1202 5869 02 1 Thermostatic valve
1202 5868 00 • 1 Spring
GR 200
13 bar(e)
13.8 bar(e)
20 bar(e)
4005 1202 5869 02 1 Thermostatic valve
1202 5868 00 • 1 Spring
32
Parts list
2930 1822 00
14
73337
33
Parts list
2930 1822 00
Cooler(s) - GR W 14
Ref. Part number Qty Name Remarks
1020 1621 9129 08 1 Aftercooler
1025 1614 8666 08 1 Oil cooler
1030 1614 8667 08 1 Oil cooler
1035 1621 9123 00 1 Support
1036 0147 1362 03 12 Bolt
1037 0301 2344 00 12 Washer
1040 1619 5337 01 4 Bolt
1041 0346 1000 15 2 Pipe clamp
1042 1619 2766 00 2 Bolt
1045 0663 2106 12 4 O-ring
1050 1614 6632 00 2 Plate
1055 0147 1962 33 4 Bolt
1060 0301 2358 00 8 Washer
1065 0266 2112 00 4 Nut
1070 1614 8259 11 1 Pipe
1075 0663 2106 11 2 O-ring
1080 0147 1402 03 4 Bolt
1085 0301 2358 00 4 Washer
1090 1621 9142 00 1 Hose assembly
1095 0663 2106 11 1 O-ring
1100 0147 1401 03 2 Bolt
1105 0301 2358 00 2 Washer
1110 0663 2109 68 1 O-ring
1115 0147 1362 03 2 Bolt
1120 0301 2344 00 2 Washer
1125 1621 9141 00 1 Hose assembly
1126 0661 1000 25 2 Seal washer
1127 0686 3716 01 2 Plug
1130 0663 2106 11 1 O-ring
1135 0147 1401 03 2 Bolt
1140 0301 2358 00 2 Washer
1145 0663 2109 68 1 O-ring
1150 0147 1362 03 2 Bolt
1155 0301 2344 00 2 Washer
1160 0346 1000 15 2 Pipe clamp
1165 1088 1305 02 5 Push mount
1170 0348 0101 19 7 Cable tie
Connection oil
2010 0663 2107 77 1 O-ring
2015 1614 9006 02 1 Oil filter housing
2020 0301 2344 00 3 Washer
2025 0147 1363 03 3 Bolt
2040 0663 2107 77 1 O-ring
2045 1614 9007 00 1 Cover
2050 0301 2335 00 4 Washer
2055 0147 1325 03 4 Bolt
2060 2254 7257 00 3 Nipple
2065 1202 8040 02 3 Oilfilter
2075 0686 3716 01 1 Plug
2076 0661 1000 25 1 Seal washer
2100 1621 9140 00 1 Hose assembly
2105 0663 2106 11 1 O-ring
2110 0147 1401 03 2 Bolt
2115 0301 2358 00 2 Washer
2120 0663 2109 68 1 O-ring
2125 0147 1362 03 2 Bolt
2130 0301 2344 00 2 Washer
Connection water
ISO pipe thread
3005 0605 8350 26 2 Bushing
Pack
4020 1614 9272 00 1 Pipe
Ref. Part number Qty Name Remarks
4021 0663 2106 12 1 O-ring
4025 1619 6153 08 1 Ball valve
4030 1621 9099 00 1 Pipe
4035 0147 1405 03 2 Bolt
4040 0301 2358 00 2 Washer
4045 0266 2112 00 2 Nut
4050 1621 9122 00 1 Pipe
4051 0663 2106 12 1 O-ring
4055 0147 1405 03 2 Bolt
4060 0301 2358 00 2 Washer
4065 0266 2112 00 2 Nut
4070 0686 3716 35 1 Plug
4075 0661 1000 29 1 Seal washer
4080 1619 2861 01 2 Clamp
4085 1619 5337 01 2 Bolt
4090 1614 9579 00 1 Support
4095 1619 2766 00 2 Bolt
Full feature
4020 1621 9121 00 1 Pipe
4021 0663 2106 12 1 O-ring
4025 1619 6153 08 1 Ball valve
4030 1621 9099 00 1 Pipe
4035 0147 1405 03 2 Bolt
4040 0301 2358 00 2 Washer
4045 0266 2112 00 2 Nut
4050 1621 9122 00 1 Pipe
4051 0663 2106 12 1 O-ring
4055 0147 1405 03 2 Bolt
4060 0301 2358 00 2 Washer
4065 0266 2112 00 2 Nut
4067 1621 9100 00 1 Pipe
4072 0586 1000 30 2 Union
4080 1619 2861 01 2 Clamp
4085 1619 5337 01 2 Bolt
4090 1614 9579 00 1 Support
4095 1619 2766 00 2 Bolt
Thermostatic valve
GR 110
13 bar(e)
13.8 bar(e)
5010 1202 5869 03 1 Thermostatic valve
1202 5868 00 • 1 Spring
20 bar(e)
5010 1202 5869 01 1 Thermostatic valve
1202 5868 00 • 1 Spring
GR 132
GR 160
20 bar(e)
5010 1202 5869 03 1 Thermostatic valve
1202 5868 00 • 1 Spring
13 bar(e)
13.8 bar(e)
5010 1202 5869 02 1 Thermostatic valve
1202 5868 00 • 1 Spring
GR 200
13 bar(e)
13.8 bar(e)
20 bar(e)
5010 1202 5869 02 1 Thermostatic valve
1202 5868 00 • 1 Spring
34
Parts list
2930 1822 00
15
71546
35
Parts list
2930 1822 00
Cooler(s) - GR W - Aftercooler parts 15
Ref. Part number Qty Name Remarks
1621 9129 08 1 Aftercooler
1005 1614 7481 00 • 1 Cylinder
1010 1614 8722 00 • 1 Tubestack
1015 1614 7381 00 • 1 Water box
1020 1614 7382 00 • 1 Water box
1025 1614 6256 00 • 4 O-ring seal
1030 0147 1408 03 • 4 Bolt
1035 0653 1062 00 • 1 Drain plug washer
Ref. Part number Qty Name Remarks
1040 1614 6257 00 • 1 Leakage ring
1045 0147 1962 34 • 4 Bolt
1050 0266 2112 00 • 8 Nut
1055 0333 2236 00 • 8 Spring washer
1060 0301 2358 00 • 8 Plain washer
1065 0686 3716 01 • 1 Drain plug
1070 • 1 Data plate
1075 • 4 Drive screw
36
Parts list
2930 1822 00
16
71547
37
Parts list
2930 1822 00
Cooler(s) - GR W - Oilcooler parts 16
Ref. Part number Qty Name Remarks
1614 8666 08 1 Oil cooler
1005 1614 7483 00 • 1 Cylinder
1010 1614 8721 00 • 1 Tubestack
1015 1614 7382 00 • 2 Water box
1020 1614 6256 00 • 4 O-ring seal
1025 0147 1408 03 • 4 Bolt
1030 0661 1000 27 • 1 Drain plug washer
1035 1614 6257 00 • 1 Leakage ring
1040 0147 1962 34 • 4 Bolt
1045 0266 2112 00 • 8 Nut
1050 0333 2236 00 • 8 Spring washer
1055 0301 2358 00 • 8 Plain washer
1060 0686 3716 02 • 1 Drain plug
1065 • 1 Data plate
1070 • 4 Drive screw
1614 8667 08 1 Oil cooler
2005 1614 7483 00 • 1 Cylinder
Ref. Part number Qty Name Remarks
2010 1614 8721 00 • 1 Tubestack
2015 1614 7381 00 • 2 Water box
2020 1614 6256 00 • 4 O-ring seal
2025 0147 1408 03 • 4 Bolt
2030 0653 1062 00 • 2 Drain plug washer
2035 1614 6257 00 • 1 Leakage ring
2040 0147 1962 34 • 4 Bolt
2045 0266 2112 00 • 8 Nut
2050 0333 2236 00 • 8 Spring washer
2055 0301 2358 00 • 8 Plain washer
2060 0686 3716 01 • 2 Drain plug
2065 0661 1000 27 • 1 Plain washer
2070 0686 3716 02 • 1 Drain plug
2075 • 1 Data plate
2080 • 4 Drive screw
38
Parts list
2930 1822 00
17
73338
39
Parts list
2930 1822 00
Fan and cooling duct plates - GR 17
Ref. Part number Qty Name Remarks
Cooler plates
GR 110 Air cooled
1025 0147 1362 03 5 Bolt
1030 0301 2344 00 5 Washer
1040 0147 1362 03 5 Bolt
1045 0301 2344 00 5 Washer
1050 1621 9528 00 1 Support
1052 1619 6449 00 AR Seal
1055 0147 1360 03 4 Bolt
1060 0301 2344 00 4 Washer
1070 1619 2766 00 9 Bolt
1080 1079 1472 06 1 Bolt
1081 1619 2766 00 4 Bolt
1090 1619 2766 00 6 Bolt
1100 1621 9527 00 1 Fan cowl
1105 1619 2766 00 15 Bolt
1120 1623 4869 00 2 Guard
1125 1623 4907 00 10 Bolt
1130 0333 3232 00 10 Lock washer
1135 1614 9405 00 4 Hinge
1140 1619 5337 01 4 Bolt
1145 0147 1401 03 8 Bolt
1146 0300 0274 92 8 Washer
1150 0301 2358 00 8 Washer
1155 0346 1000 15 2 Pipe clamp
1160 1619 2861 01 1 Clamp
GR 132 Air cooled
GR 160 Air cooled
GR 200 Air cooled
1025 0147 1362 03 5 Bolt
1030 0301 2344 00 5 Washer
1040 0147 1362 03 5 Bolt
1045 0301 2344 00 5 Washer
1050 1621 9528 00 1 Support
1052 1619 6449 00 AR Seal
1055 0147 1360 03 4 Bolt
1060 0301 2344 00 4 Washer
1070 1619 2766 00 9 Bolt
1080 1079 1472 06 1 Bolt
1081 1619 2766 00 4 Bolt
1090 1619 2766 00 6 Bolt
1100 1621 9527 00 1 Fan cowl
1105 1619 2766 00 15 Bolt
1120 1623 4869 00 2 Guard
1125 1623 4907 00 10 Bolt
1130 0333 3232 00 10 Lock washer
1135 1614 9405 00 4 Hinge
1140 1619 5337 01 8 Bolt
1145 0147 1401 03 8 Bolt
1150 0301 2358 00 8 Washer
1155 0346 1000 15 2 Pipe clamp
1160 1619 2861 01 1 Clamp
1614 9440 80 1 Beam assy 1)2)
2010 • 1 Beam
2030 1079 9901 09 • 1 Label
1614 9441 80 1 Beam assy 1)2)
3010 • 1 Beam
3030 1079 9901 09 • 1 Label
1621 9043 80 1 Baffle
4010 • 1 Baffle
4020 1619 6449 00 • AR Seal
1621 9049 80 1 Baffle
5010 • 1 Baffle
Ref. Part number Qty Name Remarks
5020 1619 6449 00 • AR Seal
1614 9216 80 1 Plate
6010 • 1 Plate
6020 1619 2795 00 • AR Rubber strip
Fan arrangement
GR 110
50 Hz
60 Hz IEC
60 Hz CSA-UL
7020 1614 6453 00 2 Washer
7040 1621 9534 00 2 Fan
7060 0147 1363 03 2 Bolt
7080 1614 6456 00 2 Washer
GR 132 50Hz
GR 160 50 Hz
7020 1614 6453 00 2 Washer
7040 1614 9287 00 2 Fan
7060 0147 1363 03 2 Bolt
7080 1614 6456 00 2 Washer
60 Hz IEC
60 Hz CSA-UL
7020 1614 6453 00 2 Washer
7040 1614 9424 00 2 Fan
7060 0147 1363 03 2 Bolt
7080 1614 6456 00 2 Washer
GR 200
50 Hz
7020 1614 6453 00 4 Washer
7040 1614 9285 00 2 Fan
7060 0147 1363 03 2 Bolt
7080 1614 6456 00 2 Washer
60 Hz IEC
60 Hz CSA-UL
7020 1614 6453 00 2 Washer
7040 1614 9287 00 2 Fan
7060 0147 1363 03 2 Bolt
7080 1614 6456 00 2 Washer
Fan Motor
GR 110
GR 132
GR 160
8010 2 Motor
1080 4034 42 400 V 50 Hz
230 V 50 Hz
440-460 V 60 Hz
1080 4034 44 500 V 50 Hz
575 V 60 Hz CSA-UL
1080 4034 47 220-230 V 60 Hz IEC
380 V 60 HzIEC
GR 200
1080 4034 17 380 V 60 Hz IEC
1080 4034 12 400 V 50 Hz
440-460 V 60 Hz
1080 4034 14 500 V 50 Hz
575 V 60 Hz CSA-UL
Lined with / Bekleed met / Beklädd med /
Ausgekleidet mit /Garnir de / Rivestido de /
Allineato con / Foret med / Revestido com /
Kledd med / Vuorattu :
1) Foam : 0395 6001 69 (AR) 50 x 2040 x 1650
2) Foam : 0395 6001 72 (AR) 75 x 2040 x 1650
40
Parts list
2930 1822 00
18
73339
41
Parts list
2930 1822 00
Frame and motor 18
Ref. Part number Qty Name Remarks
GR 110 60 Hz WEG motor
1614 9726 80 1 Frame
1005 • 1 Frame
1614 9851 00 • 4 Pin
1020 1621 9070 00 2 Support
1025 0147 1401 03 4 Bolt
1030 0301 2358 00 4 Washer
1035 1619 5318 02 2 Antivibr.pad.
1040 0147 1401 03 4 Bolt
1045 0266 2112 00 4 Nut
1050 0301 2358 00 8 Washer
1055 1621 9068 00 2 Support
1060 0147 1476 03 2 Bolt
1065 0333 3244 00 2 Lock washer
1067 0147 1401 03 8 Bolt
1090 1619 5318 01 1 Rubber buffer
1095 0147 1398 03 2 Bolt
1100 0301 2358 00 2 Washer
1110 0266 2118 00 1 Nut
1115 1621 6963 00 1 Support
1120 1623 6980 00 1 Stud
1125 1623 6986 00 1 Plate
1130 0211 1400 03 4 Screw
1135 0301 2378 00 2 Washer
1150 1088 0010 25 1 Cable lug
1155 0147 1322 03 1 Bolt
1160 0333 3227 00 1 Lock washer
1165 0147 1358 03 1 Bolt
1170 0333 3232 00 1 Lock washer
1175 1619 2861 04 2 Clamp
1180 1619 2766 00 1 Bolt
1190 1623 5777 00 3 Buffer
1197 0348 0101 12 3 Cable tie
1200 0333 3232 00 3 Lock washer
1205 0147 1377 03 3 Bolt
1210 0301 2344 00 3 Washer
1215 0266 2111 00 3 Nut
GR 132 50 Hz ABB_M3BP
GR 160 50 Hz ABB_M3BP
1611 6302 96 1 Frame
1005 • 1 Frame
1614 9851 00 • 4 Pin
1020 1621 9070 00 2 Support
1025 0147 1401 03 4 Bolt
1030 0301 2358 00 4 Washer
1035 1619 5318 02 2 Antivibr.pad.
1040 0147 1401 03 4 Bolt
1045 0266 2112 00 4 Nut
1050 0301 2358 00 8 Washer
1055 1621 9068 00 2 Support
1060 0147 1476 03 2 Bolt
1065 0333 3244 00 2 Lock washer
1067 0147 1401 03 8 Bolt
1090 1619 5318 02 1 Antivibr.pad.
1095 0147 1400 03 2 Bolt
1100 0301 2358 00 2 Washer
1115 1621 6963 00 1 Support
1120 1623 8899 00 1 Stud
1150 1088 0010 25 1 Cable lug
1155 0147 1322 03 1 Bolt
1160 0333 3227 00 1 Lock washer
1165 0147 1358 03 1 Bolt
1170 0333 3232 00 1 Lock washer
Ref. Part number Qty Name Remarks
1175 1619 2861 04 2 Clamp
1180 1619 2766 00 1 Bolt
1190 1623 5777 00 3 Buffer
1197 0348 0101 12 3 Cable tie
200 0333 3232 00 3 Lock washer
1205 0147 1377 03 3 Bolt
1210 0301 2344 00 3 Washer
1215 0266 2111 00 3 Nut
GR 160 60 Hz Weg motor
1614 9726 80 1 Frame
1005 • 1 Frame
1614 9851 00 • 4 Pin
1020 1621 9070 00 2 Support
1025 0147 1401 03 4 Bolt
1030 0301 2358 00 4 Washer
1035 1619 5318 01 2 Rubber buffer
1040 0147 1401 03 4 Bolt
1045 0266 2112 00 4 Nut
1050 0301 2358 00 8 Washer
1055 1621 9068 00 2 Support
1060 0147 1476 03 2 Bolt
1065 0333 3244 00 2 Lock washer
1067 0147 1401 03 8 Bolt
1090 1619 5318 01 1 Rubber buffer
1095 0147 1398 03 2 Bolt
1100 0301 2358 00 2 Washer
1110 0266 2118 00 1 Nut
1115 1621 6963 00 1 Support
1120 1623 6980 00 1 Stud
1125 1623 7475 00 1 Plate
1130 0211 1400 03 4 Screw
1135 0301 2378 00 2 Washer
1150 1088 0010 25 1 Cable lug
1155 0147 1322 03 1 Bolt
1160 0333 3227 00 1 Lock washer
1165 0147 1358 03 1 Bolt
1170 0333 3232 00 1 Lock washer
1175 1619 2861 04 2 Clamp
1180 1619 2766 00 1 Bolt
1190 1623 5777 00 3 Buffer
1197 0348 0101 12 3 Cable tie
1200 0333 3232 00 3 Lock washer
1205 0147 1377 03 3 Bolt
1210 0301 2344 00 3 Washer
1215 0266 2111 00 3 Nut
GR 200 60 Hz Weg motor
1614 9726 80 1 Frame
1005 • 1 Frame
1614 9851 00 • 4 Pin
1020 1621 9070 00 2 Support
1025 0147 1401 03 4 Bolt
1030 0301 2358 00 4 Washer
1035 1619 5318 01 2 Rubber buffer
1040 0147 1401 03 4 Bolt
1045 0266 2112 00 4 Nut
1050 0301 2358 00 8 Washer
1055 1621 9068 00 2 Support
1060 0147 1476 03 2 Bolt
1065 0333 3244 00 2 Lock washer
1067 0147 1401 03 8 Bolt
1090 1619 5318 01 1 Rubber buffer
1095 0147 1398 03 2 Bolt
1100 0301 2358 00 2 Washer
42
Parts list
2930 1822 00
18
73339
43
Parts list
2930 1822 00
Frame and motor 18
Ref. Part number Qty Name Remarks
1115 1621 6963 00 1 Support
1120 1623 6981 00 1 Stud
1125 1623 7475 00 1 Plate
1130 0211 1400 03 4 Screw
1135 0301 2378 00 2 Washer
1150 1088 0010 25 1 Cable lug
1155 0147 1322 03 1 Bolt
1160 0333 3227 00 1 Lock washer
1165 0147 1358 03 1 Bolt
1170 0333 3232 00 1 Lock washer
1175 1619 2861 04 2 Clamp
1180 1619 2766 00 1 Bolt
1190 1623 5777 00 3 Buffer
1197 0348 0101 12 3 Cable tie
1200 0333 3232 00 3 Lock washer
1205 0147 1377 03 3 Bolt
1210 0301 2344 00 3 Washer
1215 0266 2111 00 3 Nut
GR 200 Siemens motor
1614 9726 80 1 Frame
1005 • 1 Frame
1614 9851 00 • 4 Pin
1020 1621 9070 00 2 Support
1025 0147 1401 03 4 Bolt
1030 0301 2358 00 4 Washer
1035 1619 5318 02 2 Antivibr.pad.
1040 0147 1401 03 4 Bolt
1045 0266 2112 00 4 Nut
1050 0301 2358 00 8 Washer
1055 1621 9068 00 2 Support
1060 0147 1476 03 2 Bolt
1065 0333 3244 00 2 Lock washer
1067 0147 1401 03 8 Bolt
1090 1612 5584 00 1 Antivib.pad
1095 0147 1400 03 2 Bolt
1100 0301 2358 00 2 Washer
1115 1623 8425 00 1 Support
1120 1623 8928 00 1 Stud
1150 1088 0010 25 1 Cable lug
1155 0147 1322 03 1 Bolt
1160 0333 3227 00 1 Lock washer
1165 0147 1358 03 1 Bolt
1170 0333 3232 00 1 Lock washer
1175 1619 2861 04 2 Clamp
1180 1619 2766 00 1 Bolt
1190 1623 5777 00 3 Buffer
1197 0348 0101 12 3 Cable tie
1200 0333 3232 00 3 Lock washer
1205 0147 1377 03 3 Bolt
1210 0301 2344 00 3 Washer
1215 0266 2111 00 3 Nut
Without main motor
1614 9726 80 1 Frame
1005 • 1 Frame
1614 9851 00 • 4 Pin
1020 1621 9070 00 2 Support
1025 0147 1401 03 4 Bolt
1030 0301 2358 00 4 Washer
1035 1619 5318 01 2 Rubber buffer
1040 0147 1401 03 4 Bolt
1045 0266 2112 00 4 Nut
1050 0301 2358 00 8 Washer
1055 1621 9068 00 2 Support
Ref. Part number Qty Name Remarks
1060 0147 1476 03 2 Bolt
1065 0333 3244 00 2 Lock washer
1067 0147 1401 03 8 Bolt
1150 1088 0010 25 1 Cable lug
1155 0147 1322 03 1 Bolt
1160 0333 3227 00 1 Lock washer
1165 0147 1358 03 1 Bolt
1170 0333 3232 00 1 Lock washer
1175 1619 2861 04 2 Clamp
1180 1619 2766 00 1 Bolt
1190 1623 5777 00 3 Buffer
1197 0348 0101 12 3 Cable tie
1200 0333 3232 00 3 Lock washer
1205 0147 1377 03 3 Bolt
1210 0301 2344 00 3 Washer
1215 0266 2111 00 3 Nut
Coupling
GR 110
60 Hz WEG motor
2020 1614 8738 00 1 Flexible coupling
2025 0337 5305 00 1 Parallel key
2030 2254 7357 01 1 Coupling half
2035 1623 7152 00 1 Coupling
Without main motor
2020 1614 8738 00 1 Flexible coupling
2025 0337 5305 00 1 Parallel key
2030 2254 7357 01 1 Coupling half
2035 2254 7357 03 1 Coupling half
GR 132
ABB_M3BP motor
2020 1614 8738 00 1 Flex.coupling
2025 0337 5305 00 1 Parallel key
2030 2254 7357 01 1 Coupling half
2035 1623 7152 00 1 Coupling
Without main motor
2020 1614 8738 00 1 Flex.coupling
2025 0337 5305 00 1 Parallel key
2030 2254 7357 01 1 Coupling half
2035 2254 7357 03 1 Coupling half
GR 160
60 Hz WEG motor
2020 1614 8738 00 1 Flexible coupling
2025 0337 5305 00 1 Parallel key
2030 2254 7357 01 1 Coupling half
2035 1623 7152 00 1 Coupling
Without main motor
2020 1614 8738 00 1 Flexible coupling
2025 0337 5305 00 1 Parallel key
2030 2254 7357 01 1 Coupling half
2035 2254 7357 03 1 Coupling half
50 Hz ABB_M3BP motor
2020 1614 8738 00 1 Flexible coupling
2025 0337 5305 00 1 Parallel key
2030 2254 7357 01 1 Coupling half
2035 1623 7152 00 1 Coupling
GR 200
Siemens motor
WEG motor
2020 1614 8739 00 1 Flexible coupling
2025 0337 5305 00 1 Parallel key
2030 2255 0196 01 1 Coupling half
2035 1623 7153 00 1 Coupling
44
Parts list
2930 1822 00
18
73339
45
Parts list
2930 1822 00
Frame and motor 18
Ref. Part number Qty Name Remarks
Without main motor
2020 1614 8739 00 1 Flexible coupling
2025 0337 5305 00 1 Parallel key
2030 2255 0196 01 1 Coupling half
2035 2255 0196 03 1 Coupling half
Motor
3010 1 Motor
GR 110
With PT 1000s in the windings
1623700101 440-460V 60 Hz CSA-UL
1623700103 575V 60 Hz CSA-UL
CSA-UL
1623700100 440-460V 60 Hz
1623700102 575V 60 Hz
Anti-condensation heaters
1623700101 440-460V 60 Hz CSA-UL
1623700103 575V 60 Hz CSA-UL
GR 132
ABB_M3BP motor
1623901105 400V 50 Hz
1623901116 500V 50 Hz
With PT 1000s in the windings
1623901115 400V 50 Hz
Anti-condensation heaters
1623901115 400V 50 Hz
GR 160
ABB_M3BP motor
1623811721 400V 50 Hz
1623811732 500V 50 Hz
1623811724 380V 60 Hz r IEC
1623811725 440-460V 60 Hz IEC
With PT 1000s in the windings
1623811731 400V 50 Hz ABB motor
1623811734 380V 60 Hz ABB motor IEC
1623811735 440-460V 60 Hz ABB motor
IEC
1623700105 440-460V 60 Hz Weg motor
CSA-UL
1623700107 575V 60 Hz Weg motor
CSA-UL
Anti-condensation heaters
Ref. Part number Qty Name Remarks
1623811731 400V 50 Hz ABB motor
1623811734 380V 60 Hz ABB motor IEC
1623811735 440-460V 60 Hz ABB motor
IEC
1623700105 440-460V 60 Hz Weg motor
CSA-UL
1623700107 575V 60 Hz Weg motor
CSA-UL
Weg motor
1623700104 440-460V 60 Hz CSA-UL
1623700106 575V 60 Hz CSA-UL
GR 200
Siemens motor
1623741112 380V 60 Hz IEC
1623740901 400V 50 Hz
1623741101 440-460V 60 Hz or IEC
1623740913 500V50 Hz
With PT 1000s in the
windings
1623740911 400V 50 Hz Siemens motor
1623741111 440-460V 60 Hz Siemens
motor IEC
1623700109 440-460V 60 Hz CSA-UL
1623700111 575V 60 Hz CSA-UL
CSA-UL
1623700108 440-460V 60 Hz
1623700110 575V 60 Hz CSA-UL
Anti-condensation heaters
1623740911 400V 50 Hz Siemens motor
1623741111 440-460V 60 Hz Siemens
motor IEC
1623700109 440-460V 60 Hz CSA-UL
1623700111 575V 60 Hz CSA-UL
Label
4020 1079 9901 29 1 Label
4025 1088 1001 04 1 Warning mark
4030 1503 0786 00 1 Rotation arrow
Anchor Pads
5010 1621 5004 00 4 Plate
5020 0226 9929 20 8 Wedge bolt
46
Parts list
2930 1822 00
19
73340
47
Parts list
2930 1822 00
Drain system - Basic + DD Filter - Full Feature 19
Ref. Part number Qty Name Remarks
13 bar(e)
13.8 bar(e)
1010 0661 1000 25 1 Seal washer
1015 0581 0000 45 1 Pipe coupling
1030 0070 6002 06 AR Plastic tube
1035 0581 0000 86 1 Pipe coupling
1040 0653 1124 00 1 Flat gasket
1045 0581 0000 53 1 Pipe coupling
1050 0653 1062 00 1 Flat gasket
1055 0581 0000 45 1 Pipe coupling
1070 0070 6002 06 AR Plastic tube
1072 1621 1091 00 3 Clamp
1075 0581 0000 86 1 Pipe coupling
1080 0653 1124 00 1 Flat gasket
1085 0581 0000 53 1 Pipe coupling
1090 0852 0010 14 1 Ball valve
20 bar(e)
1010 0661 1000 25 1 Seal washer
1015 0581 1200 27 1 Pipe coupling
1030 0070 6002 06 AR Plastic tube
1035 0581 0000 86 1 Pipe coupling
1040 0653 1124 00 1 Flat gasket
1045 0581 0000 53 1 Pipe coupling
1050 0653 1062 00 1 Flat gasket
Ref. Part number Qty Name Remarks
1055 0581 0000 45 1 Pipe coupling
1070 0070 6002 06 AR Plastic tube
1072 1621 1091 00 3 Clamp
1075 0581 0000 86 1 Pipe coupling
1080 0653 1124 00 1 Flat gasket
1085 0581 0000 53 1 Pipe coupling
1090 0852 0010 33 1 Ball valve
Full feature
2015 0581 0000 86 1 Pipe coupling
2020 0653 1124 00 1 Flat gasket
2025 0581 0000 73 1 Str. coupl.
2035 0581 0000 86 1 Pipe coupling
2040 0653 1124 00 1 Flat gasket
2045 0581 0000 73 1 Str. coupl.
2050 0852 0010 33 1 Ball valve
DD filter
13 bar(e)
13.8 bar(e)
3005 0070 6002 06 AR Plastic tube
3010 0347 6102 00 1 Hose clip
3015 0581 0000 86 1 Pipe coupling
3020 0661 1000 27 1 Seal washer
3025 0581 0000 53 1 Pipe coupling
48
Parts list
2930 1822 00
20
73341
49
Parts list
2930 1822 00
Drain system - Electronic condensate drain 20
Ref. Part number Qty Name Remarks
50 Hz
60 Hz ABB motor + Siemens
motor
60 Hz Without main motor IEC
1005 8102 0425 80 1 Drain valve
1010 1617 1768 00 1 Support
1015 0301 2335 00 3 Washer
1020 0147 1323 03 3 Hex. head screw
1025 0661 1000 29 1 Seal washer
1030 0605 8700 84 1 Bushing
1035 0661 1000 29 1 Seal washer
1040 0605 8820 05 1 Bushing
1045 0581 1200 38 2 Pipe coupling
1050 0070 6002 13 AR Plastic tube
1055 0661 1000 25 1 Seal washer
1060 1613 8084 00 1 Pipe coupling
1065 0070 6002 05 AR Plastic tube
1070 0581 1200 23 1 Elbow
1075 0581 0001 04 1 Pipe coupling
1080 0070 6002 13 AR Plastic tube
1082 1621 1091 00 2 Clamp
1085 0581 0000 86 1 Pipe coupling
1090 0661 1000 27 1 Seal washer
1095 0581 0000 71 1 Pipe coupling
1110 1621 0940 00 1 Wire harness
60 Hz
60 Hz Without main motor
CSA-UL Yes
1005 8102 0425 98 1 Drain valve
Ref. Part number Qty Name Remarks
1010 1617 1768 00 1 Support
1015 0301 2335 00 3 Washer
1020 0147 1323 03 3 Hex. head screw
1025 0661 1000 29 1 Seal washer
1030 0605 8700 84 1 Bushing
1035 0661 1000 29 1 Seal washer
1040 0605 8820 05 1 Bushing
1045 0581 1200 38 2 Pipe coupling
1050 0070 6002 13 AR Plastic tube
1055 0661 1000 25 1 Seal washer
1060 1613 8084 00 1 Pipe coupling
1065 0070 6002 05 AR Plastic tube
1070 0581 1200 23 1 Elbow
1075 0581 0001 04 1 Pipe coupling
1080 0070 6002 13 AR Plastic tube
1082 1621 1091 00 2 Clamp
1085 0581 0000 86 1 Pipe coupling
1090 0661 1000 27 1 Seal washer
1095 0581 0000 71 1 Pipe coupling
1110 1621 0940 00 1 Wire harness
Full Feature
13bar(e)
13.8bar(e)
2010 0070 6002 05 AR Plastic tube
2015 0581 0000 73 1 Str. coupl.
2020 0661 1000 27 1 Seal washer
2025 0581 0000 73 1 Str. coupl.
2030 0581 0000 86 1 Pipe coupling
50
Parts list
2930 1822 00
21
73342
51
Parts list
2930 1822 00
Drain system - Integrated Oil/water separator drain 21
Ref. Part number Qty Name Remarks
13 bar(e)
13.8 bar(e)
1010 1623 0030 00 1 Can
1012 1079 9912 38 1 Label
1015 1621 9084 00 1 Support
1020 1619 2766 00 4 Bolt
1025 0147 1322 03 3 Bolt
1030 0301 2335 00 3 Washer
1035 1079 9910 97 1 Label
1037 0605 8350 43 1 Bushing
1040 0661 1000 25 1 Seal washer
1045 0852 0010 29 1 Ball valve
1050 0661 1000 25 1 Seal washer
1055 0581 0000 35 1 Pipe coupling
1060 0070 6002 03 AR Flexible
1065 1621 1091 00 3 Clamp
1070 1613 7335 00 1 Hose nipple
1075 0070 6002 14 AR Flexible
1080 1614 9706 00 1 Hose nipple
1085 0070 6002 28 AR Plastic tube
1090 0347 6110 00 2 Hose clip
1095 1614 9876 00 1 Nipple
1100 0661 1000 31 1 Seal washer
1105 1614 9881 00 1 Bushing
20 bar(e)
1010 1623 0030 00 1 Can
1012 1079 9912 38 1 Label
1015 1621 9084 00 1 Support
1020 1619 2766 00 4 Bolt
1025 0147 1322 03 3 Bolt
1030 0301 2335 00 3 Washer
1035 1079 9910 97 1 Label
1041 0607 2900 20 1 Reducing socket
1045 0852 0010 29 1 Ball valve
Ref. Part number Qty Name Remarks
1050 0661 1000 25 1 Seal washer
1055 0581 1200 23 1 Elbow
1060 0070 6002 03 AR Flexible
1065 1621 1091 00 3 Clamp
1070 1613 7335 00 1 Hose nipple
1075 0070 6002 14 AR Flexible
1080 1614 9706 00 1 Hose nipple
1085 0070 6002 28 AR Plastic tube
1090 0347 6110 00 2 Hose clip
1095 1614 9876 00 1 Nipple
1100 0661 1000 31 1 Seal washer
1105 1614 9881 00 1 Bushing
1614 9351 80 1 Drains
2005 • 1 Housing
2006 1613 7299 00 • 1 Strainer
2007 9125 6295 00 • 1 Seal washer
2008 1613 7297 00 • 1 Check valve
2010 1614 9352 00 • 1 Oil filter
2015 1614 9707 00 • 1 Cover
2020 0661 1000 25 • 1 Seal washer
2025 1614 9363 00 • 1 Pipe coupling
2030 1079 9913 69 • 1 Inform.label
2035 1079 9912 28 • 1 Information label
2040 1079 9912 07 • 1 Information label
2045 1079 9920 17 • 1 Information label
2050 0686 3716 45 • 1 Hexagon plug
2055 0661 1000 27 • 1 Seal washer
2060 0686 3716 44 • 1 Hexagon plug
2065 0661 1000 25 • 1 Seal washer
Full feature
3015 0070 6002 13 AR Plastic tube
3020 0581 0000 71 1 Pipe coupling
3025 0661 1000 27 1 Seal washer
3030 0581 0000 86 1 Pipe coupling
52
Parts list
2930 1822 00
22
73343-A
53
Parts list
2930 1822 00
Regulating system 22
Ref. Part number Qty Name Remarks
Control system -Normal
display
Air cooled
13 bar(e)
13.8 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temperature
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0710 32 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1614 9406 00 1 Bracket
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
20 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0574 70 1 Sensor
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0710 32 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1614 9406 00 1 Bracket
1070 1623 1121 00 1 Wire harness
Watercooled
13 bar(e)
13.8 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0710 32 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
20 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
Ref. Part number Qty Name Remarks
1040 1089 9625 01 1 Dp transducer
1045 1900 0710 32 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
Control system - High
Resolution display
Air cooled
13bar(e)
13.8 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0712 92 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1614 9406 00 1 Bracket
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
20 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0712 92 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1614 9406 00 1 Bracket
1070 1623 8638 00 1 Wire harness
1075 0661 1000 26 1 Seal washer
1080 0686 3716 30 1 Plug
Water cooled
13 bar(e)
13.8 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0712 92 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
54
Parts list
2930 1822 00
22
73343-A
55
Parts list
2930 1822 00
22
Ref. Part number Qty Name Remarks
2065 0575 0401 34 1 Hose assembly
2066 1614 9144 00 1 Hexagon nipple
2067 0661 1000 30 1 Seal washer
2068 1079 5840 01 1 Nipple
2069 0661 1000 24 1 Seal washer
2080 0661 1000 24 1 Seal washer
2085 1615 3624 00 1 Nozzle
2090 0580 0400 03 1 Str.coupling
2095 0661 1000 25 1 Seal washer
2098 0575 0361 18 1 Hose assembly
2100 0661 1000 24 1 Seal washer
2110 0661 1000 30 1 Seal washer
2115 1614 9144 00 1 Hexagon nipple
2120 0575 0125 37 1 Hose assembly
2125 1079 5840 29 1 Hexagon nipple
2126 1079 5840 29 1 Hexagon nipple
2130 0661 1000 29 1 Seal washer
2135 0661 1000 29 1 Seal washer
Module
Full feature DD filter
3010 1900 0710 41 1 Regulator
3035 1621 1337 00 1 Cable
Solenoid valve
50 Hz
4010 1089 0621 23 1 Solenoid valve
60 Hz
4010 1089 0621 24 1 Solenoid valve
Regulator
Phase sequence relay
5010 1900 0710 71 1 Regulator
With PT 1000s in the
windings
6010 1900 0710 82 1 Regulator
SPM monitoring equipment
7010 1089 0457 03 2 Transducer
7020 1089 0457 01 3 Transducer
7030 1621 0964 00 1 Wire harness
7040 1089 0457 69 1 Alarm unit
Cable
DD filter Phase sequence relay
DD filter With PT 1000s in
the windings
SPM monitoring equipment
DD filter
8010 1621 0959 00 Cable
DD filter
Phase sequence relay
With PT 1000s in the windings
SPM monitoring equipment
9010 1622 0661 03 Cable
Regulating system
Ref. Part number Qty Name Remarks
1080 0661 1000 26 1 Seal washer
20 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0712 92 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
Regulating system
Air cooled
2020 <<<>>> 1 Unloader assembly
2025 0663 2109 71 1 O-ring
2030 0301 2344 00 4 Washer
2035 0147 1363 03 4 Bolt
2040 0574 9917 15 1 Hose assembly
2045 1079 5840 19 1 Nipple
2050 0661 1000 27 1 Seal washer
2065 0575 0401 34 1 Hose assembly
2066 1614 9144 00 1 Hexagon nipple
2067 0661 1000 30 1 Seal washer
2068 1079 5840 01 1 Nipple
2069 0661 1000 24 1 Seal washer
2080 0661 1000 24 1 Seal washer
2085 1615 3624 00 1 Nozzle
2090 0580 0400 03 1 Str.coupling
2095 0661 1000 25 1 Seal washer
2098 0575 0361 18 1 Hose assembly
2100 0661 1000 24 1 Seal washer
2110 0661 1000 30 1 Seal washer
2115 1614 9144 00 1 Hexagon nipple
2120 0575 0125 40 1 Hose assembly
2125 1079 5840 29 1 Hexagon nipple
2126 1079 5840 29 1 Hexagon nipple
2130 0661 1000 29 1 Seal washer
2135 0661 1000 29 1 Seal washer
Watercooled
2020 <<<>>> 1 Unloader assembly
2025 0663 2109 71 1 O-ring
2030 0301 2344 00 4 Washer
2035 0147 1363 03 4 Bolt
2040 0574 9917 15 1 Hose assembly
2045 1079 5840 19 1 Nipple
2050 0661 1000 27 1 Seal washer
56
Parts list
2930 1822 00
23
73344-A
57
Parts list
2930 1822 00
Regulating system - With Modulating control 23
Ref. Part number Qty Name Remarks
Control system -Normal
display
Air cooled
13 bar(e)
13.8 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temperature
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0710 32 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1614 9406 00 1 Bracket
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
20 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0574 70 1 Sensor
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0710 32 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1614 9406 00 1 Bracket
1070 1623 1121 00 1 Wire harness
Watercooled
13 bar(e)
13.8 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0710 32 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
20 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
Ref. Part number Qty Name Remarks
1040 1089 9625 01 1 Dp transducer
1045 1900 0710 32 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
Control system - High
Resolution display
Air cooled
13bar(e)
13.8 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0712 92 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1614 9406 00 1 Bracket
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
20 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0712 92 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1614 9406 00 1 Bracket
1070 1623 8638 00 1 Wire harness
1075 0661 1000 26 1 Seal washer
1080 0686 3716 30 1 Plug
Water cooled
13 bar(e)
13.8 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0712 92 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
58
Parts list
2930 1822 00
23
73344-A
59
Parts list
2930 1822 00
23
Ref. Part number Qty Name Remarks
3051 0147 1322 03 2 Bolt
3052 0301 2335 00 2 Plain washer
3053 0266 2110 00 2 Hexagon nut
3055 1621 9130 00 1 Regul.valve
3056 0211 1174 03 2 Cap screw
3060 0560 0200 61 1 Elbow
3061 0603 4200 09 1 Hexagon nipple
3065 0564 0000 77 1 Tee
3070 1614 9476 00 1 Nipple
3075 0564 0000 78 1 Tee
3100 0872 1000 46 1 Gauge
3120 0575 0121 85 1 Hose assembly
3125 1619 5205 00 2 Nipple
3130 0653 1062 00 1 Flat gasket
3131 0653 0500 02 1 Flat gasket
3140 0575 0121 18 1 Hose assembly
3145 1079 5840 01 2 Nipple
3150 0653 1046 00 2 Flat gasket
3160 0575 0121 29 1 Hose assembly
3165 1079 5840 01 1 Nipple
3166 0653 1046 00 1 Flat gasket
3170 1614 8266 00 1 Nozzle
3175 0661 1000 24 1 Seal washer
3310 1079 5840 19 1 Nipple
3311 0653 1124 00 1 Flat gasket
3315 0574 9917 15 1 Hose assembly
3320 1079 5840 29 1 Hexagon nipple
3321 0661 1000 29 1 Seal washer
3325 0574 8845 44 1 Hose assembly
3330 1079 5840 29 1 Hexagon nipple
3331 0661 1000 29 1 Seal washer
3335 0653 1046 00 1 Flat gasket
3340 1615 3624 00 1 Nozzle
3345 0653 1046 00 1 Flat gasket
3350 1079 5840 01 1 Nipple
3355 0653 1062 00 1 Flat gasket
3360 0580 0013 32 1 Coupling
3365 0653 1189 00 1 Flat gasket
3370 1614 9144 00 1 Hexagon nipple
3375 0575 0361 18 1 Hose assembly
1614 9260 82 1 Throttle valve
4010 1614 9255 00 1 Flange
4015 0650 0101 17 1 Gasket
4020 1614 9426 01 1 Throttle valve
4025 0650 0101 17 1 Gasket
4030 1614 9254 00 1 Flange
4035 0663 2109 71 1 O-ring
4040 1 Unloader assembly
4045 0147 1375 03 4 Bolt
4050 0301 2344 00 4 Washer
Module
Full feature DD filter
5010 1900 0710 41 1 Regulator
5035 1621 1337 00 1 Cable
Solenoid valve
50 Hz
6010 1089 0621 23 1 Solenoid valve
60 Hz
6010 1089 0621 24 1 Solenoid valve
Regulator
Phase sequence relay
7010 1900 0710 71 1 Regulator
Regulating system - With Modulating control
Ref. Part number Qty Name Remarks
1080 0661 1000 26 1 Seal washer
20 bar(e)
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 0712 92 1 Regulator
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1070 1623 8638 00 1 Wire harness
1075 0686 3716 30 1 Plug
1080 0661 1000 26 1 Seal washer
Regulating system
Air cooled
2040 0574 9917 15 1 Hose assembly
2045 1079 5840 19 1 Nipple
2050 0661 1000 27 1 Seal washer
2065 0575 0401 34 1 Hose assembly
2066 1614 9144 00 1 Hexagon nipple
2067 0661 1000 30 1 Seal washer
2068 1079 5840 01 1 Nipple
2069 0661 1000 24 1 Seal washer
2080 0661 1000 24 1 Seal washer
2085 1615 3624 00 1 Nozzle
2090 0580 0400 03 1 Str.coupling
2095 0661 1000 25 1 Seal washer
2098 0575 0361 18 1 Hose assembly
2100 0661 1000 24 1 Seal washer
2110 0661 1000 30 1 Seal washer
2115 1614 9144 00 1 Hexagon nipple
2120 0575 0125 40 1 Hose assembly
2125 1079 5840 29 2 Hexagon nipple
2130 0661 1000 29 2 Seal washer
Watercooled
2040 0574 9917 15 1 Hose assembly
2045 1079 5840 19 1 Nipple
2050 0661 1000 27 1 Seal washer
2065 0575 0401 34 1 Hose assembly
2066 1614 9144 00 1 Hexagon nipple
2067 0661 1000 30 1 Seal washer
2068 1079 5840 01 1 Nipple
2069 0661 1000 24 1 Seal washer
2080 0661 1000 24 1 Seal washer
2085 1615 3624 00 1 Nozzle
2090 0580 0400 03 1 Str.coupling
2095 0661 1000 25 1 Seal washer
2098 0575 0361 18 1 Hose assembly
2100 0661 1000 24 1 Seal washer
2110 0661 1000 30 1 Seal washer
2115 1614 9144 00 1 Hexagon nipple
2120 0575 0125 37 1 Hose assembly
2125 1079 5840 29 2 Hexagon nipple
2130 0661 1000 29 2 Seal washer
Modulating control
3025 0663 2109 71 1 O-ring
3030 0246 1956 38 4 Stud
3035 0301 2344 00 4 Washer
3040 0266 2111 00 4 Nut
3050 1621 9132 00 1 Support
60
Parts list
2930 1822 00
23
73344-A
61
Parts list
2930 1822 00
Regulating system - With Modulating control 23
Ref. Part number Qty Name Remarks
With PT 1000s in the
windings
8010 1900 0710 82 1 Regulator
SPM monitoring equipment
9010 1089 0457 03 2 Transducer
9020 1089 0457 01 3 Transducer
9030 1621 0964 00 1 Wire harness
9040 1089 0457 69 1 Alarm unit
Cable
DD filter Phase sequence relay
DD filter With PT 1000s in
the windings
Ref. Part number Qty Name Remarks
SPM monitoring
equipment DD filter
10010 1621 0959 00 Cable
DD filter
Phase sequence relay
With PT 1000s in the
windings
SPM monitoring equipment
11010 1622 0661 03 Cable
62
Parts list
2930 1822 00
24
73345-A
63
Parts list
2930 1822 00
Control system 24
Ref. Part number Qty Name Remarks
Water 13(e) bar
Water 13.8(e) bar
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 5200 13 1 Graphic
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1900 5200 36 1 Elektronikon
1070 1622 5099 04 1 Elektronikon cable
1080 1623 2866 00 1 Wire harness
0070 4022 55 • AR Conduit
0698 6126 27 • 1 Conduit gland
1088 0031 72 • 1 Connector
1088 0031 63 • 2 Connector
1088 1506 04 • 4.8 Sleeve
1088 1508 01 • 4 Connector
1088 1508 21 • 12 Connector
1088 1508 51 • 16 Connector
1088 0011 91 • 2 Connector
1088 0011 92 • 3 Connector
1088 0150 53 • 1 Connection head
0348 0101 19 • 67 Cable tie
1088 0031 73 • 1 Connector
1088 0031 01 • 2 Coding key
1090 0686 3716 30 1 Plug
1100 0661 1000 26 1 Seal washer
Air 13(e) bar
Air 13.8(e) bar
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp
1025 1089 9625 13 1 Sensor press
1030 1089 9625 13 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 5200 13 1 Graphic
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1062 1614 9406 00 1 Bracket
1065 1900 5200 36 1 Elektronikon
1070 1622 5099 04 1 Elektronikon cable
1080 1623 2866 00 1 Wire harness
0070 4022 55 • AR Conduit
0698 6126 27 • 1 Conduit gland
Ref. Part number Qty Name Remarks
1088 0031 72 • 1 Connector
1088 0031 63 • 2 Connector
1088 1506 04 • 4.8 Sleeve
1088 1508 01 • 4 Connector
1088 1508 21 • 12 Connector
1088 1508 51 • 16 Connector
1088 0011 91 • 2 Connector
1088 0011 92 • 3 Connector
1088 0150 53 • 1 Connection head
0348 0101 19 • 67 Cable tie
1088 0031 73 • 1 Connector
1088 0031 01 • 2 Coding key
1090 0686 3716 30 1 Plug
1100 0661 1000 26 1 Seal washer
Water 20(e) bar
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp.
1025 1089 9625 17 1 Sensor press
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 5200 13 1 Graphic
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1065 1900 5200 36 1 Elektronikon
1070 1622 5099 04 1 Elektronikon cable
1080 1623 2866 00 1 Wire harness
0070 4022 55 • AR Conduit
0698 6126 27 • 1 Conduit gland
1088 0031 72 • 1 Connector
1088 0031 63 • 2 Connector
1088 1506 04 • 4.8 Sleeve
1088 1508 01 • 4 Connector
1088 1508 21 • 12 Connector
1088 1508 51 • 16 Connector
1088 0011 91 • 2 Connector
1088 0011 92 • 3 Connector
1088 0150 53 • 1 Connection head
0348 0101 19 • 67 Cable tie
1088 0031 73 • 1 Connector
1088 0031 01 • 2 Coding key
1090 0686 3716 30 1 Plug
1100 0661 1000 26 1 Seal washer
Air 20(e) bar
1005 1089 0574 70 1 Sensor
1010 1089 0574 70 1 Sensor
1015 1089 0574 70 1 Sensor
1019 1089 0637 24 1 Switch temp
1025 1089 9625 17 1 Sensor press
64
Parts list
2930 1822 00
24
73345 -A
65
Parts list
2930 1822 00
Control system 24
Ref. Part number Qty Name Remarks
1030 1089 9625 17 1 Sensor press
1035 1089 9625 18 1 Sensor press
1040 1089 9625 01 1 Dp transducer
1045 1900 5200 13 1 Graphic
1055 0160 6038 00 4 Screw
1060 0301 2315 00 4 Washer
1062 1614 9406 00 1 Bracket
1065 1900 5200 32 1 Elektronikon
1070 1622 5099 04 1 Elektronikon cable
1080 1623 2866 00 1 Wire harness
0070 4022 55 • AR Conduit
0698 6126 27 • 1 Conduit gland
1088 0031 72 • 1 Connector
Ref. Part number Qty Name Remarks
1088 0031 63 • 2 Connector
1088 1506 04 • 4.8 Sleeve
1088 1508 01 • 4 Connector
1088 1508 21 • 12 Connector
1088 1508 51 • 16 Connector
1088 0011 91 • 2 Connector
1088 0011 92 • 3 Connector
1088 0150 53 • 1 Connection head
0348 0101 19 • 67 Cable tie
1088 0031 73 • 1 Connector
1088 0031 01 • 2 Coding key
1090 0686 3716 30 1 Plug
1100 0661 1000 26 1 Seal washer
66
Parts list
2930 1822 00
25
73346 -A
67
Parts list
2930 1822 00
Control panel 25
Ref. Part number Qty Name Remarks
50HZ NO_MOTOR IEC
60HZ NO_MOTOR IEC
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1060 1089 9427 06 2 Terminal
1065 1089 9499 01 1 Block
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 01 2 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9438 02 1 Relay
1251 1089 9621 06 2 Circuit break.
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 07 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 0612 24 2 Fuse
1325 1089 9621 07 1 Circuit break.
1330 1089 9415 92 1 Contactor
1340 1089 0362 58 1 Contact block
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1623 8405 00 1 Plate data
60HZ NO_MOTOR CSA-UL
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1060 1089 9427 06 2 Terminal
1065 1089 9499 02 1 Block
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1090 1088 0061 02 5 Terminal
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 02 5 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9438 03 1 Relay
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 9168 34 2 Fuse
1310 1089 9168 35 1 Fuse
Ref. Part number Qty Name Remarks
1320 1089 9168 26 2 Fuse link
1330 1089 9415 92 1 Contactor
1340 1089 0362 58 1 Contact block
1348 1613 3431 00 1 Label
1500 1623 8026 00 1 Wire harness
1600 1614 8949 30 1 Plate data
GR132A2 50HZ 500V
GR110A2 50HZ 400V ABB
GR110A2 50HZ 400V
ABB_M3BP
GR110A2 50HZ 500V ABB
GR110A2 50HZ 500V
ABB_M3BP
GR110A2 60HZ 440-460V
ABB
GR110A2 60HZ 440-460V
ABB_M3BP
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 01 2 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 71 1 Overload relay
1252 1089 9415 41 1 Contactor
1253 1089 9415 58 2 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 0612 24 2 Fuse
1325 1089 9621 07 3 Circuit break.
1330 1089 9415 92 1 Contactor
1331 1623 8865 10 6 Busbar
1335 1089 9415 09 4 Contact block
1340 1089 0362 58 1 Contact block
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1623 8405 00 1 Plate data
GR160A2 50HZ 500V
GR110A2 60HZ 380V ABB
GR110A2 60HZ 380V
ABB_M3BP
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
68
Parts list
2930 1822 00
25
73346 -A
69
Parts list
2930 1822 00
Control panel 25
Ref. Part number Qty Name Remarks
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 01 2 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 71 1 Overload relay
1252 1089 9415 41 1 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 0612 24 2 Fuse
1325 1089 9621 07 3 Circuit break.
1330 1089 9415 92 1 Contactor
1331 1623 8865 10 6 Busbar
1335 1089 9415 09 4 Contact block
1340 1089 0362 58 1 Contact block
1351 1089 9415 59 2 Contactor
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1623 8405 00 1 Plate data
GR132A2 50HZ 400V
GR160A2 60HZ 440-460V
IEC ABB
GR160A2 60HZ 440-460V
IEC ABB_M3BP
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 01 2 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 71 1 Overload relay
1252 1089 9415 41 1 Contactor
1253 1089 9415 58 2 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 0612 24 2 Fuse
1325 1089 9621 07 3 Circuit break.
1330 1089 9415 92 1 Contactor
1331 1623 8865 10 6 Busbar
1335 1089 9415 09 4 Contact block
1340 1089 0362 58 1 Contact block
Ref. Part number Qty Name Remarks
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1623 8405 00 1 Plate data
GR160A2 50HZ 400V
GR160A2 60HZ 380V ABB
GR160A2 60HZ 380V
ABB_M3BP
GR200A2 50HZ 400V
ABB
GR200A2 50HZ 400V
SIEMENS
GR200A2 50HZ 500V ABB
GR200A2 50HZ 500V
SIEMENS
GR200A2 60HZ 380V ABB
GR200A2 60HZ 380V
SIEMENS
GR200A2 60HZ 440-460V
ABB
GR200A2 60HZ 440-460V
SIEMENS
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 01 2 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 73 1 Overload relay
1252 1089 9415 78 2 Contactor
1253 1089 9415 58 1 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 0612 24 2 Fuse
1325 1089 9621 07 3 Circuit break.
1330 1089 9415 92 1 Contactor
1331 1623 8865 20 6 Busbar
1335 1089 9415 09 2 Contact block
1340 1089 0362 58 1 Contact block
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1623 8405 00 1 Plate data
GR110A2 60HZ 575V
CSA-UL WEG
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1050 1613 3431 00 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
70
Parts list
2930 1822 00
25
73346 -A
71
Parts list
2930 1822 00
Control panel 25
Ref. Part number Qty Name Remarks
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 02 5 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 71 1 Overload relay
1252 1089 9415 61 2 Contactor
1253 1089 9415 44 1 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 9168 34 2 Fuse
1310 1089 9168 35 1 Fuse
1320 1089 9168 26 2 Fuse link
1330 1089 9415 92 1 Contactor
1331 1623 8865 10 6 Busbar
1335 1089 9415 09 4 Contact block
1340 1089 0362 58 1 Contact block
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1614 8949 30 1 Plate data
GR160A2 60HZ 575V
CSA-UL WEG
GR110A2 60HZ 440-460V
CSA-UL WEG
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1050 1613 3431 00 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 02 5 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 71 1 Overload relay
1252 1089 9415 62 2 Contactor
1253 1089 9415 45 1 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 9168 34 2 Fuse
1310 1089 9168 35 1 Fuse
Ref. Part number Qty Name Remarks
1320 1089 9168 26 2 Fuse link
1330 1089 9415 92 1 Contactor
1331 1623 8865 10 6 Busbar
1335 1089 9415 09 2 Contact block
1340 1089 0362 58 1 Contact block
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1614 8949 30 1 Plate data
GR160A2 60HZ 440-460V
CSA-UL WEG
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1050 1613 3431 00 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 02 5 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 71 1 Overload relay
1252 1089 9415 63 2 Contactor
1253 1089 9415 46 1 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 9168 34 2 Fuse
1310 1089 9168 35 1 Fuse
1320 1089 9168 26 2 Fuse link
1330 1089 9415 92 1 Contactor
1331 1623 8865 10 6 Busbar
1335 1089 9415 09 2 Contact block
1340 1089 0362 58 1 Contact block
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1614 8949 30 1 Plate data
GR200A2 60HZ 575V
CSA-UL WEG
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1050 1613 3431 00 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
72
Parts list
2930 1822 00
25
73346 -A
73
Parts list
2930 1822 00
Control panel 25
Ref. Part number Qty Name Remarks
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 02 5 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 71 1 Overload relay
1252 1089 9415 63 2 Contactor
1253 1089 9415 61 1 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 9168 34 2 Fuse
1310 1089 9168 35 1 Fuse
1320 1089 9168 26 2 Fuse link
1330 1089 9415 92 1 Contactor
1331 1623 8865 10 6 Busbar
1335 1089 9415 09 2 Contact block
1340 1089 0362 58 1 Contact block
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1614 8949 30 1 Plate data
GR200A2 60HZ 440-460V
CSA-UL WEG
1020 1622 5099 01 1 Elektronikon cable
1040 1079 9925 69 1 Label
1050 1613 3431 00 1 Label
1060 1089 9427 06 2 Terminal
1070 1088 0037 31 3 Connector
1080 1088 0037 30 1 Connector
1100 1088 0037 40 1 Connector
1110 1088 0037 32 1 Connector
1120 1088 0037 39 2 Connector
1130 1088 0037 33 1 Connector
1140 1088 0039 93 30 Terminal
1150 1089 9427 07 1 Terminal
1160 1088 0039 95 1 Plate
1170 1088 0037 81 1 Connector
1180 1088 0031 32 1 Contact
1190 1088 0031 46 1 Connector
1200 1088 0037 83 1 Connector
1210 1088 0037 84 2 Connector
1220 1089 0612 02 5 Fuse holder
1240 1089 9415 17 1 Contactor
1250 1089 9446 72 1 Overload relay
1252 1089 9415 82 2 Contactor
1253 1089 9415 61 1 Contactor
1260 1623 4005 00 2 Strap earthing
1270 1089 0649 03 1 Button em.stop
1280 1089 9436 08 1 Transformer
1290 1089 9436 11 1 Transformer
1300 1089 9168 34 2 Fuse
1310 1089 9168 35 1 Fuse
1320 1089 9168 26 2 Fuse link
1330 1089 9415 92 1 Contactor
1331 1623 8865 20 6 Busbar
1335 1089 9415 09 2 Contact block
1340 1089 0362 58 1 Contact block
1400 1088 0061 02 5 Terminal
1500 1623 8026 00 1 Wire harness
1600 1614 8949 30 1 Plate data
GR200A2 50HZ
AIR 380-415V
GR200A2 60HZ
AIR 380V IEC
Ref. Part number Qty Name Remarks
GR200A2 60HZ
AIR 440-460V IEC
2005 1089 9415 21 2 Contactor
2010 1089 9416 91 2 Connecting element
2015 1089 9416 70 2 Circuit breaker
2020 1089 9416 07 2 Contact block
GR110A2 60HZ
AIR 380V IEC
GR160A2 60HZ
AIR 380V IEC
GR200A2 50HZ
AIR 500V
2005 1089 9415 13 2 Contactor
2010 1089 9416 94 2 Connection
2015 1089 9416 69 2 Circuit breaker
2020 1089 9416 07 2 Contact block
GR110A2 50HZ
AIR 500V IEC
GR132A2 50HZ
AIR 500V IEC
GR160A2 50HZ
AIR 500V IEC
2005 1089 9415 11 2 Contactor
2010 1089 9416 94 2 Connection
2015 1089 9416 67 2 Circuit breaker
2020 1089 9416 07 2 Contact block
GR110A2 50HZ
AIR 380-415V IEC
GR132A2 50HZ
AIR 380-415V IEC
GR160A2 50HZ
AIR 380-415V IEC
GR110A2 60HZ
AIR 440-460V IEC
GR160A2 60HZ
AIR 440-460V IEC
2005 1089 9415 11 2 Contactor
2010 1089 9416 94 2 Connection
2015 1089 9416 68 2 Circuit breaker
2020 1089 9416 07 2 Contact block
50HZ WATER 380-415V IEC
GR110A2 60HZ WATER
380V IEC
2005 1089 9415 11 1 Contactor
2010 1089 9416 94 1 Connection
2015 1089 9416 61 1 Circuit breaker
2020 1089 9416 07 1 Contact block
50HZ WATER 500V
60HZ WATER 440-460V IEC
2005 1089 9415 11 1 Contactor
2010 1089 9416 94 1 Connection
2015 1089 9416 59 1 Circuit breaker
2020 1089 9416 07 1 Contact block
GR200A2 60HZ
AIR 440-460V CSA-UL
2005 1089 9415 25 2 Contactor
2010 1089 9416 91 2 Connecting element
2015 1089 9416 70 2 Circuit breaker
2025 1089 9416 75 2 Connection block
GR200A2 60HZ
AIR 575V CSA-UL
2005 1089 9415 24 2 Contactor
2010 1089 9416 91 2 Connecting element
2015 1089 9416 69 2 Circuit breaker
2020 1089 9416 07 2 Contact block
74
Parts list
2930 1822 00
25
73346 -A
75
Parts list
2930 1822 00
Control panel 25
Ref. Part number Qty Name Remarks
2025 1089 9416 75 2 Connection block
GR110A2 60HZ
AIR 575V WEG
GR160A2 60HZ
AIR 575V CSA-UL
2005 1089 9415 51 2 Contactor
2010 1089 9416 94 2 Connection
2015 1089 9416 67 2 Circuit breaker
2020 1089 9416 07 2 Contact block
2025 1089 9416 75 2 Connection block
GR110A2 60HZ
AIR 440-460V CSA-UL
GR160A2 60HZ
AIR 440-460V CSA-UL
2005 1089 9415 51 2 Contactor
2010 1089 9416 94 2 Connection
2015 1089 9416 68 2 Circuit breaker
2020 1089 9416 07 2 Contact block
2025 1089 9416 75 2 Connection block
60HZ WATER 575V
CSA-UL
2005 1089 9415 24 1 Contactor
2010 1089 9416 91 1 Connecting element
2015 1089 9416 59 1 Circuit breaker
2020 1089 9416 07 1 Contact block
2025 1089 9416 75 1 Connection block
60HZ WATER 440-460V
CSA-UL
2005 1089 9415 24 1 Contactor
2010 1089 9416 91 1 Connecting element
2015 1089 9416 60 1 Circuit breaker
2020 1089 9416 07 1 Contact block
2025 1089 9416 75 1 Connection block
50HZ AIR 400V FF
50HZ AIR NO_MOTOR
380-415V IEC FF
1088 0031 34 1 Connector
2020 1089 9415 21 1 Contactor
2021 1089 9601 41 1 Contact
2030 1089 9416 72 1 Circuit breaker
2031 1088 0037 38 1 Connector
2040 1089 9416 07 1 Contact block
60HZ AIR 440-460V
IECFF
60HZ AIR NO_MOTOR
440-460V IEC FF
1088 0031 34 1 Connector
2020 1089 9415 23 1 Contactor
2021 1089 9601 41 1 Contact
2030 1089 9416 73 1 Circuit breaker
2031 1088 0037 38 1 Connector
2040 1089 9416 07 1 Contact block
60HZ WATER 380V
IECFF
60HZ WATER NO_MOTOR
380V IEC FF
1088 0031 34 1 Connector
2020 1089 9415 23 1 Contactor
2021 1089 9601 41 1 Contact
2030 1089 9416 74 1 Circuit breaker
2031 1088 0037 38 1 Connector
2040 1089 9416 07 1 Contact block
50HZ AIR 500V FF
50HZ WATER NO_MOTOR
500V IEC FF
Ref. Part number Qty Name Remarks
1088 0031 34 1 Connector
2020 1089 9415 21 1 Contactor
2021 1089 9601 41 1 Contact
2030 1089 9416 71 1 Circuit breaker
2031 1088 0037 38 1 Connector
2040 1089 9416 07 1 Contact block
60HZ AIR 380V IEC FF
60HZ AIR NO_MOTOR
380V IEC FF
2020 1089 9415 16 2 Contactor
2021 1089 9601 41 2 Contact
2030 1089 9416 69 1 Circuit breaker
2040 1089 9416 07 1 Contact block
60HZ AIR 440-460V IEC FF
60HZ AIR NO_MOTOR
440-460V IEC FF
2020 1089 9415 16 2 Contactor
2021 1089 9601 41 2 Contact
2030 1089 9416 69 1 Circuit breaker
2040 1089 9416 07 1 Contact block
50HZ AIR 500V FF
50HZ AIR NO_MOTOR
500V IEC FF
2020 1089 9415 14 2 Contactor
2021 1089 9601 41 2 Contact
2030 1089 9416 63 1 Circuit breaker
2040 1089 9416 07 1 Contact block
50HZ AIR 400V FF
50HZ AIR NO_MOTOR
380-415V IEC FF
2020 1089 9415 14 2 Contactor
2021 1089 9601 41 2 Contact
2030 1089 9416 68 1 Circuit breaker
2040 1089 9416 07 1 Contact block
60HZ 575V WEG FF
60HZ NO_MOTOR 575V
CSA-UL FF
2000 1088 0031 34 1 Connector
2020 1089 9415 14 1 Contactor
2021 1089 9601 43 1 Contact
2030 1089 9416 70 1 Circuit breaker
2031 1088 0037 38 1 Connector
60HZ 440-460V
CSA-UL WEG FF
60HZ NO_MOTOR
440-460V CSA-UL FF
2000 1088 0031 34 1 Connector
2020 1089 9415 24 1 Contactor
2021 1089 9601 43 1 Contact
2030 1089 9416 71 1 Circuit breaker
2031 1088 0037 38 1 Connector
GR200A2 60HZ
575V WEG FF
GR200A2 60HZ
NO_MOTOR 575V
CSA-UL FF
2000 1088 0031 34 1 Connector
2020 1089 9415 24 1 Contactor
2021 1089 9601 43 1 Contact
2030 1089 9416 72 1 Circuit breaker
2031 1088 0037 38 1 Connector
GR200A2 60HZ 440-460V
CSA-UL WEG FF
GR200A2 60HZ
76
Parts list
2930 1822 00
25
73346 -A
77
Parts list
2930 1822 00
Control panel 25
Ref. Part number Qty Name Remarks
NO_MOTOR
440-460V CSA-UL FF
2000 1088 0031 34 1 Connector
2020 1089 9415 26 1 Contactor
2021 1089 9601 43 1 Contact
2030 1089 9416 83 1 Circuit break
2031 1088 0037 38 1 Connector
60HZ AIR 575V WEG
60HZ AIR NO_MOTOR
575V CSA-UL
2020 1089 9415 14 2 Contactor
2021 1089 9601 40 2 Contact
2030 1089 9416 64 1 Circuit breaker
2040 1089 9416 07 1 Contact block
2050 1089 9416 75 1 Connection block
60HZ AIR 440-460V
CSA-UL WEG
60HZ AIR NO_MOTOR
440-460V CSA-UL
2020 1089 9415 14 2 Contactor
2021 1089 9601 40 2 Contact -
2030 1089 9416 66 1 Circuit breaker
2040 1089 9416 07 1 Contact block
2050 1089 9416 75 1 Connection block
IEC
2040 1089 9415 08 1 Contact block
2070 1088 0037 30 1 Connector
CSA-UL
2040 1089 9415 08 1 Contact block
2070 1088 0037 30 1 Connector
2075 1088 0031 42 1 Contact
IECFF
3010 1088 0037 33 1 Connector
3020 1089 0612 21 1 Fuse
3030 1089 0612 01 1 Fuse holder
60HZ CSA-UL FF
3010 1088 0037 33 1 Connector
3020 1089 9168 37 1 Fuse
3030 1089 0612 02 1 Fuse holder
IEC
3010 1088 0037 33 1 Connector
3020 1089 0612 21 1 Fuse
3030 1089 0612 01 1 Fuse holder
50HZ 380-415V IEC
Ref. Part number Qty Name Remarks
50HZ 500V IEC
60HZ 380V IEC
50HZ 500V IEC
60HZ 440-460V IEC
3010 1089 0612 22 1 Fuse
3020 1089 0612 01 1 Fuse holder
3030 1089 9461 01 1 Sequence selector
GR200A2 IEC
1900 3336 06 Control panel
IEC
1900 3336 08 Control panel
50HZ
60HZ IEC
1088 0031 70 1 Connector
60HZ CSA-UL
3010 1088 0037 33 1 Connector
3020 1089 9168 37 1 Fuse
3030 1089 0612 02 1 Fuse holder
60HZ 440-460V CSA-UL
60HZ 575V CSA-UL
60HZ 575V CSA-UL
3020 1089 9168 36 1 Fuse
3030 1089 0612 02 1 Fuse holder
3040 1089 9461 01 1 Sequence selector
GR200A2 CSA-UL
1900 3336 26 1 Control panel
IO2-2 Modul
4010 1900 5200 36 1 Elektronikon
4020 1622 5099 01 1 Elektronikon cable
380V
575V
400V
500V
440-460V
5010 9823 4207 01 Diagram service
NO_MOTOR
5020 9823 4207 02 Diagram service
WIRING
6010 1088 0031 62 1 Connector
6020 0017 2610 07 AR Cable
6030 0694 5820 01 10 End socket
6040 1088 1501 06 AR Shrinking hose
6050 0017 2610 06 AR Cable
78
Parts list
2930 1822 00
26
73347 -A
79
Parts list
2930 1822 00
Bodywork - Cubicle box 26
Ref. Part number Qty Name Remarks
GR110A2 IEC
GR132A2 IEC
GR160A2 IEC
GR110A2 IEC_FF_500
GR110A2 IEC_FF_600
GR132A2 IEC_FF_500
GR132A2 IEC_FF_600
GR160A2 IEC_FF_500
GR160A2 IEC_FF_600
1010 1623 2936 80 1 Cubicle
1623 2936 00 • 1 Cubicle
1020 0147 1246 03 •• 16 Bolt
1030 0147 1322 03 •• 2 Bolt
1035 0298 1000 25 •• 13 Blind rivet nut
1050 1614 9106 00 •• 2 Hinge
1060 2253 3612 00 •• 4 Spacer
1080 0993 7106 12 •• 1 Rail
1085 0298 1000 30 •• 2 Blind rivet nut
1095 0266 1110 00 •• 10 Nut
1110 1623 4011 00 • 1 Door
0147 1322 03 •• 1 Bolt
1621 0605 00 •• 2 Hinge
1614 9538 00 •• 1 Box
1115 1202 6584 00 • AR Seal
1120 1614 9106 03 • 2 Pin
1130 1619 7704 00 • 2 Lock
2010 1623 2994 00 1 Screen
2012 1619 2766 00 2 Bolt
2015 1088 1001 04 1 Warning mark
2020 1079 9901 67 1 Label
2025 1623 4882 00 1 Bracket
2035 0147 1251 12 4 Bolt
2040 1089 9154 02 1 Key
2042 1614 9379 00 1 Bracket
2045 1614 9380 00 1 Bracket
2050 1619 2766 00 5 Bolt
2055 0697 9810 34 2 Plug
2060 0697 9809 13 2 Nut
2065 0697 9810 19 2 Plug
2070 0697 9809 02 3 Nut
2075 0697 9810 20 2 Plug
2080 0697 9810 36 2 Plug
2085 0697 9809 03 4 Nut
2090 0697 9810 21 1 Plug
2095 0697 9809 04 1 Lock nut
2100 0697 9810 22 3 Plug
2105 0697 9809 06 4 Lock nut
2110 0697 9745 84 1 Adapter
2115 0697 9810 24 1 Plug
2120 0697 9809 19 2 Nut
2125 1621 1235 00 1 Cable box
Ref. Part number Qty Name Remarks
2130 0697 9810 40 4 Plug
2135 1614 6567 00 1 Seal
2140 0147 1322 03 6 Bolt
2145 0301 2335 00 6 Plain washer
2150 1621 1309 00 1 Plate
2155 0147 1322 03 2 Bolt
2160 0301 2335 00 2 Plain washer
2165 1614 6562 00 4 Clamp
2170 1614 6563 00 4 Clamp
2175 0147 1961 27 8 Bolt
2180 0301 2321 00 8 Washer
2185 0266 2108 00 8 Nut
2190 1621 0478 00 1 Label
2195 1088 1001 01 1 Warning mark
2200 1619 2766 00 3 Bolt
2205 1079 9923 72 2 Decal
2210 1619 5337 03 1 Bolt
GR200A2 IEC
GR200A2 IEC_FF_500
GR200A2 IEC_FF_600
1010 1623 2936 80 1 Cubicle
1623 2936 00 • 1 Cubicle
1020 0147 1246 03 •• 16 Bolt
1030 0147 1322 03 •• 2 Bolt
1035 0298 1000 25 •• 13 Blind rivet nut
1050 1614 9106 00 •• 2 Hinge
1060 2253 3612 00 •• 4 Spacer
1080 0993 7106 12 •• 1 Rail
1085 0298 1000 30 •• 2 Blind rivet nut
1095 0266 1110 00 •• 10 Nut
1110 1623 4011 00 • 1 Door
0147 1322 03 •• 1 Bolt
1621 0605 00 •• 2 Hinge
1614 9538 00 •• 1 Box
1115 1202 6584 00 • AR Seal
1120 1614 9106 03 • 2 Pin
1130 1619 7704 00 • 2 Lock
2012 1619 2766 00 2 Bolt
2015 1088 1001 04 1 Warning mark
2020 1079 9901 67 1 Label
2025 1623 4882 00 1 Bracket
2035 0147 1251 12 4 Bolt
2040 1089 9154 02 1 Key
2042 1614 9379 00 1 Bracket
2045 1614 9380 00 1 Bracket
2050 1619 2766 00 5 Bolt
2055 0697 9810 34 2 Plug
2060 0697 9809 13 2 Nut
2065 0697 9810 19 2 Plug
2070 0697 9809 02 3 Nut
2075 0697 9810 20 2 Plug
80
Parts list
2930 1822 00
26
73347 -A
81
Parts list
2930 1822 00
Bodywork - Cubicle box 26
Ref. Part number Qty Name Remarks
2080 0697 9810 36 2 Plug
2085 0697 9809 03 4 Nut
2090 0697 9810 21 1 Plug
2095 0697 9809 04 1 Lock nut
2100 0697 9810 22 3 Plug
2105 0697 9809 06 4 Lock nut
2110 0697 9745 84 1 Adapter
2115 0697 9810 24 3 Plug
2120 0697 9809 19 4 Nut
2125 1621 1235 00 1 Cable box
2130 0697 9810 40 4 Plug
2135 1614 6567 00 1 Seal
2140 0147 1322 03 6 Bolt
2145 0301 2335 00 6 Plain washer
2150 1621 1309 00 1 Plate
2155 0147 1322 03 2 Bolt
2160 0301 2335 00 2 Plain washer
2165 1614 6562 00 4 Clamp
2170 1614 6563 00 4 Clamp
2175 0147 1961 27 8 Bolt
2180 0301 2321 00 8 Washer
2185 0266 2108 00 8 Nut
2190 1621 0478 00 1 Label
2195 1088 1001 01 1 Warning mark
2200 1619 2766 00 3 Bolt
2205 1079 9923 72 2 Decal
2210 1619 5337 03 1 Bolt
GR110A2 60HZ CSA-UL
GR132A2 60HZ CSA-UL
GR160A2 60HZ CSA-UL
GR110A2 60HZ CSA-UL
445TSDNEMA
GR110A2 60HZ CSA-UL
505TSDNEMA
GR160A2 60HZ CSA-UL
445TSDNEMA
GR160A2 60HZ CSA-UL
505TSDNEMA
1010 1623 2936 80 1 Cubicle
1623 2936 00 • 1 Cubicle
1020 0147 1246 03 •• 16 Bolt
1030 0147 1322 03 •• 2 Bolt
1035 0298 1000 25 •• 13 Blind rivet nut
1050 1614 9106 00 •• 2 Hinge
1060 2253 3612 00 •• 4 Spacer
1080 0993 7106 12 •• 1 Rail
1085 0298 1000 30 •• 2 Blind rivet nut
1095 0266 1110 00 •• 10 Nut
1110 1623 4011 00 • 1 Door
0147 1322 03 •• 1 Bolt
1621 0605 00 •• 2 Hinge
Ref. Part number Qty Name Remarks
1614 9538 00 •• 1 Box
1115 1202 6584 00 • AR Seal
1120 1614 9106 03 • 2 Pin
1130 1619 7704 00 • 2 Lock
2010 1623 2994 00 1 Screen
2012 1619 2766 00 2 Bolt
2015 1088 1001 04 1 Warning mark
2020 1079 9901 67 1 Label
2025 1623 4882 00 1 Bracket
2031 1613 3431 00 1 Label
2035 0147 1251 12 4 Bolt
2040 1089 9154 02 1 Key
2042 1614 9379 00 1 Bracket
2045 1614 9380 00 1 Bracket
2050 1619 2766 00 5 Bolt
2055 0697 9810 34 2 Plug
2060 0697 9809 13 2 Nut
2065 0697 9810 19 2 Plug
2070 0697 9809 02 3 Nut
2075 0697 9810 20 2 Plug
2080 0697 9810 36 2 Plug
2085 0697 9809 03 4 Nut
2090 0697 9810 21 1 Plug
2095 0697 9809 04 1 Lock nut
2100 0697 9810 22 3 Plug
2105 0697 9809 06 4 Lock nut
2110 0697 9745 84 1 Adapter
2115 0697 9810 24 1 Plug
2120 0697 9809 19 2 Nut
2121 1613 5330 10 1 Listing mark
2122 1614 7146 00 1 Flange
2123 1614 7145 00 1 Gasket
2124 0147 1325 03 6 Bolt
2126 0266 2110 00 6 Hexagon nut
2190 1621 0478 00 1 Label
2195 1088 1001 01 1 Warning mark
2200 1619 2766 00 3 Bolt
2201 0129 3271 03 4 Blind rivet
2205 1079 9923 72 2 Decal
2210 1619 5337 03 1 Bolt
GR200A2 60HZ CSA-UL
GR200A2 60HZ CSA-UL
GR200A2 60HZ CSA-UL
505TSDNEMA
1010 1623 2936 80 1 Cubicle
1623 2936 00 • 1 Cubicle
1020 0147 1246 03 •• 16 Bolt
1030 0147 1322 03 •• 2 Bolt
1035 0298 1000 25 •• 13 Blind rivet nut
1050 1614 9106 00 •• 2 Hinge
1060 2253 3612 00 •• 4 Spacer
82
Parts list
2930 1822 00
26
73347 -A
83
Parts list
2930 1822 00
Ref. Part number Qty Name Remarks
1080 0993 7106 12 •• 1 Rail
1085 0298 1000 30 •• 2 Blind rivet nut
1095 0266 1110 00 •• 10 Nut
1110 1623 4011 00 • 1 Door
0147 1322 03 •• 1 Bolt
1621 0605 00 •• 2 Hinge
1614 9538 00 •• 1 Box
1115 1202 6584 00 • AR Seal
1120 1614 9106 03 • 2 Pin
1130 1619 7704 00 • 2 Lock
2012 1619 2766 00 2 Bolt
2015 1088 1001 04 1 Warning mark
2020 1079 9901 67 1 Label
2025 1623 4882 00 1 Bracket
2031 1613 3431 00 1 Label
2035 0147 1251 12 4 Bolt
2040 1089 9154 02 1 Key
2042 1614 9379 00 1 Bracket
2045 1614 9380 00 1 Bracket
2050 1619 2766 00 5 Bolt
2055 0697 9810 34 2 Plug
2060 0697 9809 13 2 Nut
Ref. Part number Qty Name Remarks
2065 0697 9810 19 2 Plug
2070 0697 9809 02 3 Nut
2075 0697 9810 20 2 Plug
2080 0697 9810 36 2 Plug
2085 0697 9809 03 4 Nut
2090 0697 9810 21 1 Plug
2095 0697 9809 04 1 Lock nut
2100 0697 9810 22 3 Plug
2105 0697 9809 06 4 Lock nut
2110 0697 9745 84 1 Adapter
2115 0697 9810 24 3 Plug
2120 0697 9809 19 4 Nut
2121 1613 5330 10 1 Listing mark
2122 1614 7146 00 1 Flange
2123 1614 7145 00 1 Gasket
2124 0147 1325 03 6 Bolt
2126 0266 2110 00 6 Hexagon nut
2190 1621 0478 00 1 Label
2195 1088 1001 01 1 Warning mark
2200 1619 2766 00 3 Bolt
2201 0129 3271 03 4 Blind rivet
2205 1079 9923 72 2 Decal
2210 1619 5337 03 1 Bolt
Bodywork - Cubicle box 26
84
Parts list
2930 1822 00
27
73348
85
Parts list
2930 1822 00
Bodywork - GR 27
Ref. Part number Qty Name Remarks
Full Feature
1005 1614 9505 80 1 Stay 1)
1010 1619 2766 00 2 Bolt
1020 1619 2766 00 2 Bolt
1022 1614 9908 00 1 Plate
1023 1079 2904 01 3 Push nail
1025 1614 9019 80 1 Panel 1)
1030 1619 2766 00 6 Bolt
1035 1614 9014 80 3 Stay 1)
1040 1619 2766 00 6 Bolt
1050 1619 2766 00 2 Bolt
1070 1089 9068 01 1 Key
1085 1619 2766 00 2 Bolt
1095 1619 2766 00 2 Bolt
1621 9086 80 1 Stay 1)
2010 • 1 Stay
2020 1079 9901 09 • 1 Label
1614 9615 80 2 Panel 1)
3005 • 1 Panel
3015 2252 7237 00 • 2 Doorlock
3020 1619 5188 00 • AR Seal
1614 9928 80 2 Door 1)
4005 • 1 Door
4020 2252 7237 00 • 2 Doorlock
4025 1619 5188 00 • AR Seal
1614 9017 80 3 Door 1)
5005 • 1 Door panel
5010 0690 1140 01 • 1 House mark
5020 2252 7237 00 • 2 Doorlock
5025 1619 5188 00 • AR Seal
1614 9017 81 3 Door 1)
6005 • 1 Door panel
6015 2252 7237 00 • 2 Doorlock
6020 1619 5188 00 • AR Seal
1614 8910 80 2 Stay 1)
7010 • 1 Stay
7020 1079 9901 09 • 1 Label
1621 9088 80 1 Stay 1)
8010 • 1 Stay
8025 1079 9910 95 • 1 Label
8030 1079 9910 96 • 1 Label
8035 1079 9901 09 • 1 Label
Doors
Pack
1005 1614 9505 80 1 Stay 1)
1010 1619 2766 00 2 Bolt
1020 1619 2766 00 2 Bolt
1022 1614 9908 00 1 Plate
1023 1079 2904 01 3 Push nail
1025 1614 9019 80 1 Panel 1)
1030 1619 2766 00 6 Bolt
1035 1614 9014 80 3 Stay 1)
1040 1619 2766 00 6 Bolt
1050 1619 2766 00 2 Bolt
Ref. Part number Qty Name Remarks
1070 1089 9068 01 1 Key
1085 1619 2766 00 2 Bolt
1095 1619 2766 00 2 Bolt
1621 9086 80 1 Stay 1)
2010 • 1 Stay
2020 1079 9901 09 • 1 Label
1614 9615 80 2 Panel 1)
3005 • 1 Panel
3015 2252 7237 00 • 2 Doorlock
3020 1619 5188 00 • AR Seal
1614 9017 80 4 Door 1)
5005 • 1 Door panel
5010 0690 1140 01 • 1 House mark
5020 2252 7237 00 • 2 Doorlock
5025 1619 5188 00 • AR Seal
1614 9017 81 4 Door 1)
6005 • 1 Door panel
6015 2252 7237 00 • 2 Doorlock
6020 1619 5188 00 • AR Seal
1614 8910 80 2 Stay 1)
7010 • 1 Stay
7020 1079 9901 09 • 1 Label
1621 9088 80 1 Stay 1)
8010 • 1 Stay
8025 1079 9910 95 • 1 Label
8030 1079 9910 96 • 1 Label
8035 1079 9901 09 • 1 Label
Roofs
9025 1614 9493 80 1 Roof assembly 1)
9030 1619 2766 00 2 Bolt
9035 1614 9436 80 1 Roof assembly 1)
9040 1619 2766 00 3 Bolt
9045 1614 9437 80 1 Roof assembly 1)
9050 1619 2766 00 8 Bolt
9055 1614 9415 80 1 Baffle 1)
9060 1619 2766 00 1 Bolt
10020 <<< >>> Air dryer
Air cooled 50 Hz 13 bar 400 V
Air cooled 50 Hz 13 bar 500 V
Air cooled 50 Hz 20 bar 400 V
Air cooled 60 Hz 13.8 bar 440-460 V
Air cooled 60 Hz 13.8 bar 380 V
Air cooled 60 Hz 13.8 bar 575 V
Air cooled 50 Hz 20 bar 500 V
Air cooled 60 Hz 20 bar 440-460 V
Air cooled 60 Hz 20 bar 380 V
Air cooled 60 Hz 20 bar 575 V
10025 0147 1405 03 4 Bolt
10030 0301 2358 00 4 Washer
10035 1621 9085 00 1 Duct plate
10040 1619 2766 00 2 Bolt
10045 0266 2110 00 4 Hexagon nut
10050 1614 9927 00 1 Duct plate
86
Parts list
2930 1822 00
27
73348
87
Parts list
2930 1822 00
Bodywork - GR 27
Ref. Part number Qty Name Remarks
10055 1619 2766 00 3 Bolt
Label
Air cooled Pack CSA-UL
11010 1079 9923 20 Label
Air cooled Full feature CSA-UL
11010 1079 9923 22 Label
GR 110
11010 1623 2143 25 Label
Data plate
ASME (U Stamp)
DIR
Singapore
CHINA
12005 1614 8057 05 1 Data plate
Ref. Part number Qty Name Remarks
12010 0129 3104 00 4 Rivet blind
CE
12005 1614 8057 08 1 Data plate
12010 0129 3104 00 4 Rivet blind
1) Lined with / Bekleed met / Beklädd med /
Ausgekleidetmit /Garnir de / Rivestido de /
Allineato con / Foret med / Revestido com /
Kleddmed / Vuorattu :
Foam: 0395 6001 69(AR) 50 x 2040 x 1650
88
Parts list
2930 1822 00
28
73349
89
Parts list
2930 1822 00
Bodywork - GR W 28
Ref. Part number Qty Name Remarks
Doors
Pack
1005 1614 9505 80 1 Stay 1)
1010 1619 2766 00 2 Bolt
1020 1619 2766 00 2 Bolt
1022 1614 9908 00 1 Plate
1023 1079 2904 01 3 Push nail
1025 1614 9019 80 1 Panel 1)
1030 1619 2766 00 6 Bolt
1035 1614 9014 80 3 Stay 1)
1040 1619 2766 00 6 Bolt
1050 1619 2766 00 2 Bolt
1070 1089 9068 01 1 Key
1085 1619 2766 00 2 Bolt
1095 1619 2766 00 2 Bolt
1621 9086 80 1 Stay 1)
2010 • 1 Stay
2020 1079 9901 09 • 1 Label
1614 9615 80 2 Panel 1)
3005 • 1 Panel
3015 2252 7237 00 • 2 Doorlock
3020 1619 5188 00 • AR Seal
1614 9017 80 4 Door 1)
4005 • 1 Door panel
4010 0690 1140 01 • 1 House mark
4020 2252 7237 00 • 2 Doorlock
4025 1619 5188 00 • AR Seal
1614 9017 81 4 Door 1)
5005 • 1 Door panel
5015 2252 7237 00 • 2 Doorlock
5020 1619 5188 00 • AR Seal
1614 8910 80 2 Stay 1)
6010 • 1 Stay
6020 1079 9901 09 • 1 Label
1621 9088 80 1 Stay 1)
7010 • 1 Stay
7025 1079 9910 95 • 1 Label
7030 1079 9910 96 • 1 Label
7035 1079 9901 09 • 1 Label
Roofs
8005 1614 9764 80 1 Roof assembly 1)
8010 1619 2766 00 2 Bolt
8015 1614 9662 80 1 Roof assembly 1)
8020 1619 2766 00 3 Bolt
Ref. Part number Qty Name Remarks
8025 1614 9437 80 1 Roof assembly 1)
8030 1619 2766 00 8 Bolt
8040 1619 2766 00 2 Bolt
8050 1619 2766 00 2 Bolt
1614 9766 80 1 Stay ass'y 1)
9005 1614 9766 00 • 1 Stay
9020 1079 9901 09 • 1 Label
9025 1079 9913 69 • 1 Inform.label
9030 1079 9913 79 • 1 Inform.label
1614 8910 80 1 Stay 1)
10010 1614 8910 00 • 1 Stay
10020 1079 9901 09 • 1 Label
Fan
Water cooled 60 Hz 380 V
11005 1614 9608 03 1 Fan assembly
11010 0147 1250 03 3 Bolt
11015 0301 2321 00 3 Washer
11020 1503 0786 00 1 Rotation arrow
11025 1088 1001 01 1 Warning mark
Water cooled 50 Hz 400 V
11005 1614 9608 01 1 Fan assembly
11010 0147 1250 03 3 Bolt
11015 0301 2321 00 3 Washer
11020 1503 0786 00 1 Rotation arrow
11025 1088 1001 01 1 Warning mark
Water cooled 60 Hz 440-460 V
11005 1614 9608 04 1 Fan assembly
11010 0147 1250 03 3 Bolt
11015 0300 0274 35 3 Washer
11020 1503 0786 00 1 Rotation arrow
11025 1088 1001 01 1 Warning mark
Water cooled 50 Hz 500 V
11005 1614 9608 02 1 Fan assembly
11010 0147 1250 03 3 Bolt
11015 0300 0274 35 3 Washer
11020 1503 0786 00 1 Rotation arrow
11025 1088 1001 01 1 Warning mark
Water cooled 60 Hz 575 V
11005 1614 9608 05 1 Fan assembly
11010 0147 1250 03 3 Bolt
11015 0300 0274 35 3 Washer
11020 1503 0786 00 1 Rotation arrow
11025 1088 1001 01 1 Warning mark
90
Parts list
2930 1822 00
28
73349
91
Parts list
2930 1822 00
Bodywork - GR W 28
Ref. Part number Qty Name Remarks
120020 Air dryer
Water cooled 50 Hz 20 bar 400 V
Water cooled 50 Hz 20 bar 500 V
Water cooled 60 Hz 20 bar 440-460 V
Water cooled 60 Hz 20 bar 380 V
Water cooled 60 Hz 20 bar 575 V
Water cooled 50 Hz 13 bar 400 V
Water cooled60Hz13.8bar 440-460 V
Water cooled 50 Hz 13 bar 500 V
Water cooled 60 Hz 13.8 bar 380 V
Water cooled 60 Hz 13.8 bar 575 V
12025 0147 1405 03 4 Bolt
12030 0301 2358 00 4 Washer
Label
13010 Label
1623 2143 25 GR 110
1623 2143 27 GR 132
1623 2143 29 GR 160
1623 2143 31 GR 200
Ref. Part number Qty Name Remarks
Data plate
ASME (U Stamp)
DIR
Singapore
CHINA
14005 1614 8057 05 1 Data plate
14010 0129 3104 00 4 Rivet blind
CE
14005 1614 8057 08 1 Data plate
14010 0129 3104 00 4 Rivet blind
1) Lined with / Bekleed met / Beklädd med /
Ausgekleidetmit /Garnir de / Rivestido de /
Allineato con / Foret med / Revestido com /
Kleddmed / Vuorattu :
Foam: 0395 6001 69(AR) 50 x 2040 x 1650
92
Parts list
2930 1822 00
29
73350
93
Parts list
2930 1822 00
Air dryer - GR 29
Ref. Part number Qty Name Remarks
50 Hz 13 bar 400 V
1617 2535 81 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exch.id340
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 80 • 1 Separator water
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7010 1619 7674 19 • 1 Refrig.compressor
7040 1617 1183 81 • 1 Fan axial
1617 2382 00 •• 1 Fan motor
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7120 1617 3207 80 • 1 Wiring
7225 1617 2618 00 • 2 Capillar connection
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9214 10 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
Ref. Part number Qty Name Remarks
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
50 Hz 13 bar 500 V
1617 2535 82 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 80 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7120 1617 3207 80 • 1 Wiring
7225 1617 2618 00 • 2 Capillar connection
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9214 10 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
94
Parts list
2930 1822 00
29
73350
95
Parts list
2930 1822 00
29
Ref. Part number Qty Name Remarks
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
60 Hz 13.8 bar 440-460 V
1617 2535 86 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 80 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7010 1619 7674 19 • 1 Refrig.compressor
7040 1617 1183 81 • 1 Fan axial
1617 2382 00 •• 1 Fan motor
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7120 1617 3207 80 • 1 Wiring
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9139 52 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
Air dryer - GR
Ref. Part number Qty Name Remarks
50 Hz 20 bar 400 V
1617 2830 81 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 82 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7010 1619 7674 19 • 1 Refrig.compressor
7040 1617 1183 81 • 1 Fan axial
1617 2382 00 •• 1 Fan motor
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7120 1617 3207 80 • 1 Wiring
7225 1617 2618 00 • 2 Capillar connection
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9214 10 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
9100 0070 6002 13 • AR Plastic tube
96
Parts list
2930 1822 00
29
73350
97
Parts list
2930 1822 00
29
Ref. Part number Qty Name Remarks
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
60 Hz 13.8 bar 575 V
1617 2535 88 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 80 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7040 1617 1183 82 • 1 Fan axial
7120 1617 3207 80 • 1 Wiring
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9139 52 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
50 Hz 20 bar 500 V
Air dryer - GR
Ref. Part number Qty Name Remarks
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
60 Hz 13.8 bar 380 V
1617 2535 87 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 80 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7010 1619 7674 21 • 1 Refrig.compressor
7040 1617 1183 81 • 1 Fan axial
1617 2382 00 •• 1 Fan motor
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7120 1617 3207 80 • 1 Wiring
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9139 52 • 1 Pressure switch
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
98
Parts list
2930 1822 00
29
73350
99
Parts list
2930 1822 00
29
Ref. Part number Qty Name Remarks
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 82 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6040 0147 1403 03 • 4 Bolt
6050 0301 2358 00 • 4 Washer
6060 0070 6002 05 • 25 Plastic tube
7010 1619 7674 19 • 1 Refrig.compressor
7040 1617 1183 81 • 1 Fan axial
1617 2382 00 •• 1 Fan motor
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7120 1617 3207 80 • 1 Wiring
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9139 52 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
Air dryer - GR
Ref. Part number Qty Name Remarks
1617 2830 82 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 82 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7040 1617 1183 82 • 1 Fan axial
7120 1617 3207 80 • 1 Wiring
7225 1617 2618 00 • 2 Capillar connection
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9214 10 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
60 Hz 20 bar 440-460 V
1617 2830 86 1 Air dryer
1010 1617 2126 00 • 1 Frame
100
Parts list
2930 1822 00
29
73350
101
Parts list
2930 1822 00
29
Ref. Part number Qty Name Remarks
60 Hz 20 bar 575 V
1617 2830 88 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bott
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
1010 1503 0786 00 • 1 Rotation arrow
1070 1617 2231 01 • 1 Thermostatic valve
1071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 82 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7040 1617 1183 82 • 1 Fan axial
1617 2382 00 •• 1 Fan motor
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7120 1617 3207 80 • 1 Wiring
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9139 52 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
Air dryer - GR
Ref. Part number Qty Name Remarks
60 Hz 20 bar 380 V
1617 2830 87 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2010 1503 0786 00 • 1 Rotation arrow
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2140 1617 0476 00 • 1 Nut
2150 1617 0488 00 • 1 Sleeve
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4020 1617 2051 00 • 1 Condenser
5010 1617 3055 80 • 1 Pipe assembly
1617 0386 00 •• 1 Sleeve
1617 0314 00 •• 1 Nut
1617 2233 01 •• 1 Thermostatic valve
1619 5567 08 •• 1 Sight glass
1619 5566 04 •• 1 Freon dryer
1619 5563 07 •• 3 Valve
5015 1617 3056 80 • 1 Pipe assembly
1619 5563 07 •• 2 Valve
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
1617 2528 01 •• 1 Capacitor
1617 2522 80 •• 1 Pipe assembly
5020 1617 3057 80 • 1 Pipe assembly
1617 0488 00 •• 1 Sleeve
1617 0476 00 •• 1 Nut
5025 1617 3058 80 • 1 Pipe assembly
1617 0314 00 •• 1 Nut
1617 0386 00 •• 1 Sleeve
1617 2384 00 •• 1 Non return valve
5030 1617 3059 00 • 1 Pipe
6010 1617 1247 00 • 1 Connector
6020 1613 9463 82 • 1 Water separator
6030 0663 2109 69 • 2 O-ring
6060 0070 6002 05 • AR Plastic tube
7010 1619 7674 21 • 1 Refrig.compressor
7040 1617 1183 81 • 1 Fan axial
1617 2382 00 •• 1 Fan motor
1617 0526 00 •• 1 Fan
1617 0364 00 •• 1 Grating
1617 0136 00 •• 1 Adapter
7120 1617 3207 80 • 1 Wiring
7245 1088 1001 01 • 2 Warning mark
8010 1617 2721 00 • 1 Support
8030 1089 9139 52 • 1 Pressure switch
8070 1088 1001 01 • 1 Warning mark
9010 0653 1062 00 • 2 Flat gasket
9030 0581 0000 35 • 2 Pipe coupling
9100 0070 6002 13 • AR Plastic tube
1617 3208 80 • 1 Wiring
10010 1089 0574 75 •• 1 Temperature sensor
102
Parts list
2930 1822 00
30
73351
103
Parts list
2930 1822 00
30
Ref. Part number Qty Name Remarks
50 Hz 20 bar 400 V
1617 2831 81 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bott
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
4020 1613 9463 82 • 1 Water separator
4030 0663 2109 69 • 2 O-ring
4060 0070 6002 05 • AR Plastic tube
5010 1619 7674 19 • 1 Refrig.compressor
5120 1617 3209 80 • 1 Wiring
5225 1617 2618 00 • 2 Capillar connection
5245 1088 1001 01 • 1 Warning mark
6010 1617 2721 00 • 1 Support
6030 1089 9214 10 • 1 Pressure switch
6070 1088 1001 01 • 1 Warning mark
1617 3210 80 • 1 Wiring
7010 1089 0574 75 •• 1 Temperature sensor
8010 0653 1062 00 • 2 Flat gasket
8030 0581 0000 35 • 2 Pipe coupling
8100 0070 6002 13 • AR Plastic tube
50 Hz 20 bar 500 V
1617 2831 82 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
4020 1613 9463 82 • 1 Water separator
4030 0663 2109 69 • 2 O-ring
4060 0070 6002 05 • AR Plastic tube
5010 1603 1025 19 • 1 Ass'y kit for 5
5120 1617 3209 80 • 1 Wiring
Air dryer - GR W
Ref. Part number Qty Name Remarks
5225 1617 2618 00 • 2 Capillar connection
5245 1088 1001 01 • 1 Warning mark
6010 1617 2721 00 • 1 Support
6030 1089 9214 10 • 1 Pressure switch
6070 1088 1001 01 • 1 Warning mark
1617 3210 80 • 1 Wiring
7010 1089 0574 75 •• 1 Temperature sensor
8010 0653 1062 00 • 2 Flat gasket
8030 0581 0000 35 • 2 Pipe coupling
8100 0070 6002 13 • AR Plastic tube
60 Hz 20 bar 440-460 V
1617 2831 86 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
4020 1613 9463 82 • 1 Water separator
4030 0663 2109 69 • 2 O-ring
4060 0070 6002 05 • AR Plastic tube
5010 1619 7674 19 • 1 Refrig.compressor
5120 1617 3209 80 • 1 Wiring
5245 1088 1001 01 • 1 Warning mark
6010 1617 2721 00 • 1 Support
6030 1089 9139 52 • 1 Pressure switch
6070 1088 1001 01 • 1 Warning mark
1617 3210 80 • 1 Wiring
7010 1089 0574 75 •• 1 Temperature sensor
8010 0653 1062 00 • 2 Flat gasket
8030 0581 0000 35 • 2 Pipe coupling
8100 0070 6002 13 • AR Plastic tube
60 Hz 20 bar 380 V
1617 2831 87 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
104
Parts list
2930 1822 00
30
73351
105
Parts list
2930 1822 00
30
Ref. Part number Qty Name Remarks
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
4020 1613 9463 80 • 1 Water separator
4030 0663 2109 69 • 2 O-ring
4060 0070 6002 05 • AR Plastic tube
5120 1617 3209 80 • 1 Wiring
5225 1617 2618 00 • 2 Capillar connection
5245 1088 1001 01 • 1 Warning mark
6010 1617 2721 00 • 1 Support
6030 1089 9214 10 • 1 Pressure switch
6070 1088 1001 01 • 1 Warning mark
1617 3210 80 • 1 Wiring
7010 1089 0574 75 •• 1 Temperature sensor
8010 0653 1062 00 • 2 Flat gasket
8030 0581 0000 35 • 2 Pipe coupling
8100 0070 6002 13 • AR Plastic tube
60 Hz 13.8 bar 440-460 V
50 Hz 13 bar 500 V
1617 2536 86 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
4020 1613 9463 80 • 1 Water separator
4030 0663 2109 69 • 2 O-ring
4060 0070 6002 05 • AR Plastic tube
5010 1619 7674 19 • 1 Refrig.compressor
5120 1617 3209 80 • 1 Wiring
5245 1088 1001 01 • 1 Warning mark
6010 1617 2721 00 • 1 Support
6030 1089 9139 52 • 1 Pressure switch
6070 1088 1001 01 • 1 Warning mark
1617 3210 80 • 1 Wiring
7010 1089 0574 75 •• 1 Temperature sensor
8010 0653 1062 00 • 2 Flat gasket
8030 0581 0000 35 • 2 Pipe coupling
8100 0070 6002 13 • AR Plastic tube
Air dryer - GR W
Ref. Part number Qty Name Remarks
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
4020 1613 9463 82 • 1 Water separator
4030 0663 2109 69 • 2 O-ring
4060 0070 6002 05 • AR Plastic tube
5010 1619 7674 21 • 1 Refrig.compress
5120 1617 3209 80 • 1 Wiring
5245 1088 1001 01 • 1 Warning mark
6010 1617 2721 00 • 1 Support
6030 1089 9139 52 • 1 Pressure switch
6070 1088 1001 01 • 1 Warning mark
1617 3210 80 • 1 Wiring
7010 1089 0574 75 •• 1 Temperature sensor
8010 0653 1062 00 • 2 Flat gasket
8030 0581 0000 35 • 2 Pipe coupling
8100 0070 6002 13 • AR Plastic tube
60 Hz 20 bar 575 V
1617 2831 88 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
3010 1617 2829 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
4020 1613 9463 82 • 1 Water separator
4030 0663 2109 69 • 2 O-ring
4060 0070 6002 05 • AR Plastic tube
5010 1619 7674 19 • 1 Refrig.compressor
5135 1617 3209 80 • 1 Wiring
5245 1088 1001 01 • 1 Warning mark
6010 1617 2721 00 • 1 Support
6030 1089 9139 52 • 1 Pressure switch
6070 1088 1001 01 • 1 Warning mark
1617 3210 80 • 1 Wiring
7010 1089 0574 75 •• 1 Temperature sensor
8010 0653 1062 00 • 2 Flat gasket
8030 0581 0000 35 • 2 Pipe coupling
8100 0070 6002 13 • AR Plastic tube
50 Hz 13 bar 400 V
1617 2536 82 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
106
Parts list
2930 1822 00
30
73351
107
Parts list
2930 1822 00
30
Ref. Part number Qty Name Remarks
60 Hz 13.8 bar 575 V
1617 2536 88 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
Air dryer - GR W
Ref. Part number Qty Name Remarks
60 Hz 13.8 bar 380 V
1617 2536 87 1 Air dryer
1010 1617 2126 00 • 1 Frame
1020 1617 2124 00 • 1 Support front
1025 1617 2537 00 • 1 Support rear
1060 1603 2123 80 • 1 Box ass'y
1617 2123 00 •• 1 Box heat exchanger
1617 2096 00 •• 1 Insulation bottom
1617 2097 00 •• 1 Insulation top
1080 1617 8818 00 • 1 Dataplate
1090 0129 3103 00 • 4 Blind rivet
1100 1079 9915 89 • 1 Label
1110 1079 9915 98 • 1 Label
1210 1617 2630 00 • 1 Cover
2070 1617 2231 01 • 1 Thermostatic valve
2071 1627 7286 01 • 1 Thermostatic valve
2130 1617 2528 02 • 1 Capacitor
2210 1617 3887 00 • 1 Separator
3010 1617 2044 00 • 1 Heat exchanger
3020 0650 0100 09 • 1 Gasket
3070 0663 2109 69 • 1 O-ring
4010 1617 1247 00 • 1 Connector
4020 1613 9463 80 • 1 Separator water
4030 0663 2109 69 • 2 O-ring
4060 0070 6002 05 • AR Plastic tube
5010 1619 7674 21 • 1 Refrig.compressor
5120 1617 3209 80 • 1 Wiring
5245 1088 1001 01 • 1 Warning mark
6010 1617 2721 00 • 1 Support
6030 1089 9139 52 • 1 Pressure switch
6070 1088 1001 01 • 1 Warning mark
1617 3210 80 • 1 Wiring
7010 1089 0574 75 •• 1 Temperature sensor
8010 0653 1062 00 • 2 Flat gasket
8030 0581 0000 35 • 2 Pipe coupling
8100 0070 6002 13 • AR Plastic tube
108
Parts list
2930 1822 00
31 Service kits
Ref. Part number Qty Name Remarks
2906 0229 00 Oil filter kit
0653 1046 00 • 2 Gasket oil drain plugs
0661 1000 27 • 4 Gasket oil drain plugs
0653 1124 00 • 2 Gasket oil drain plug
0661 1000 31 • 1 Gasket oil filler plug
0653 1100 00 • 1 Gasket scavenge line
1202 8040 90 • 3 Oil filter element
0661 1000 25 • 3 Gasket oil drain plug
2906 0230 00 Air/oil filter kit
0653 1046 00 • 2 Gasket oil drain plugs
0661 1000 27 • 4 Gasket oil drain plugs
0653 1124 00 • 2 Gasket oil drain plug
0661 1000 31 • 1 Gasket oil filler plug
0653 1100 00 • 1 Gasket scavenge line
1202 8040 90 • 3 Oil filter element
0661 1000 25 • 3 Gasket oil drain plug
1621 0547 99 • 1 Air filter element
2906 0021 00 Check valve kit
0661 1000 27 • 1 Gasket oil drain plug
2253 9671 00 • 2 Check valve
2254 8075 00 • 2 Spring
0663 2106 15 • 4 O-ring
0663 2106 17 • 1 O-ring
0333 3237 00 • 4 Lock washer
2906 0094 00 Oil stop valve kit
0663 2108 12 • 1 O-ring
0663 2106 15 • 1 O-ring
0663 2106 11 • 2 O-ring
0661 1000 25 • 1 Gasket
2254 9868 00 • 1 Spring
0663 2106 12 • 1 O-ring
2906 0095 00 Min. pressure valve kit
0663 2106 58 • 1 O-ring
0665 0700 89 • 1 Ring
1614 6957 00 • 1 Washer
2254 9215 00 • 1 Lockplate
2906 0638 00 Oil separator kit
1621 9077 00 • 1 Oil separator element
0663 2109 45 • 2 O-ring
0663 2106 17 • 2 O-ring
0663 6147 00 • 1 O-ring
2906 0563 00 Unloading valve kit
0663 2109 71 • 2 O-ring
Ref. Part number Qty Name Remarks
0663 2109 73 • 2 O-ring
0663 9868 00 • 1 O-ring
2906 6021 00 • 1 Piston assy
1614 9156 00 • 1 Spring
1619 6142 00 • 1 Seal ring
1619 6143 00 • 1 Seal ring
2906 0639 00 Cooler kit
0663 2106 17 • 2 O-ring
0663 2106 15 • 1 O-ring
0663 2109 69 • 1 O-ring
0663 2109 68 • 4 O-ring
2906 0233 00 Oil cooler kit
0663 2106 12 • 5 O-ring
0663 2106 11 • 4 O-ring
1614 6256 00 • 8 O-ring cooler core
0661 1000 27 • 2 Washer drain plug oil
0653 1062 00 • 4 Washer drain plug water
0333 3237 00 • 16 Lock washer
2906 0232 00 Aftercooler kit
0333 3237 00 • 8 Lock washer
0663 6147 00 • 2 O-ring
0663 2109 69 • 1 O-ring
0663 2106 12 • 3 O-ring
1614 6256 00 • 4 O-ring cooler core
0653 1062 00 • 1 Washer drain plug water
0663 2106 16 • 2 O-ring
2906 0234 00 LP element exchange kit
0337 6074 00 • 1 Key
0211 1409 00 • 3 Cap screw
0653 1124 00 • 1 Gasket
0663 2100 64 • 2 O-ring
0663 2106 10 • 2 O-ring
0663 2106 13 • 2 O-ring
0663 2106 15 • 1 O-ring
0663 2106 20 • 1 O-ring
0663 2109 71 • 1 O-ring
0663 3120 00 • 1 O-ring
1202 7009 00 • 1 Gasket
2906 0235 00 HP element exchange kit
0147 1409 03 • 1 Screw
0337 5194 00 • 1 Key
0653 1046 00 • 1 Gasket
0661 1000 25 • 1 Seal washer
0661 1000 27 • 1 Seal washer
109
Parts list
2930 1822 00
Service kits 31
Ref. Part number Qty Name Remarks
0663 2100 64 • 2 O-ring
0663 2106 10 • 2 O-ring
0663 2106 11 • 1 O-ring
0663 2106 13 • 2 O-ring
0663 2106 15 • 6 O-ring
0663 2106 17 • 1 O-ring
0663 2106 18 • 1 O-ring
0663 2106 20 • 1 O-ring
0663 3120 00 • 2 O-ring
1202 7010 00 • 1 Gasket
2906 0222 00 Gearbox overhaul kit
0211 1407 00 • 10 Screw
0506 0100 08 • 1 Bearing
0506 5109 00 • 1 Bearing
0661 1000 25 • 1 Seal washer
0661 1000 27 • 4 Seal washer
0661 1000 29 • 2 Seal washer
0661 1359 00 • 1 Seal washer
0663 3117 00 • 2 O-ring
0663 2107 76 • 1 O-ring
0663 7177 00 • 1 O-ring
1202 7011 00 • 1 Gasket
1619 5177 00 • 2 Seal ring
2252 5478 00 • 1 Bushing
2906 0650 00 HP element overhaul kit
0147 1409 03 • 2 Screw
0508 2158 01 • 4 Bearing
0509 0121 09 • 4 Bearing
0663 7141 00 • 2 O-ring cover
0663 7119 00 • 1 O-ring plug
0663 2107 07 • 1 O-ring outlet housing
0663 2106 67 • 2 O-ring outlet housing
0663 2107 82 • 1 O-ring outlet housing
0663 2111 19 • 1 O-ring inlet housing
0663 7128 00 • 1 O-ring inlet housing
2253 1851 70 • 2 Spacer
2255 0387 00 • 2 Shim ring
2255 0389 00 • 2 Wave spring set
2906 0186 00 LP element overhaul kit
0211 1407 00 • 6 Screw
1079 5081 05 • 2 Bearing
0508 2115 01 • 2 Bearing
1616 6446 00 • 1 Gasket
0663 7131 00 • 1 O-ring oil injection plate
1616 5603 70 • 2 Spacer
1616 5380 00 • 2 Wave spring
Ref. Part number Qty Name Remarks
0663 7154 00 • 2 O-ring cover
0653 1124 00 • 2 Gasket
2906 0651 00 4000 hrs maintenance kit
2906 0230 00 • 1 Air/oil filter kit
2906 0094 00 • 1 Oil stop valve kit
2906 0095 00 • 1 Min. press valve kit
2901 0749 00 • 1 Water separator kit
0663 2106 15 • 4 O-ring check valve
0663 2106 17 • 1 O-ring check valve
2254 8075 00 • 2 Spring check valve
2906 0652 00 8000 hrs maintenance kit
0663 2107 77 • 1 O-ring thermostatic valve
2906 0230 00 • 1 Air/oil filter kit
2906 0021 00 • 1 Check valve kit
2906 0094 00 • 1 Oil stop valve kit
2906 0095 00 • 1 Min. press valve kit
2906 0563 00 • 1 Unloading valve kit
2901 0749 00 • 1 Water separator kit
2906 0638 00 • 1 Oil separator kit
2910 0188 21 • 1 Regulating valve service kit
2906 0653 00
0663 2107 77 • 2 O-ring thermostatic valve
0147 1958 97 • 2 Bolt min press valve
0663 2106 20 • 1 O-ring air receiver
0663 2109 68 • 3 O-ring oil flexible
0337 5305 00 • 1 Key
2906 0230 00 • 1 Air/oil filter kit
2906 0021 00 • 1 Check valve kit
2906 0094 00 • 1 Oil stop valve kit
2906 0095 00 • 1 Min press valve kit
2906 0638 00 • 1 Oil separator kit
2906 0563 00 • 1 Unloading valve kit
2906 0234 00 • 1 LP element exchange kit
2906 0235 00 • 1 HP element exchange kit
2906 0222 00 • 1 Gearbox overhaul kit
2901 0749 00 • 1 Water separator kit
2910 0188 21 • 1 Regulating valve kit
1614 9282 00 • 1 Spring unloading valve
2253 3033 00 • 1 Seal gearbox safety valve
2253 2424 00 • 1 Valve gearbox safety valve
2253 1809 00 • 1 Spring gearbox safety valve
2253 2968 00 • 1 Spring min press valve
2253 1864 00 • 1 Spring min press valve
1614 7294 00 • 1 Valve min press valve
1614 9412 00 • 3 Buffer air receiver
1614 9542 00 • 3 Buffer air receiver
110
Parts list
2930 1822 00
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
111
Parts list
2930 1822 00
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
112
Parts list
2930 1822 00
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
Atlas Copco Stationary Air Compressors
Parts list
GR 110, GR 132, GR 160, GR 200,
GR 110 W, GR 132 W,GR 160 W, GR 200 W
No. 2930 1822 00 / DC 2014.01
What sets Atlas Copco apart as a company is our conviction
that we can only excel in what we do if we provide the best
possible know-how and technology to really help our customers
produce, grow and succeed.
There is a unique way of achieving that - we simply call it
the Atlas Copco way. It builds on interaction, on long-term
relationships and involvement in the customers’ process, needs
and objectives. It means having the
flexibility to adapt to the diverse demands of the people
we cater for.
It’s the commitment to our customers’ business that drives
our effort towards increasing their productivity through better
solutions. It starts with fully supporting existing products and
continuously doing things better, but it goes much further,
creating advances
