Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

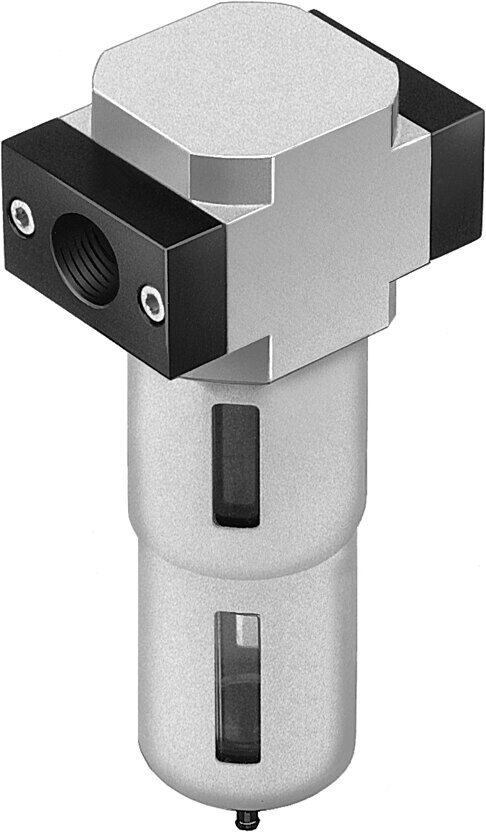

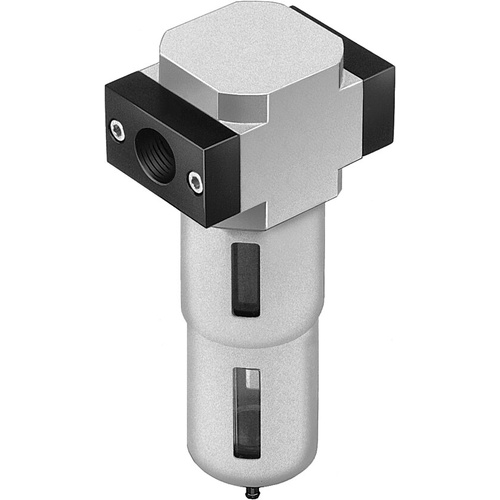

Filter

LF-1/4-D-5M-MINI

162611





GTIN: 4052568012571

Pneumatic connection, port 1
G1/4
Standard nominal flow rate (standardised to DIN 1343)
950 l/min
Operating pressure
0 bar - 16 bar
Grade of filtration
5 µm

Technical Data

  • SizeMini
  • SeriesD
  • Mounting positionVertical +/-5°
  • Grade of filtration5 µm
  • Condensate drainManual, rotating
  • DesignSintered filter with centrifugal separator
  • Bowl guardMetal bowl guard
  • Symbol00991519
  • Operating pressure0 bar ... 16 bar
  • Standard nominal flow rate (standardised to DIN 1343)950 l/min
  • Operating mediumInert gas
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [6:8:4] Inert gas
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight250 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Note on materialsRoHS compliant
  • Material filterPackaging unit
  • Material housingDie-cast zinc
  • Material bowlMakrolon®



SKU 162611
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
