Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

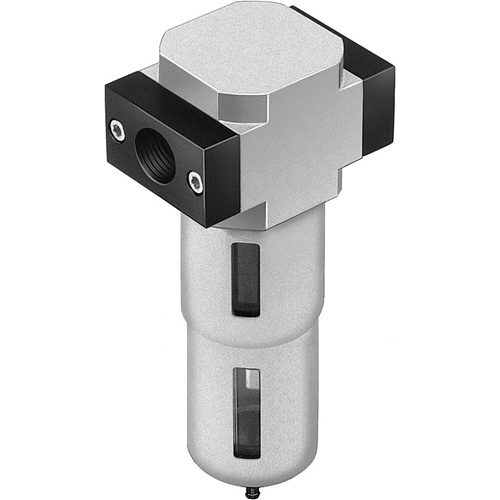

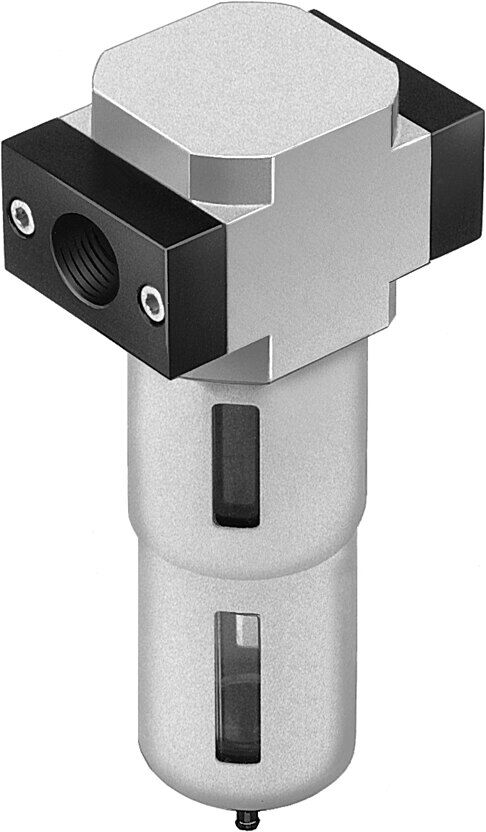

Filter

LF-1-D-5M-MAXI-A

162625





GTIN: 4052568131715

Pneumatic connection, port 1
G1
Standard nominal flow rate (standardised to DIN 1343)
3800 l/min
Operating pressure
2 bar - 12 bar
Grade of filtration
5 µm

Technical Data

  • SizeMaxi
  • SeriesD
  • Mounting positionVertical +/-5°
  • Grade of filtration5 µm
  • Condensate drainFully automatic
  • DesignSintered filter with centrifugal separator
  • Bowl guardMetal bowl guard
  • Symbol00991520
  • Operating pressure2 bar ... 12 bar
  • Standard nominal flow rate (standardised to DIN 1343)3800 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:9:-] Inert gas
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [6:8:4] Inert gas
  • Media temperature5 °C ... 60 °C
  • Ambient temperature5 °C ... 60 °C
  • Product weight1440 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1
  • Pneumatic connection, port 2G1
  • Note on materialsRoHS compliant
  • Material filterPackaging unit
  • Material housingDie-cast zinc
  • Material bowlMakrolon®
SKU 162625
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
