Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

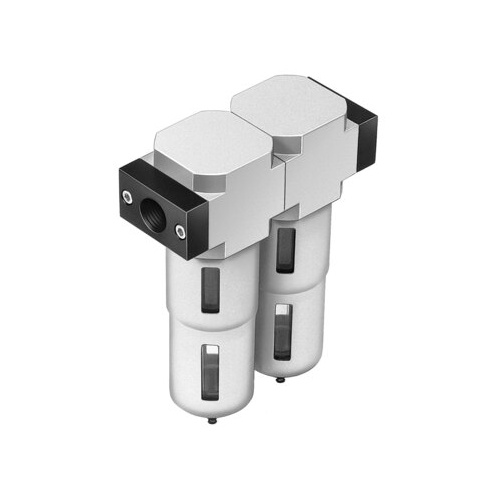

Filter combination

LFMBA-1/8-D-MINI-A

162666





GTIN: 4052568132057

Size
Mini
Grade of filtration
0.01 µm
Operating pressure
1.5 bar - 12 bar
Condensate drain
Fully automatic
Ambient temperature
-10 °C - 60 °C

Technical Data

  • SizeMini
  • SeriesD
  • Mounting positionVertical +/-5°
  • Grade of filtration0.01 µm
  • Filter efficiency99.9999 %
  • Condensate drainFully automatic
  • DesignFibre filter
  • Max. condensate volume22 ml
  • Bowl guardMetal bowl guard
  • Symbol00991551
  • Operating pressure1.5 bar ... 12 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [6:8:4] Inert gas
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [1:7:2] Inert gas
  • Media temperature1.5 °C ... 60 °C
  • Residual oil content0.01 mg/m³
  • Ambient temperature-10 °C ... 60 °C
  • Product weight500 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Note on materialsRoHS compliant
  • Material filterBorosilicate fibre
  • Material housingDie-cast zinc
  • Material bowlMakrolon®



SKU 162666
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
