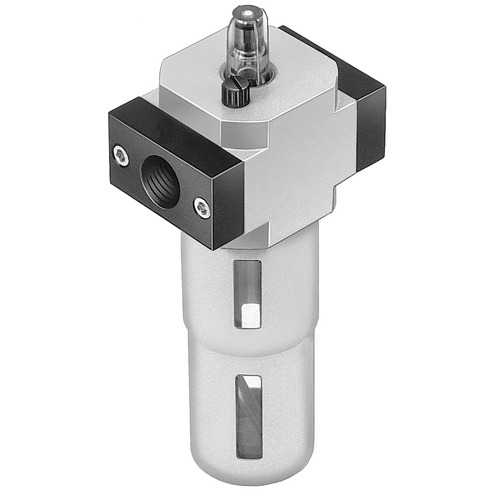

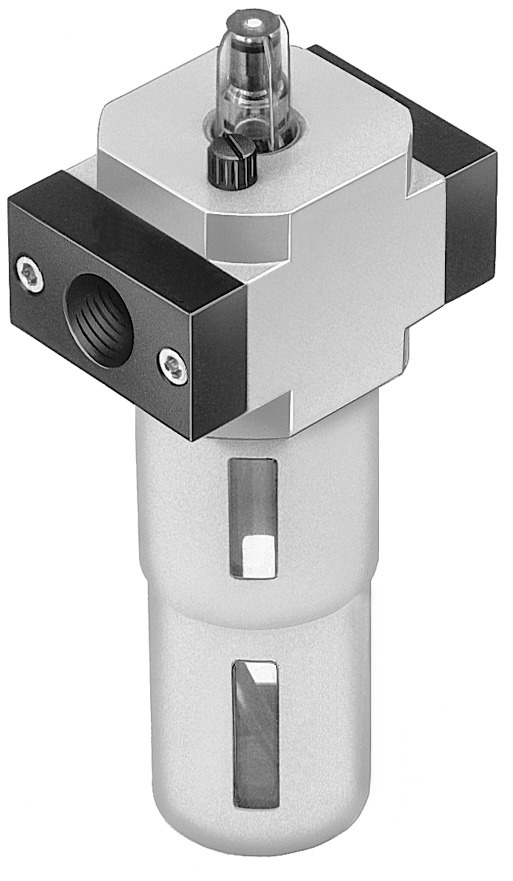

Lubricator

LOE-1/4-D-MINI

159621

GTIN: 4052568011857

Downloads

LOE-D_EN.PDF

Technical data

Links

Spare parts



Pneumatic connection, port 1 G1/4

Standard nominal flow rate 2300 l/min

Operating pressure 0 bar - 16 bar

Min. flow rate for lubricator function 3 l/min

  • Size - Mini
  • Series - D
  • Mounting position - Vertical +/-5°
  • Design - Proportional standard mist lubricator
  • Max. oil capacity - 45 cm³
  • Bowl guard - Metal bowl guard

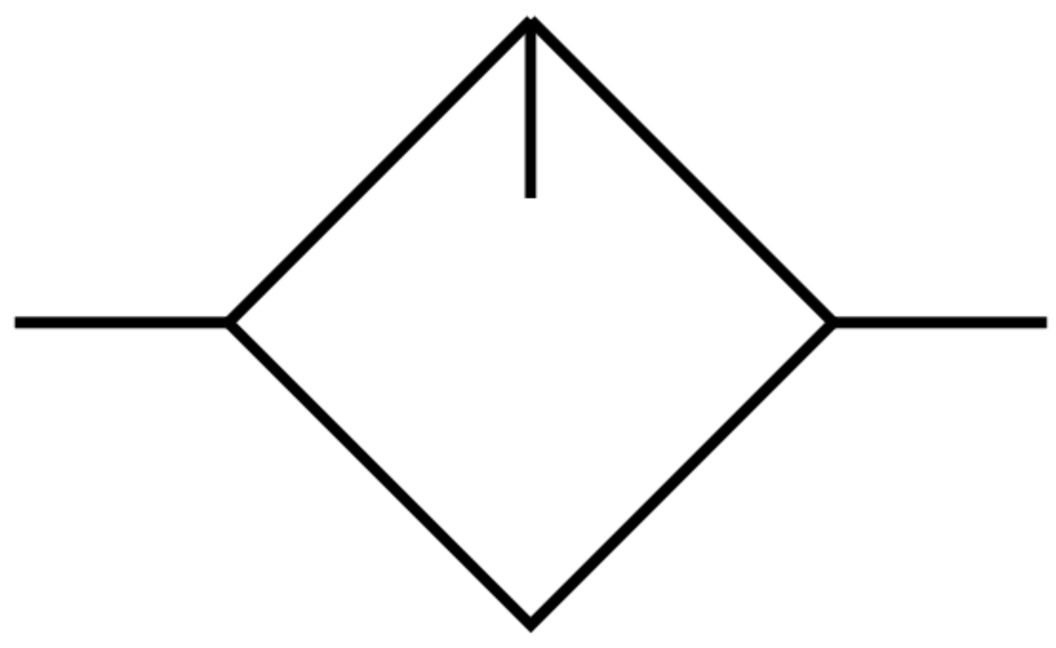

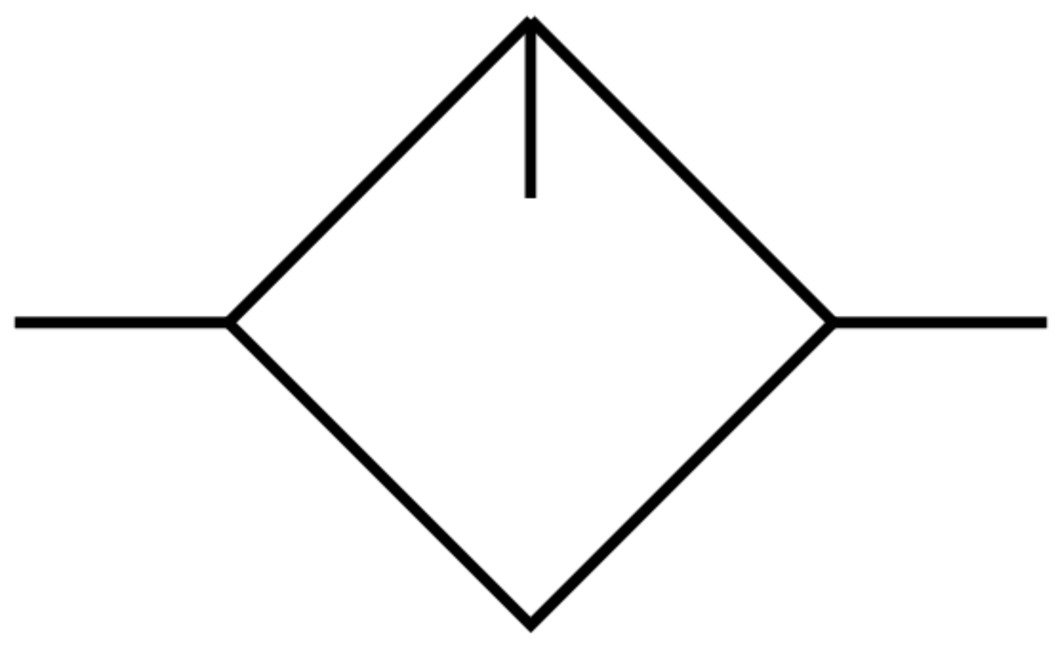

  • Symbol - 00991532
  • Operating pressure - 0 bar ... 16 bar
  • Min. flow rate for lubricator function - 3 l/min
  • Standard nominal flow rate - 2300 l/min
  • Operating medium - Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot medium - Lubricated operation not possible
  • Corrosion resistance class  - CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformity - VDMA24364-B1/B2-L
  • Storage temperature -10 °C ... 60 °C
  • Air purity class at output - Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
  • Media temperature -10 °C ... 60 °C
  • Ambient temperature -10 °C ... 60 °C
  • Product weight - 270 g
  • Type of mounting - With accessories
  • Pneumatic connection, port 1 - G1/4
  • Pneumatic connection, port 2 - G1/4
  • Note on materials - RoHS-compliant
  • Material bowl - PC



Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

Lubricator

Lubricator

SKU 159621
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
