Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

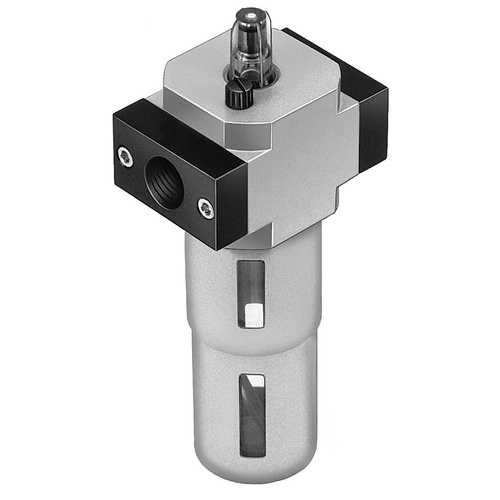

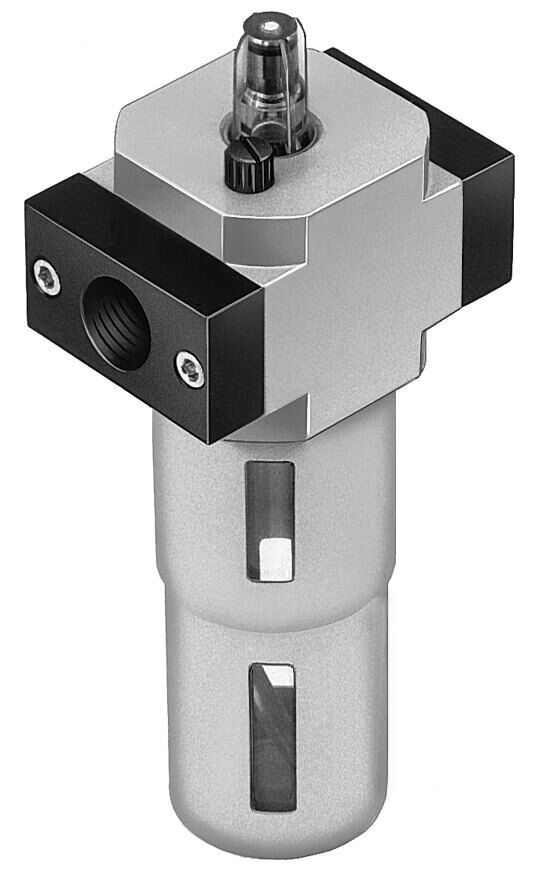

Lubricator

LOE-3/8-D-MINI

162680





GTIN: 4052568072414

Pneumatic connection, port 1
G3/8
Standard nominal flow rate (standardised to DIN 1343)
2700 l/min
Operating pressure
0 bar - 16 bar
Min. flow rate for lubricator function
3 l/min

Technical Data

  • SizeMini
  • SeriesD
  • Mounting positionVertical +/-5°
  • DesignProportional standard mist lubricator
  • Max. oil capacity45 cm³
  • Bowl guardMetal bowl guard
  • Symbol00991532
  • Operating pressure0 MPa ... 1.6 MPa
  • Operating pressure0 bar ... 16 bar
  • Operating pressure0 psi ... 232 psi
  • Min. flow rate for lubricator function3 l/min
  • Standard nominal flow rate (standardised to DIN 1343)2700 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:-] Inert gas
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight270 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G3/8
  • Pneumatic connection, port 2G3/8
  • Note on materialsRoHS compliant
  • Material bowlMakrolon®
SKU 162680
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
