Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

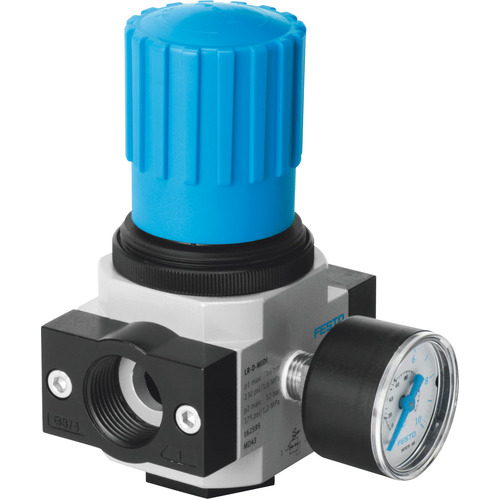

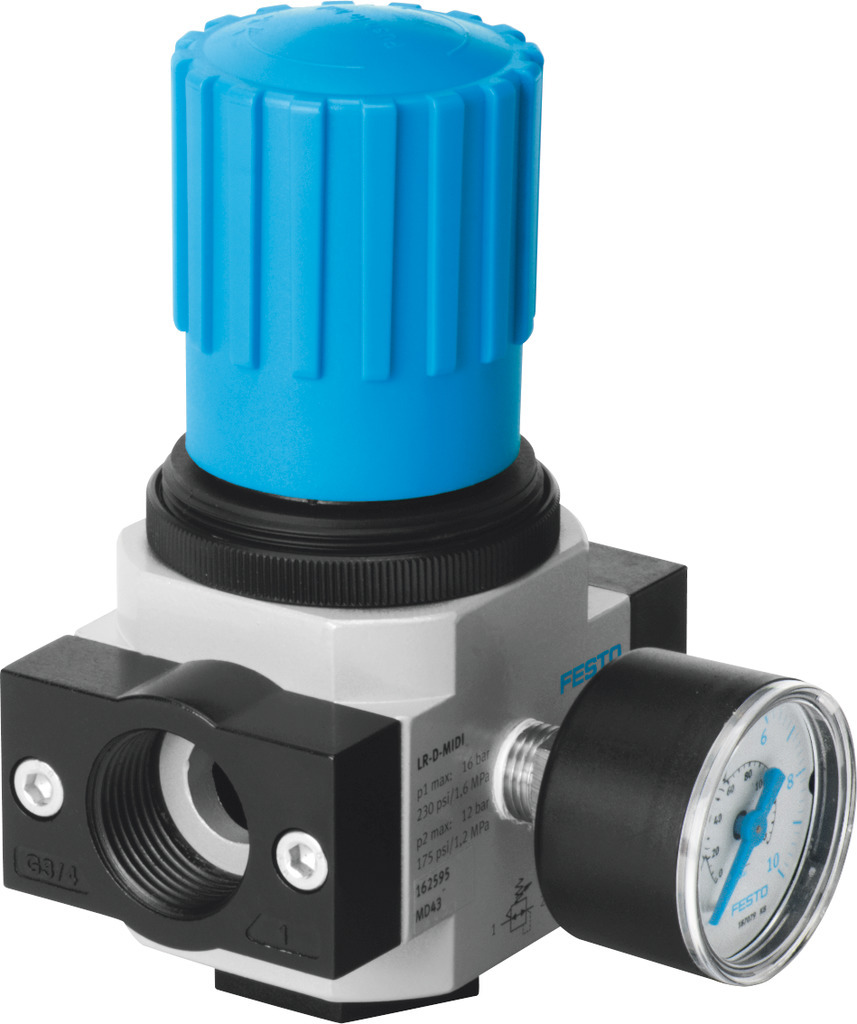

Pressure regulator

LR-1/2-D-MAXI

Operating Pressure 16 Bar.

186455

GTIN: 4052568005016

Downloads

Technical data

Reliability datasheet

Links

Spare parts



Pneumatic connection, port 1 G1/2

Standard nominal flow rate (standardised to DIN 1343) 10500 l/min

Pressure regulation range 0.5 bar - 12 bar

Max. pressure hysteresis 0.4 bar



Pressure regulator

Technical Data

  • Size Maxi
  • Series D
  • Actuator lockRotary knob with detent
  • Mounting positionoptional
  • DesignPiloted piston regulator
  • Controller function Output pressure constant With secondary venting

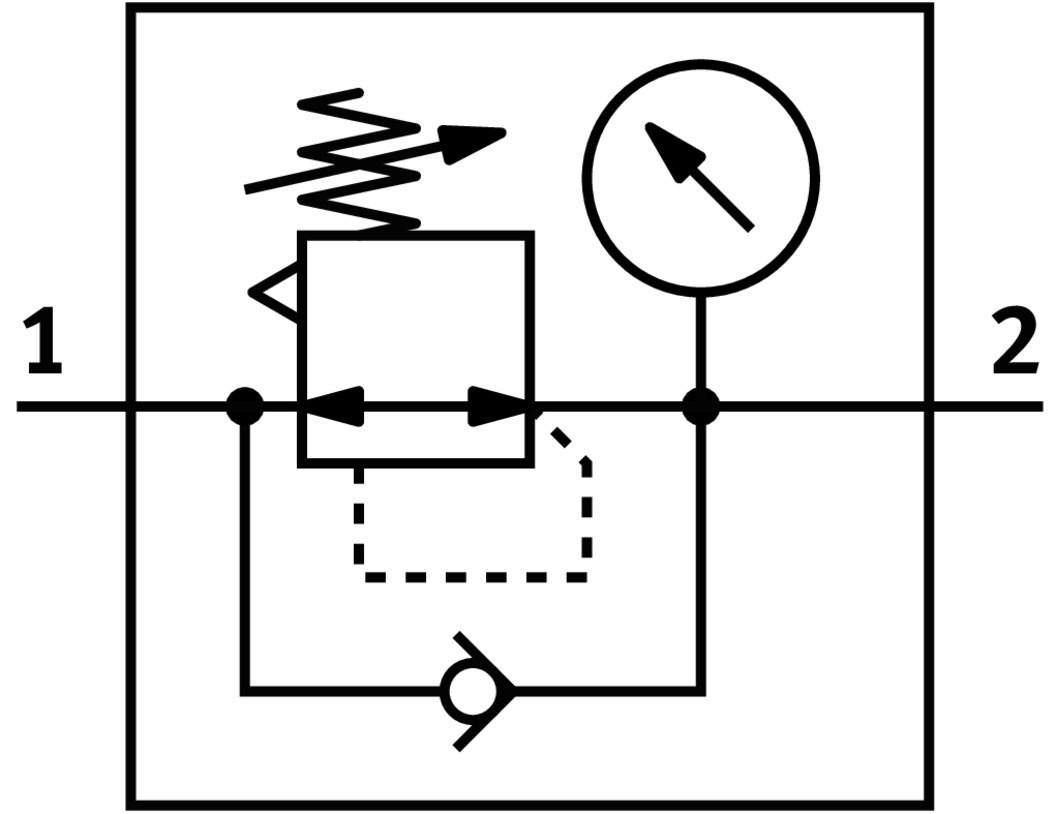

  • Symbol 00991558
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0 bar ... 16 bar
  • Pressure regulation range 0.5 bar ... 12 bar
  • Max. pressure hysteresis 0.4 bar
  • Standard nominal flow rate (standardised to DIN 1343)10500 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Air purity class at output Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Media temperature -10 °C ... 60 °C
  • Ambient temperature -10 °C ... 60 °C
  • Product weight 800 g
  • Type of mountingFront panel mounting In-line installation With accessories
  • Pneumatic connection, port 1 G1/2
  • Pneumatic connection, port 2 G1/2
  • Note on materials RoHS-compliant
  • Material sub-base Die-cast zinc
  • Material seals NBR
  • Material housing Die-cast zinc
SKU 186455
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
