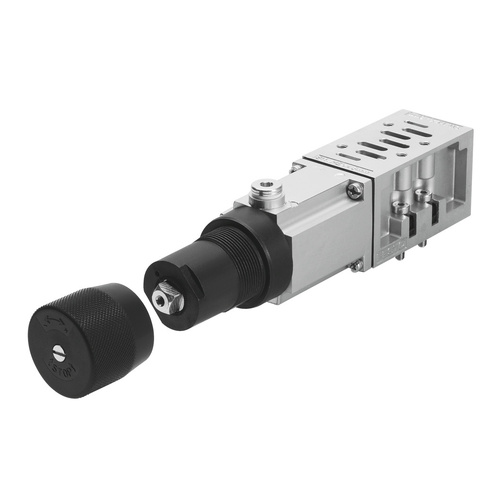

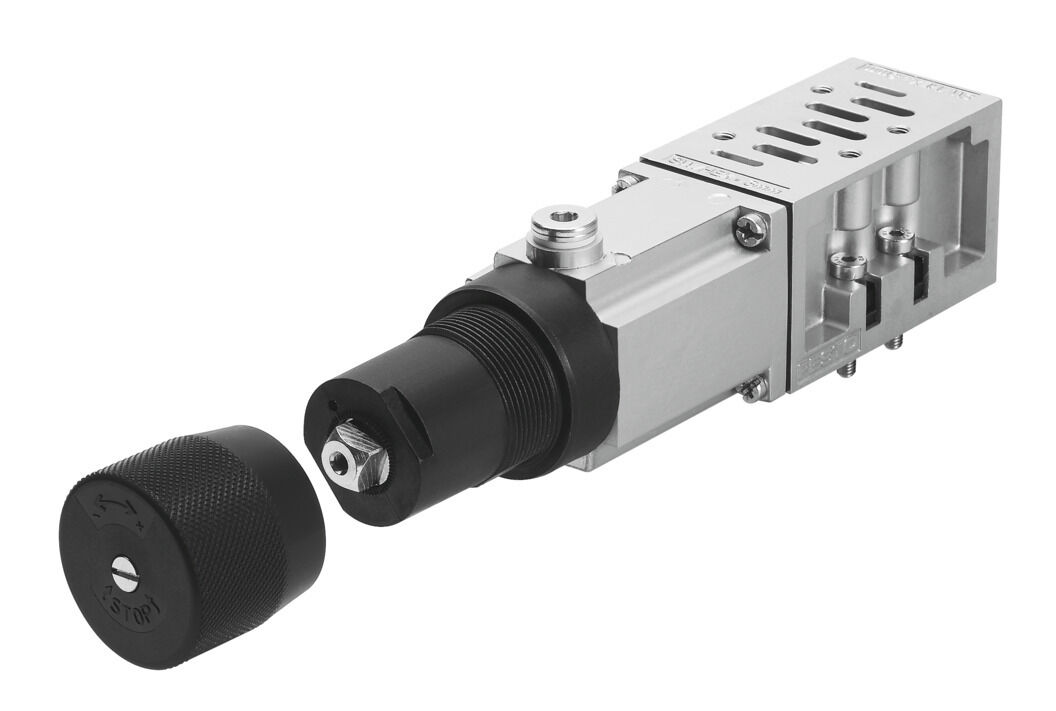

Intermediate pressure regulator plate

LR-ZP-B-D-3

35426





GTIN: 4052568115753





Technical Data

  • Based on standardISO 5599-1
  • DesignPiston
  • Integrated functionPressure regulator

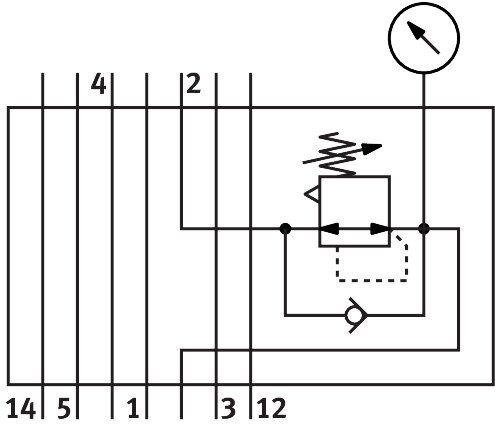

  • Symbol00991581
  • Pressure regulation range0.05 MPa ... 1.2 MPa
  • Pressure regulation range0.5 bar ... 12 bar
  • Pressure regulation range7.25 psi ... 174 psi
  • Inlet pressure 1≤14 bar
  • Inlet pressure 1≤1.4 MPa
  • Inlet pressure 1≤203 psi
  • ApprovalUL - Recognized (OL)
  • LABS (PWIS) conformityVDMA24364 zone III
  • Product weight1220 g
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium Steel
SKU 35426
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
