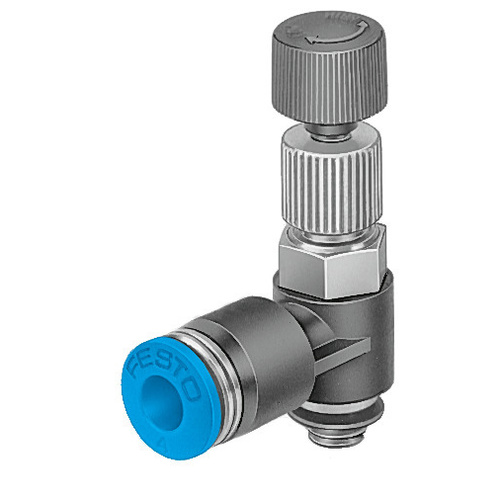

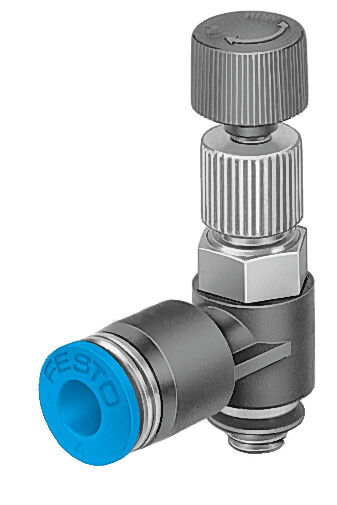

Differential pressure regulator

LRLL-1/8-QS-4

153499





GTIN: 4052568070762

Pressure regulation range
2 bar - 6 bar
Nominal flow rate closed
96 l/min
Nominal flow rate open
100 l/min
Pneumatic connection, port 1
R1/8
Pneumatic connection, port 2
QS-4





Technical Data

  • Controller functionDifferential pressure constant With return flow function
  • Pneumatic connection, port 1R1/8
  • Pneumatic connection, port 2QS-4
  • Type of mountingScrew-in
  • Nominal flow rate open100 l/min
  • Pressure regulation range2 bar ... 6 bar
  • Inlet pressure 10 MPa ... 0.9 MPa
  • Inlet pressure 10 bar ... 9 bar
  • Inlet pressure 10 psi ... 130.5 psi
  • Ambient temperature0 °C ... 60 °C
  • Material housingPBT-reinforced
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Actuator lockCounter-locking
  • Mounting positionoptional
  • DesignDirectly actuated piston regulator With through compressed air supply

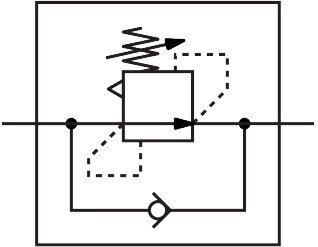

  • Symbol00991535
  • Nominal flow rate closed96 l/min
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Product weight19 g
  • Material screwed plugNickel-plated brass
  • Note on materialsRoHS-compliant
  • Material thread sealPTFE
SKU 153499
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
