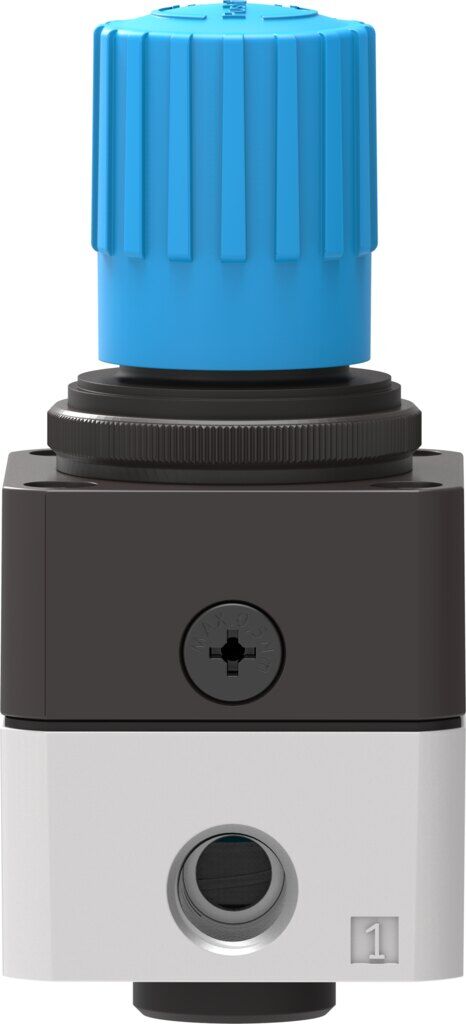

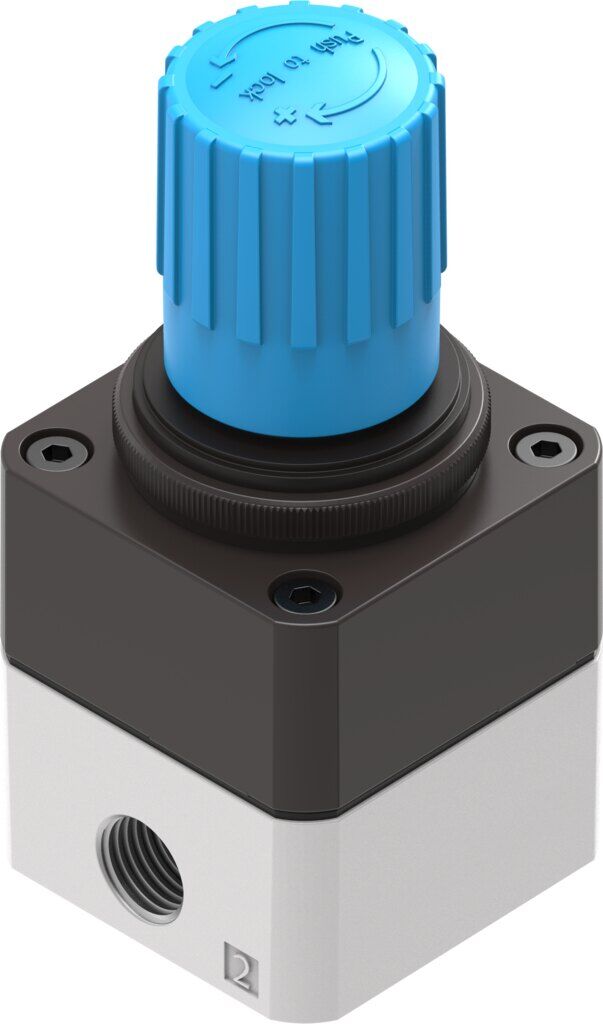

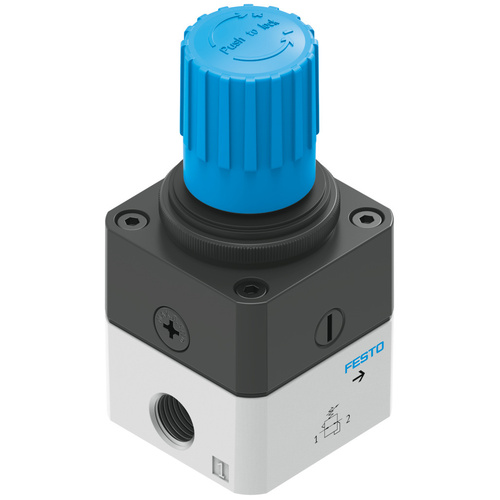

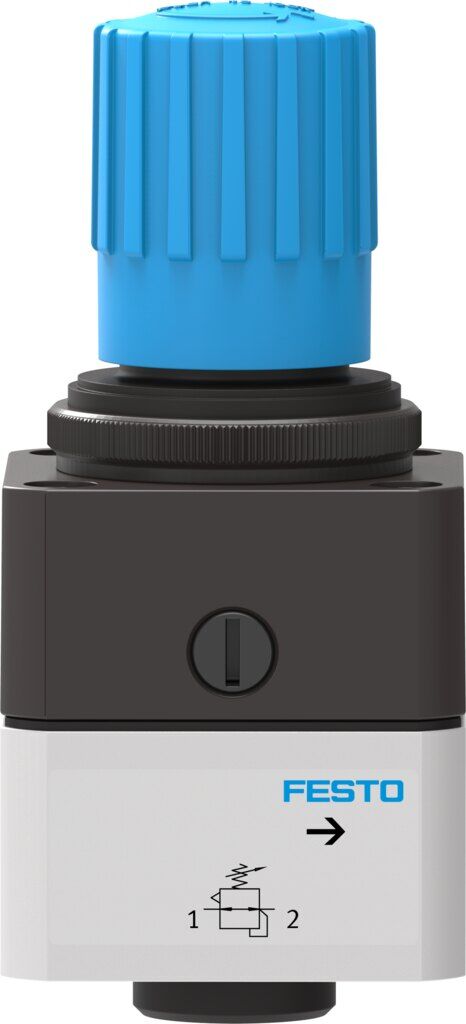

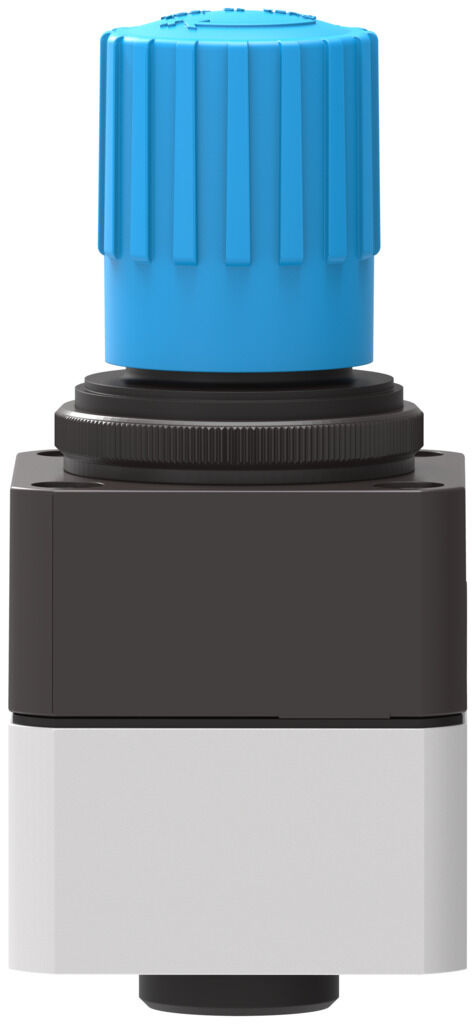

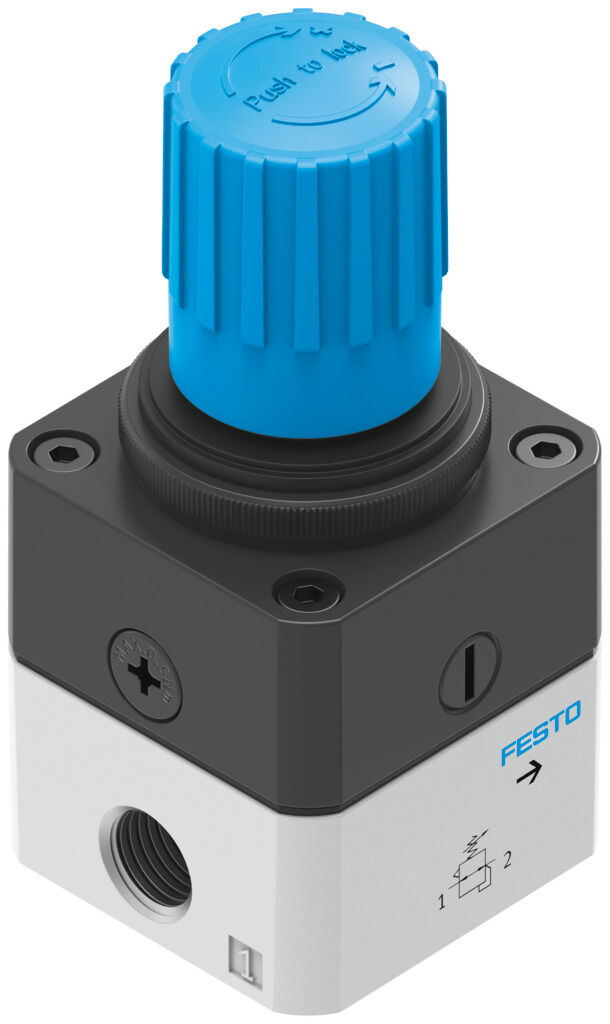

Precision pressure regulator

LRP-1/4-4

159501





GTIN: 4052568006303





Technical Data

  • Actuator lockRotary knob with detent
  • Mounting positionoptional
  • DesignPiloted precision diaphragm control valve
  • Controller functionOutput pressure constant With secondary venting
  • Symbol00991540
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8
  • Operating pressure0.1 MPa ... 1.2 MPa
  • Operating pressure1 bar ... 12 bar
  • Pressure regulation range0.05 bar ... 4 bar
  • Inlet pressure 11 bar ... 12 bar
  • Max. pressure hysteresis0.02 bar
  • Standard nominal flow rate (standardised to DIN 1343)2000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation not possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight310 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingAluminium
SKU 159501
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
