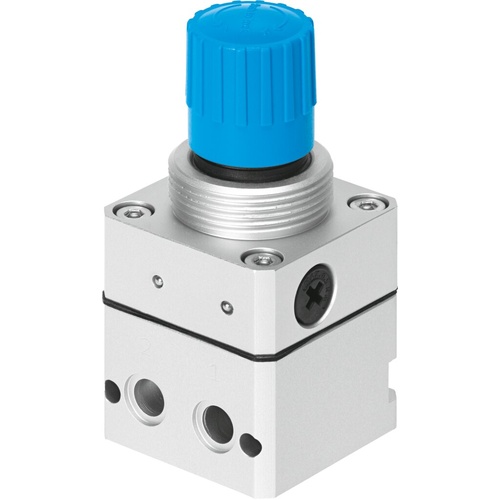

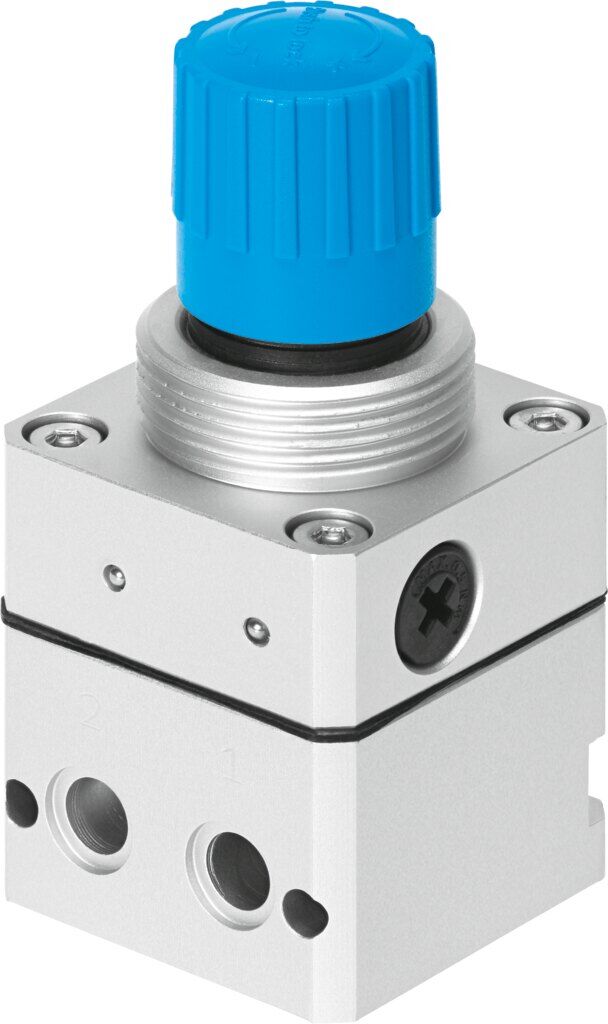

Precision pressure regulator

LRP-7.0-6

2418761





GTIN: 4052568264987



Technical Data

  • Size40
  • SeriesLR
  • Actuator lockRotary knob with detent
  • Mounting positionoptional
  • DesignPiloted precision diaphragm control valve
  • Controller functionOutput pressure constant With secondary venting
  • Symbol00991540
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8
  • Operating pressure0.1 MPa ... 0.8 MPa
  • Operating pressure1 bar ... 8 bar
  • Pressure regulation range0.1 bar ... 6 bar
  • Max. pressure hysteresis0.02 bar
  • Standard nominal flow rate (standardised to DIN 1343)240 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight200 g
  • Type of mountingWith accessories
  • Pressure gauge connectionG1/8
  • Pneumatic connection, port 1For sub-base Ø 7 mm
  • Pneumatic connection, port 2For sub-base diameter 7 mm
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingAluminium
  • Material membraneNBR



SKU 2418761
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
