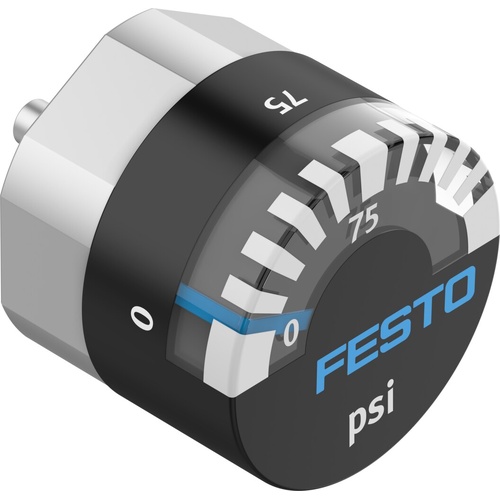

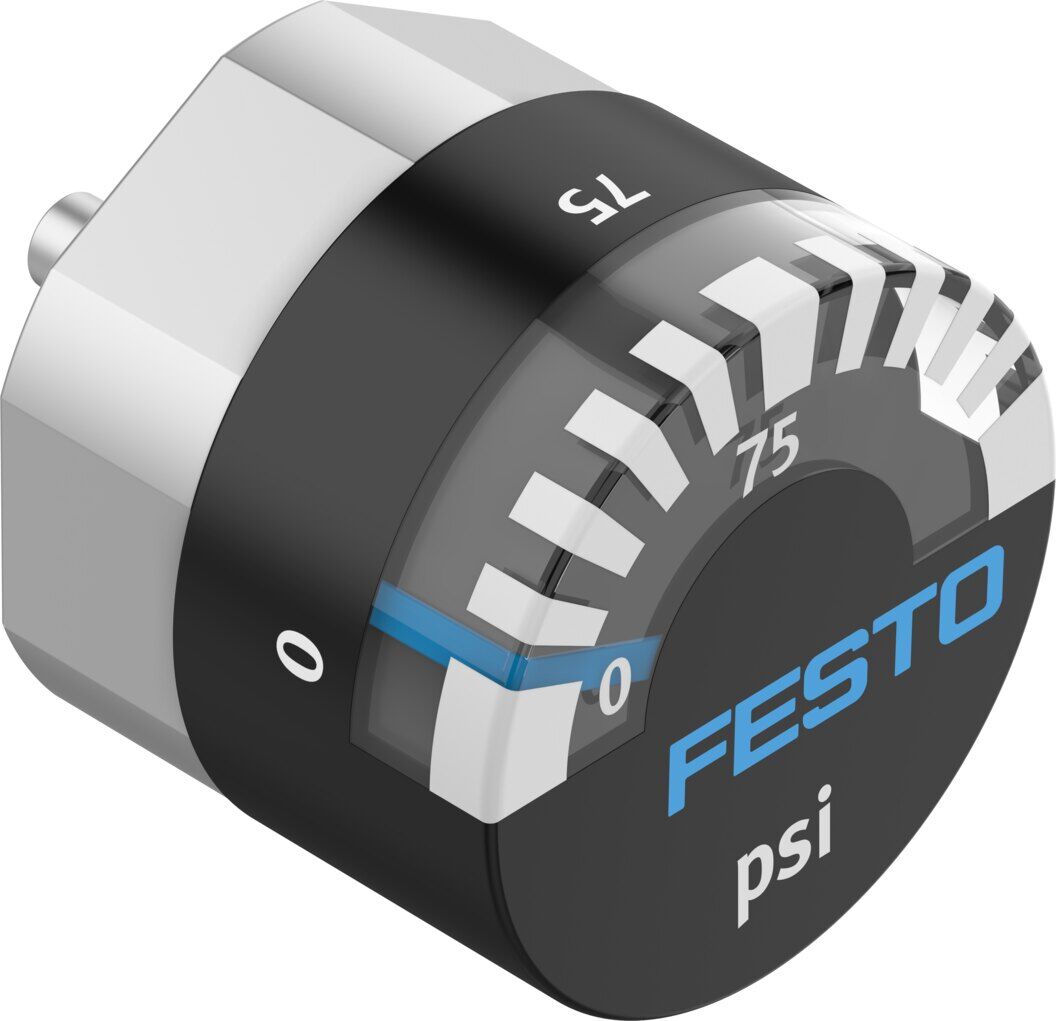

Pressure gauge

MA-15-145-M5-PSI

132341





GTIN: 4052568027971

Type of mounting
In-line installation
Pneumatic connection
M5
Measurement accuracy class
5

Technical Data

  • Indicating range0 psi ... 145 psi
  • Symbol00991463
  • Nominal size of pressure gauge15
  • DesignBourdon tube pressure gauge without measuring mechanism
  • Type of mountingIn-line installation
  • Operating mediumInert gases Neutral fluids
  • Note on operating and pilot mediumNo acetylene No oxygen
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • Operating pressure0 psi ... 145 psi
  • Alternating load factor0.66
  • Measurement accuracy class5
  • Degree of protectionIP53
  • Media temperature-20 °C ... 60 °C
  • Ambient temperature-20 °C ... 60 °C
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Note on materialsRoHS-compliant
  • Position of connectionCentred, rear side
  • Pneumatic connectionM5
  • Material screwed plugBrass
  • Material housingSteel
  • Material screenPC
  • Housing colourBlack
  • Product weight10 g
  • ScaleSingle scale psi (outer scale)



SKU 132341
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
