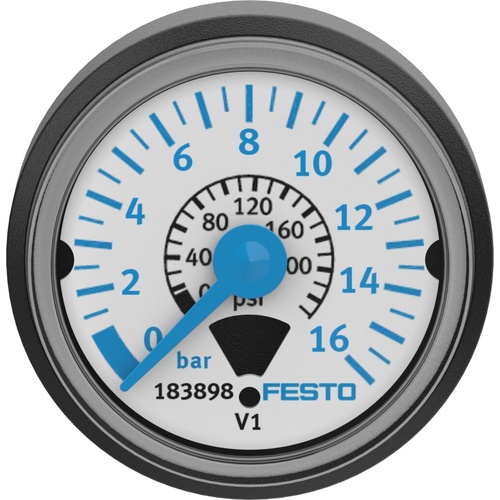

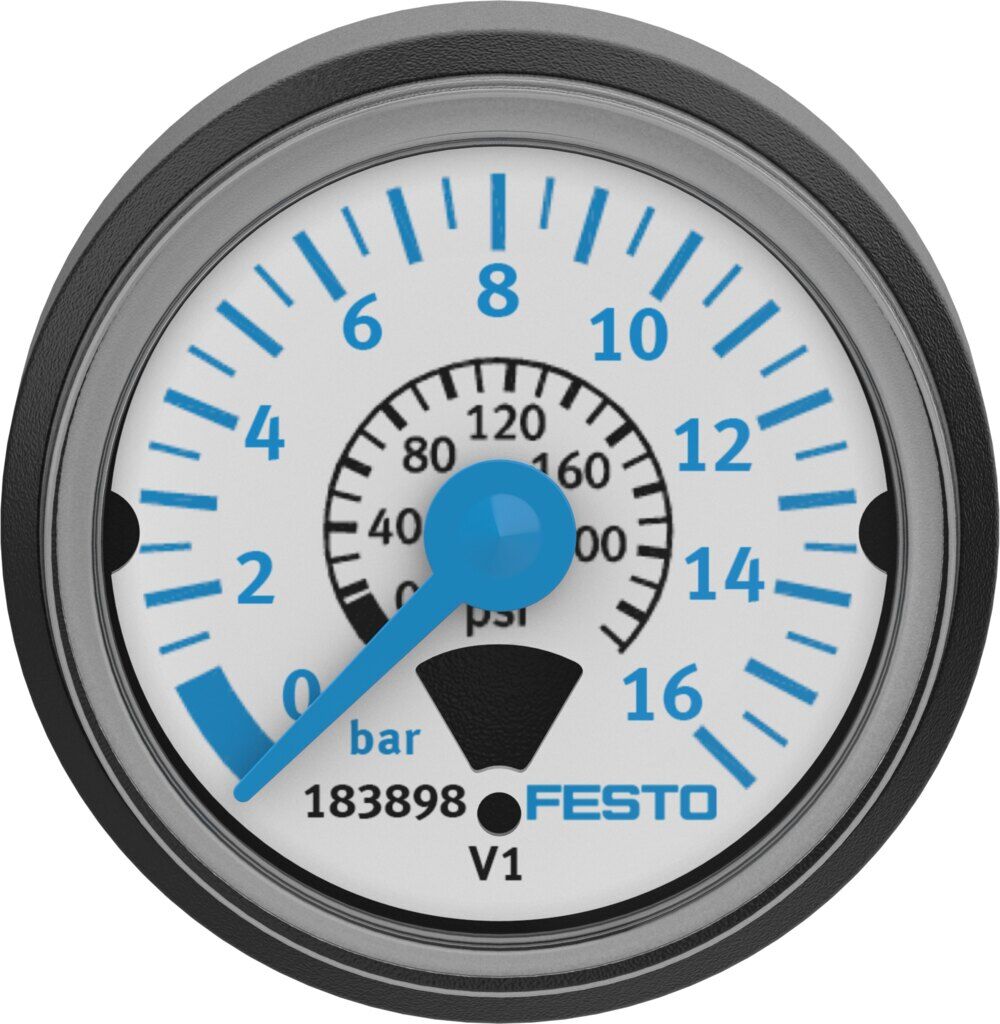

Pressure gaugeMA-23-16-R1/8

183898

GTIN: 4052568039059

Type of mounting
Inline installation
Indicating range
0 bar - 16 bar
Pneumatic connection
R1/8
Measurement accuracy class
4



Technical Data Pressure gauge MA-23-16-R1/8

  • Indicating range0 bar ... 16 bar
  • Indicating range0 psi ... 232 psi
  • Symbol00991463
  • Nominal size of pressure gauge23
  • DesignBourdon tube pressure gauge
  • Type of mountingInline installation
  • Operating mediumInert gas Neutral fluids
  • Note on operating and pilot mediumNo acetylene No oxygen
  • Operating pressure0 MPa ... 1.6 MPa
  • Operating pressure0 bar ... 16 bar
  • Operating pressure0 psi ... 232 psi
  • Alternating load factor0.6
  • Measurement accuracy class4
  • Degree of protectionIP44
  • Media temperature-20 °C ... 60 °C
  • Ambient temperature-20 °C ... 60 °C
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Note on materialsRoHS compliant
  • Position of connectionCentred, rear
  • Pneumatic connectionR1/8
  • Material in contact with the mediumBrass
  • Material screwed plugBrass
  • Material housingBrass
  • Material screenMakrolon®
  • Housing colourBlack
  • Product weight27 g
  • ScaleDouble scale Bar (external) psi (inner scale)



SKU 183898
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
