MA-40-10-1/8

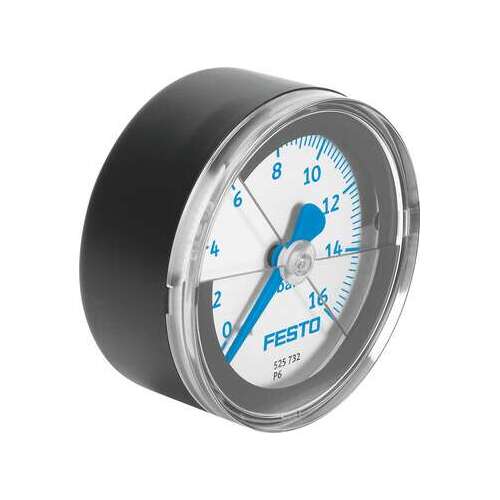

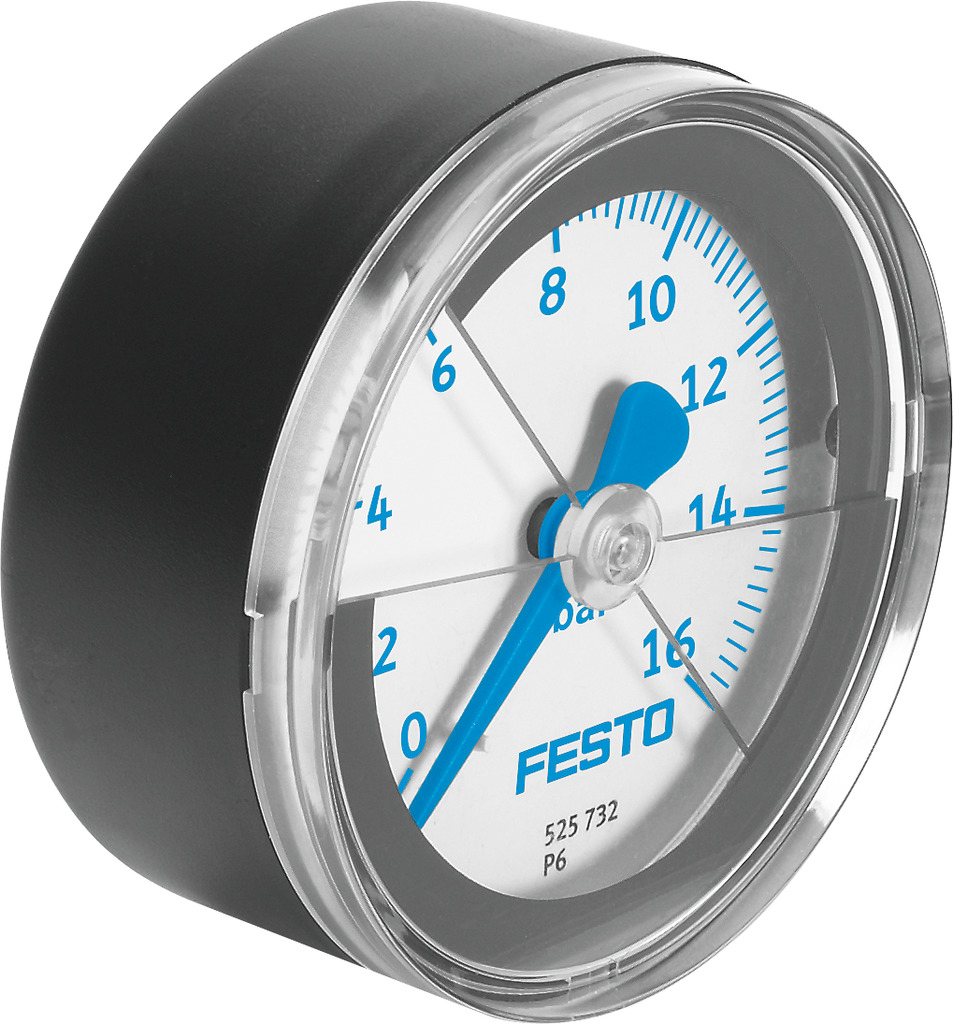

Pressure gauge MA (x10 pack)

Pressure gauge to DIN EN 837-1 for front-panel or in-line installation with display range up to 16 bar or 230 psi.

Technical Data

  • Indicating range0 bar ... 10 bar
  • Indicating range0 psi ... 145 psi
  • Symbol00991463
  • Conforms to standardEN 837-1
  • Nominal size of pressure gauge40
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • DesignBourdon tube pressure gauge
  • Type of mountingIn-line installation
  • Operating mediumInert gases Neutral fluids
  • Note on operating and pilot mediumNo acetylene No oxygen
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • Operating pressure0 psi ... 145 psi
  • Alternating load factor0.66
  • Measurement accuracy class2.5
  • Degree of protectionIP43
  • Media temperature-20 °C ... 60 °C
  • Ambient temperature-20 °C ... 60 °C
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS-compliant
  • Position of connectionCentred, rear side
  • Pneumatic connectionG1/8
  • Material in contact with the mediumBrass
  • Material screwed plugBrass
  • Material housingABS
  • Material screenPS
  • Housing colourBlack
  • Product weight60 g
  • ScaleDouble scale Bar (outside scale) psi (inner scale)
Type of mounting
In-line installation
Indicating range
0 bar - 10 bar
Pneumatic connection
G1/8
Measurement accuracy class
2.5

Pressure gauge

SKU 359874
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
