Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued

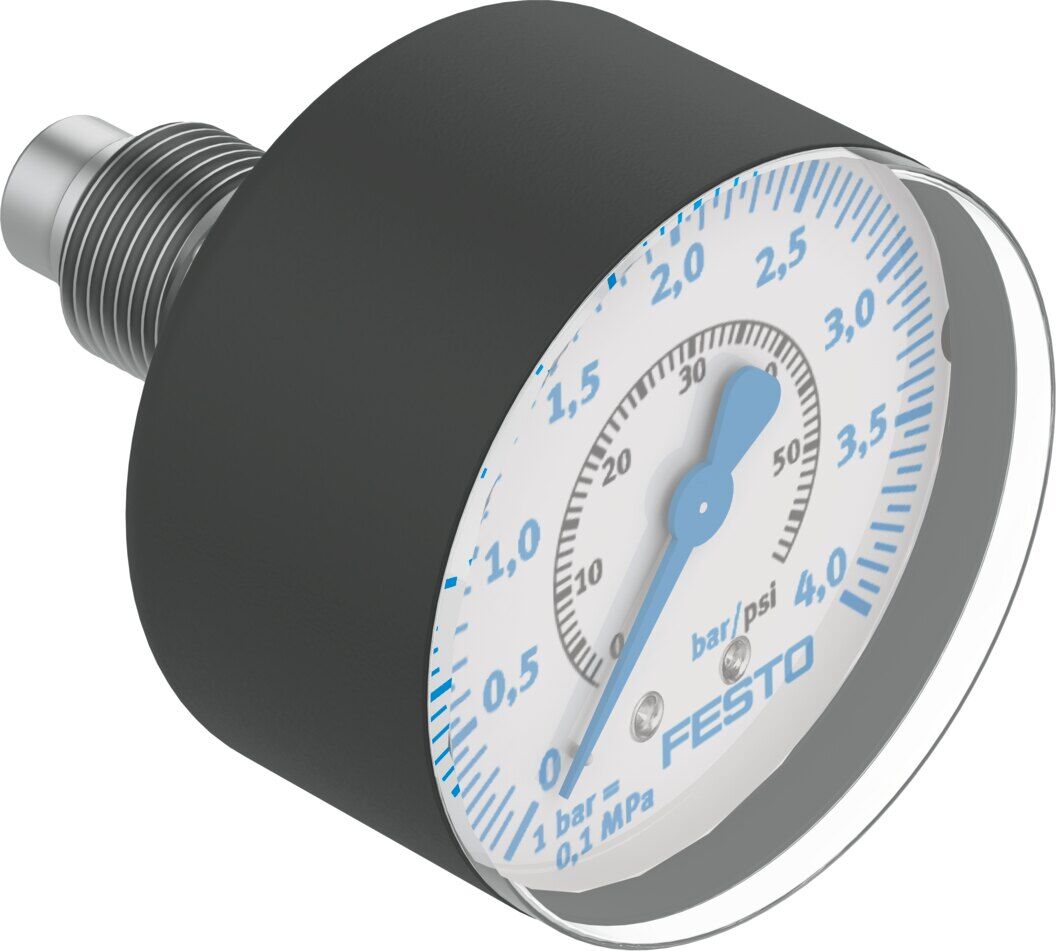

Precision pressure gauge

MAP-40-4-1/8-EN

162842





GTIN: 4052568006471

Type of mounting
Inline installation
Indicating range
0 bar - 4 bar
Pneumatic connection
R1/8
Measurement accuracy class
1.6

Technical Data

  • Indicating range0 bar ... 4 bar
  • Indicating range1 psi ... 58 psi
  • Symbol00991463
  • Conforms to standardEN 837-1
  • Nominal size of pressure gauge40
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • DesignBourdon tube pressure gauge
  • Type of mountingInline installation
  • Operating mediumInert gas Neutral fluids
  • Note on operating and pilot mediumNo acetylene No oxygen
  • Operating pressure0 MPa ... 0.4 MPa
  • Operating pressure0 bar ... 4 bar
  • Operating pressure0 psi ... 58 psi
  • Alternating load factor0.66
  • Measurement accuracy class1.6
  • Degree of protectionIP43
  • Media temperature-20 °C ... 60 °C
  • Ambient temperature-20 °C ... 60 °C
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Note on materialsRoHS compliant
  • Position of connectionCentred, rear
  • Pneumatic connectionR1/8
  • Material in contact with the mediumBrass
  • Material screwed plugBrass
  • Material housingPBT
  • Material screenHorse power
  • Housing colourBlack
  • Product weight60 g
  • ScaleDouble scale Bar (external) psi (inner scale)
SKU 162842
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
