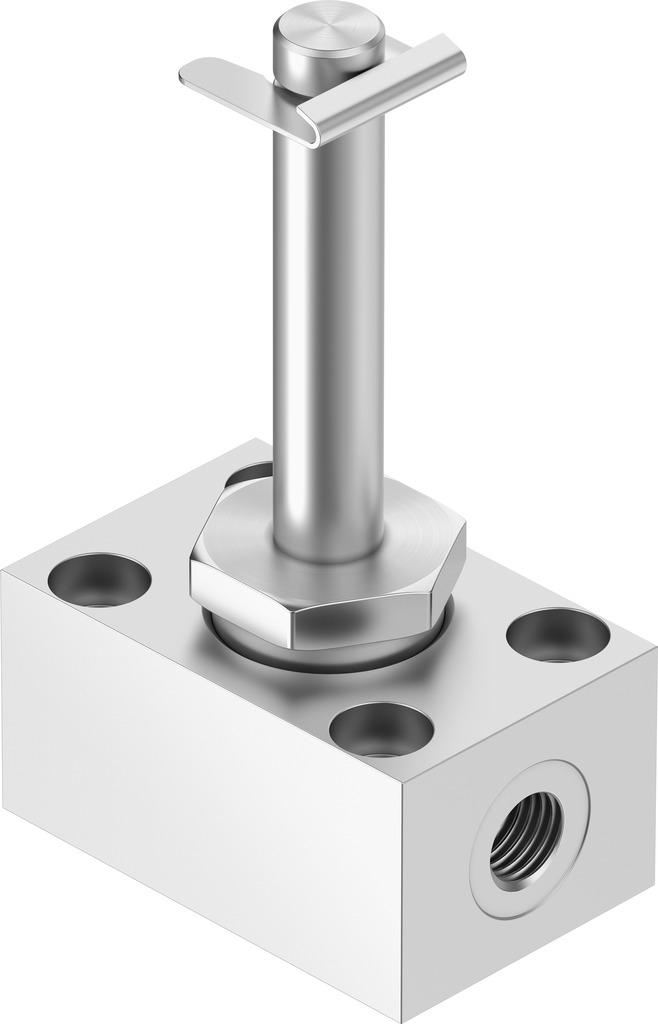

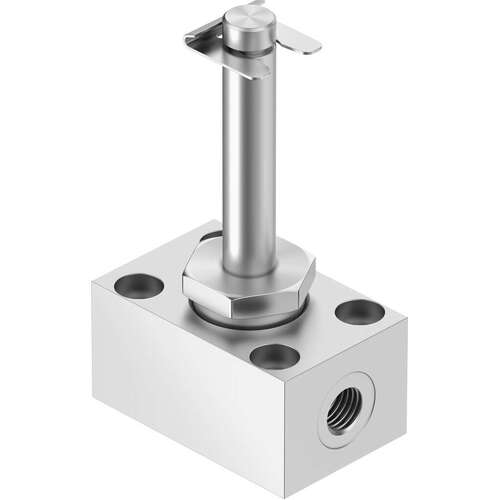

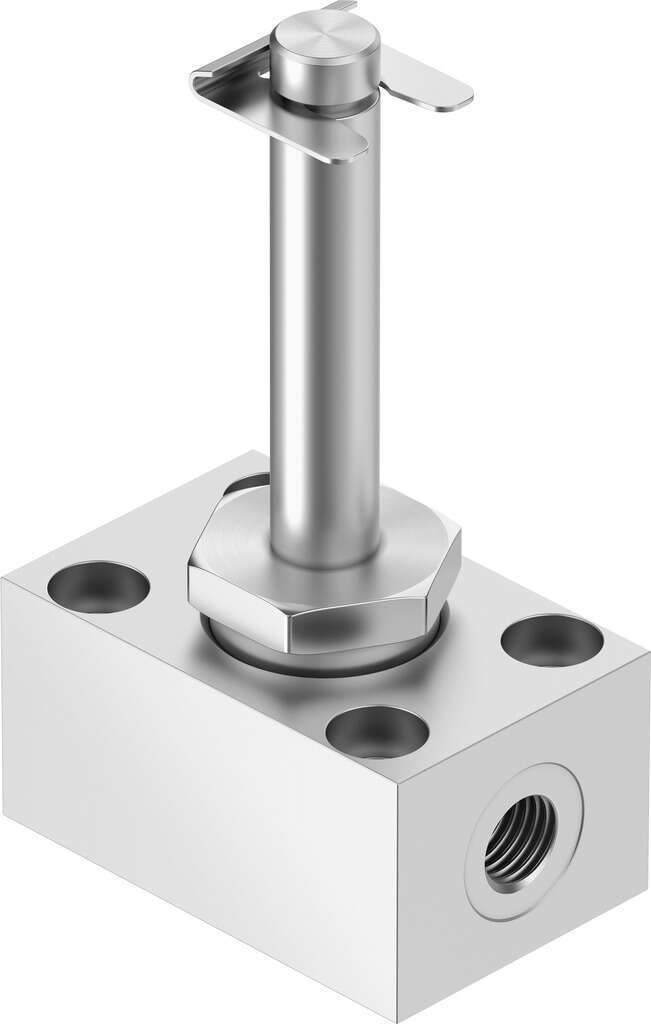

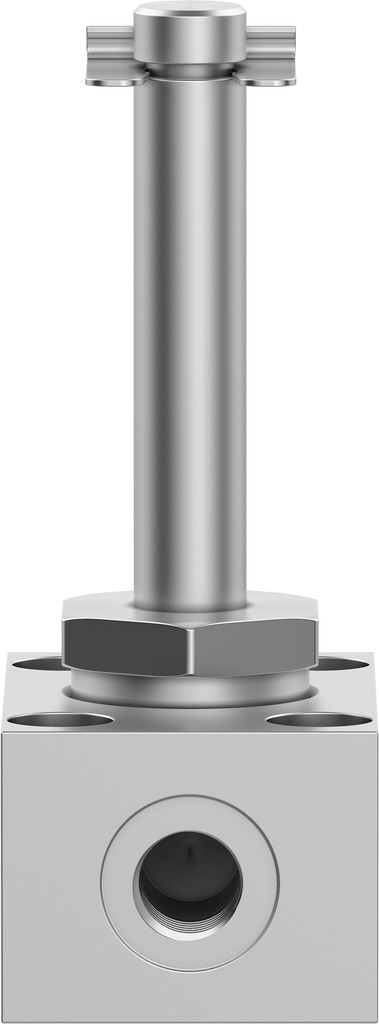

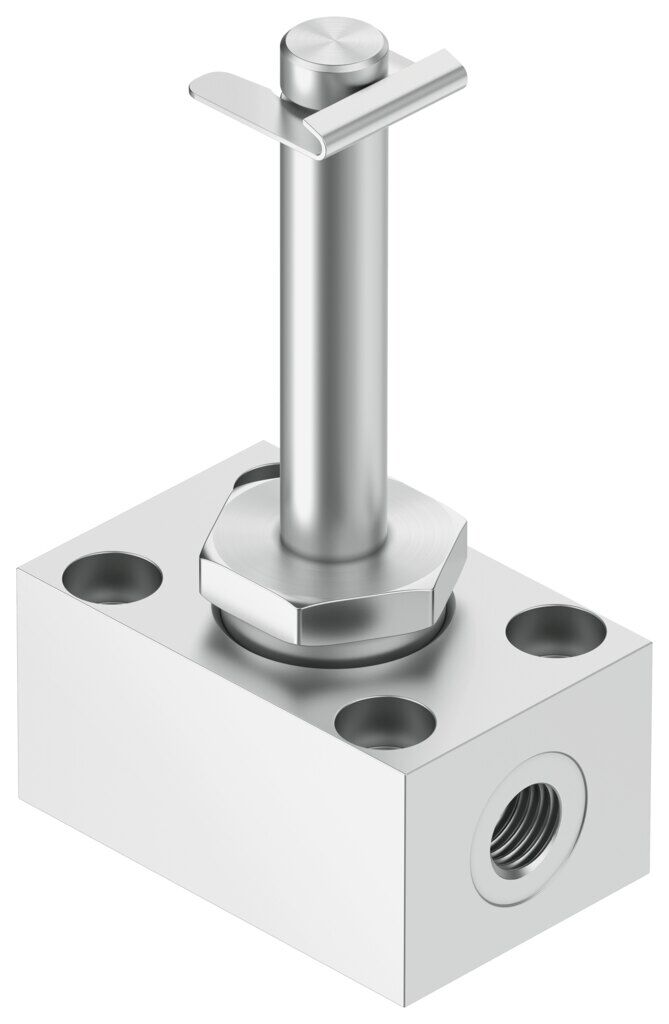

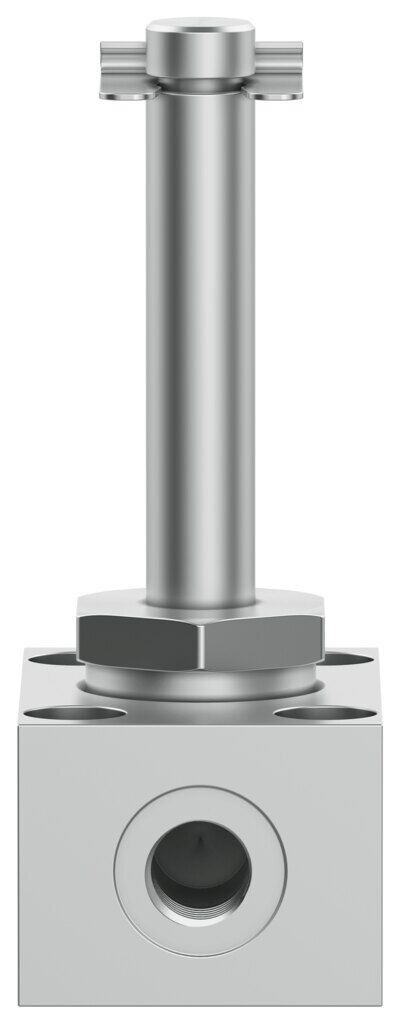

Solenoid valve

MC-2-1/8

2187

Valve function
2/2-way, closed, monostable
Standard nominal flow rate (standardised to DIN 1343)
300 l/min
Pneumatic connection, port 1
G1/8
Type of actuation
Electric

GTIN: 4052568000134

Technical Data

  • Valve function2/2-way, closed, monostable
  • Type of actuationElectric
  • Standard nominal flow rate (standardised to DIN 1343)300 l/min
  • pneumatic working portG1/8
  • Operating pressure-0.095 MPa ... 0.7 MPa
  • Operating pressure-0.95 bar ... 7 bar
  • DesignPoppet valve with spring return
  • Type of resetMechanical spring
  • Degree of protectionIP65
  • Nominal size4 mm
  • Sealing principleSoft
  • Manual overrideNone
  • Type of pilotingDirect
  • Flow directionNon-reversible

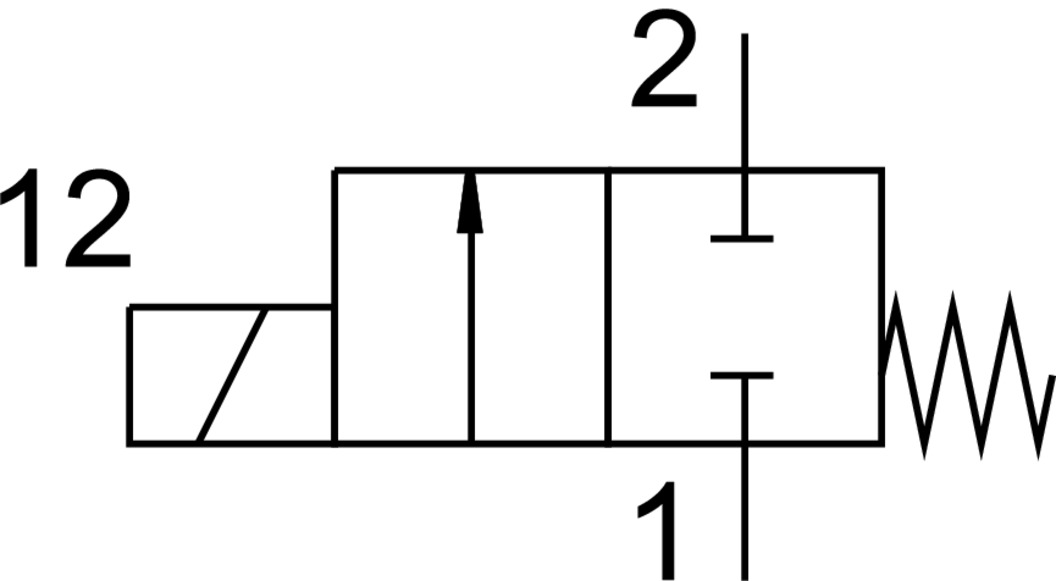

  • Symbol00991397
  • Switching time off20 ms
  • Switching time on18 ms
  • Duty cycle100%
  • Characteristic coil data110 V AC: 50/60 Hz, pick-up power 30.0 VA, holding power 22.0 VA 110 V DC: 12.7 W 120 V AC: 60 Hz, pick-up power 30.0 VA, holding power 22.0 VA 12 V AC: 50 Hz, pick-up power 30.0 VA, holding power 22.0 VA 12 V DC: 11.7 W 220 V AC: 50/60 Hz, pick-up power 30.0 VA, holding power 22.0 VA 220 V DC: 15.0 W 240 V AC: 50 Hz, pick-up power 30.0 VA, holding power 22.0 VA 240 V DC: 17.9 W 24 V AC: 50 Hz, pick-up power 30.0 VA, holding power 22.0 VA 24 V DC: 11.0 W 380 V AC: 50/60 Hz, pick-up power 30.0 VA, holding power 22.0 VA 42 V AC: 50/60 Hz, pick-up power 30.0 VA, holding power 22.0 VA 42 V DC: 12.0 W 48 V AC: 50 Hz, pick-up power 30.0 VA, holding power 22.0 VA 96 V DC: 11.0 W
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • LABS (PWIS) conformityVDMA24364-C1-L
  • Storage temperature-40 °C ... 100 °C
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-5 °C ... 40 °C
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Note on materialsRoHS-compliant

Solenoid valve

Solenoid valve

Solenoid valve

Solenoid valve

SKU 2187
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
