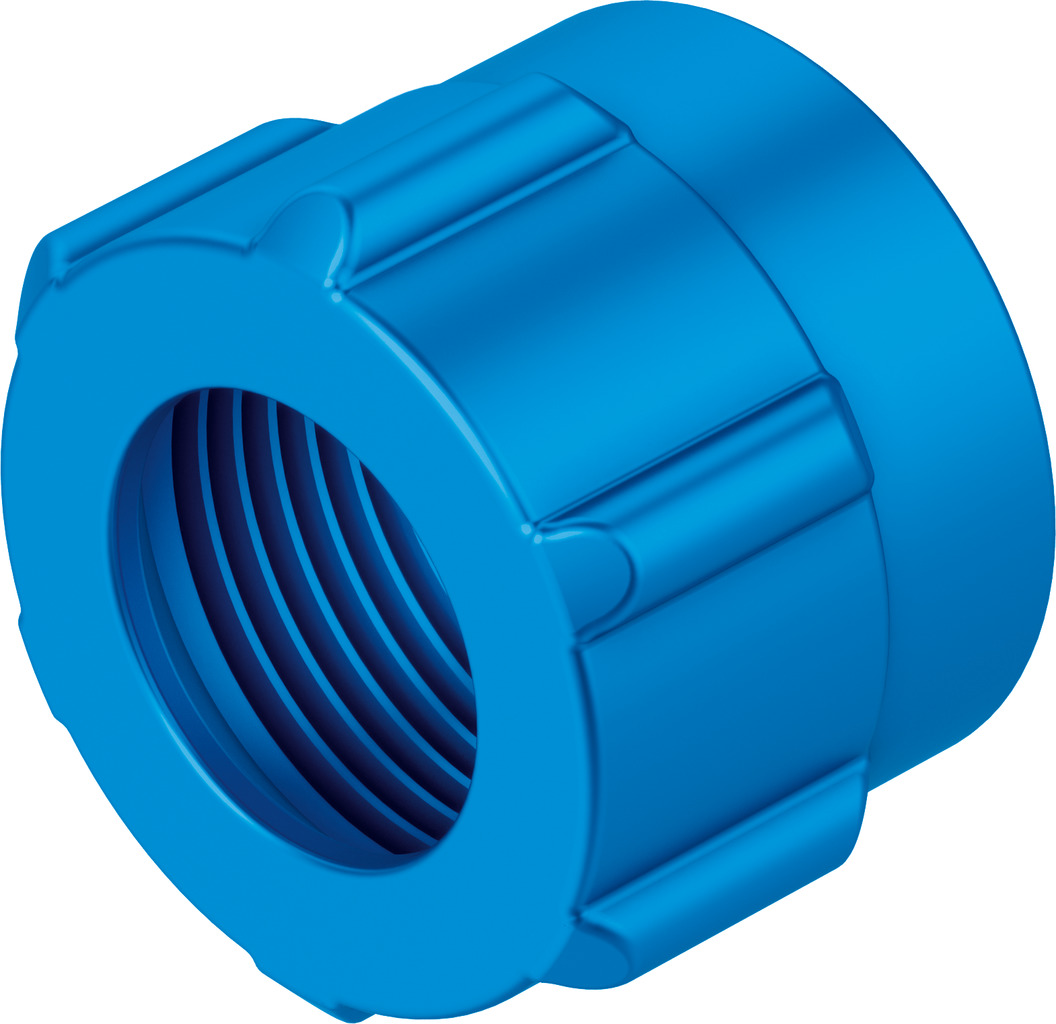

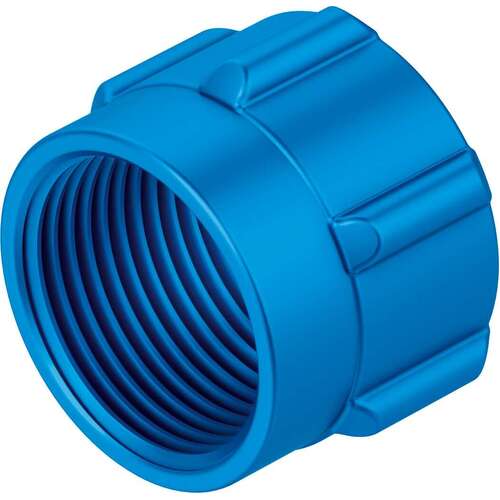

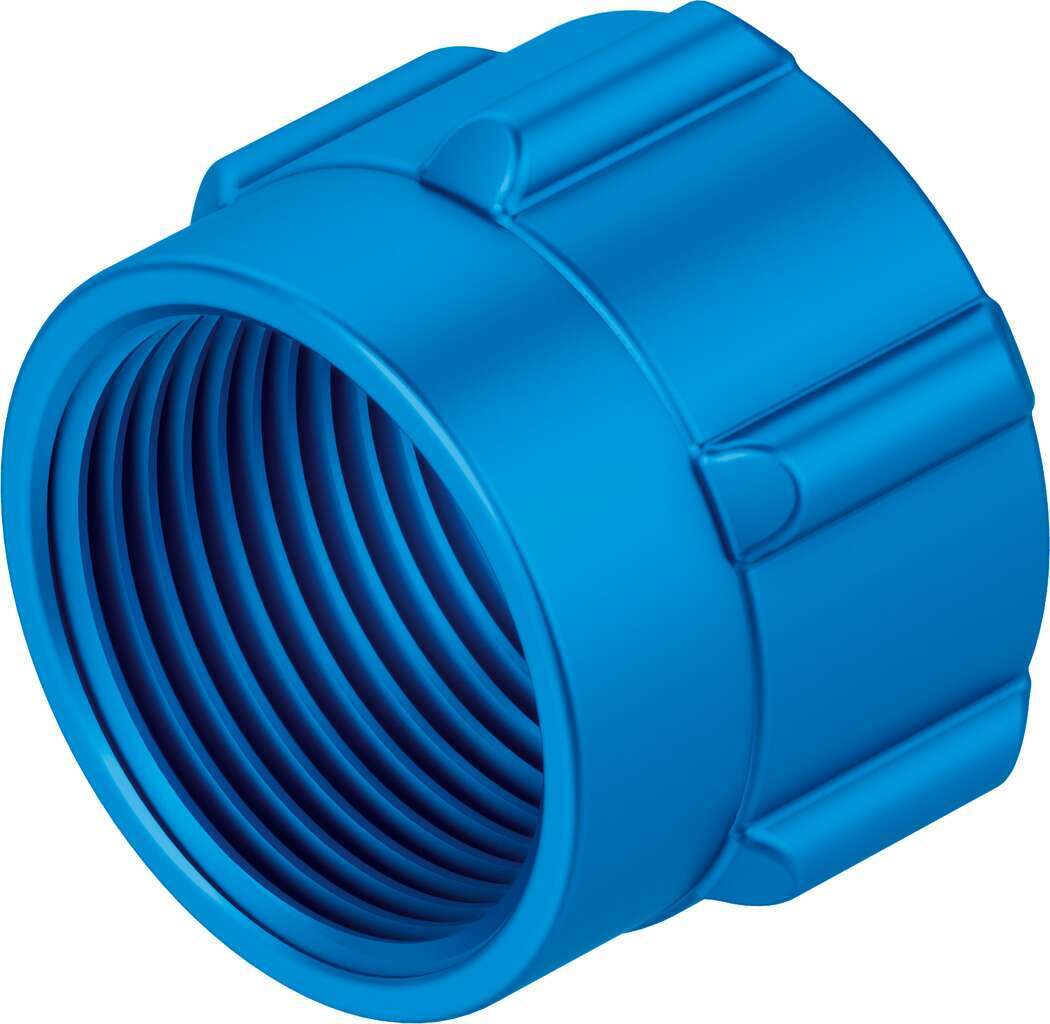

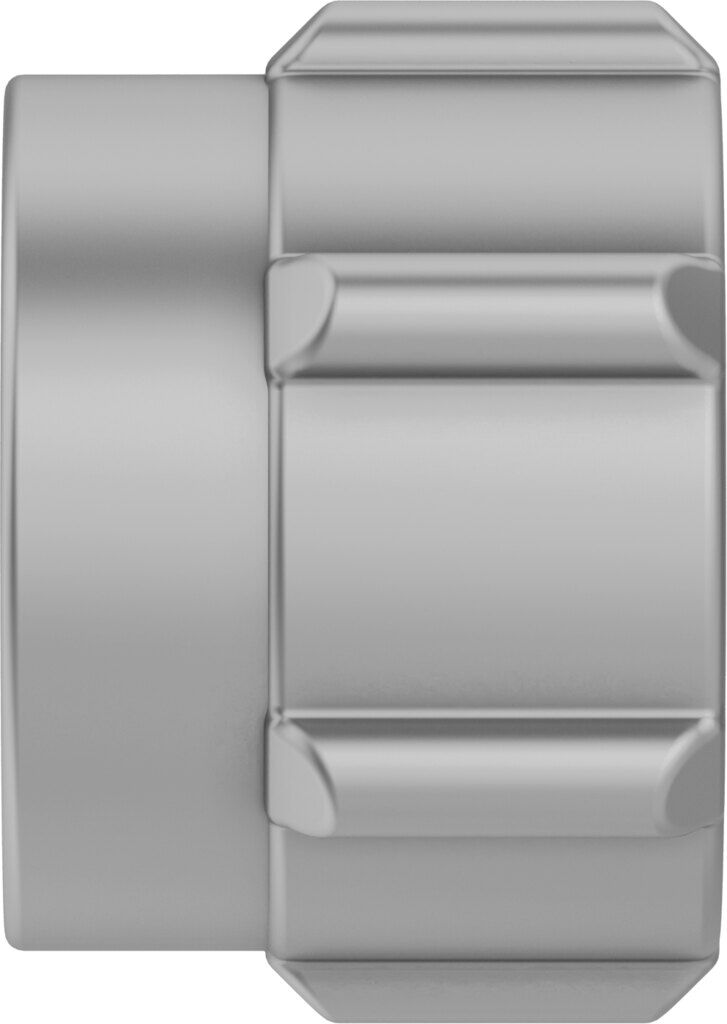

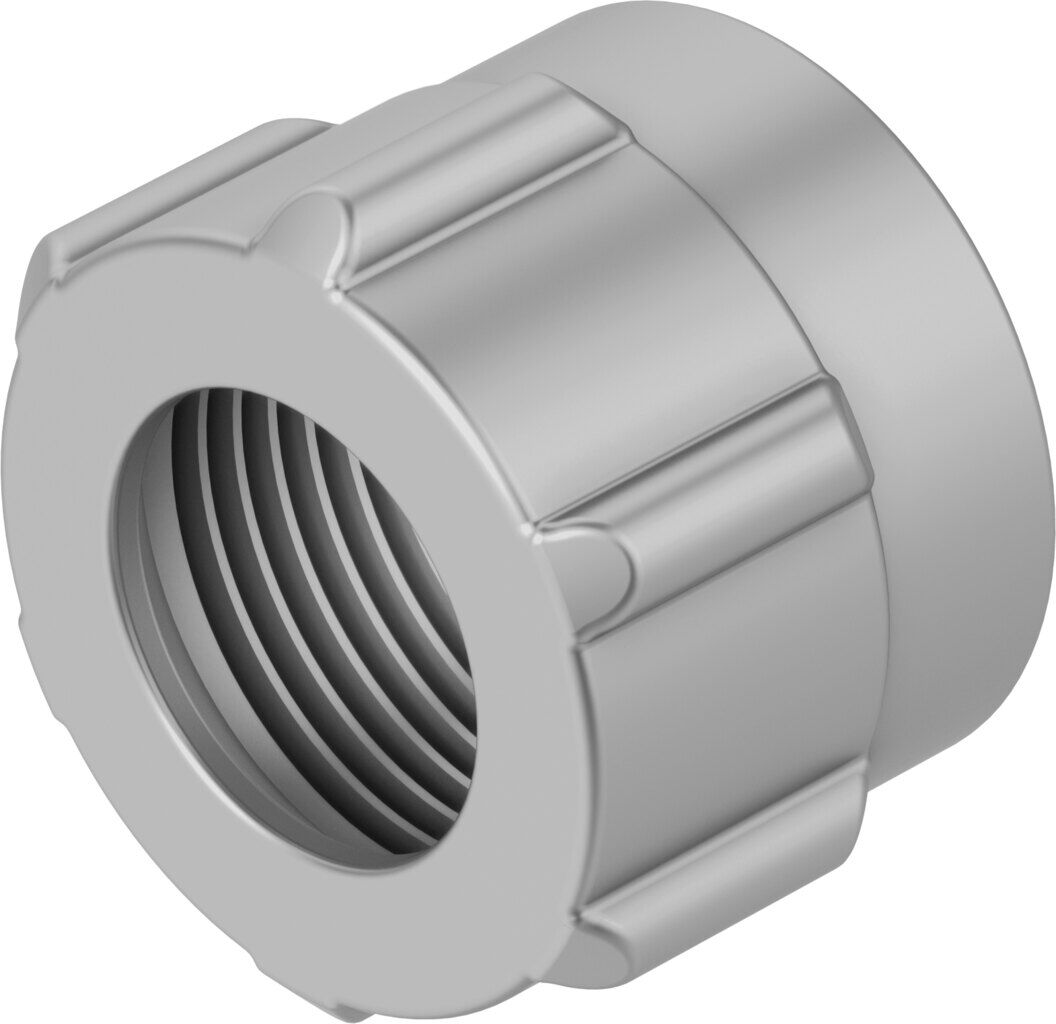

Union nut (x100 pack)

MCK-PK-6

2966

Technical Data

  • SizeFemale thread M12x1
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Pneumatic connection, port 1For tubing outer diameter of 8 mm For barbed fitting I.D. 6 mm with union nut
  • Material union nutWrought aluminium alloy, anodised
  • Note on materialsRoHS-compliant

GTIN: 4052568018207

CAD data

Spare parts

Product Documentation

Technical data

Union nut

SKU 2966
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
