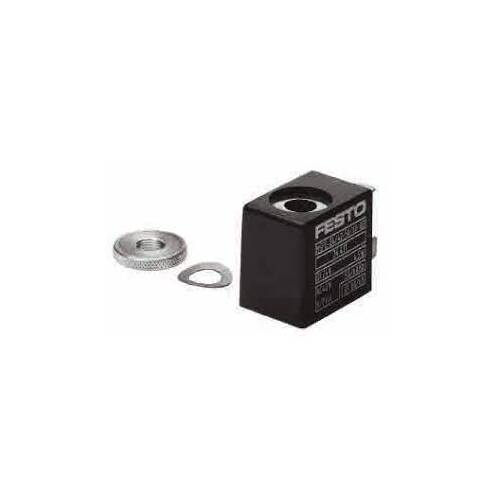

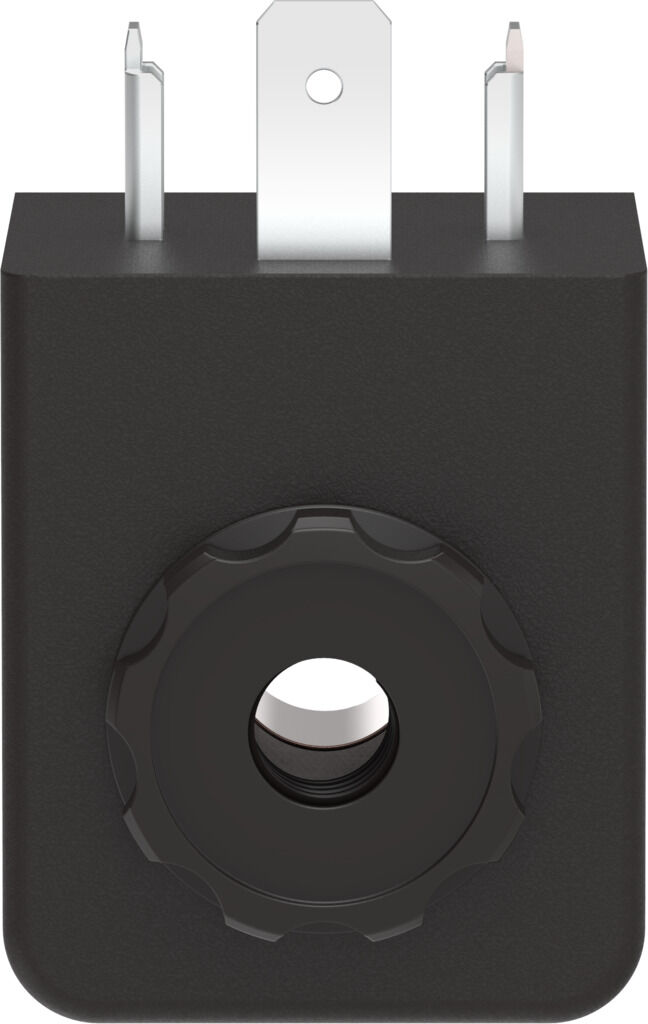

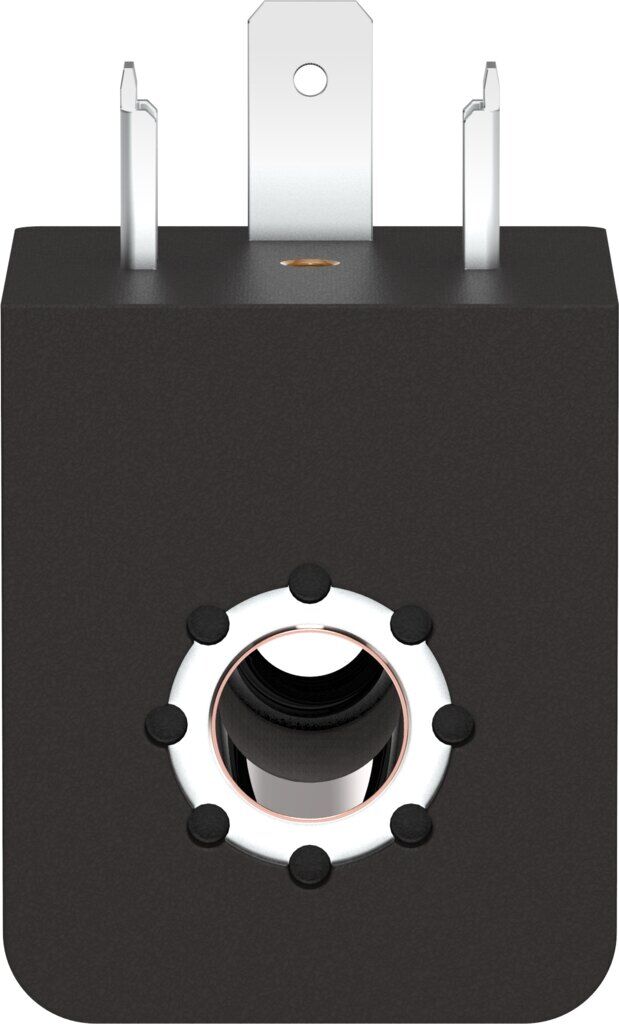

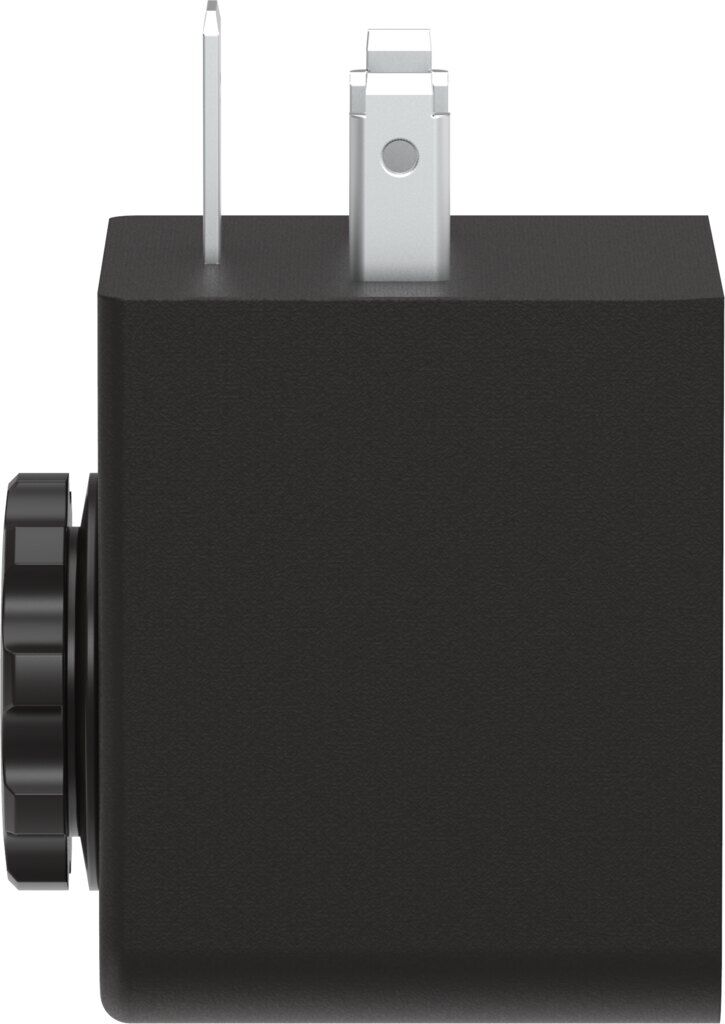

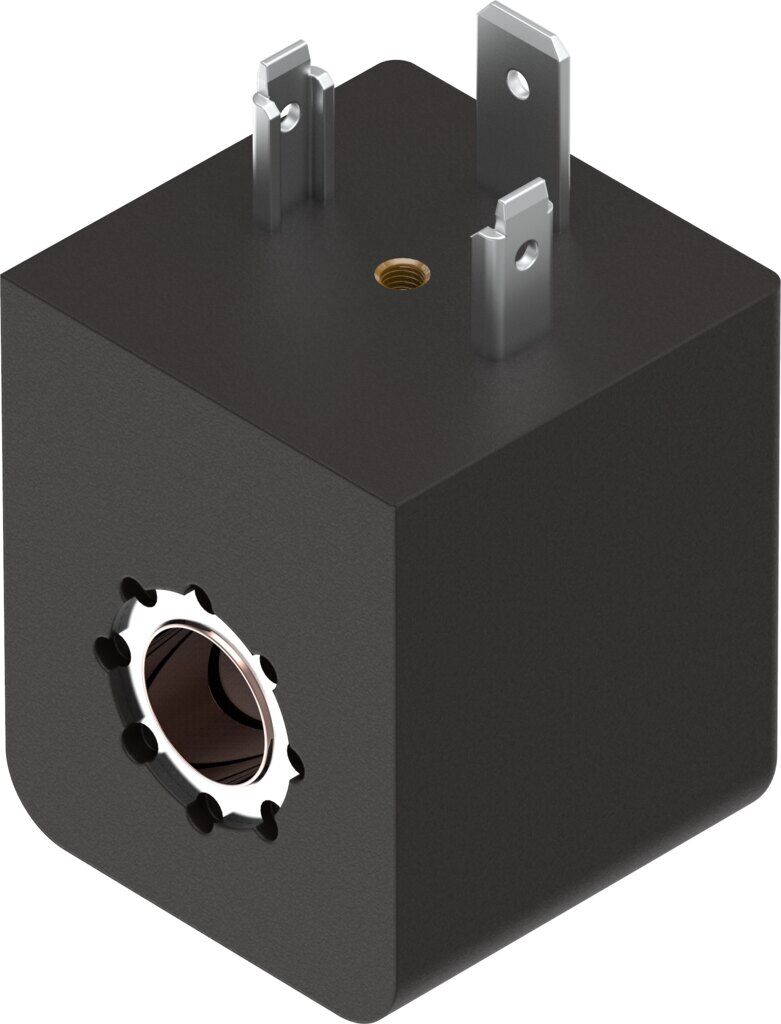

MD-2-230VAC-PA

Solenoid coil (x10 pack)

MD-2-230VAC-PA

549905

Electrical connection
To DIN EN 175301-803
Type of mounting
Via knurled nut
Characteristic coil data
230 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA
Degree of protection
IP65

GTIN: 4052568051945

Technical Data

  • Type of actuationElectric
  • Mounting positionoptional
  • Duty cycle100%
  • Power factor (cos phi)0.7
  • Characteristic coil data230 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA
  • Permissible frequency fluctuations+/- 10%
  • Permissible voltage fluctuations+/- 10 %
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Degree of protectionIP65
  • Ambient temperature-20 °C ... 50 °C
  • Max. tightening torque for fitting0.5 Nm
  • Product weight110 g
  • Electrical connectionTo DIN EN 175301-803
  • Type of mountingVia knurled nut
  • Note on materialsRoHS-compliant
  • Material solenoid coilDuroplast Copper Steel
  • Material windingCopper

VACS_EN.PDSolenoid coilsF

SKU 549905
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
