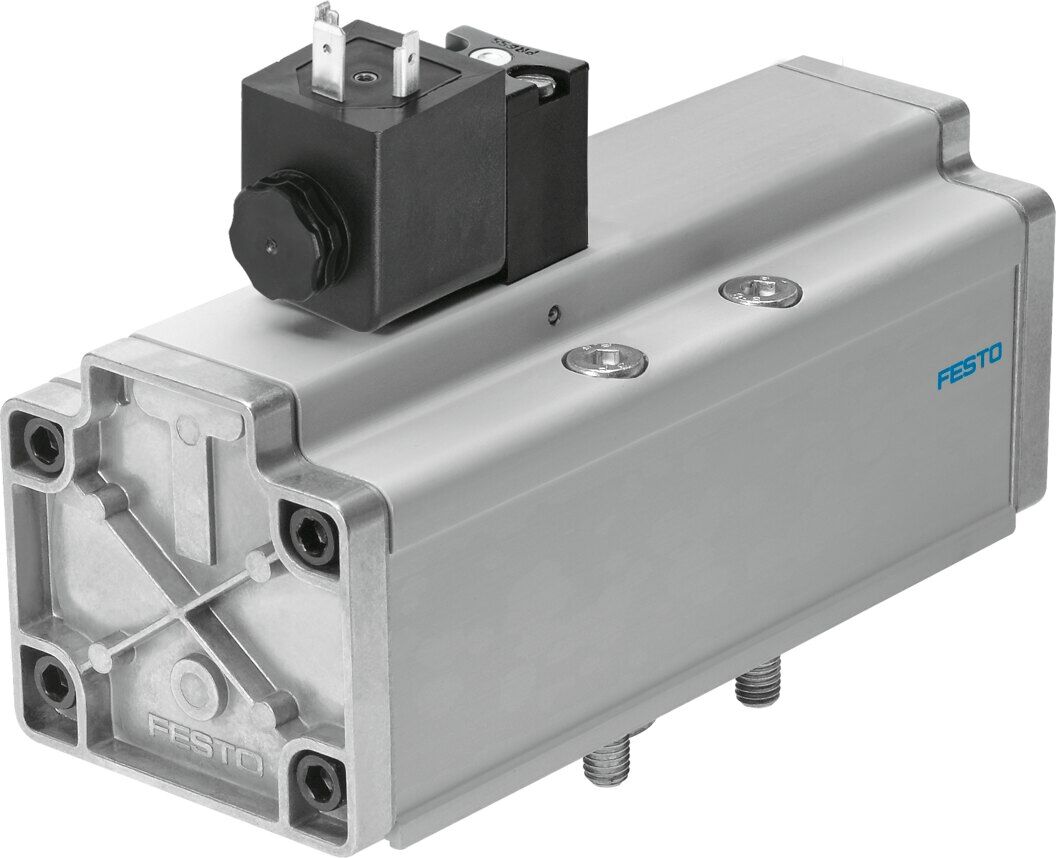

Solenoid valve

MDH-5/2-3/4-D-4-24DC

12457



Technical Data

  • Valve function5/2-way, monostable
  • Type of actuationElectric
  • Construction width76 mm
  • Standard nominal flow rate (standardised to DIN 1343)6000 l/min
  • pneumatic working portSub-base size 4 to ISO 5599-1 G3/4
  • Operating voltage24V DC
  • Operating pressure3 bar ... 16 bar
  • DesignPiston gate valve
  • Type of resetPneumatic spring
  • Degree of protectionIP65
  • Nominal size18 mm
  • Grid dimension82 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Conforms to standardISO 5599-1
  • Manual overrideNon-detenting
  • ISO code451
  • Type of pilotingPilot actuated
  • Pilot air supplyInternal
  • Flow directionNon-reversible

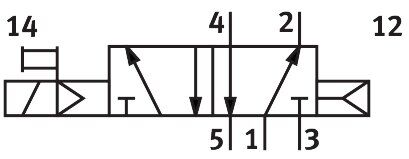

  • Symbol00991049
  • lapOverlap
  • Switching time off160 ms
  • Switching time on120 ms
  • Duty cycle100%
  • Max. positive test pulse with 0 signal4300 µs
  • Max. negative test pulse with 1 signal2100 µs
  • Characteristic coil data24 V DC: 6.8 W 48 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 9.9 VA
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Sound pressure level85 dB(A)
  • Ambient temperature-10 °C ... 50 °C
  • Product weight2600 g
  • Electrical connectionTo DIN EN 175301-803
  • Type of mountingOn sub-base Via through-hole and screw
  • Pilot exhaust port 84M5
  • Pneumatic connection, port 1Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 2Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 3Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 4Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 5Sub-base size 4 to ISO 5599-1
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingAluminium
