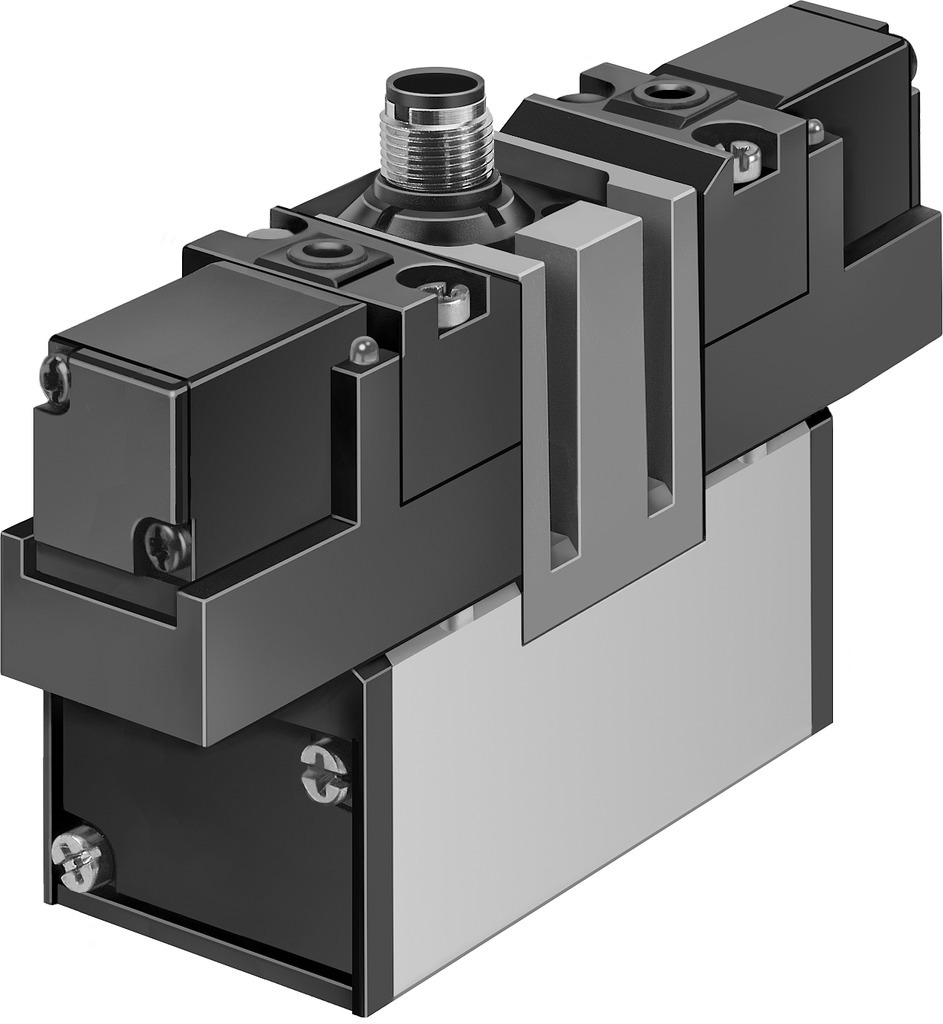

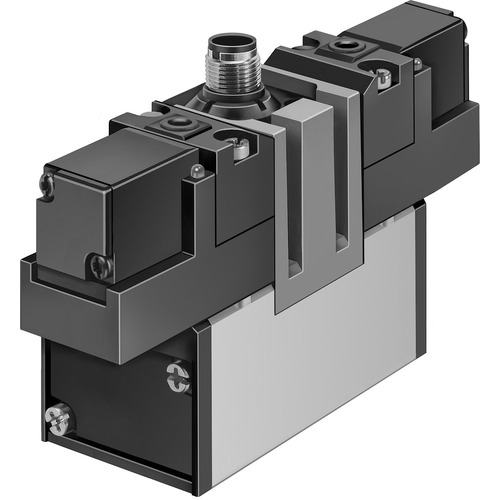

MEBH-5/3E-D-3-ZSR-C Solenoid valve

Solenoid valve

MEBH-5/3E-D-3-ZSR-C

184511

GTIN: 4052568014469

Downloads

ISO5599VSVA_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts

Pieces

Valve function 5/3 exhausted

Standard nominal flow rate 4600 l/min

Pneumatic connection, port 1

Sub-base size 3 to ISO 5599-1

Type of actuation Electric

Technical Data

Valve function5/3 exhausted
Type of actuationElectric
Construction width65 mm
Standard nominal flow rate4600 l/min
pneumatic working portSub-base size 3 to ISO 5599-1 G1/2
Operating voltage24V DC
Operating pressure0.3 MPa ... 1 MPa
Operating pressure3 bar ... 10 bar
DesignPiston gate valve
Type of resetMechanical spring
Degree of protectionIP65
Nominal size14.5 mm
Grid dimension71 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Conforms to standardISO 5599-1
Manual overrideNon-detenting
ISO code357
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible

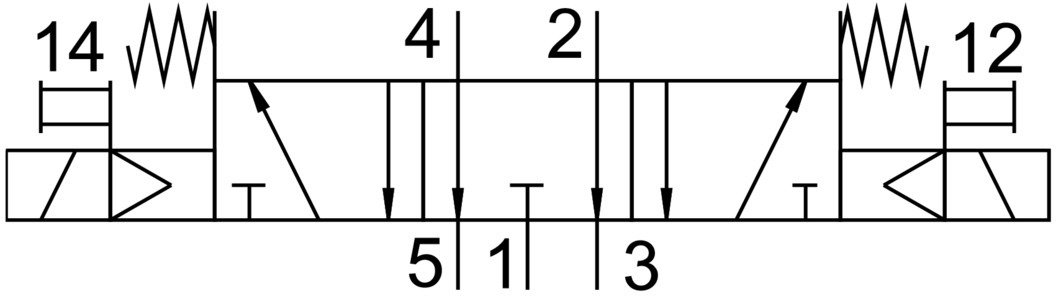

Symbol00991082
Switching time off130 ms
Switching time on38 ms
Characteristic coil data24 V DC: 2.5 W
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 °C ... 50 °C
Ambient temperature-10 °C ... 50 °C
Product weight1120 g
Electrical connectionM12x1 Central plug Round design
Type of mountingWith through-hole
Pilot exhaust port 82Not ducted
Pilot exhaust port 84Not ducted
Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1
Material sealsNBR
Material housingDie-cast aluminium
