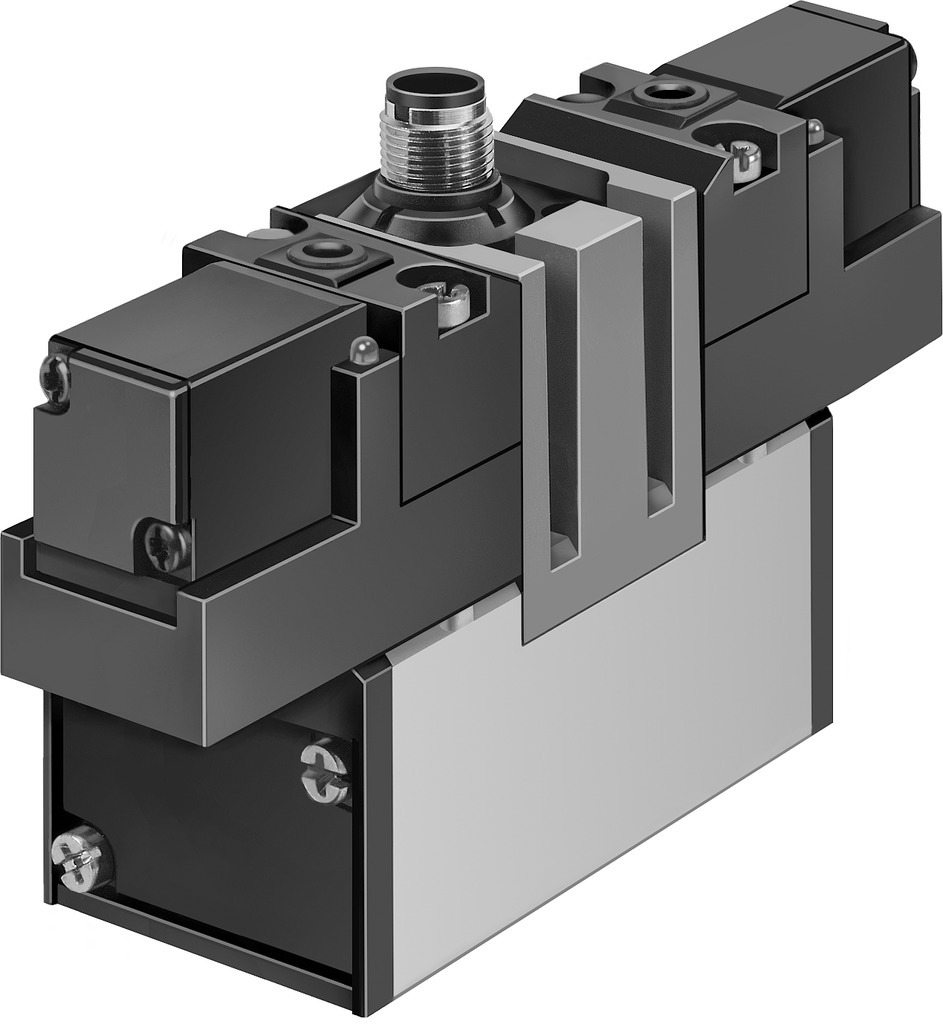

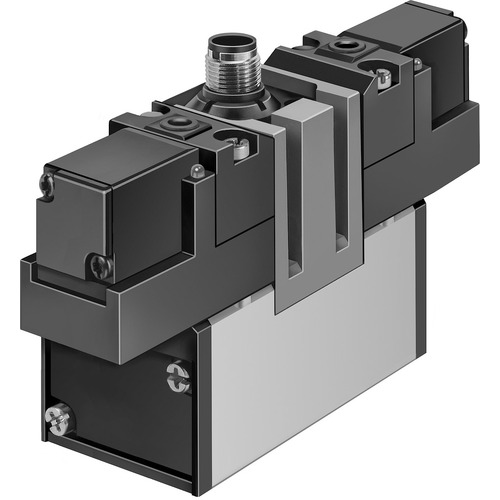

MEBH-5/3G-D-3-ZSR-C Solenoid valve

MEBH-5/3G-D-3-ZSR-C

$799.98
RRP $896.00
SAVE $96.02 (11%)


Solenoid valve

MEBH-5/3G-D-3-ZSR-C

184512

GTIN: 4052568144517

Downloads



ISO5599VSVA_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts

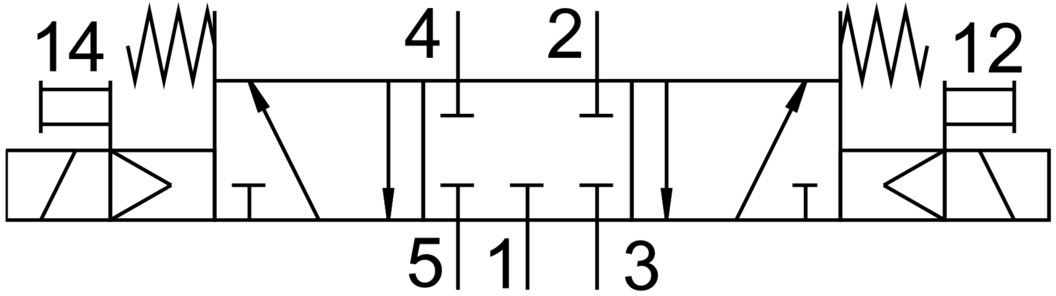

Valve function 5/3 closed

Standard nominal flow rate  4100 l/min

Pneumatic connection, port 1

Sub-base size 3 to ISO 5599-1

Type of actuation Electric





Technical Data

  • Valve function5/3 closed
  • Type of actuationElectric
  • Construction width65 mm
  • Standard nominal flow rate4100 l/min
  • pneumatic working portSub-base size 3 to ISO 5599-1 G1/2
  • Operating voltage24V DC
  • Operating pressure0.3 MPa ... 1 MPa
  • Operating pressure3 bar ... 10 bar
  • Type of resetMechanical spring
  • Degree of protectionIP65
  • Nominal size14.5 mm
  • Grid dimension71 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideNon-detenting
  • ISO code356
  • Type of pilotingPilot actuated
  • Flow directionNon-reversible
  • Symbol00991080
  • Switching time off130 ms
  • Switching time on38 ms
  • Characteristic coil data24 V DC: 2.5 W
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 50 °C
  • Ambient temperature-10 °C ... 50 °C
  • Electrical connectionM12x1 Central plug
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1
  • Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1
  • Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1
  • Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1
  • Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1
  • Material sealsNBR
  • Material housingDie-cast aluminium

(184512)

SKU 184512
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
