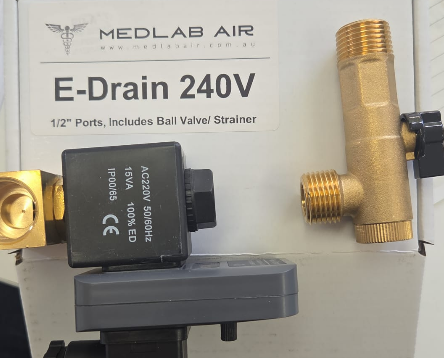

MedLab Air Electronic Automic drain valve, complete with ball valve/ strainer

HIGH QUALITY MEDICAL GRADE

Inlet / Outlet Connection G1/2"

Avaialble in 24V, 115V, 240V

General Operation: MedLab E-Drain is an all-in-one timer drain with an integrated ball valve and strainer. The MedLab E-Drain saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve and strainer. The unit can be shut off from the compressed air system, enabling easy and safe work to be carried out. The MedLab E-Drain can be installed on all compressed air system components (compressors, after coolers, dryers, filters, pressure vessels and drip legs), regardless of their size or capacity - simply adjust the interval and discharge settings to suit the particular compressed air system.  The operation is automatic and consistent

TIMER
Interval time 0.5 – 45 minutes, adjustable
Discharge time 0.5 – 10 seconds, adjustable
Supply voltage options 12 – 380 VAC/VDC, 50/60 Hz
Current consumption 4mA maximum
Operating temperature -40° F to +131° F
Environmental protection IP 65, NEMA 4 when installed
Housing material ABS plastic FR grade
Connection DIN 43650AISO 4400
Indicators 1 LED (yellow) indicating ON
1 LED (yellow) indicating OFF

VALVE
Type 2/2 way direct acting
In/out ports 1/4”,  1/2” NPT
Pressure range 0 – 230 psi (For higher pressures up to 6000 psi – consult factory)
Temperature range. 34° F/131° F ambient
Medium temp. Max. 131° F|
Valve body Brass orifice 4.5 mm (stainless steel available)
Supply voltage options 12 – 380 VAC/VDC, 50/60 Hz (100% ED)
Coil Insulation Grade H-grade
Environmental Protection  IP 65
Valve seal FPM
See coil for correct voltage/ voltage tolerance +/- 10%



SKU E-Drain
Shipping Width 0.050m
Shipping Height 0.120m
Shipping Length 0.140m
Shipping Cubic 0.000840000m3
