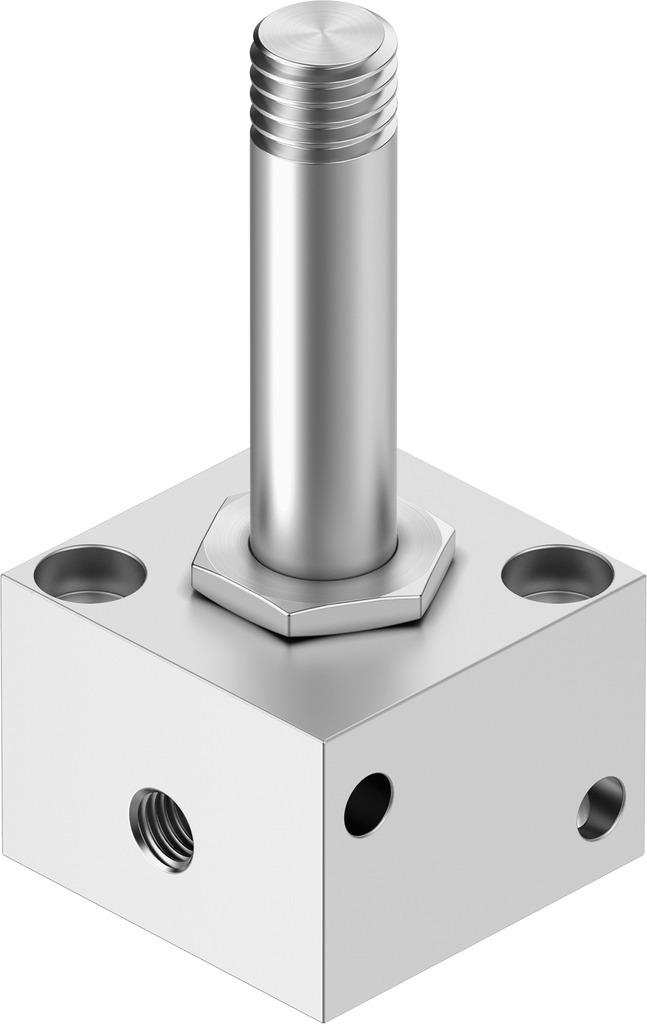

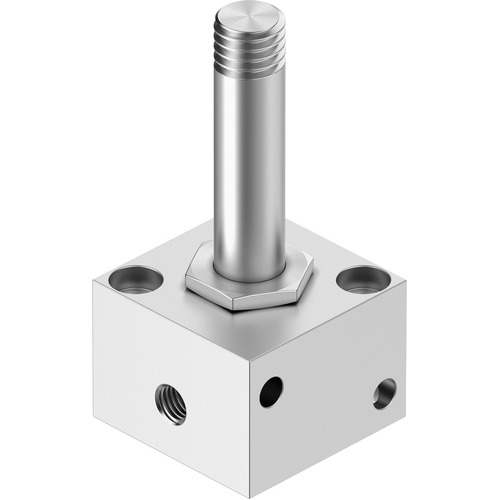

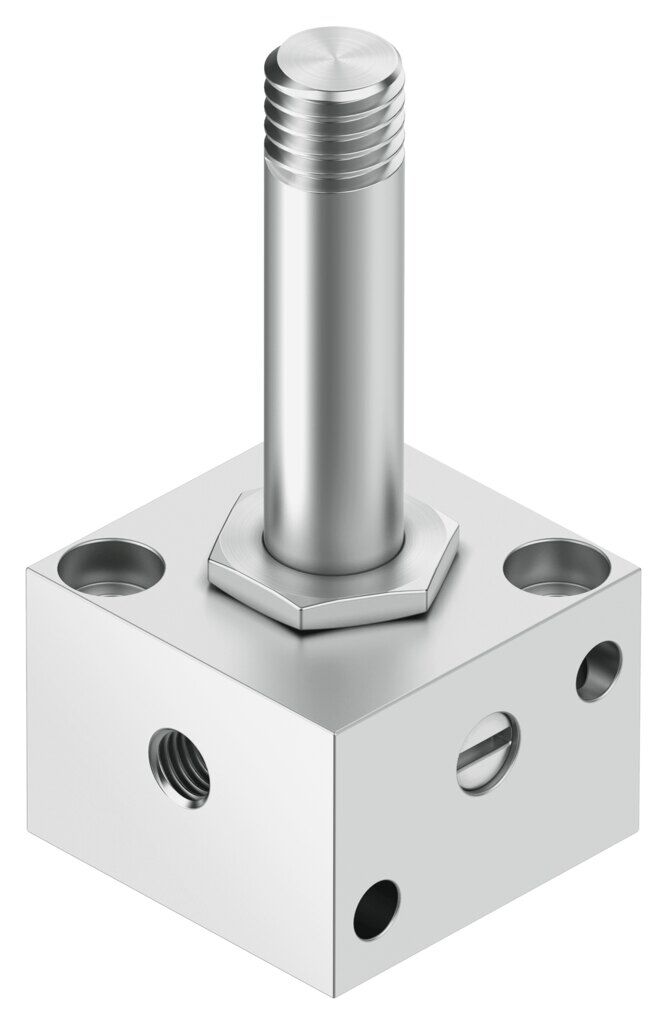

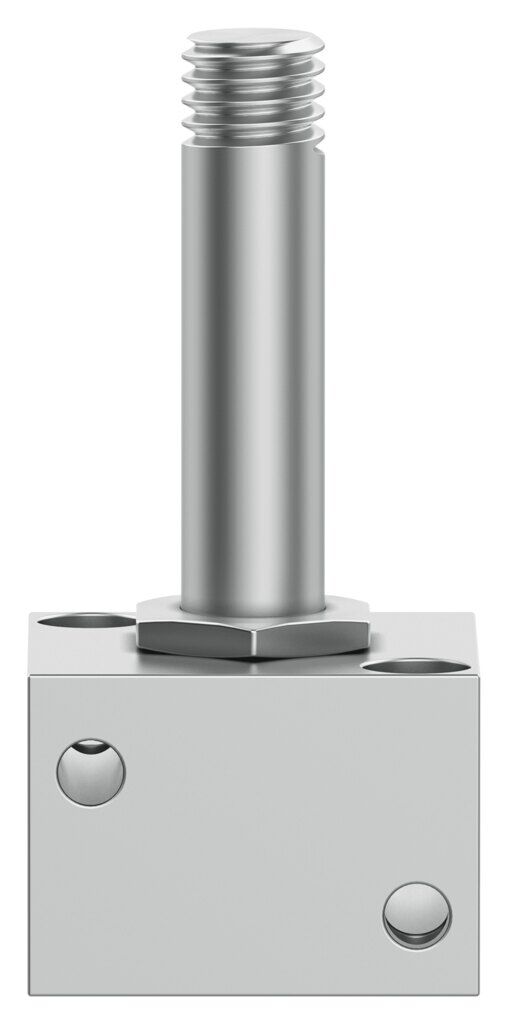

Solenoid valve

MFH-2-M5

4573

Valve function
2/2-way, closed, monostable
Standard nominal flow rate (standardised to DIN 1343)
75 l/min
Pneumatic connection, port 1
M5
Type of actuation
Electric

GTIN: 4052568008529

Technical Data

  • Valve function2/2-way, closed, monostable
  • Type of actuationElectric
  • Standard nominal flow rate (standardised to DIN 1343)75 l/min
  • pneumatic working portM5
  • Operating pressure0 MPa ... 0.8 MPa
  • Operating pressure0 bar ... 8 bar
  • DesignPoppet seat
  • Type of resetMechanical spring
  • Nominal size1.5 mm
  • Exhaust-air functionWithout flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideDetenting
  • Type of pilotingDirect
  • Flow directionNon-reversible

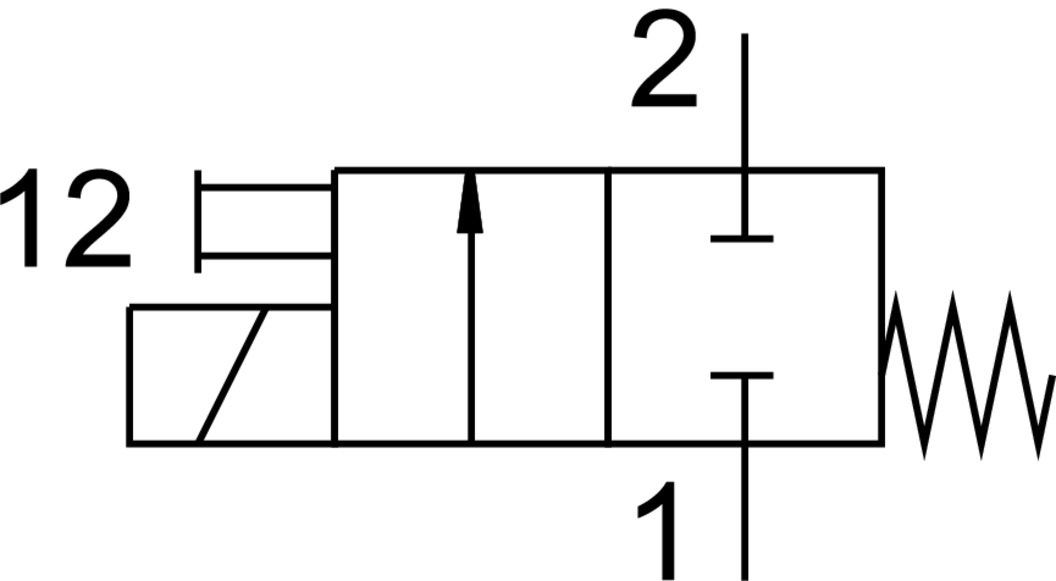

  • Symbol00991398
  • Switching time off5 ms
  • Switching time on6.2 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature-15 °C ... 60 °C
  • Ambient temperature-15 °C ... 40 °C
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1M5
  • Pneumatic connection, port 2M5

Downloads

Technical data

Links

Spare parts



Valve function 2/2-way, closed, monostable

Standard nominal flow rate 75 l/min

Pneumatic connection, port 1 M5

Type of actuation Electric



Solenoid valve

Solenoid valve

Solenoid valve

Solenoid valve





SKU 4573
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
