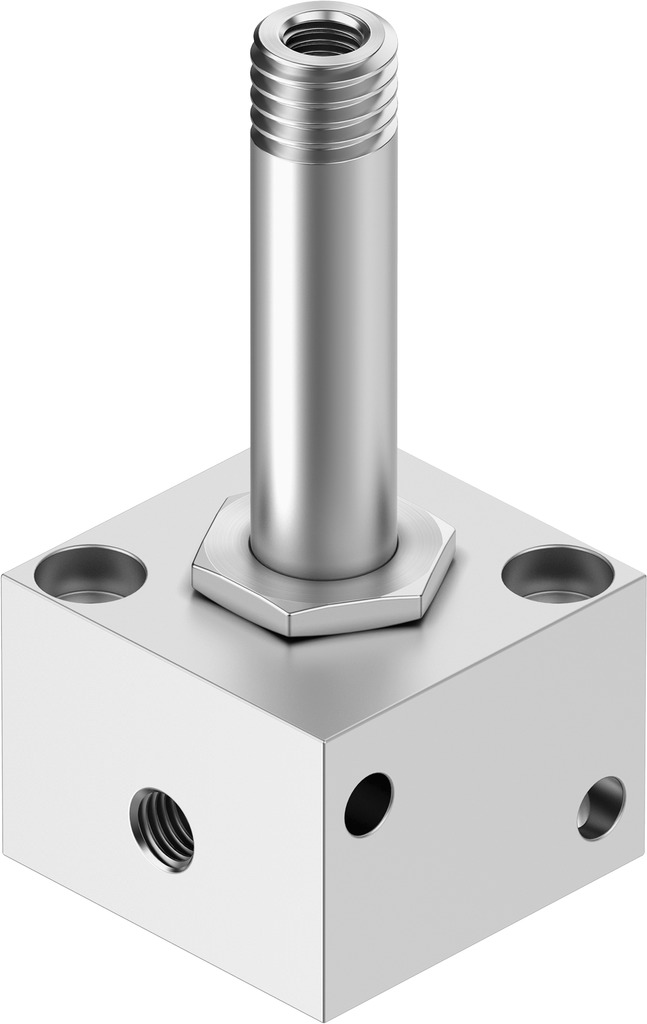

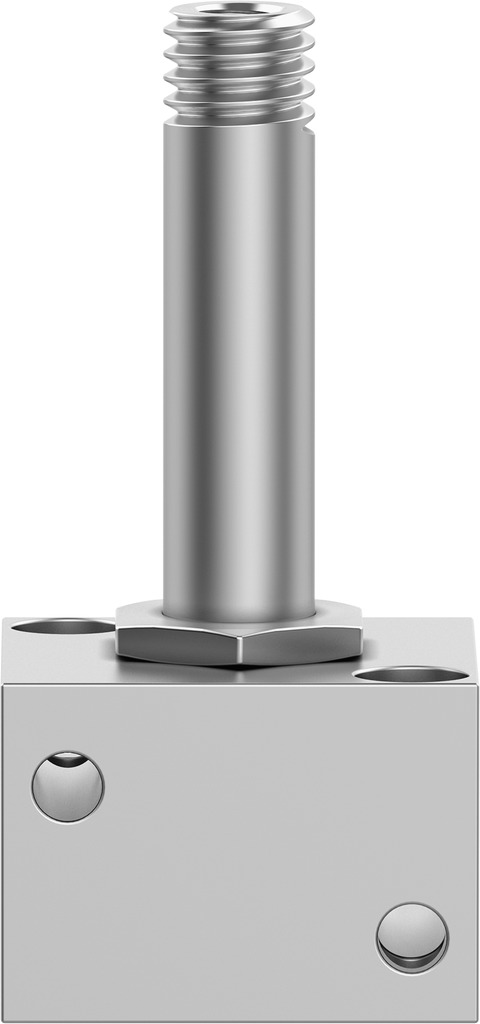

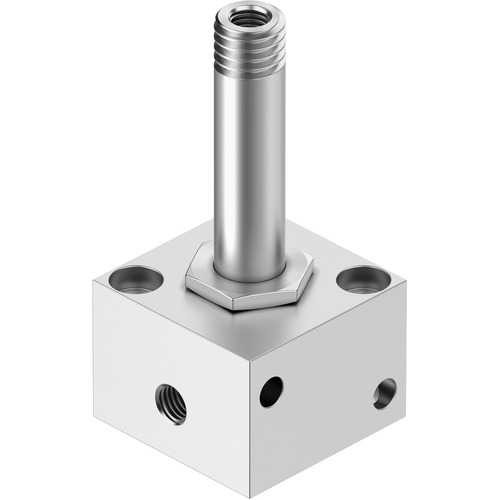

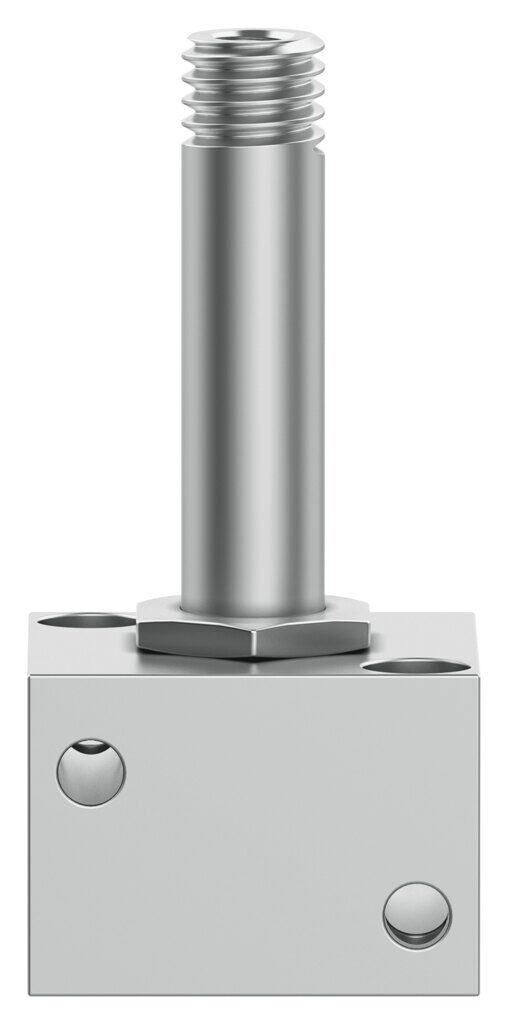

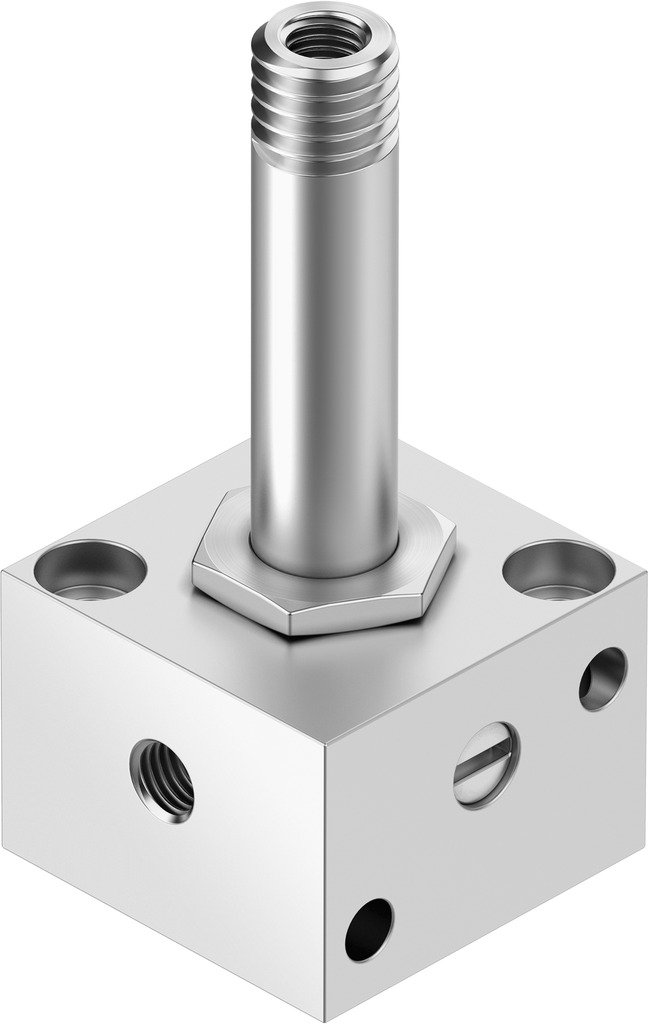

Solenoid valve

MFH-3-M5

4450

Valve function
3/2-way, closed, monostable
Standard nominal flow rate (standardised to DIN 1343)
58 l/min
Pneumatic connection, port 1
M5
Type of actuation
Electric

GTIN: 4052568000608

Technical Data

  • Valve function3/2-way, closed, monostable
  • Type of actuationElectric
  • Standard nominal flow rate (standardised to DIN 1343)58 l/min
  • pneumatic working portM5
  • Operating pressure0 MPa ... 0.8 MPa
  • Operating pressure0 bar ... 8 bar
  • DesignPoppet seat
  • Type of resetMechanical spring
  • Approvalc UL us - Recognized (OL)
  • Nominal size1.3 mm
  • Exhaust-air functionWithout flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideNon-detenting
  • Type of pilotingDirect
  • Flow directionNon-reversible

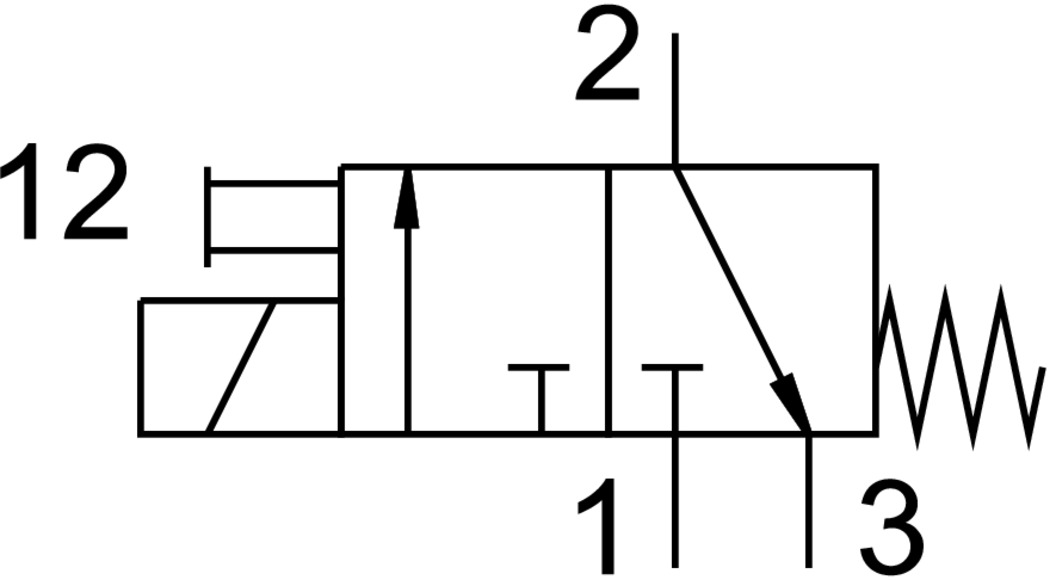

  • Symbol00991308
  • Switching time off16 ms
  • Switching time on9 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature-15 °C ... 60 °C
  • Ambient temperature-15 °C ... 40 °C
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1M5
  • Pneumatic connection, port 2M5
  • Pneumatic connection, port 3M5

Downloads

Technical data

Links

Spare parts

Valve function - 3/2-way, closed, monostable

Standard nominal flow rate - 58 l/min

Pneumatic connection, port 1 - M5

Type of actuation - Electric

Solenoid valveSolenoid valveSolenoid valveSolenoid valve

SKU 4450
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
