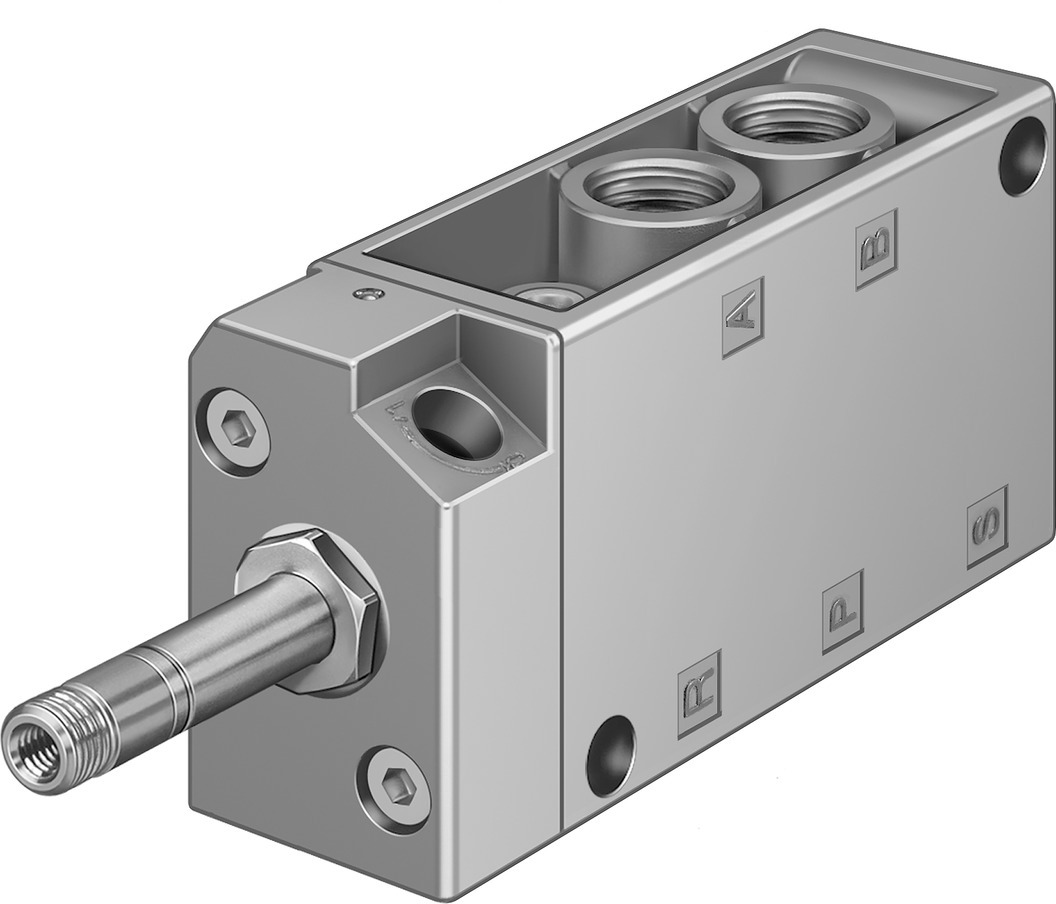

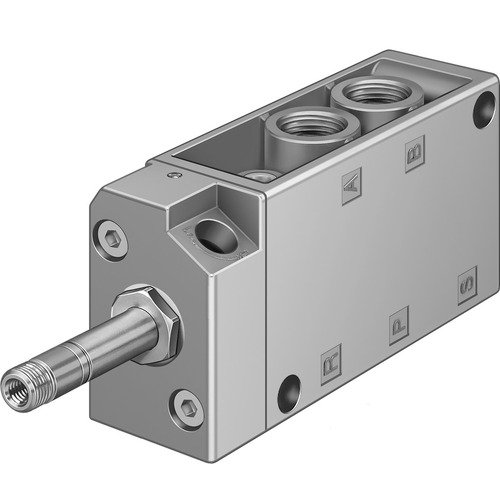

Solenoid valve

MFH-5-1/4

6211

Technical Data

  • Valve function5/2-way, monostable
  • Type of actuationElectric
  • Construction width30.5 mm
  • Standard nominal flow rate (standardised to DIN 1343)1000 l/min
  • pneumatic working portG1/4
  • Operating voltageVia solenoid coil, must be ordered separately
  • Operating pressure0.22 MPa ... 0.8 MPa
  • Operating pressure2.2 bar ... 8 bar
  • DesignPoppet seat
  • Type of resetMechanical spring
  • Approvalc UL us - Recognized (OL)
  • Degree of protectionIP65
  • Nominal size7 mm
  • Grid dimension32 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideDetenting
  • Type of pilotingPilot actuated
  • Flow directionNon-reversible
  • Symbol00991035
  • lapUnderlap
  • b value0.19
  • C value4.49 l/sbar
  • Switching time off29 ms
  • Switching time on9 ms
  • Max. positive test pulse with 0 signal2200 µs
  • Max. negative test pulse with 1 signal3700 µs
  • Characteristic coil dataSee solenoid coil, to be ordered separately
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-20 °C ... 60 °C
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-5 °C ... 40 °C
  • Product weight290 g
  • Electrical connectionVia F coil, to be ordered separately
  • Type of mountingOn manifold rail With through-hole
  • Pilot exhaust port 84M5
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection, port 3G1/4
  • Pneumatic connection, port 4G1/4
  • Pneumatic connection, port 5G1/4
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium

GTIN: 4052568001131
