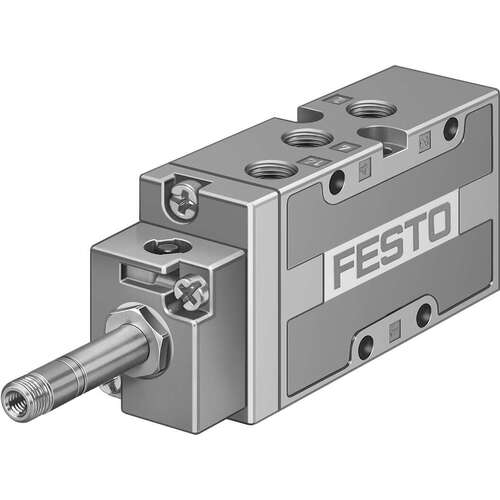

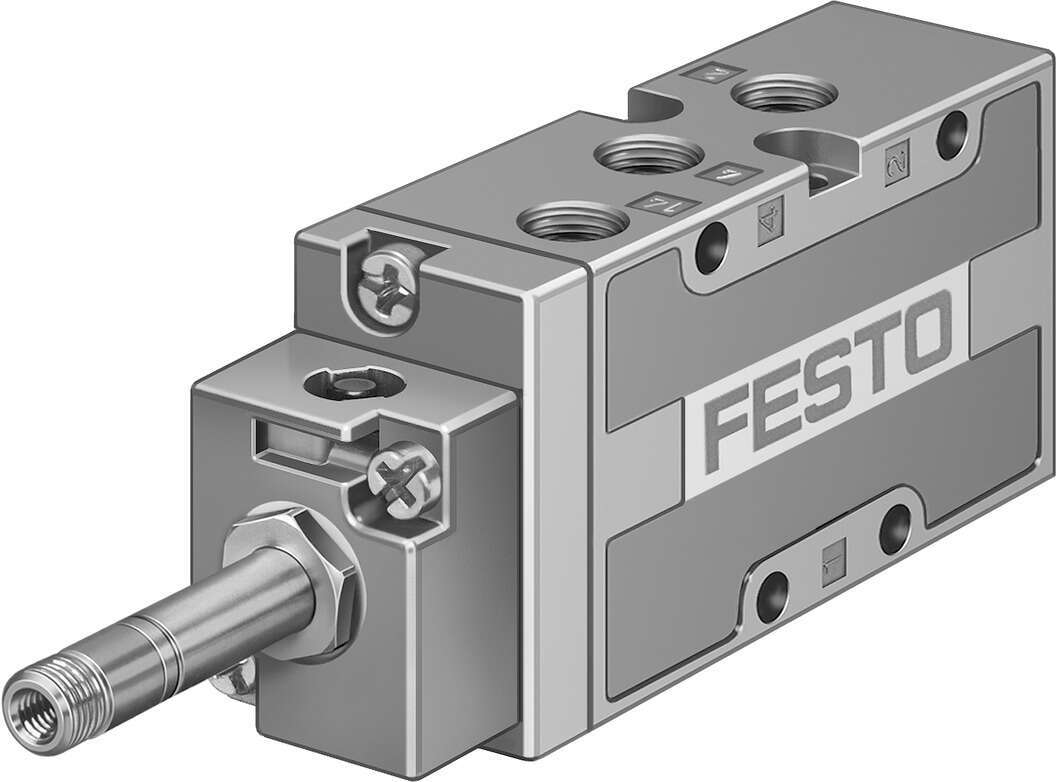

Solenoid valve

MFH-5-1/8-L-B

30991

Valve function

5/2-way, monostable

Standard nominal flow rate (standardised to DIN 1343)

1000 l/min

Pneumatic connection, port 1

G1/8

Type of actuation

Electric

GTIN: 4052568114268

Technical Data

Valve function5/2-way, monostable
Type of actuationElectric
Construction width26 mm
Standard nominal flow rate (standardised to DIN 1343)1000 l/min
pneumatic working portG1/8
Operating pressure0.3 MPa ... 1 MPa
Operating pressure3 bar ... 10 bar
DesignPiston gate valve
Type of resetPneumatic spring
Nominal size8 mm
Sealing principleSoft
Mounting positionoptional
Manual overrideNon-detenting
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00991023
lapOverlap
Max. switching frequency3 Hz
Switching time off22 ms
Switching time on27 ms
Max. positive test pulse with 0 signal2200 µs
Max. negative test pulse with 1 signal3700 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-40 °C ... 60 °C
Media temperature-10 °C ... 60 °C
Ambient temperature-5 °C ... 40 °C
Product weight280 g
Electrical connectionVia F coil, to be ordered separately
Type of mountingOn PR rail With through-hole
Pilot exhaust port 84M5
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS-compliant
Material sealsNBR
Material housingDie-cast aluminium
