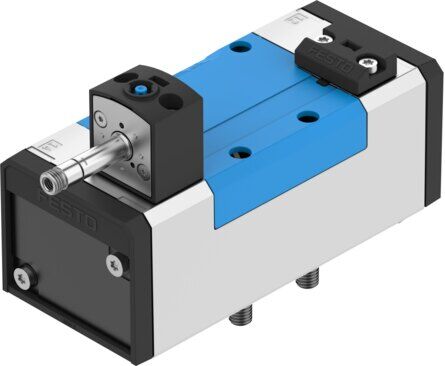

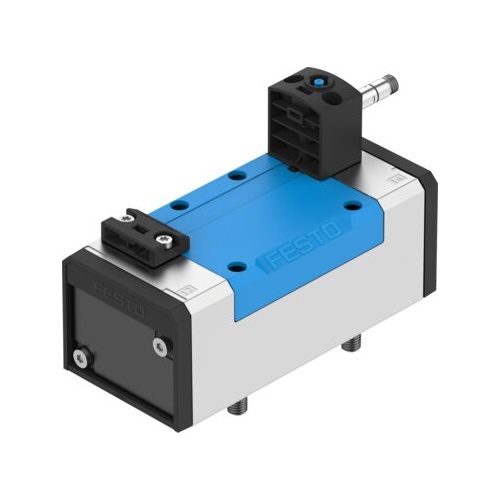

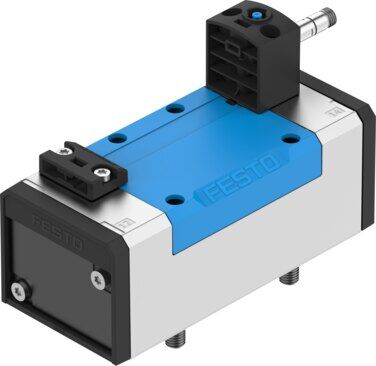

Solenoid valve

Technical Data

• Valve function5/2-way, monostable
• Type of actuationElectric
• Construction width65 mm
• Standard nominal flow rate (standardised to DIN 1343)4500 l/min
• pneumatic working portSub-base size 3 to ISO 5599-1 G1/2
• Operating voltageVia solenoid coil, must be ordered separately
• Operating pressure0.2 MPa ... 1 MPa
• Operating pressure2 bar ... 10 bar
• DesignPiston gate valve
• Type of resetPneumatic spring
• Approvalc UL us - Recognized (OL)
• Maritime classificationSee certificate
• Certificate issuing authorityDNV-TAA000032X UL MH19482
• Degree of protectionIP65
• Nominal size14.5 mm
• Grid dimension71 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Conforms to standardISO 5599-1
• Manual overrideDetenting via accessory Non-detenting
• ISO code351
• Type of pilotingPilot actuated
• Pilot air supplyInternal
• Flow directionNon-reversible
• Symbol00991049
• lapOverlap
• Suitability for vacuumno
• Switching time off66 ms
• Switching time on60 ms
• Max. positive test pulse with 0 signal2200 µs
• Max. negative test pulse with 1 signal3700 µs
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Media temperature-10 °C ... 60 °C
• Sound pressure level85 dB(A)
• Ambient temperature-5 °C ... 40 °C
• Product weight960 g
• Electrical connection3-pin Type A, with VACF-A coil Type B industry (11 mm), with MSF coil Via solenoid coil, to be ordered separately
• Type of mountingOn sub-base Via through-hole and screw
• Pilot exhaust port 84M5
• Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1
• Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1
• Note on materialsRoHS-compliant
• Material sealsHNBR NBR
• Material housingDie-cast aluminium
