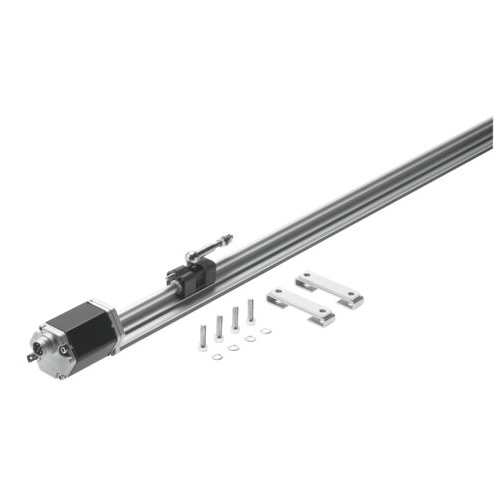

Displacement encoderMME-MTS-1000-TLF-AIF

178303

GTIN: 4052568144074

Stroke
1000 mm
Functional principle of measuring system
Digital
Output signal
CAN protocol type SPC-AIF
Displacement resolution
0.01 mm
Electrical connection
Plug - To DIN 45322 - Round design



Technical Data Displacement encoder MME-MTS-1000-TLF-AIF

  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Functional principle of measuring systemDigital
  • Ambient temperature-40 °C ... 75 °C
  • Max. travel speed10 m/s
  • Max. travel acceleration200 m/s²
  • Displacement resolution<0.01 mm
  • Non-dependent linearity0.02 % Min. ± 50 µm
  • Temperature coefficient15 ppm/K
  • Stroke1000 mm
  • Output signalCAN protocol type SPC-AIF
  • Nominal operating voltage DC24 V
  • Permissible voltage fluctuations-15% / +20%
  • Max. current consumption90 mA
  • Electrical connectionPlug To DIN 45322 Round design
  • DesignClosed profile With sliding carriage
  • Parallel offset of coupling± 1.5 mm
  • Angle offset of driver±1°
  • Mounting positionAny
  • Product weight1550 g
  • Material housinganodised
  • Material slide housingReinforced PBT Permanent magnet
  • Material slide couplingSteel
  • Material coverDie-cast aluminium painted
  • Material mounting clipsPEI
  • Degree of protectionIP65 To IEC 60529
  • Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 1
  • Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 1
  • LABS (PWIS) conformityVDMA24364-B2-L



SKU 178303
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
