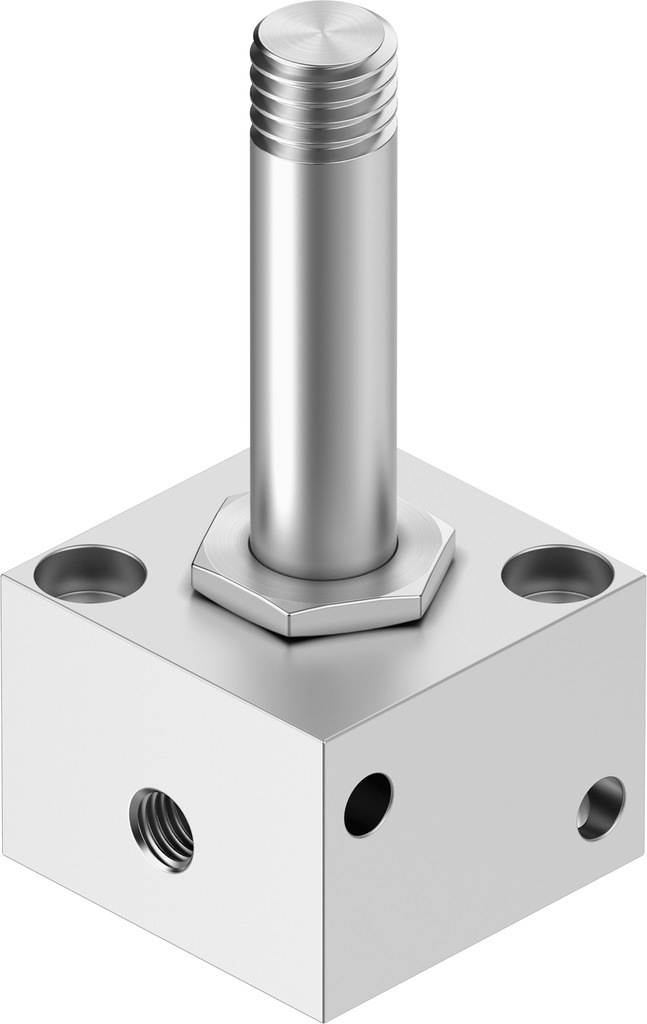

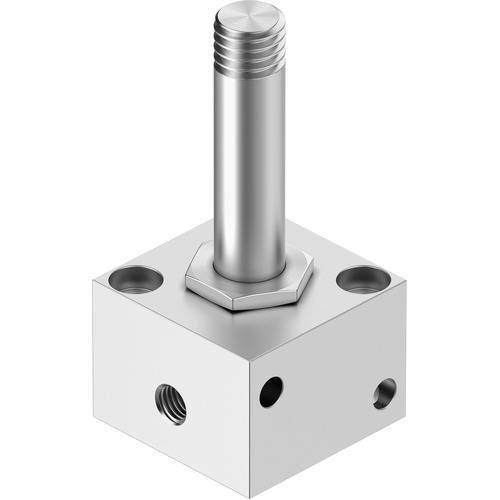

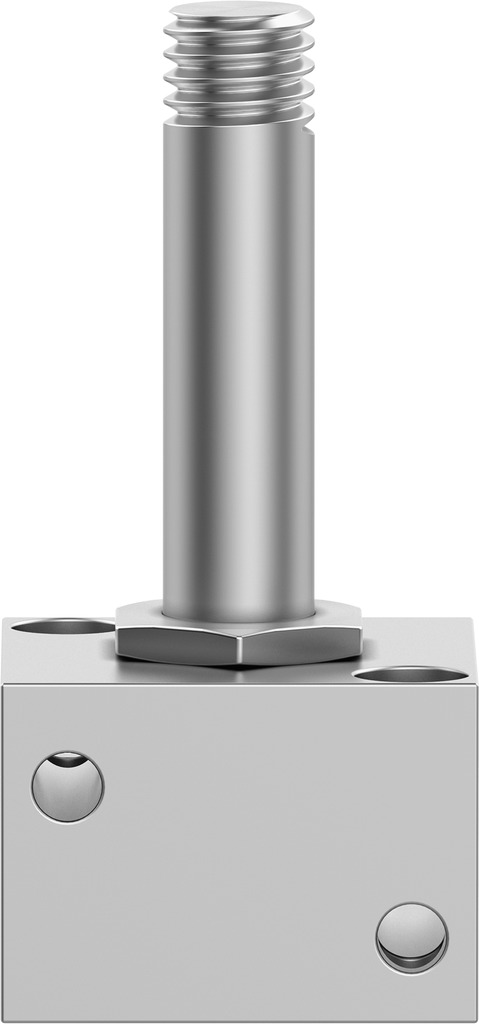

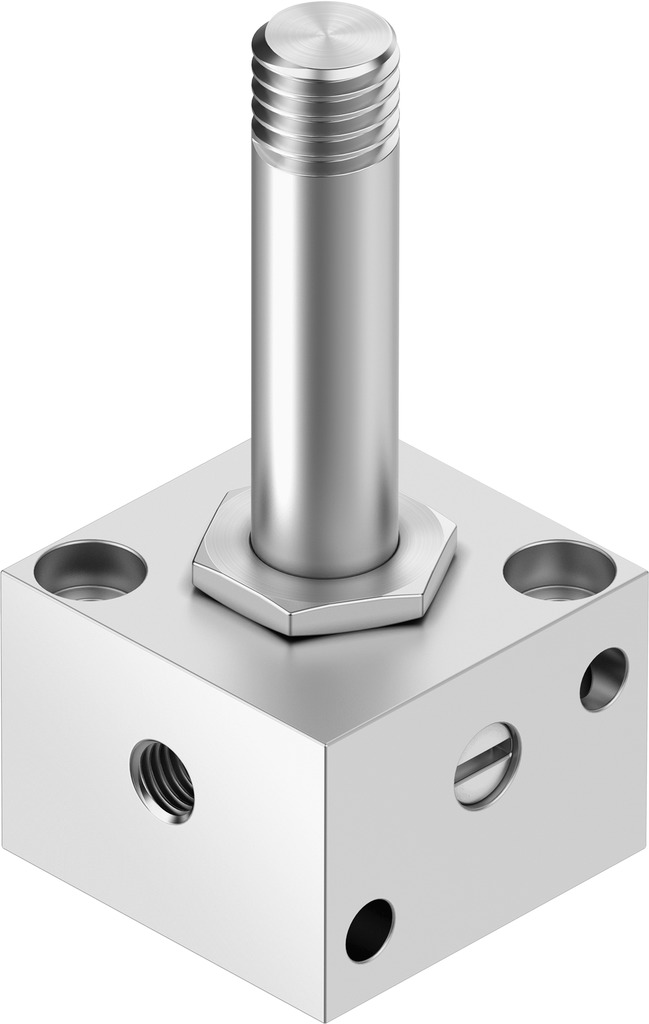

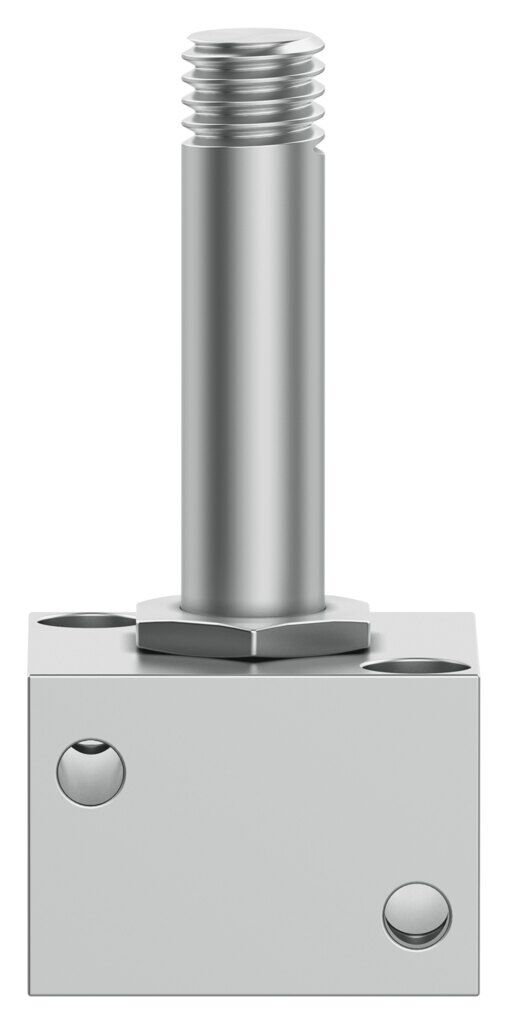

Solenoid valve

MOFH-3-M5

4543

Valve function
3/2 open, monostable
Standard nominal flow rate (standardised to DIN 1343)
46 l/min
Pneumatic connection, port 1
M5
Type of actuation
Electric


GTIN: 4052568008505

Technical Data

  • Valve function3/2 open, monostable
  • Type of actuationElectric
  • Standard nominal flow rate (standardised to DIN 1343)46 l/min
  • pneumatic working portM5
  • Operating pressure0 MPa ... 0.65 MPa
  • Operating pressure0 bar ... 6.5 bar
  • DesignPoppet seat
  • Type of resetMechanical spring
  • Approvalc UL us - Recognized (OL)
  • Nominal size1.5 mm
  • Exhaust-air functionWithout flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideDetenting
  • Type of pilotingDirect
  • Flow directionNon-reversible
  • Symbol00991322
  • Switching time off8.5 ms
  • Switching time on12 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature-15 °C ... 60 °C
  • Ambient temperature-15 °C ... 40 °C
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1M5
  • Pneumatic connection, port 2M5
  • Pneumatic connection, port 3M5

Downloads

Technical data

Links

Spare parts

Solenoid valveSolenoid valveSolenoid valveSolenoid valve

SKU 4543
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
