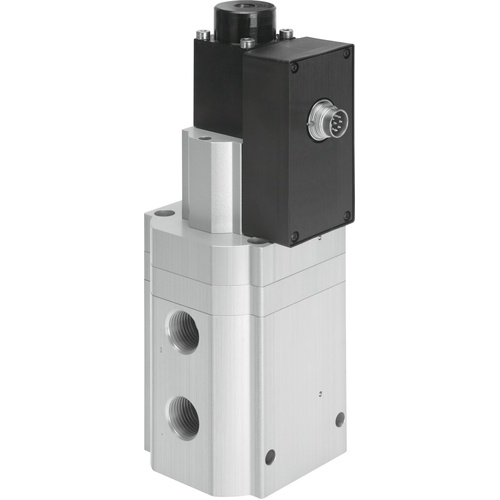

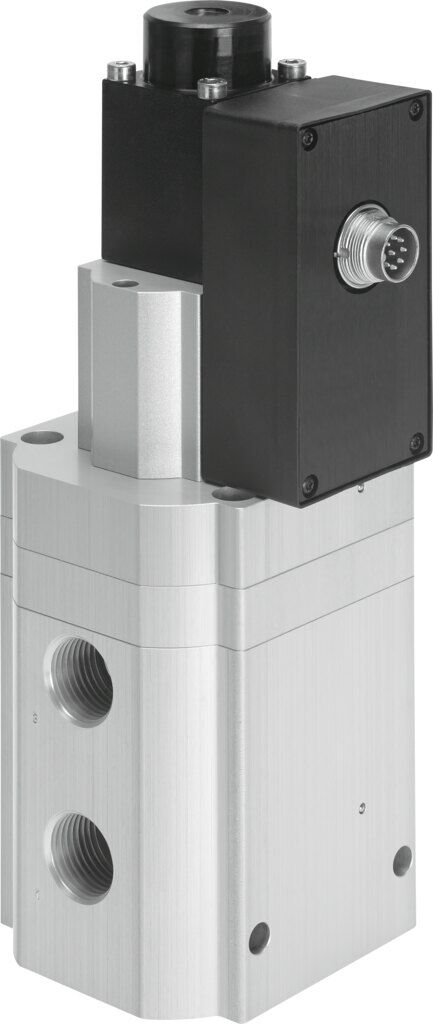

Proportional-pressure regulator

Technical Data

• Nominal size, supply11 mm
• Nominal size, exhaust12 mm
• Type of actuationElectric
• Sealing principleSoft
• Mounting positionoptional
• DesignPiloted piston regulator
• Short circuit current ratingFor all electrical connections
• Safety instructionsSafety position MPPES: if the power supply cable is interrupted, the output pressure drops to 0 bar.
• Symbol00995304
• Reverse polarity protectionFor all electrical connections
• Valve function3-way proportional-pressure regulator, closed
• Operating pressure≤1.2 MPa
• Operating pressure≤12 bar
• Pressure regulation range0 MPa ... 1 MPa
• Pressure regulation range0 bar ... 10 bar
• Inlet pressure 111 bar ... 12 bar
• Inlet pressure 11.1 MPa ... 1.2 MPa
• Max. pressure hysteresis0.005 MPa
• Max. pressure hysteresis0.05 bar
• Switching time off450 ms
• Switching time on230 ms
• Operational voltage range DC18 V ... 30 V
• Nominal operating voltage DC24 V
• Residual ripple10 %
• SETPOINT/ACTUAL valuesVoltage type 0 - 10 V
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• ApprovalRCM trademark
• KC markKC-EMV
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Media temperature0 °C ... 60 °C
• Degree of protectionIP65
• Ambient temperature0 °C ... 50 °C
• Product weight2670 g
• Electrical connectionM16x0.75 Plugs To DIN 45326 Round design
• Type of mountingWith through-hole
• Pneumatic connection, port 1G1/2
• Pneumatic connection, port 2G1/2
• Pneumatic connection, port 3G1/2
• Note on materialsRoHS-compliant
• Material housingWrought aluminium alloy
• Material membraneNBR
